Simpson Anchors | SKU:
CD25118T

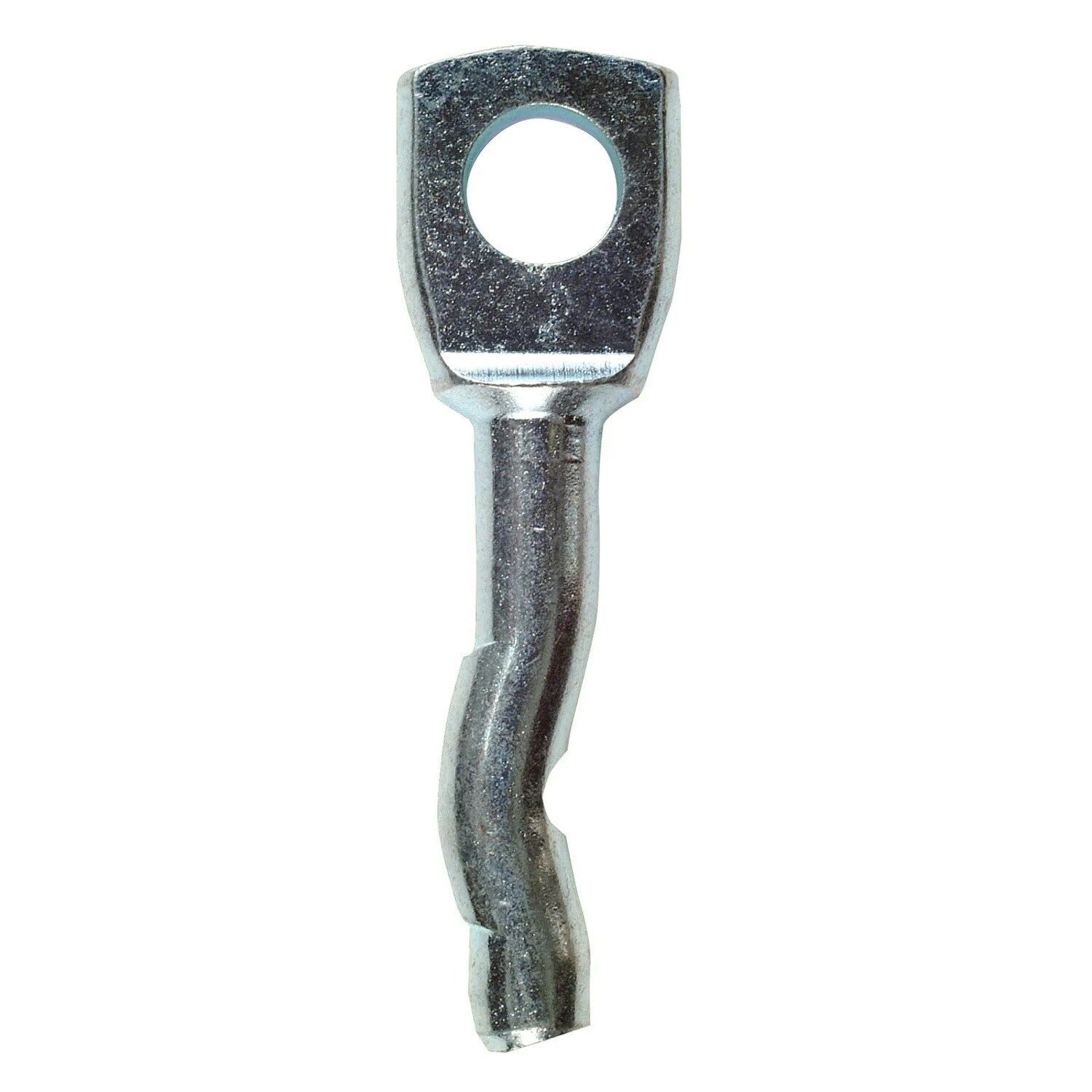

Simpson Strong-Tie CD25118T (1/4") Crimp Drive Zinc-Plated Tie-Wire Head Anchor (100 Pack)
$76.68
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25118T Description
The Crimp Drive Anchor Zinc-Plated Tie-Wire Head is a reliable anchoring solution designed for various applications, featuring a unique curved shaft design for efficient installation.
Simpson Strong-Tie CD25118T Includes
- (100) Crimp Drive Anchor Zinc-Plated Tie-Wire Head
Simpson Strong-Tie CD25118T Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Ideal for a variety of applications
- Available in five different head styles
Simpson Strong-Tie CD25118T Applications
- Mushroom head provides a tamper-proof solution
- Countersunk head provides a zero-profile solution
- Rod-coupler head allows for threaded rod attachments
- Tie-wire head for suspended ceiling applications
- Duplex head allows for easy removal in temporary applications
Simpson Strong-Tie CD25118T Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
- Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
- For rod coupler and tie-wire models, drive in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD25118T Specifications
| Material | Carbon steel |
| Finish | Zinc plated and mechanically galvanized |
| Head Type | Tie-Wire Head |
| Size | 1/4" Tie Wire |
| Drill Bit Diameter | 1/4" |
| Min. Embedment | 1 1/8" |
| Box Quantity | 100 |
| Carton Quantity | 500 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
