Simpson Anchors  |  SKU: CD25200M  |  Barcode: 707392637011

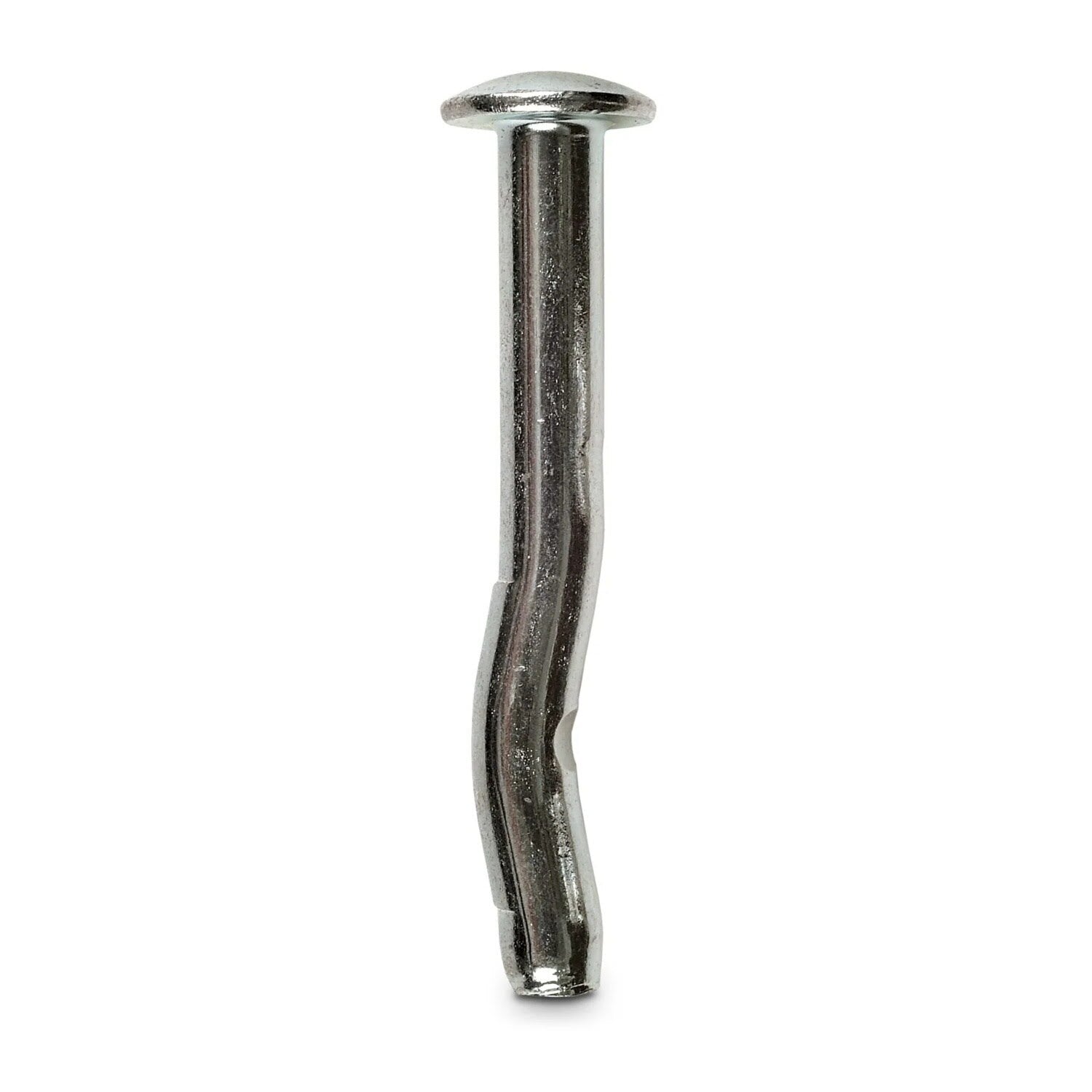

Simpson Strong-Tie CD25200M (1/4" x 2") Crimp Drive Anchor Zinc-Plated Mushroom Head (100 Pack)

$32.74 $36.02

Description

Simpson Strong-Tie CD25200M Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.

Simpson Strong-Tie CD25200M Includes

  • (100) 1/4" x 2" Mushroom Head Crimp Drive Anchors

Simpson Strong-Tie CD25200M Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Ideal for a variety of applications
  • Available in five different head styles

Simpson Strong-Tie CD25200M Applications

  • Mushroom head provides a tamper-proof solution
  • Countersunk head provides a zero-profile solution
  • Rod-coupler head allows for threaded rod attachments
  • Tie-wire head for suspended ceiling applications
  • Duplex head allows for easy removal in temporary applications

Simpson Strong-Tie CD25200M Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
  3. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Ensure the anchor is driven to the required embedment depth.
  5. For rod coupler and tie-wire models, drive in until the head is seated against the surface of the base material.

Simpson Strong-Tie CD25200M Specifications

Material Carbon Steel
Finish Zinc Plated
Head Type Mushroom Head
Diameter 1/4"
Length 2"
Drill Bit Size 1/4"
Fixture Hole Size 5/16"
Minimum Embedment Depth 1-1/4"
Quantity 100

NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
