Simpson Anchors  |  SKU: CD25212M  |  Barcode: 707392416111

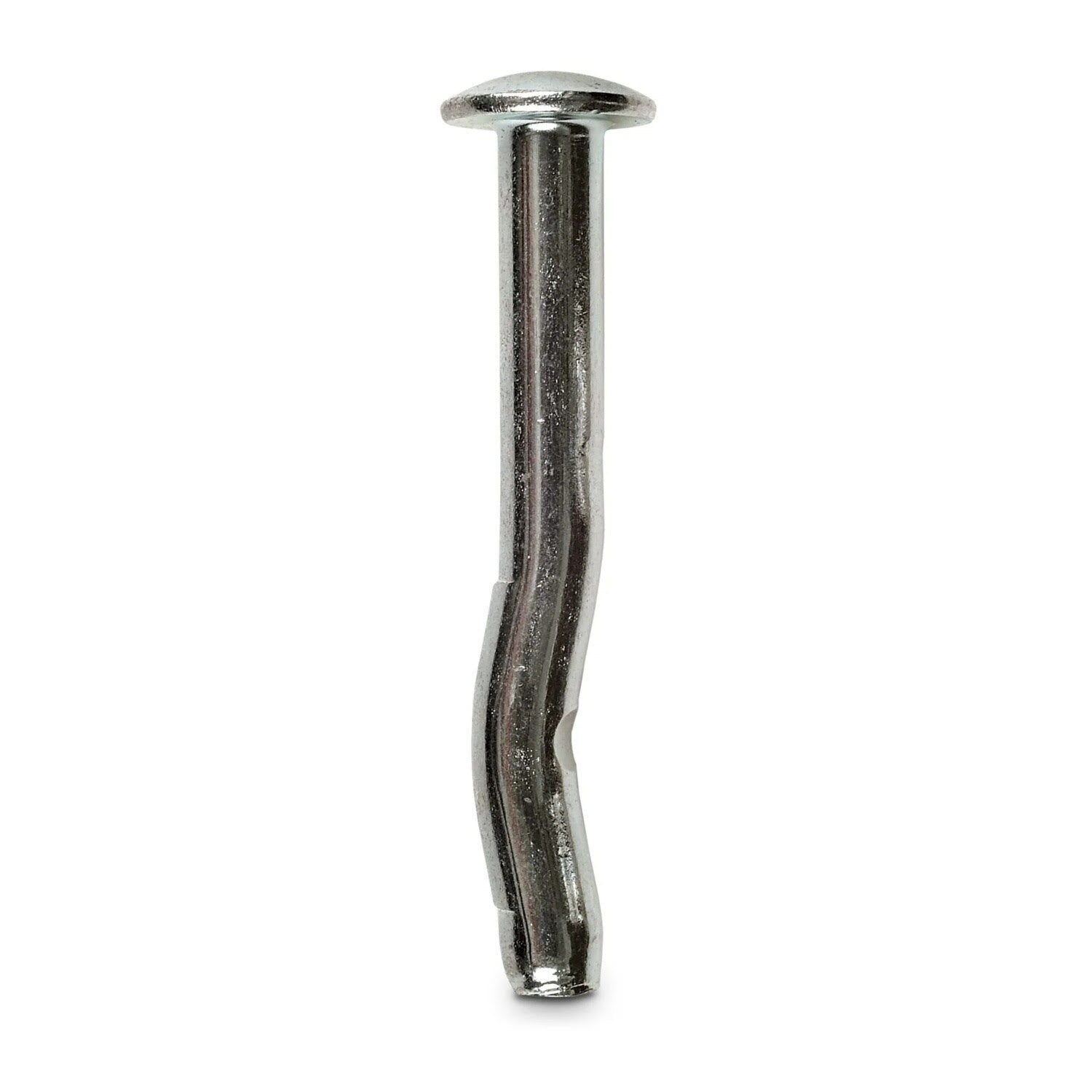

Simpson Strong-Tie CD25212M (1/4" x 2-1/2") Crimp Drive Zinc-Plated Mushroom Head Anchor (100 Pack)

$39.56

Description

Simpson Strong-Tie CD25212M Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. It features a pre-formed curvature along the shaft for secure anchoring and a low-profile mushroom head for versatile applications.

Simpson Strong-Tie CD25212M Includes

  • (100) 1/4 x 2-1/2 Mushroom Head Crimp Drive Anchors

Simpson Strong-Tie CD25212M Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Ideal for a variety of applications
  • Available in five different head styles

Simpson Strong-Tie CD25212M Applications

  • Attaching wood or light-gauge steel to concrete and grout-filled block
  • Providing tamper-proof solutions with mushroom head
  • Offering zero-profile solutions with countersunk head
  • Threaded rod attachments with rod-coupler head
  • Suspended ceiling applications with tie-wire head
  • Temporary applications with duplex head for easy removal

Simpson Strong-Tie CD25212M Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air.
  3. Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Ensure the anchor is driven to the required embedment depth.

Simpson Strong-Tie CD25212M Specifications

Material Carbon Steel
Finish Zinc Plated
Diameter 1/4"
Length 2-1/2"
Drill Bit Diameter 1/4"
Fixture Hole Diameter 5/16"
Minimum Embedment Depth 1-1/4"
Quantity 100

NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
