Simpson Anchors  |  SKU: CD25234D  |  Barcode: 707392894018

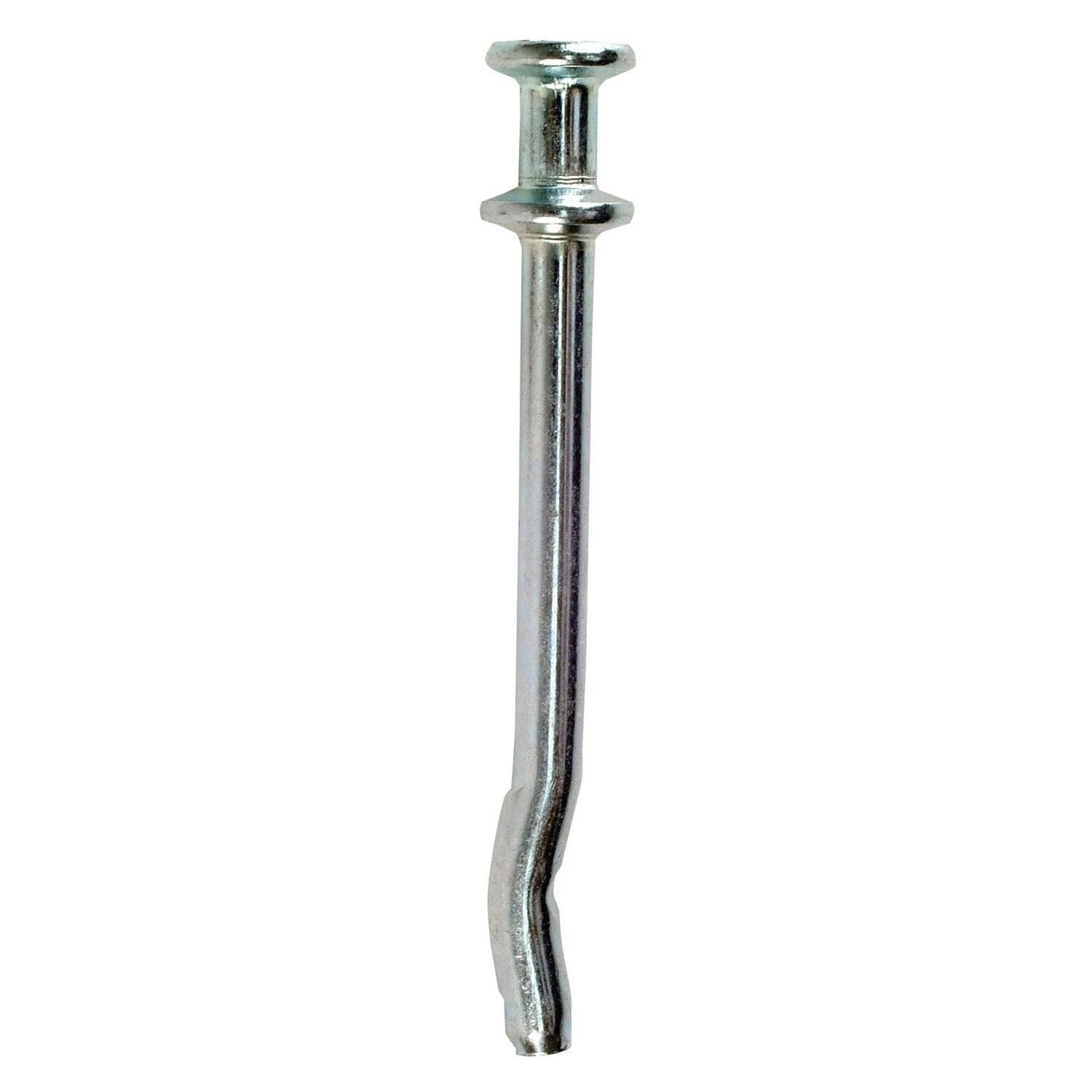

Simpson Strong-Tie CD25234D (1/4") Crimp Drive Zinc-Plated Duplex Head Anchor (100 Pack)

$66.99

Description

Simpson Strong-Tie CD25234D Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The Duplex head is designed for temporary attachment to wood or light-gauge steel to concrete and grout-filled block and can be easily removed.

Simpson Strong-Tie CD25234D Includes

  • (100) 1/4 in. x 2-3/4 in. Crimp Drive Anchor

Simpson Strong-Tie CD25234D Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Ideal for a variety of applications
  • Available in five different head styles

Simpson Strong-Tie CD25234D Applications

  • Temporary attachment to wood or light-gauge steel to concrete and grout-filled block
  • Mushroom head provides a tamper-proof solution
  • Countersunk head provides a zero-profile solution
  • Rod-coupler head allows for threaded rod attachments
  • Tie-wire head for suspended ceiling applications
  • Duplex head allows for easy removal in temporary applications

Simpson Strong-Tie CD25234D Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
  3. Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.

Simpson Strong-Tie CD25234D Specifications

Material Carbon Steel
Finish Zinc Plated
Diameter 1/4 in.
Length 2-3/4 in.
Drill Bit Size 1/4 in.
Fixture Hole Size 5/16 in.
Minimum Embedment Depth 1-1/4 in.
Head Type Duplex Head
Quantity 100

NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
