Simpson Strong-Tie CD25312M Description

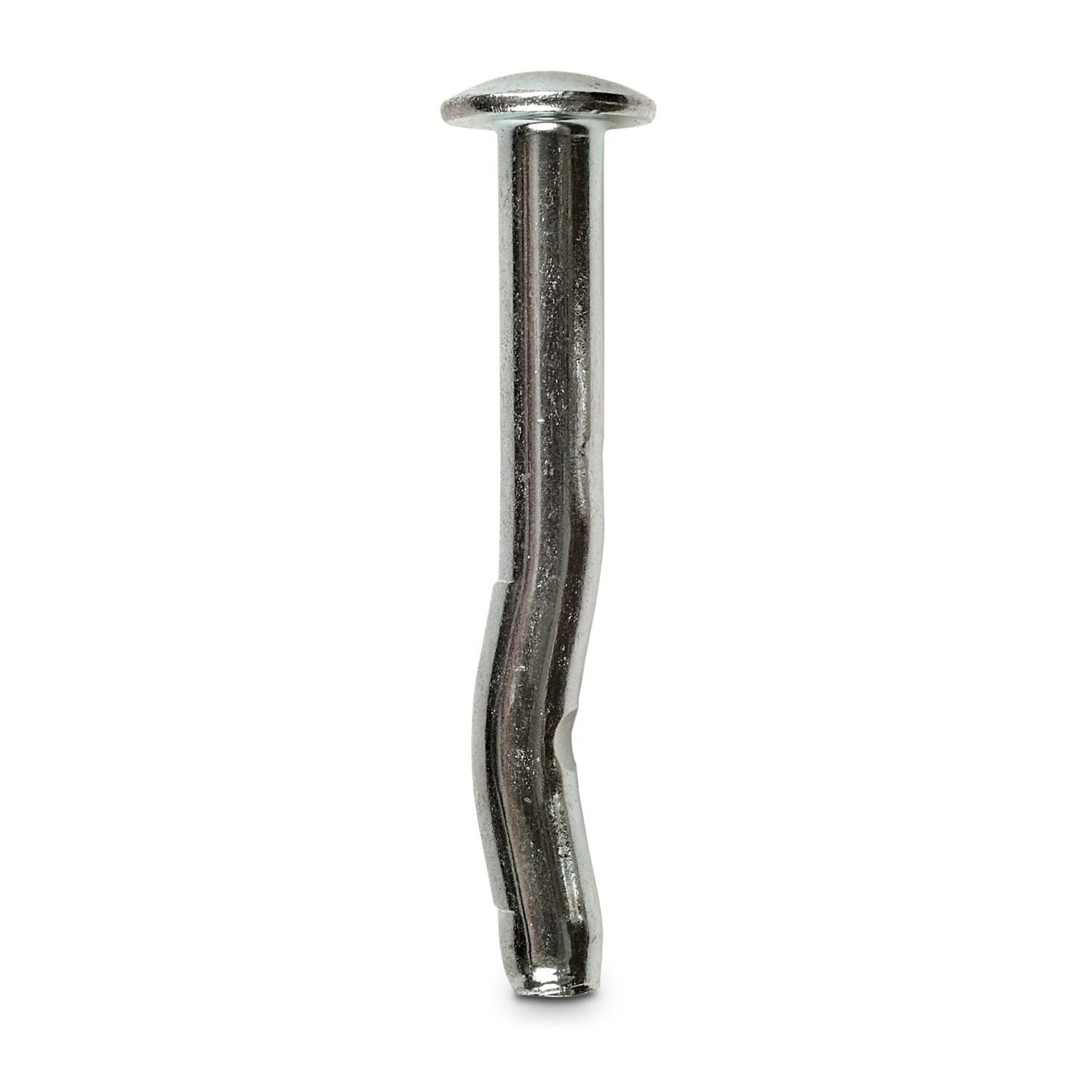

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. Its unique curved shaft design ensures secure installation and reduces project costs.
Simpson Strong-Tie CD25312M Includes
- (100) Crimp Drive Anchors
Simpson Strong-Tie CD25312M Features
- Unique curved shaft design for secure installation
- Zinc-plated finish for durability
- Mushroom head for a tamper-proof solution
- Ideal for attaching wood or light-gauge steel to concrete
Simpson Strong-Tie CD25312M Applications
- Attaching wood to concrete
- Securing light-gauge steel to grout-filled block
- General construction requiring tamper-proof anchoring
Simpson Strong-Tie CD25312M Installation Overview
- Drill a hole using a 1/4 in. carbide bit to the required depth.
- Blow the hole clean of dust and debris.
- Drive the anchor through the fixture into the hole until the head is flush.
Simpson Strong-Tie CD25312M Specifications
| Material | Carbon Steel |
| Finish | Zinc-Plated |
| Head Type | Mushroom Head |
| Diameter | 1/4 in. |
| Length | 3-1/2 in. |
| Drill Bit Size | 1/4 in. |
| Fixture Hole Size | 5/16 in. |
| Minimum Embedment Depth | 1-1/4 in. |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
