Simpson Anchors | SKU:
CD25400CMG

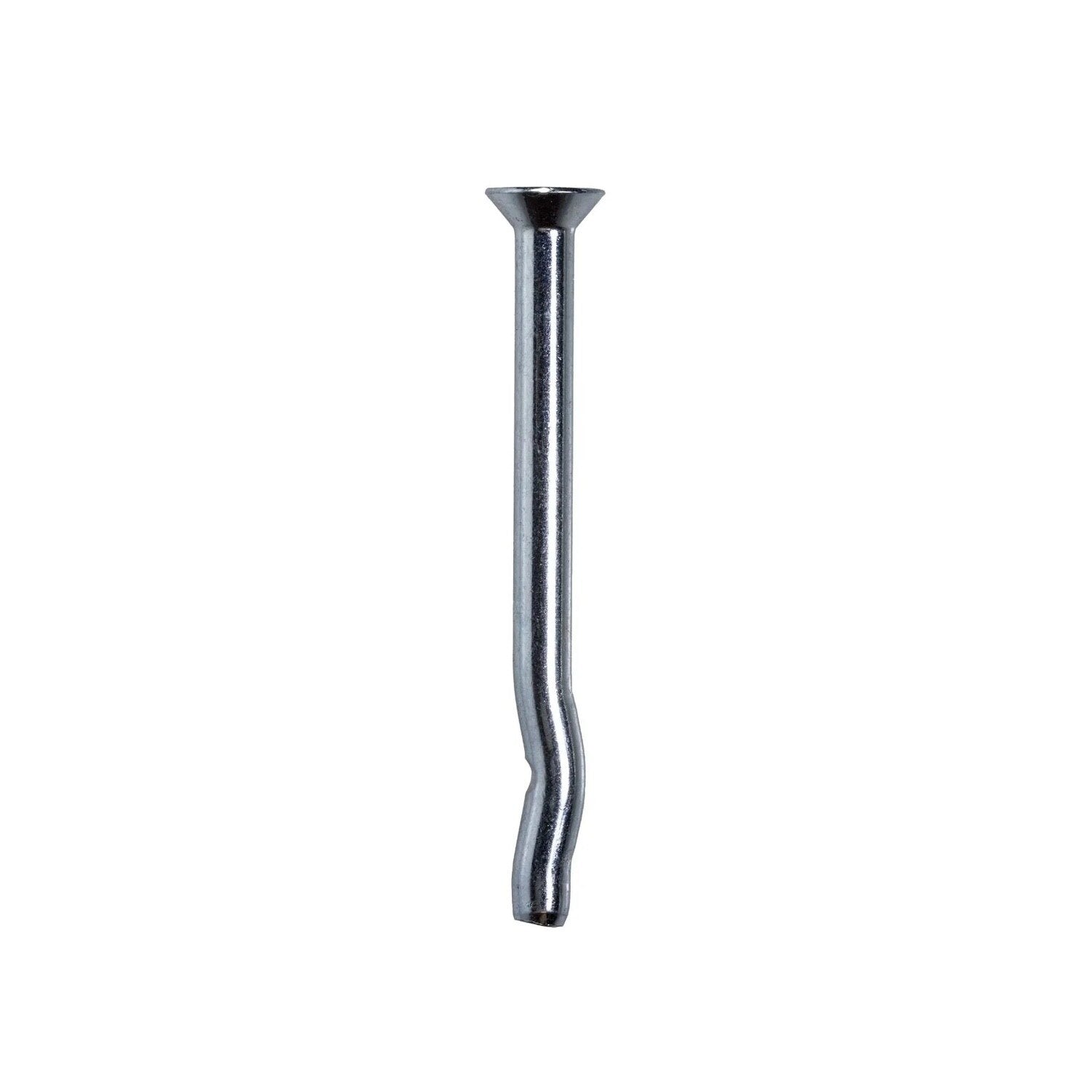

Simpson Strong-Tie CD25400CMG (1/4" x 4") Crimp Drive Mechanically Galvanized Countersunk Head Anchor (100 Pack)
$65.51
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25400CMG Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor designed for concrete and grout-filled block applications. Its pre-formed curvature ensures secure placement without secondary tightening, saving time and reducing costs.
Simpson Strong-Tie CD25400CMG Includes
- (100) 1/4" x 4" Countersunk Head Crimp Anchor
Simpson Strong-Tie CD25400CMG Features
- Easy-to-install expansion anchor for concrete and grout-filled block
- Pre-formed curvature for secure placement without secondary tightening
- Countersunk head for a smooth surface when attaching materials
- Mechanically galvanized for durability
Simpson Strong-Tie CD25400CMG Applications
- Attaching wood or light gauge steel to concrete and grout-filled block
- General construction requiring secure anchoring in concrete
Simpson Strong-Tie CD25400CMG Installation Overview
- Drill a hole using a 1/4" diameter carbide bit to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25400CMG Specifications
| Diameter | 1/4" |
| Length | 4" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Fixture hole size | 5/16" |
| Head type | Countersunk Head |
| Minimum embedment depth | 1-1/4" |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
