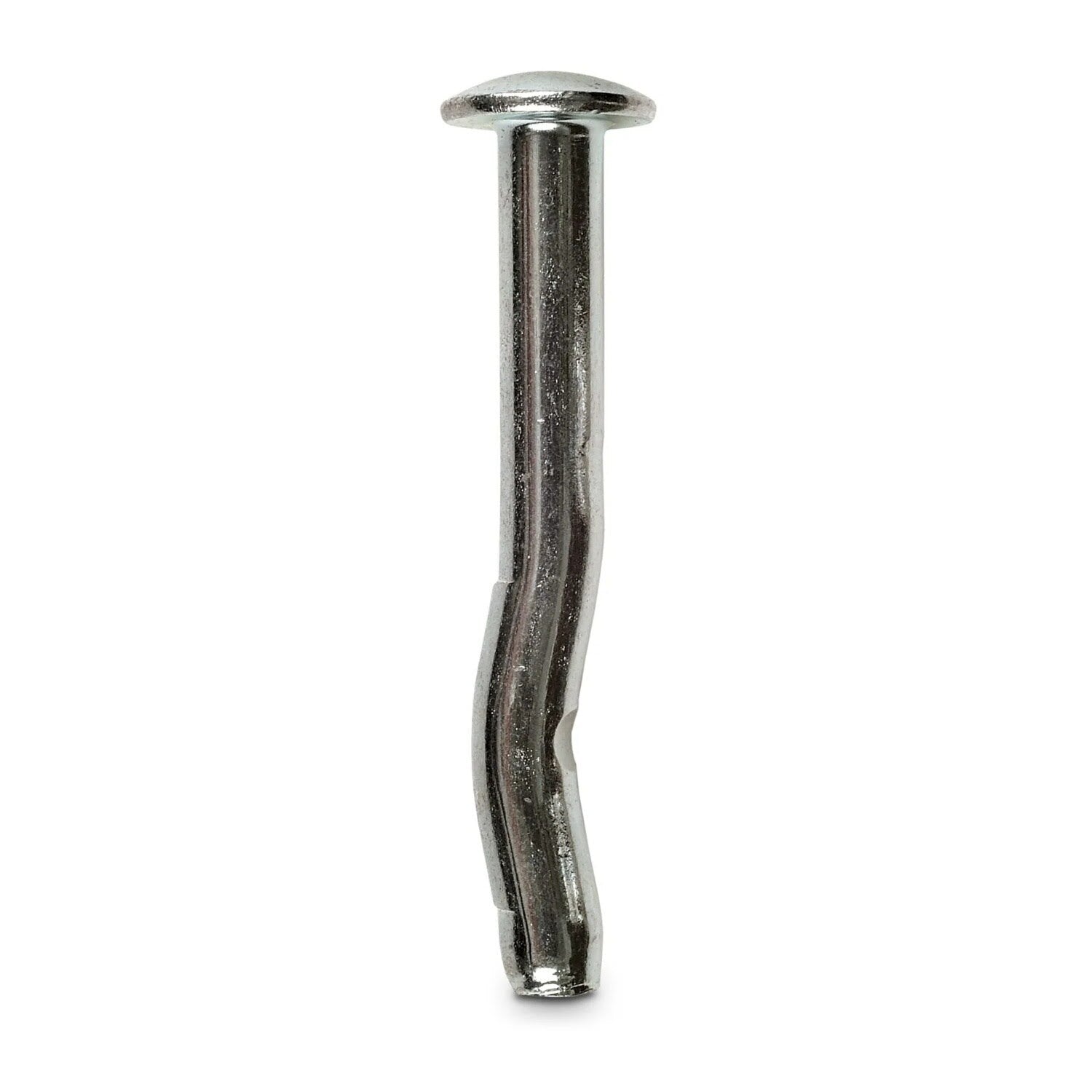

Simpson Strong-Tie CD25400M (1/4" x 4") Crimp Drive Zinc-Plated Mushroom Head Anchor (100 Pack)
$49.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25400M Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD25400M Includes
- (100) Crimp Drive Anchor Zinc-Plated Mushroom Head
Simpson Strong-Tie CD25400M Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Ideal for a variety of applications
- Available in five different head styles
Simpson Strong-Tie CD25400M Applications
- Attaching wood or light-gauge steel to concrete and grout-filled block
- Providing tamper-proof solutions with mushroom head anchors
- Creating zero-profile solutions with countersunk head anchors
- Threaded rod attachments using rod-coupler head anchors
- Suspended ceiling applications with tie-wire head anchors
- Temporary applications with duplex head anchors
Simpson Strong-Tie CD25400M Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
- Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
- For rod coupler and tie-wire models, drive in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD25400M Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4" |
| Length | 4" |
| Drill Bit Diameter | 1/4" |
| Fixture Hole Diameter | 5/16" |
| Minimum Embedment Depth | 1-1/4" |
| Quantity | 100 |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
