Simpson Anchors  |  SKU: CD37112RC  |  Barcode: 707392579816

Simpson Strong-Tie CD37112RC (3/8") Crimp Drive Anchor Zinc-Plated Rod-Coupler Head (50 Pack)

$36.69 $41.06

Description

Simpson Strong-Tie CD37112RC Description

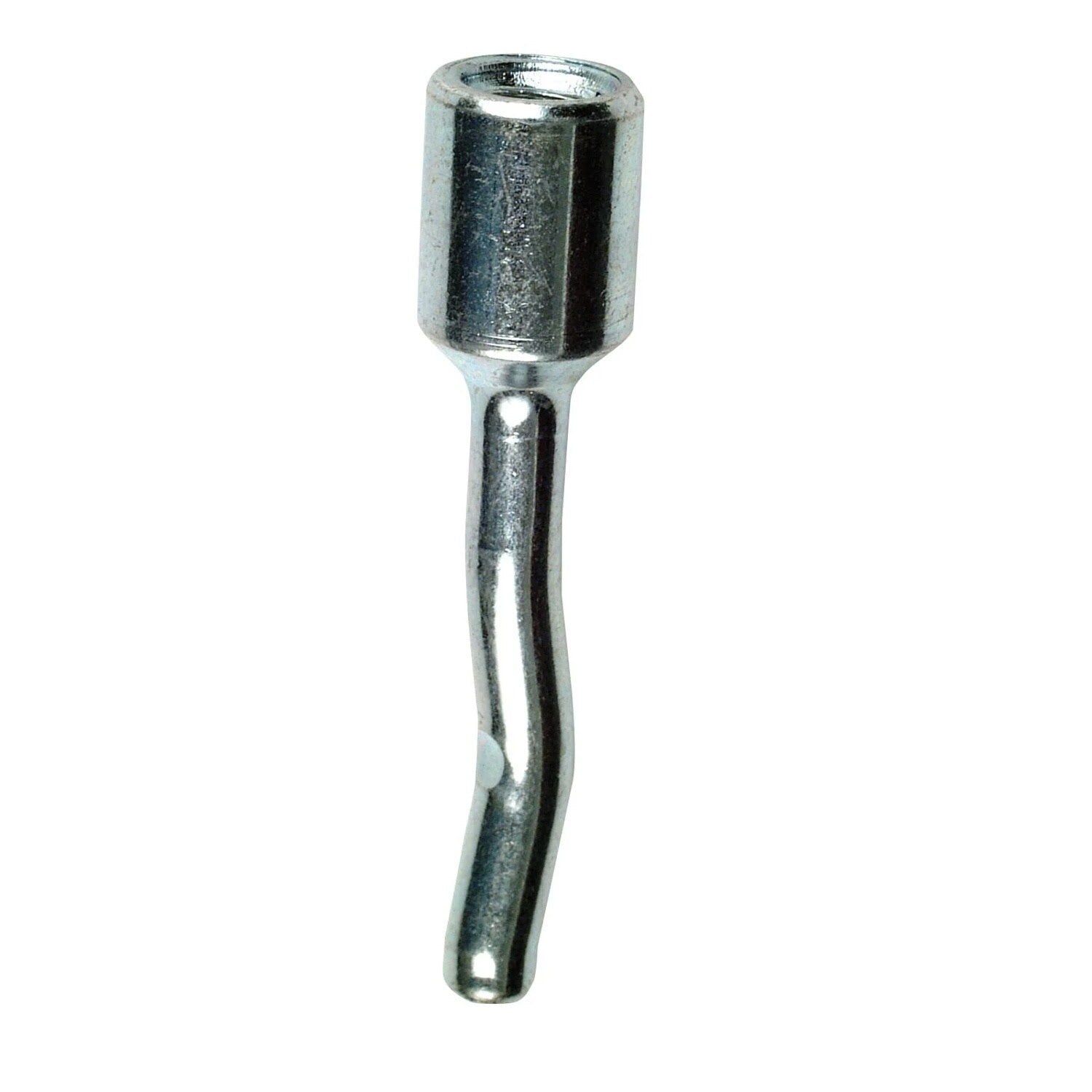

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The Rod Coupler head is designed for 3/8" threaded rod, commonly used for hanging sprinkler pipes and suspended ceiling panels.

Simpson Strong-Tie CD37112RC Includes

  • (50) Crimp Drive Anchor Zinc-Plated Rod-Coupler Head

Simpson Strong-Tie CD37112RC Features

  • Unique curved shaft design for faster installation
  • Reduces overall project cost
  • Available in five different head styles

Simpson Strong-Tie CD37112RC Applications

  • Brick — Solid
  • Mushroom head provides a tamper-proof solution
  • Countersunk head provides a zero-profile solution
  • Rod-coupler head allows for threaded rod attachments
  • Tie-wire head for suspended ceiling applications
  • Duplex head allows for easy removal in temporary applications

Simpson Strong-Tie CD37112RC Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air.
  3. Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Ensure the anchor is driven to the required embedment depth.

Simpson Strong-Tie CD37112RC Specifications

Material Carbon Steel
Finish Zinc Plated
Diameter 1/4"
Length 1-1/2"
Accepts rod size 3/8"
Drill bit size 1/4"
Head type Rod Coupler
Minimum embedment depth 1-1/4"
Quantity 50

NOTE: Use these products in dry, interior, and non-corrosive environments only.
