Simpson Anchors  |  SKU: CD37200M  |  Barcode: 707392634713

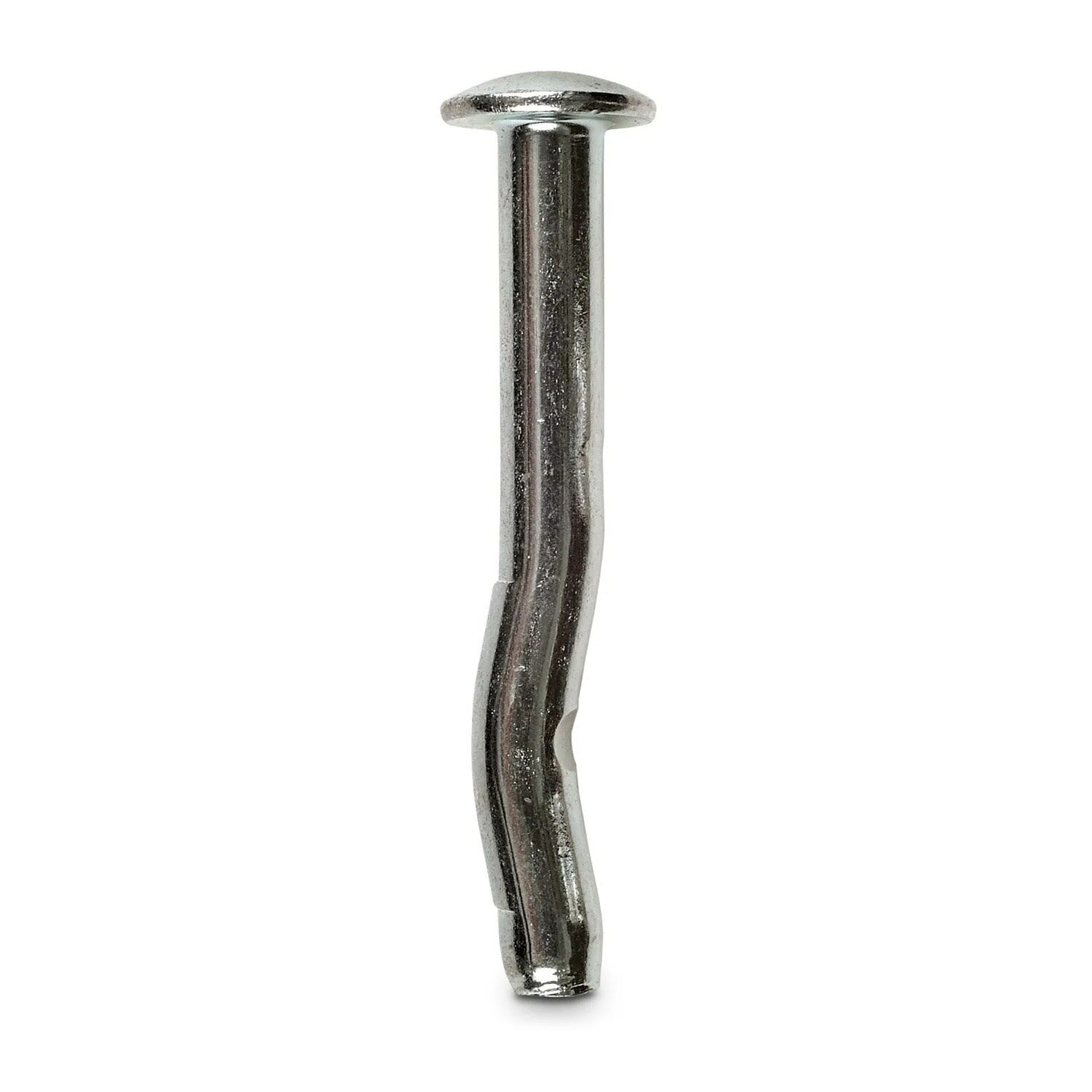

Simpson Strong-Tie CD37200M (3/8" x 2") Crimp Drive Anchor Zinc-Plated Mushroom Head (25 Pack)

$20.51 $22.92

Description

Simpson Strong-Tie CD37200M Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block.

Simpson Strong-Tie CD37200M Includes

  • (25) Crimp Drive Anchor Zinc-Plated Mushroom Head

Simpson Strong-Tie CD37200M Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Ideal for a variety of applications
  • Available in five different head styles

Simpson Strong-Tie CD37200M Applications

  • Attaching wood or light-gauge steel to concrete and grout-filled block
  • Providing tamper-proof solutions with mushroom head
  • Offering zero-profile solutions with countersunk head
  • Threaded rod attachments with rod-coupler head
  • Suspended ceiling applications with tie-wire head
  • Temporary applications with duplex head

Simpson Strong-Tie CD37200M Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air.
  3. Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Ensure the anchor is driven to the required embedment depth.

Simpson Strong-Tie CD37200M Specifications

Material Carbon Steel
Finish Zinc Plated
Diameter 3/8"
Length 2"
Drill Bit Diameter 3/8"
Fixture Hole Size 7/16"
Minimum Embedment Depth 1-3/4"
Quantity 25

NOTE: Use these products in dry, interior, and non-corrosive environments only.
