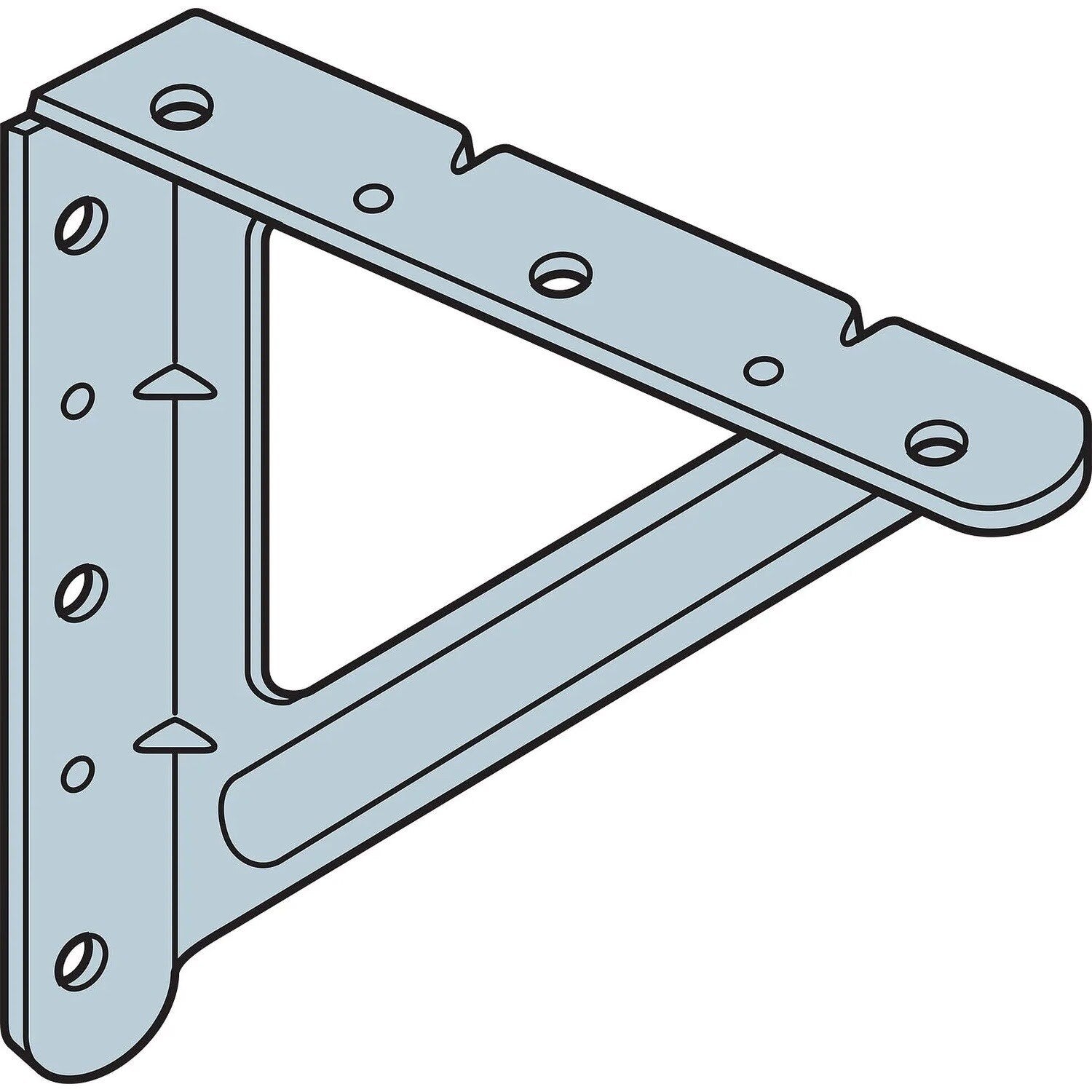

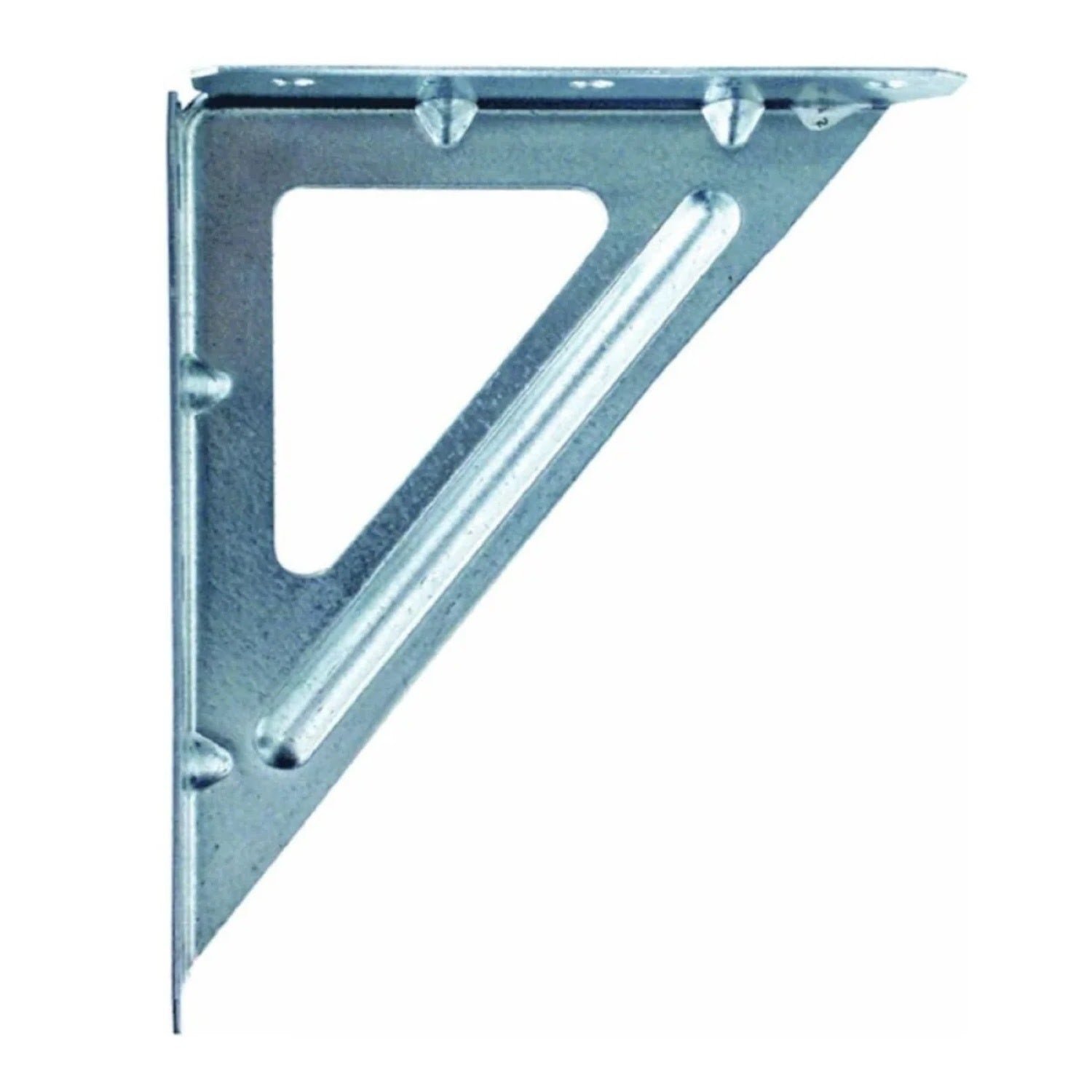

Simpson Strong-Tie CF-R Description
The Simpson CF Concrete Form Bracket is designed to reinforce the connection between a vertical wall and a horizontal surface, providing structural support for various applications.
Simpson Strong-Tie CF-R Includes
- (1) Concrete Form Bracket 16 Gauge G90 Galvanized
Simpson Strong-Tie CF-R Features
- Approved for installation with Strong-Drive SDS Heavy-Duty Connector screws
- Versatile use as supportive angle in concrete forming or for shelving
- Holes are sized for 1/4" Strong-Drive SDS Heavy-Duty Connector screws, 0.148"-diameter nails or #9 Strong-Drive SD Connector screws
Simpson Strong-Tie CF-R Applications
- Reinforcing connections between vertical walls and horizontal surfaces
- Supporting shelving, counters, and window ledges
- Tilt-up perimeter concrete forming

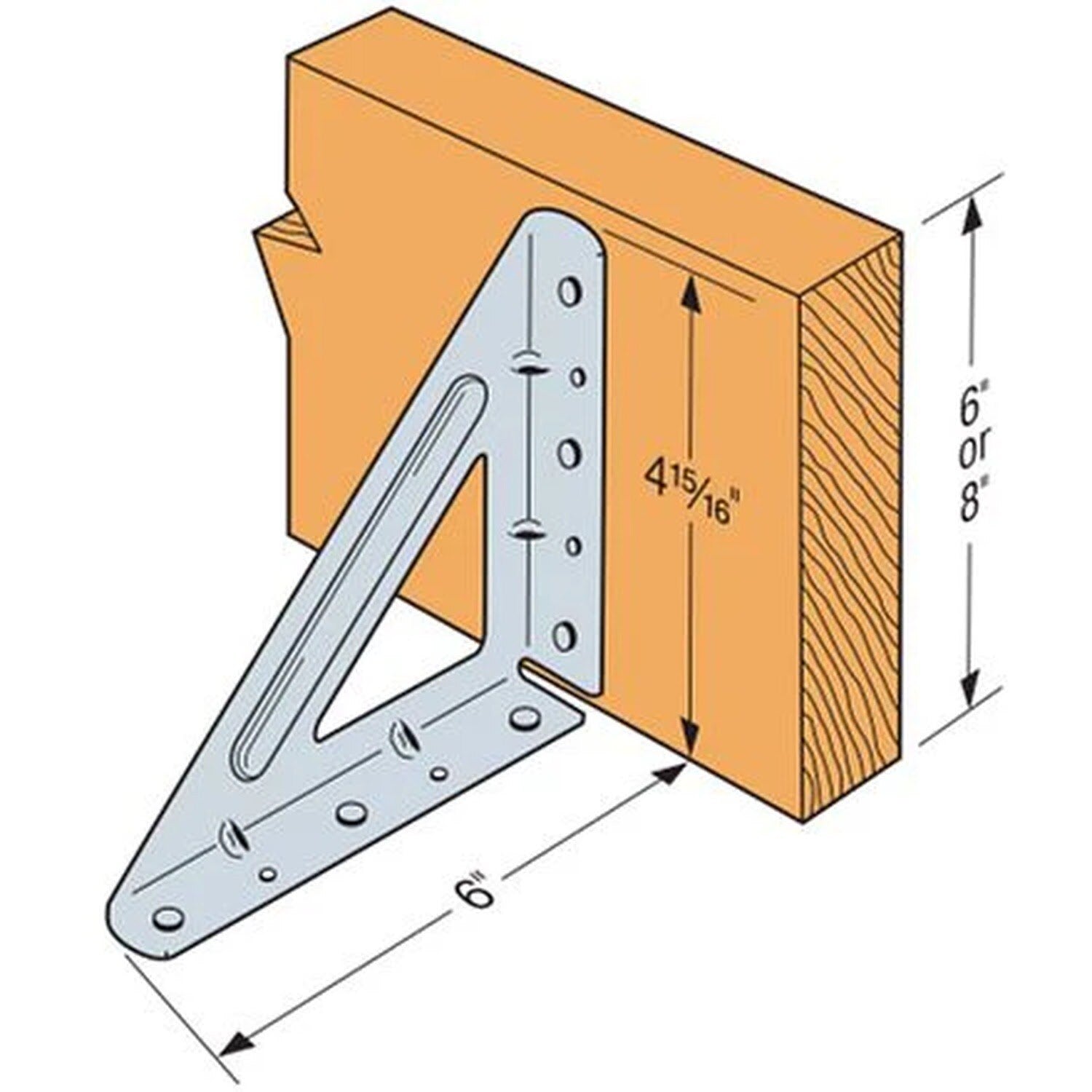

Simpson Strong-Tie CF-R Specifications
| Fasteners required | (3) 1/4" x 2" SDS |
| Height | 6" |
| Thickness | 16 Gauge |
| Width | 4-15/16" |
Toolup Part # :
825281
