Simpson Anchors | SKU:
CJT3ZL
Simpson Strong-Tie CJT3ZL (12-Gauge) ZMAX Galvanized Concealed Joist Tie with Long Pins
$53.59
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CJT3ZL Description

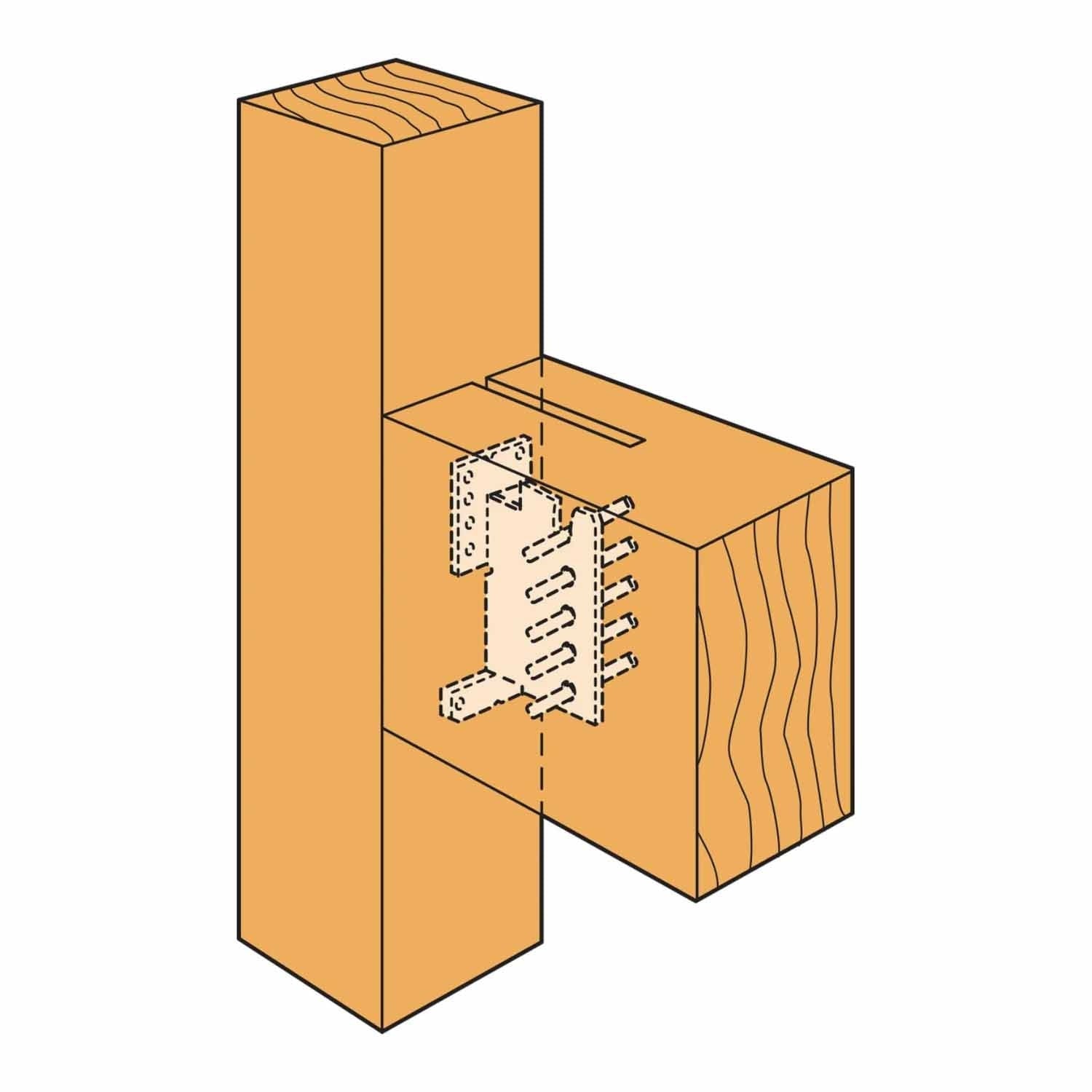

The Simpson Strong-Tie CJT3ZL Concealed Joist Tie is designed for creating strong, concealed connections between headers/posts and beams, featuring a ZMAX coating for enhanced corrosion resistance.

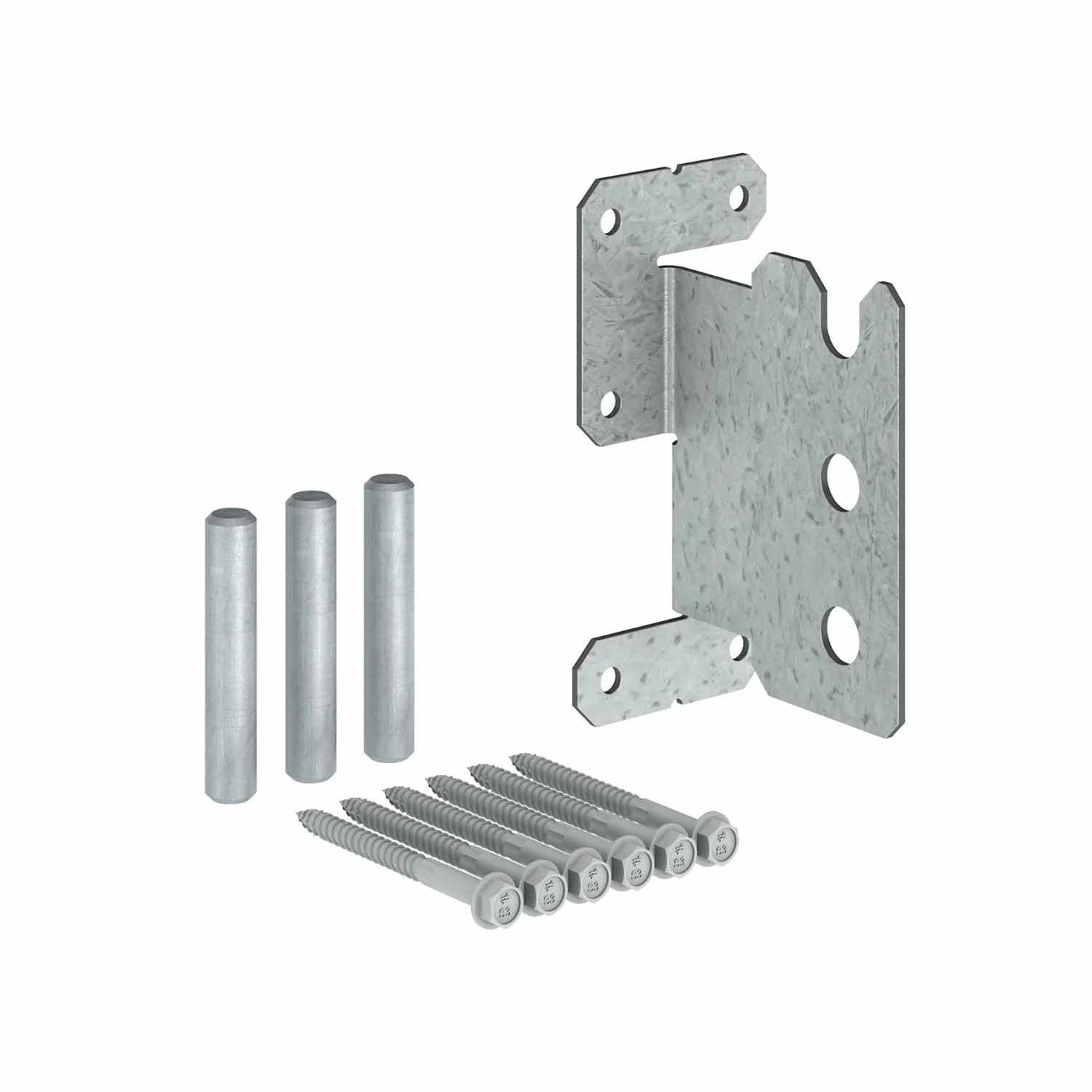

Simpson Strong-Tie CJT3ZL Includes
- (1) Concealed Joist Tie
- (4) Long Pins
- (8) SDS Heavy-Duty Connector Screws
Simpson Strong-Tie CJT3ZL Features
- ZMAX coating for superior corrosion resistance
- Includes all necessary dowels and screws
- Supports sloped members up to 45 degrees
- Compatible with various beam widths
Simpson Strong-Tie CJT3ZL Applications
- Wood-to-wood fastening for headers and beams
- Structural connections in residential and commercial construction

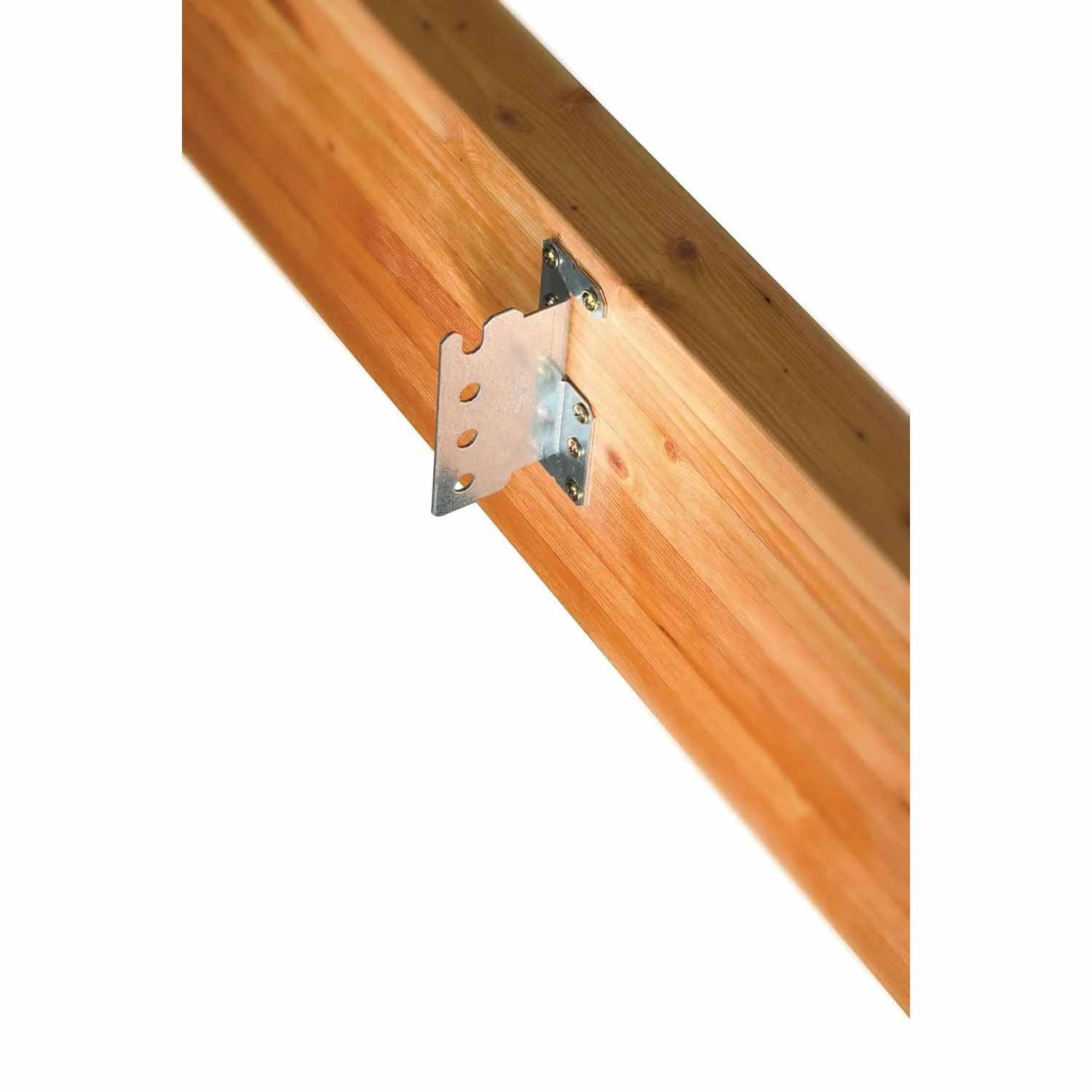

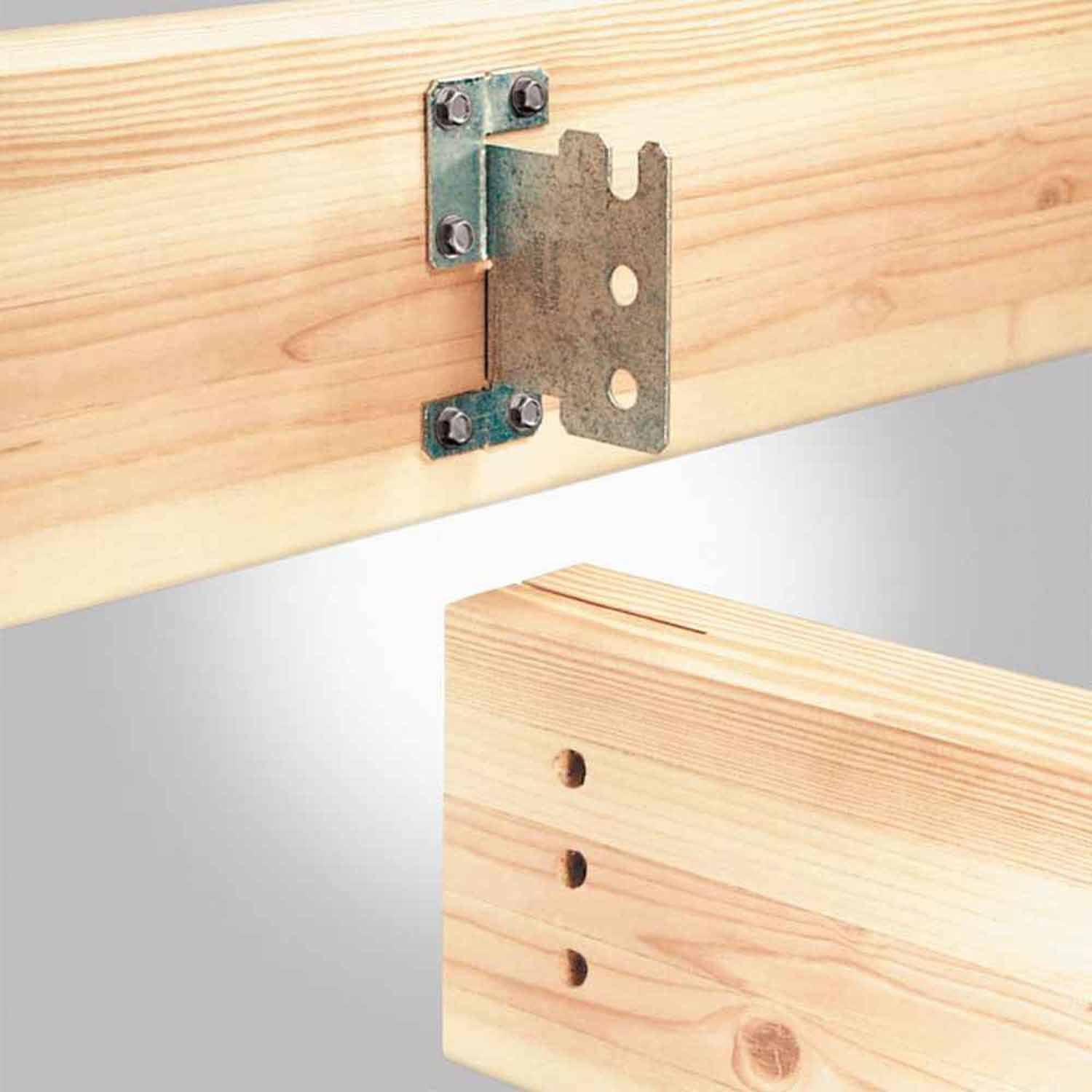

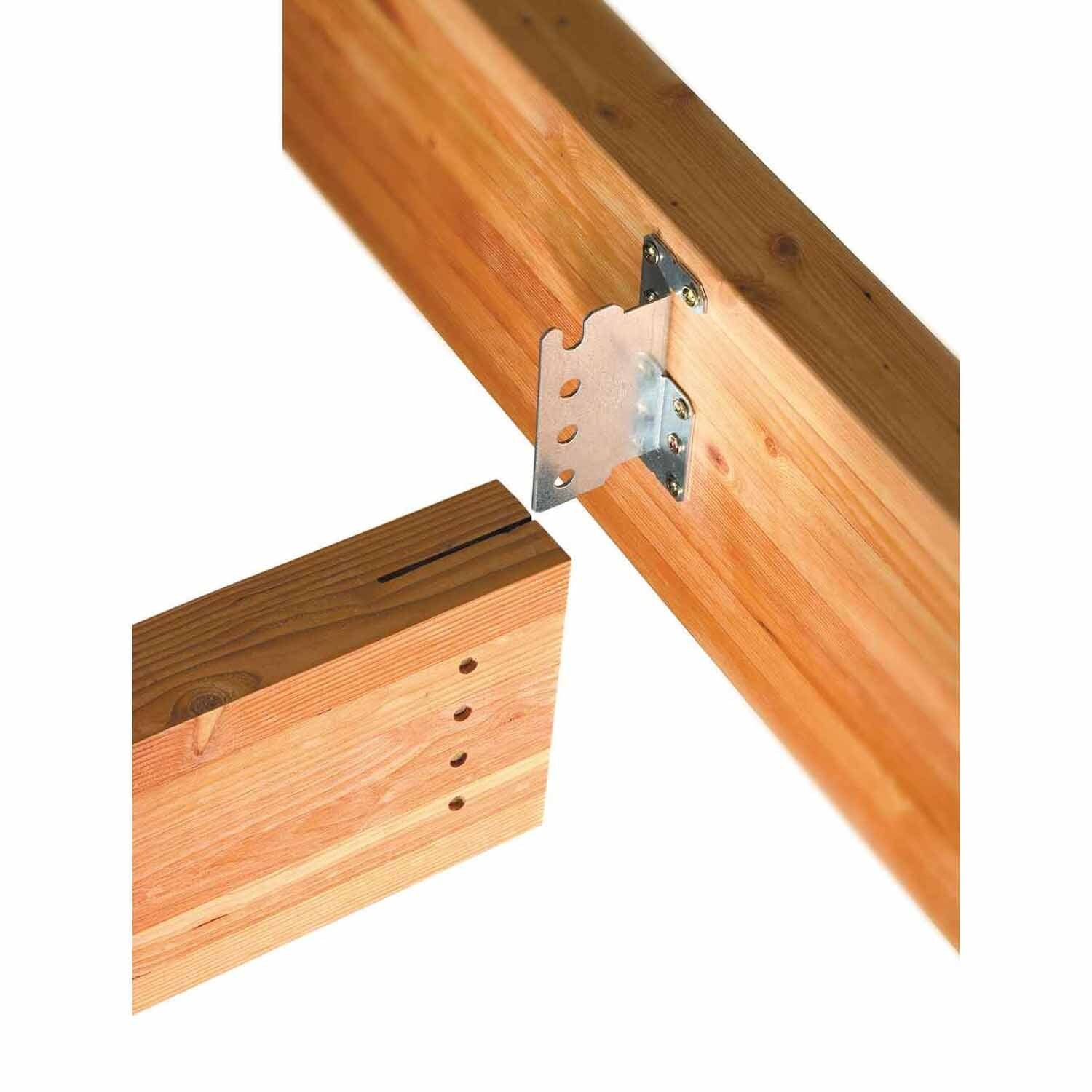

Simpson Strong-Tie CJT3ZL Installation Overview
- Use all specified fasteners

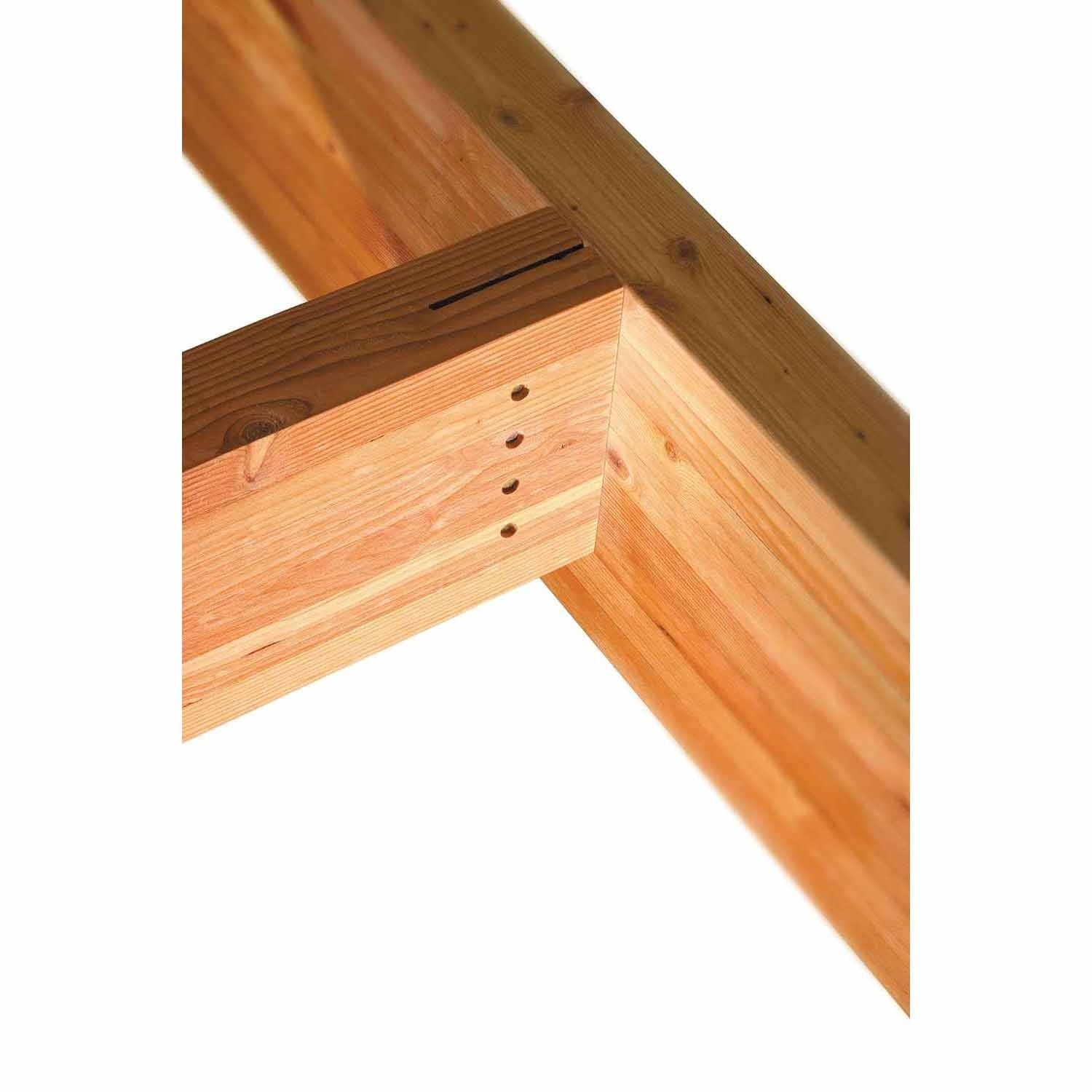

- Router end of beam for screw heads for flush installation
- Ensure beam is perpendicular to support member
- Center dowel in beam for maximum width usage
Simpson Strong-Tie CJT3ZL Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Weight | 2.1 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
