Simpson Anchors | SKU:
CJT3ZS
Simpson Strong-Tie CJT3ZS (12-Gauge) ZMAX Galvanized Concealed Joist Tie with Short Pins
$53.59
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CJT3ZS Description

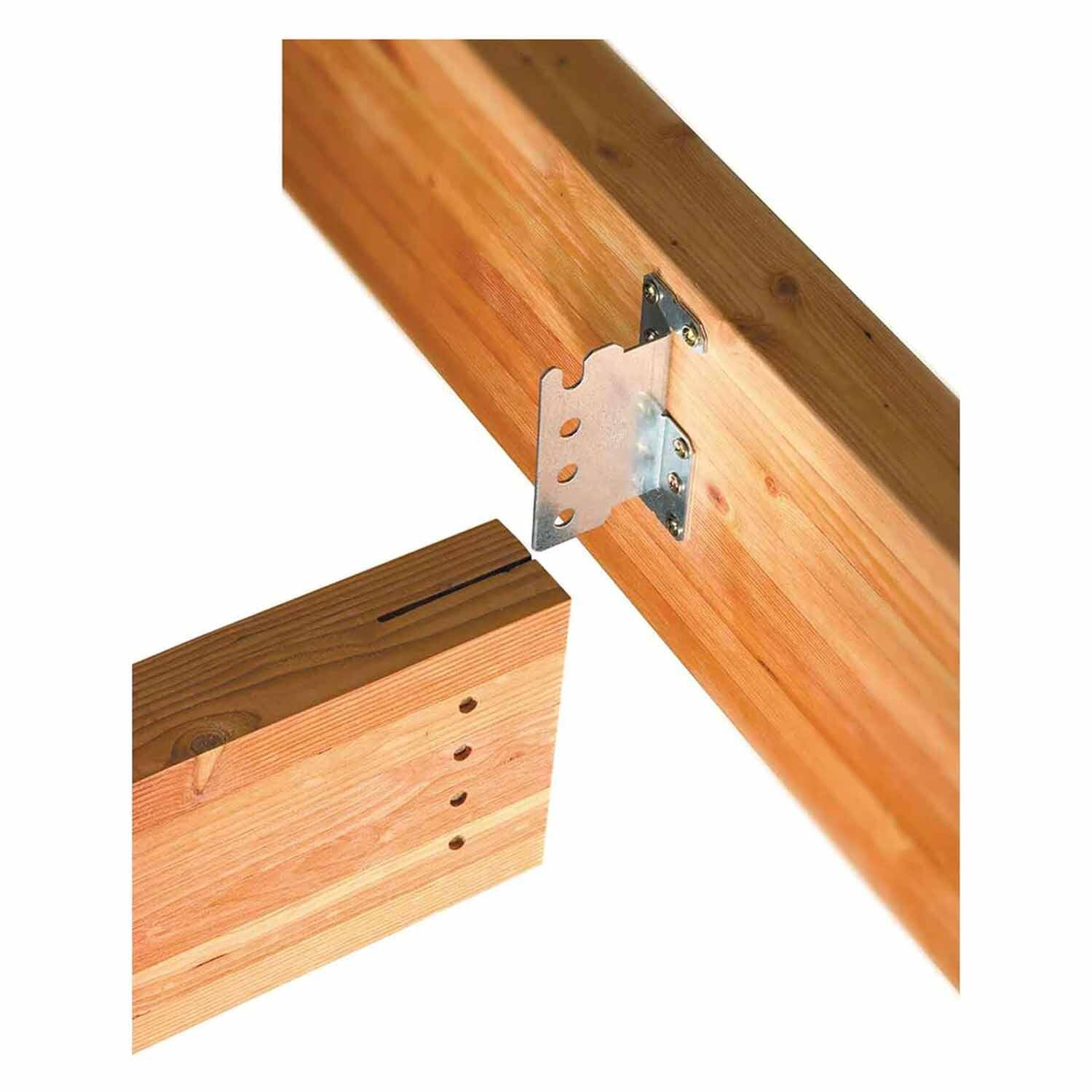

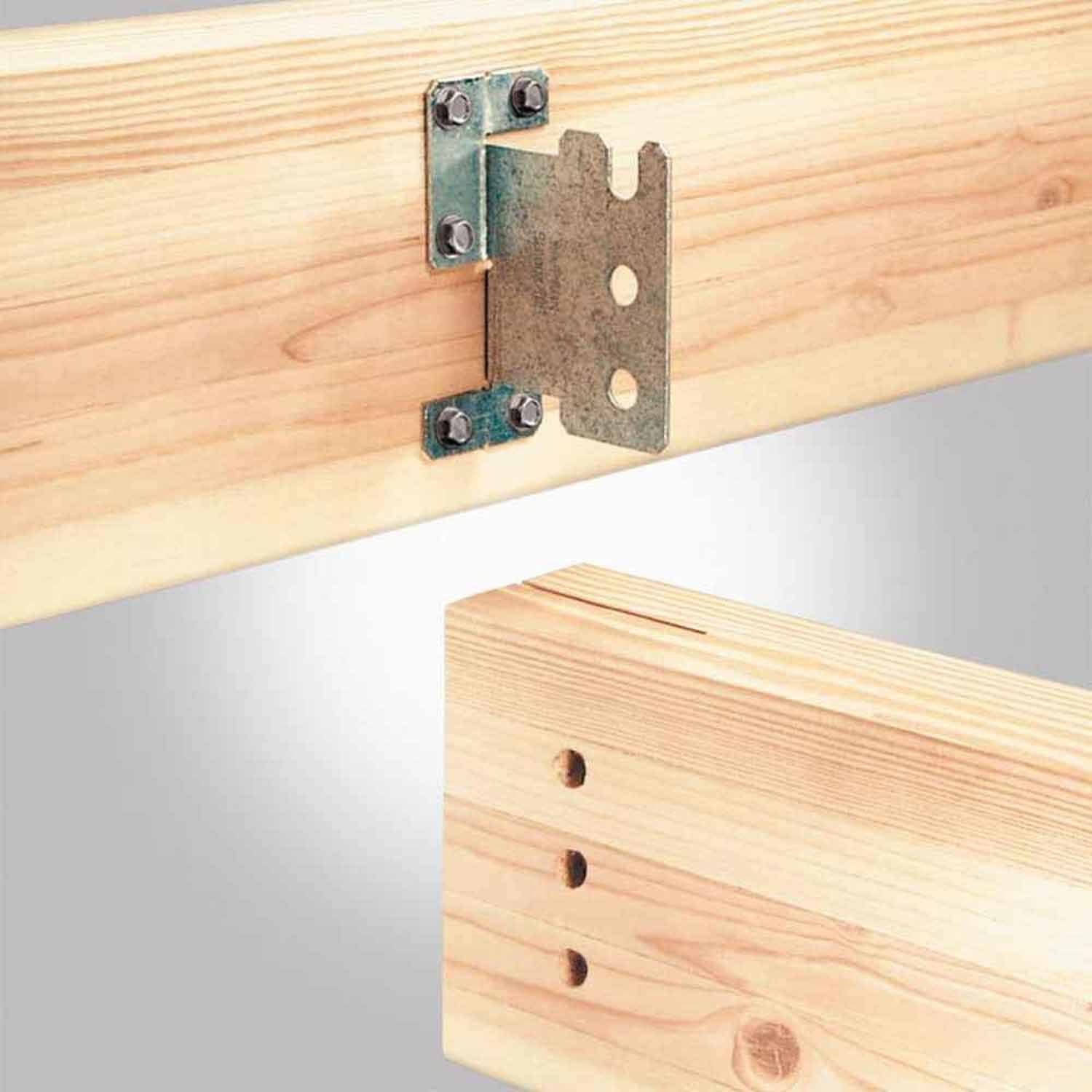

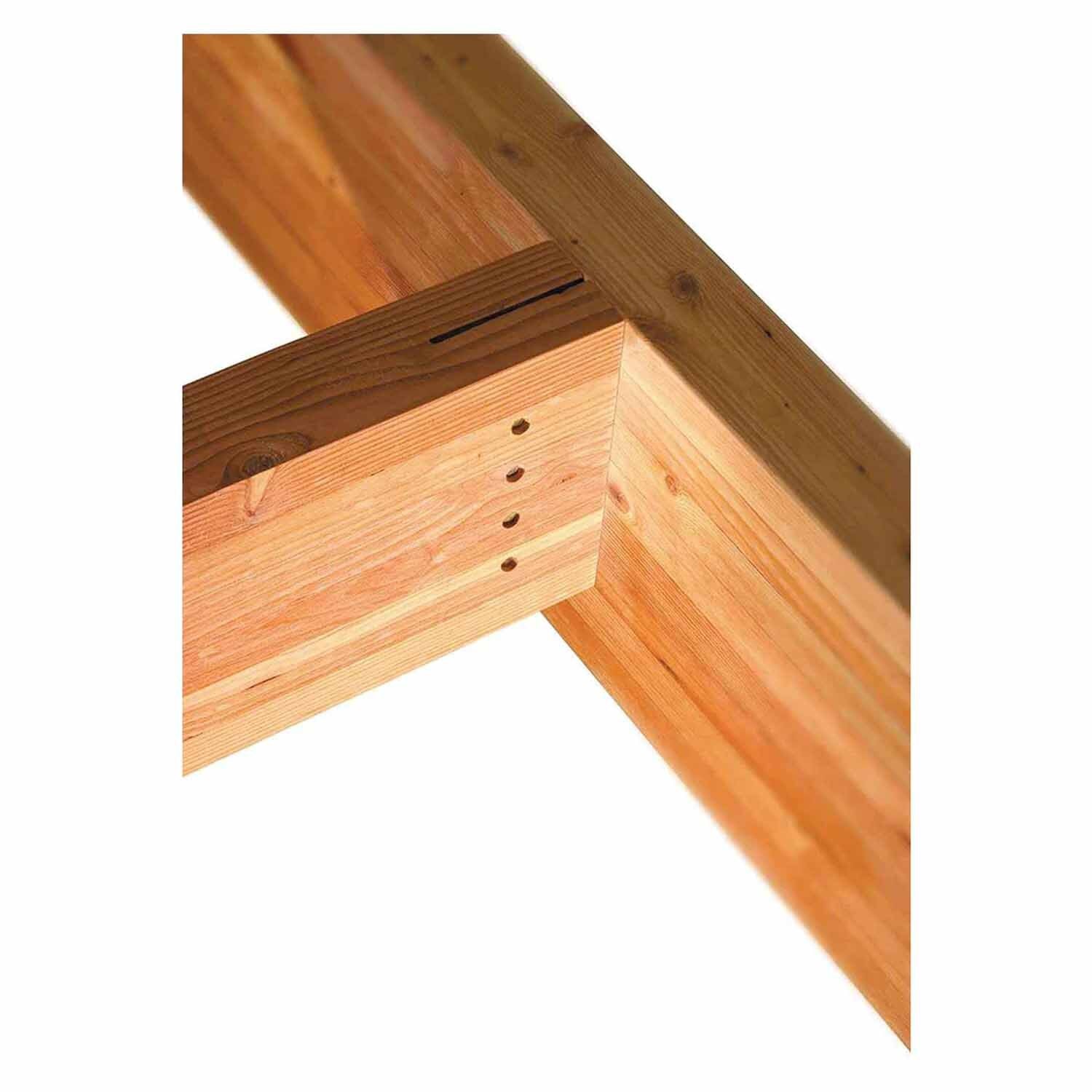

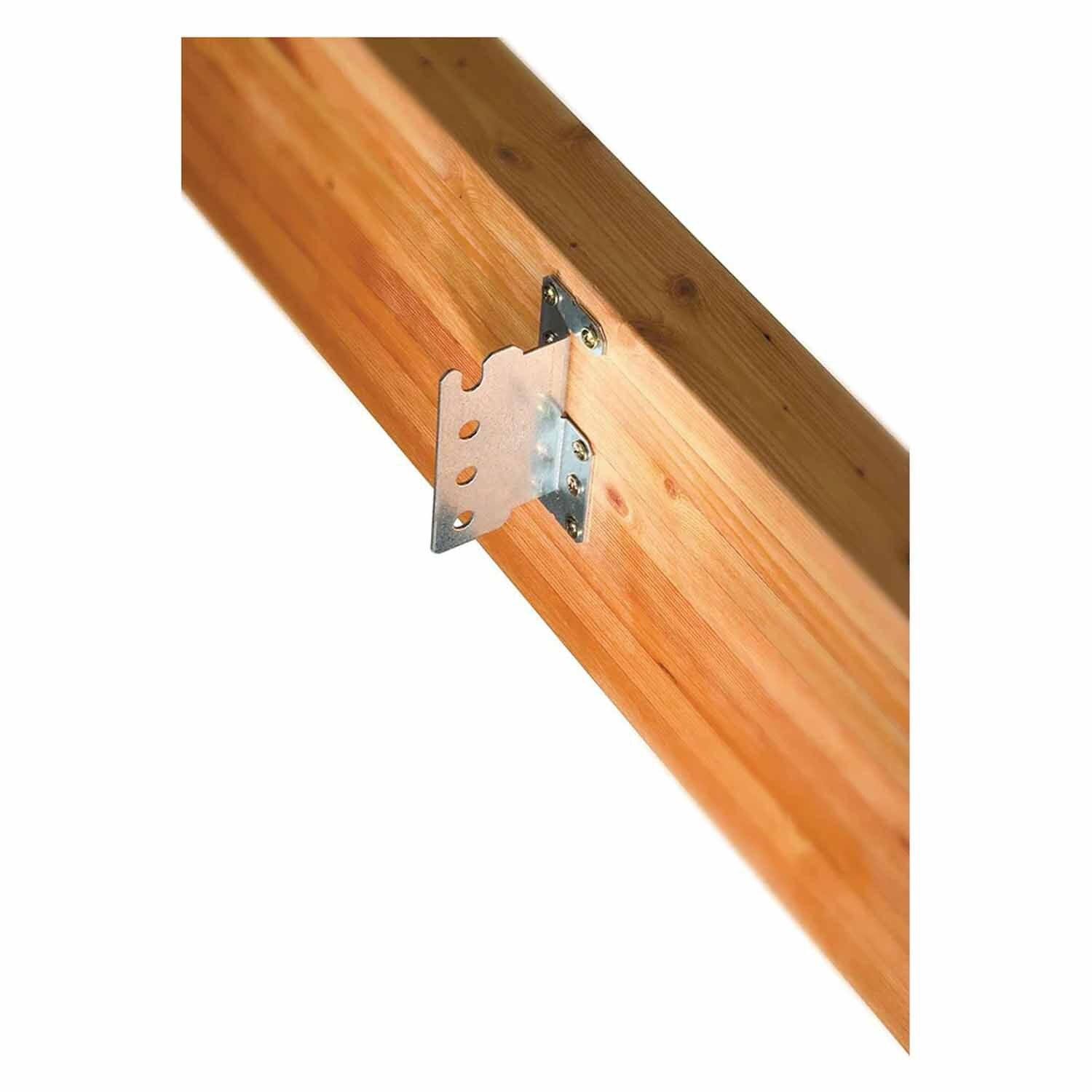

The Simpson Strong-Tie CJT3ZS Concealed Joist Tie is designed for creating strong, concealed connections between headers/posts and beams. It features a ZMAX coating for enhanced corrosion resistance.

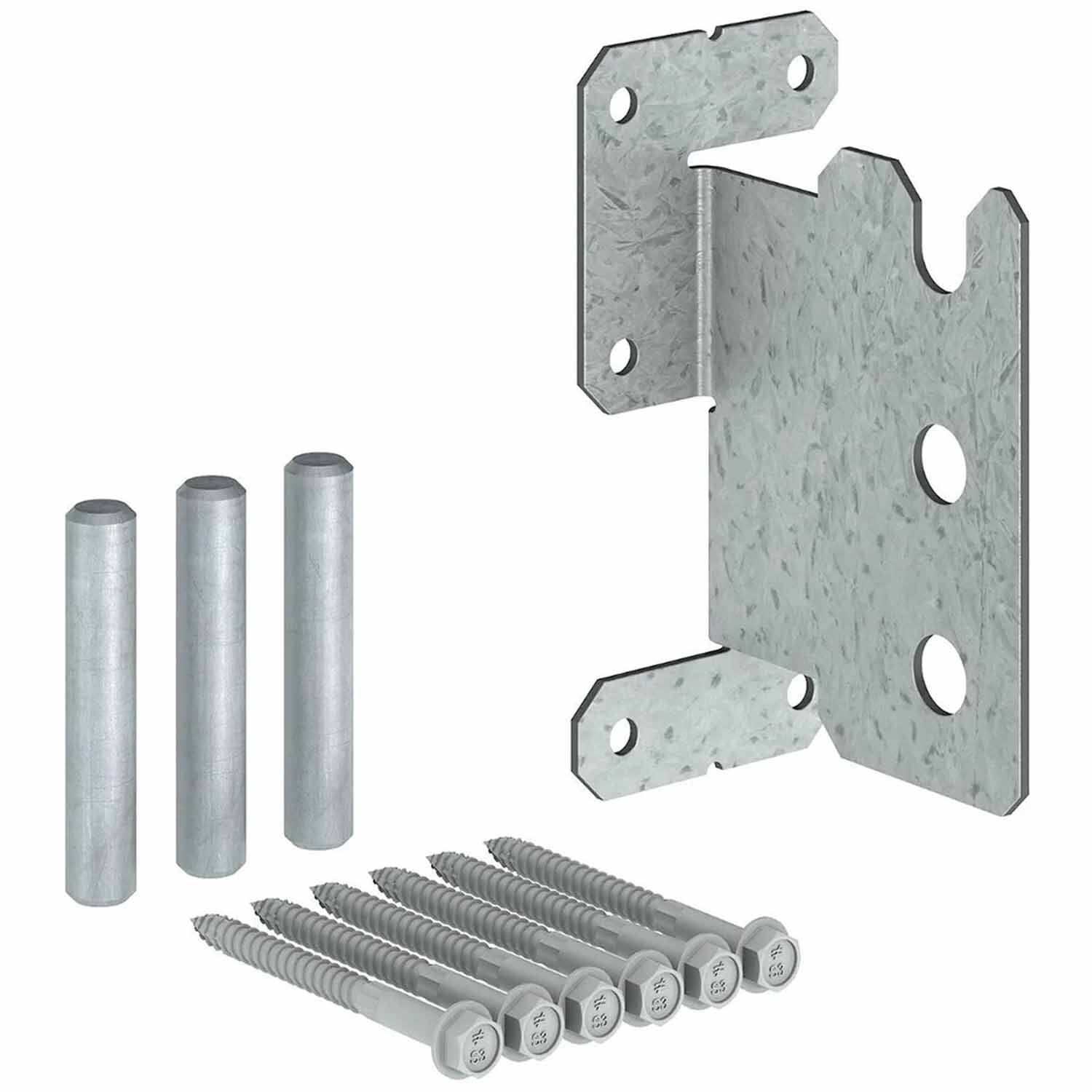

Simpson Strong-Tie CJT3ZS Includes
- (1) Concealed Joist Tie
- (1) Set of Steel Pins
- (1) Set of Strong-Drive SDS Heavy Duty Connector Screws
Simpson Strong-Tie CJT3ZS Features
- ZMAX coating for enhanced corrosion resistance
- Includes all necessary steel pins and screws
- Supports sloped members up to 45°
Simpson Strong-Tie CJT3ZS Applications
- Wood-to-wood fastening for concealed connections
- Ideal for headers, posts, and beams

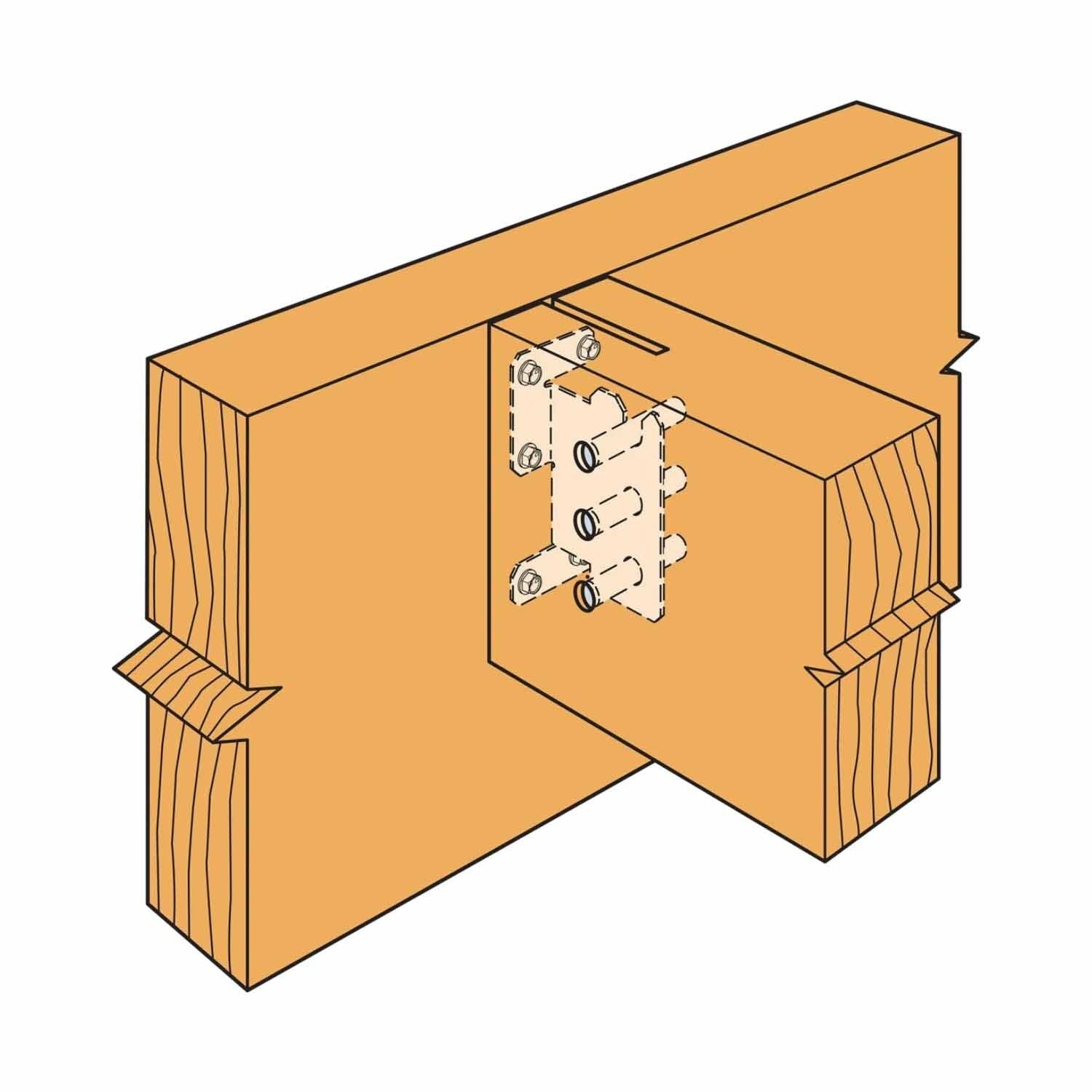

Simpson Strong-Tie CJT3ZS Installation Overview
- Use all specified fasteners
- Router end of beam for screw heads for flush installation
- Ensure the carried member is sloped up or down to 45° with full table loads
Simpson Strong-Tie CJT3ZS Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Weight | 2.1 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
