At a Glance
Gauge
12 GA
Description
Description
Simpson Strong-Tie CJT4ZL Description

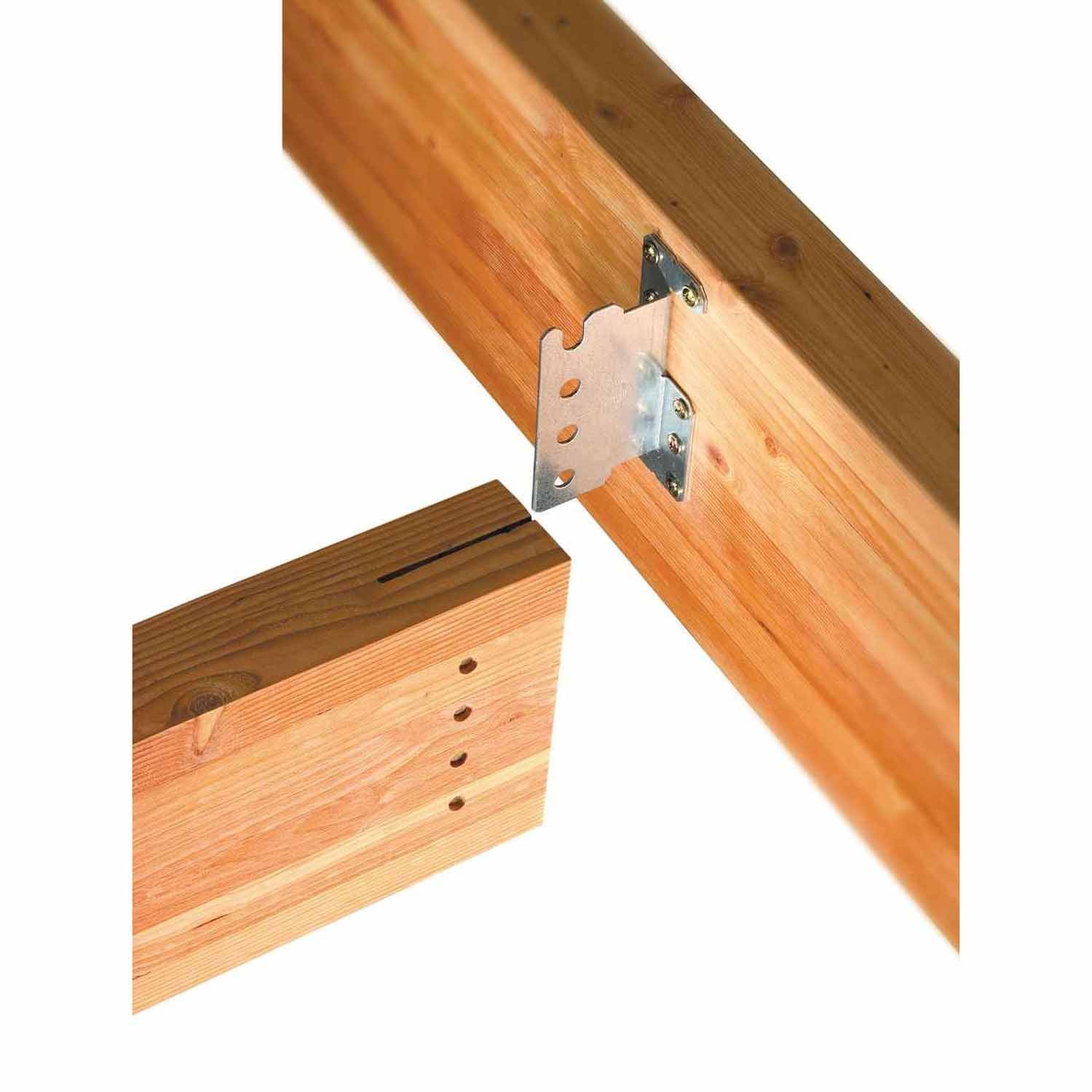

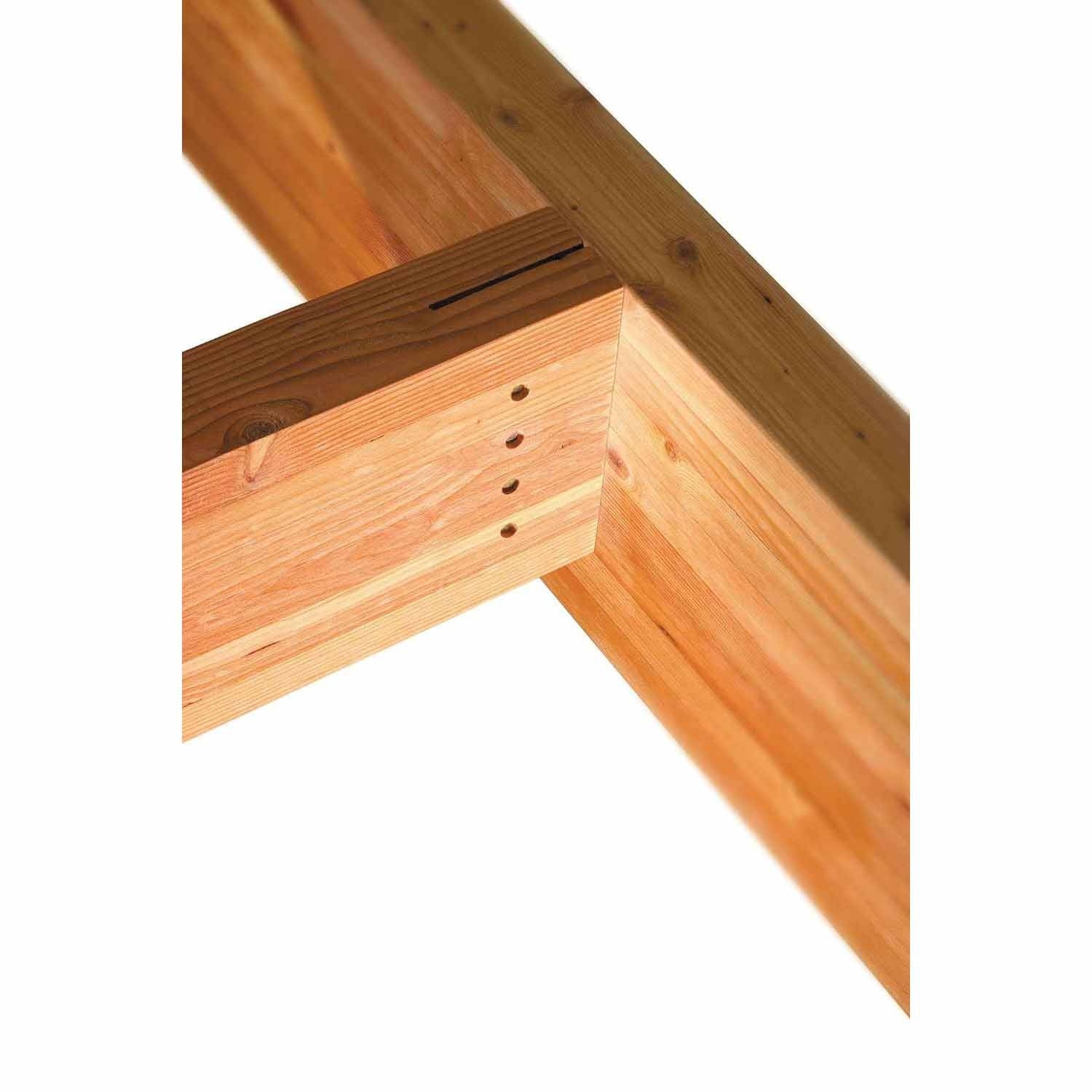

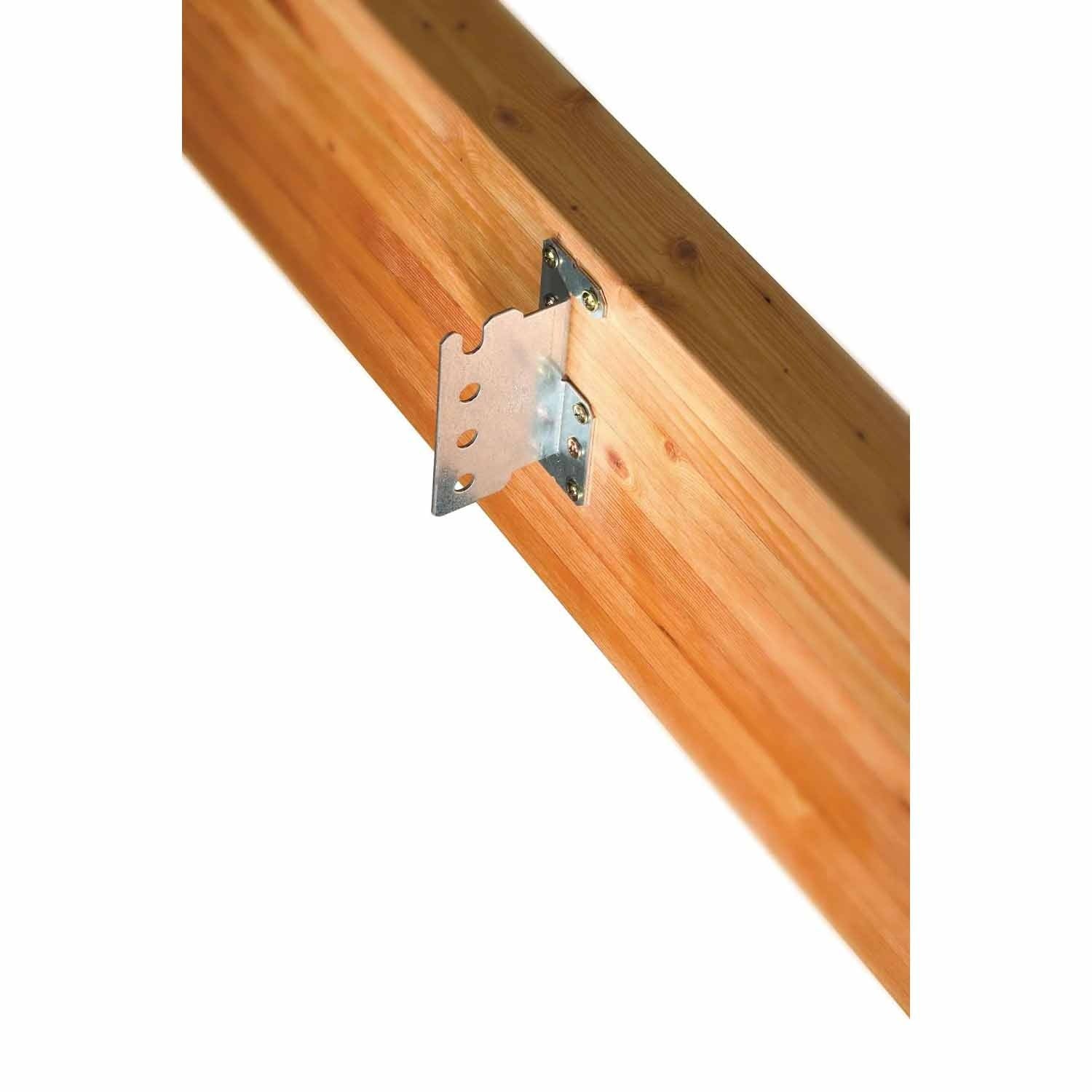

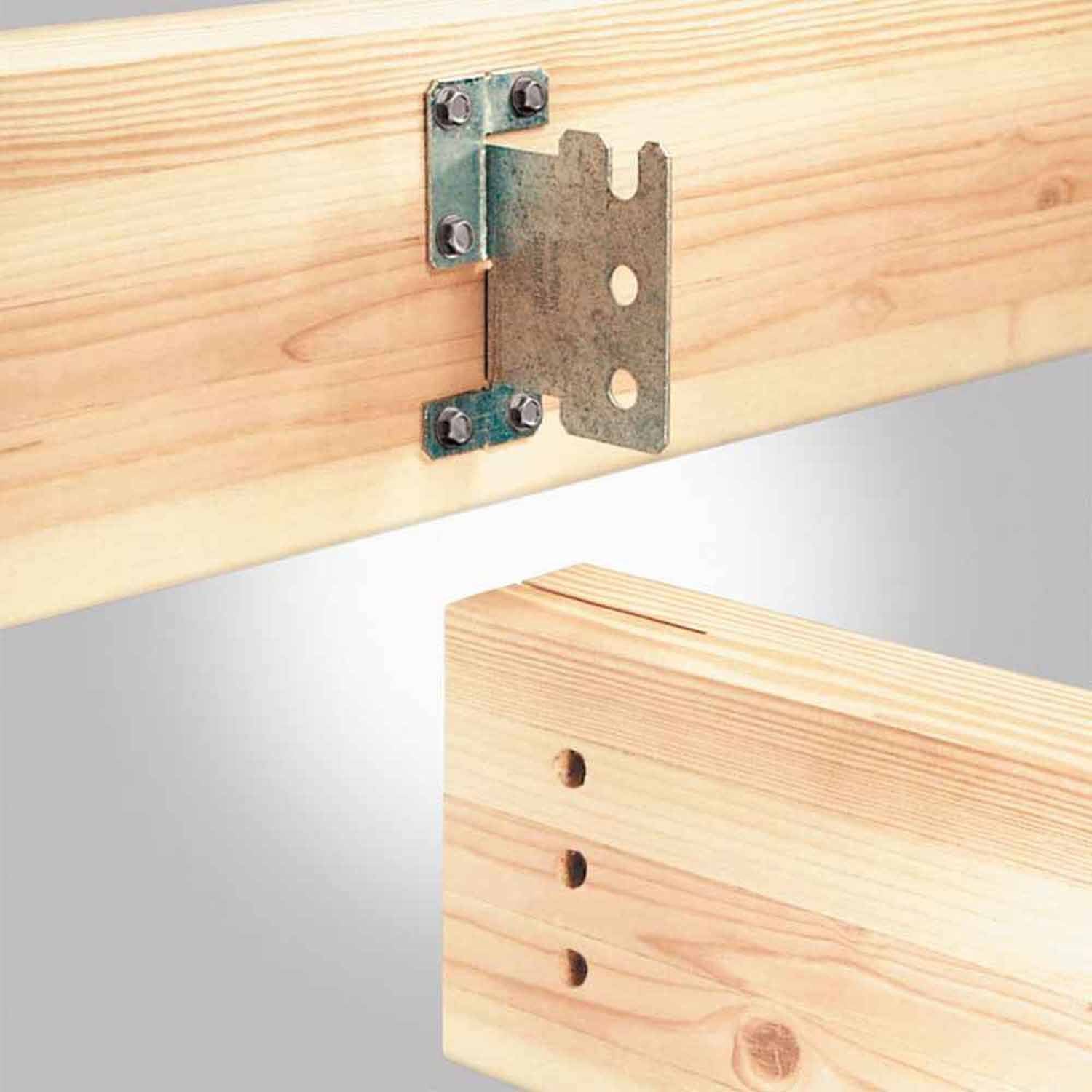

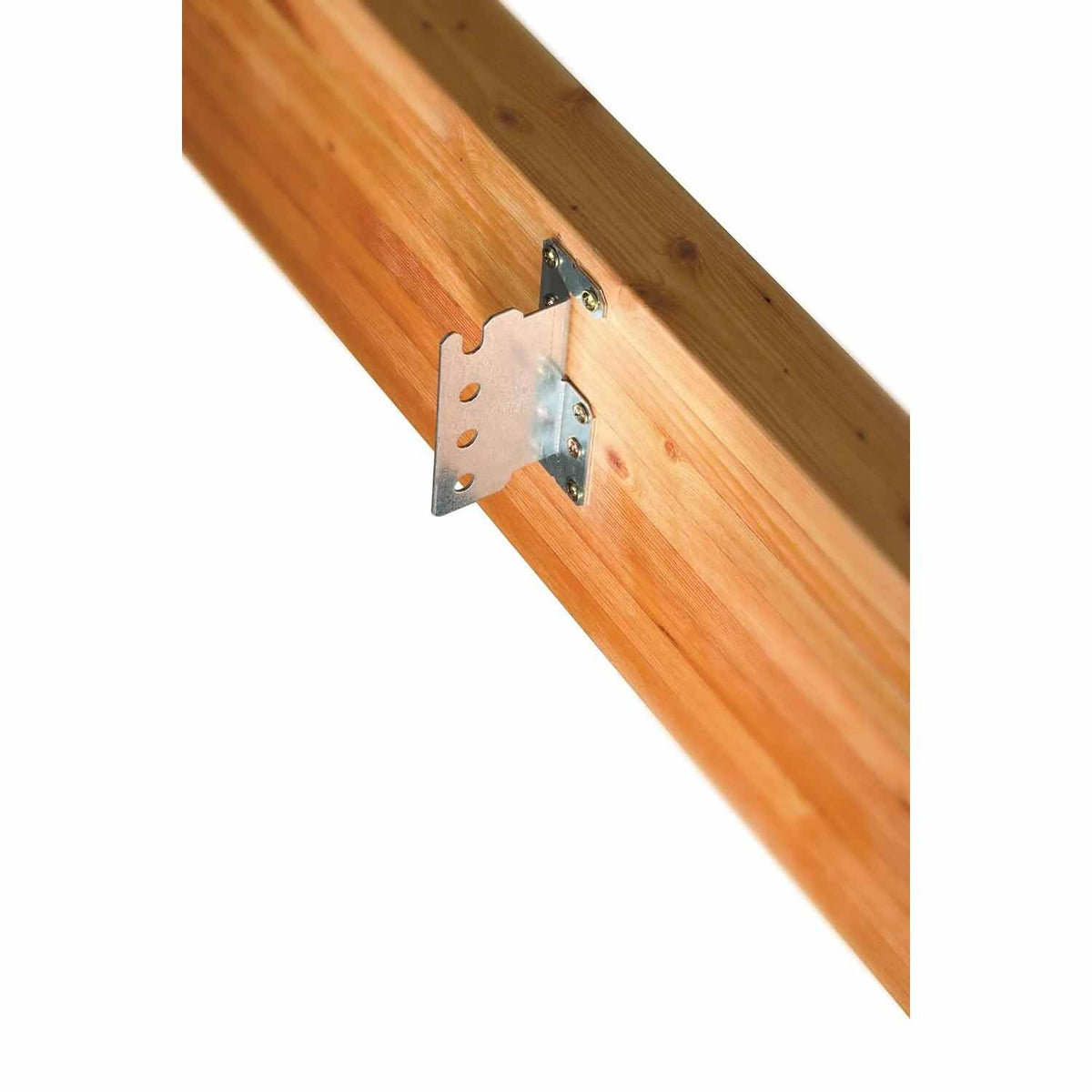

The Simpson Strong-Tie CJT4ZL Concealed Joist Tie is designed for creating strong, concealed connections between headers/posts and beams, featuring a ZMAX coating for enhanced corrosion resistance.

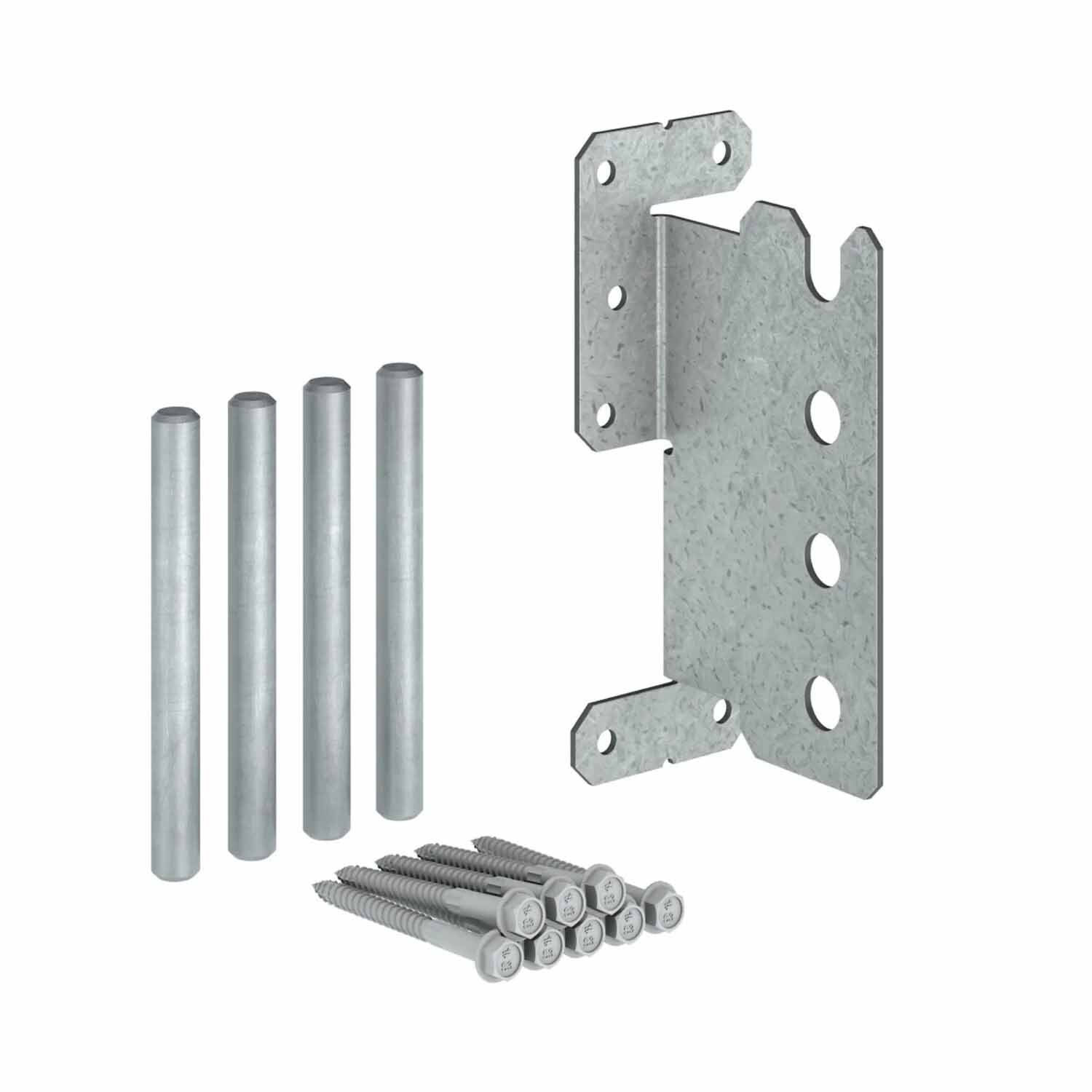

Simpson Strong-Tie CJT4ZL Includes
- (1) Concealed Joist Tie
- (1) Set of Long Pins
- (1) Set of Strong-Drive SDS Heavy Duty Connector Screws
Simpson Strong-Tie CJT4ZL Features
- ZMAX coating for enhanced corrosion resistance
- Includes all necessary steel pins and screws
- Supports sloped members up to 45 degrees
Simpson Strong-Tie CJT4ZL Applications
- Wood-to-wood fastening for concealed connections
- Ideal for headers, posts, and beams

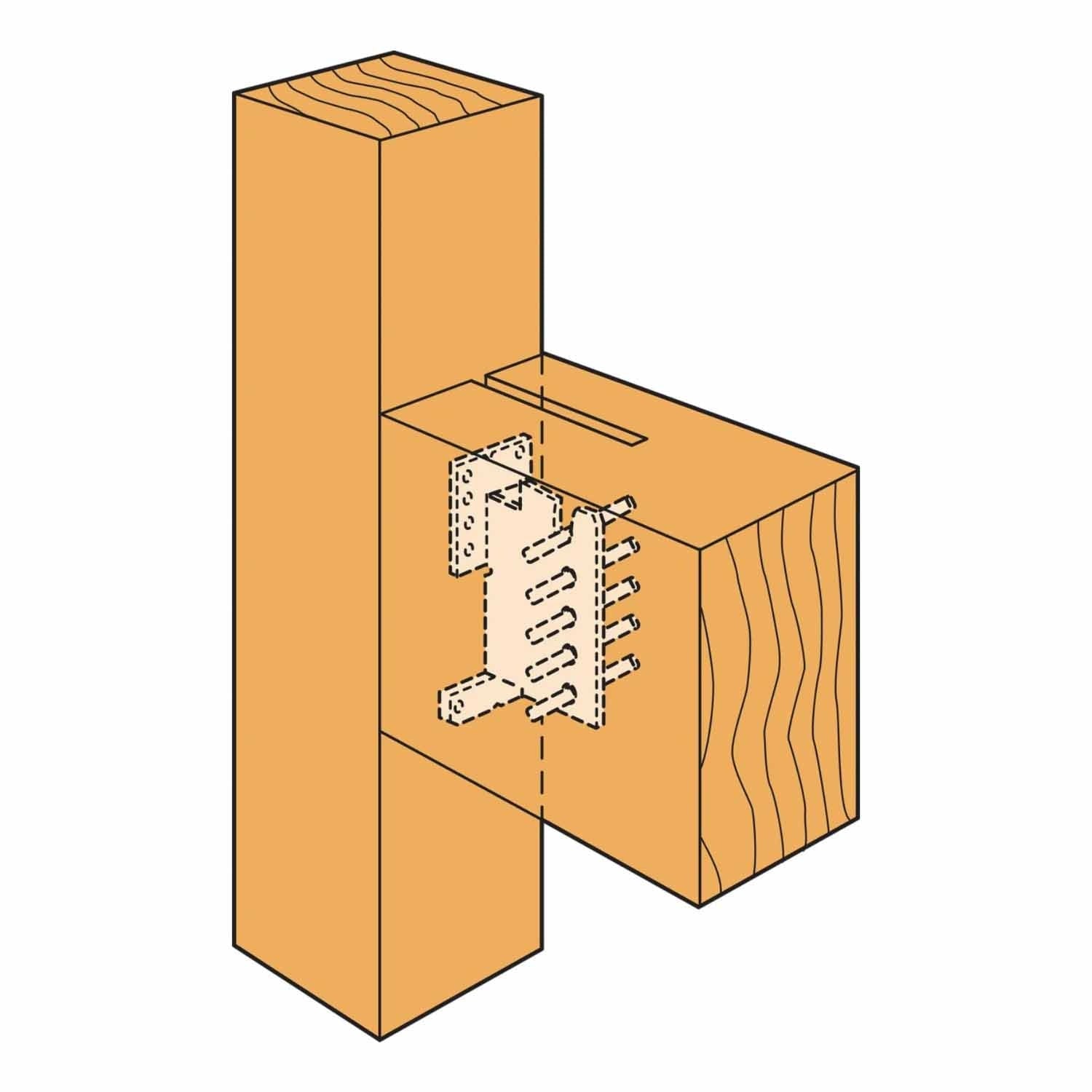

Simpson Strong-Tie CJT4ZL Installation Overview
- Use all specified fasteners as per guidelines.
- Ensure the beam is centered and perpendicular to the support member.
- Router the end of the beam for flush installation of screw heads.
- Install the carried member with a slope up to 45 degrees if required.
Simpson Strong-Tie CJT4ZL Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Weight | 2.6 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
820907
