Simpson Anchors | SKU:
CJT4ZS
Simpson Strong-Tie CJT4ZS (12-Gauge) ZMAX Galvanized Concealed Joist Tie with Short Pins
$58.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CJT4ZS Description

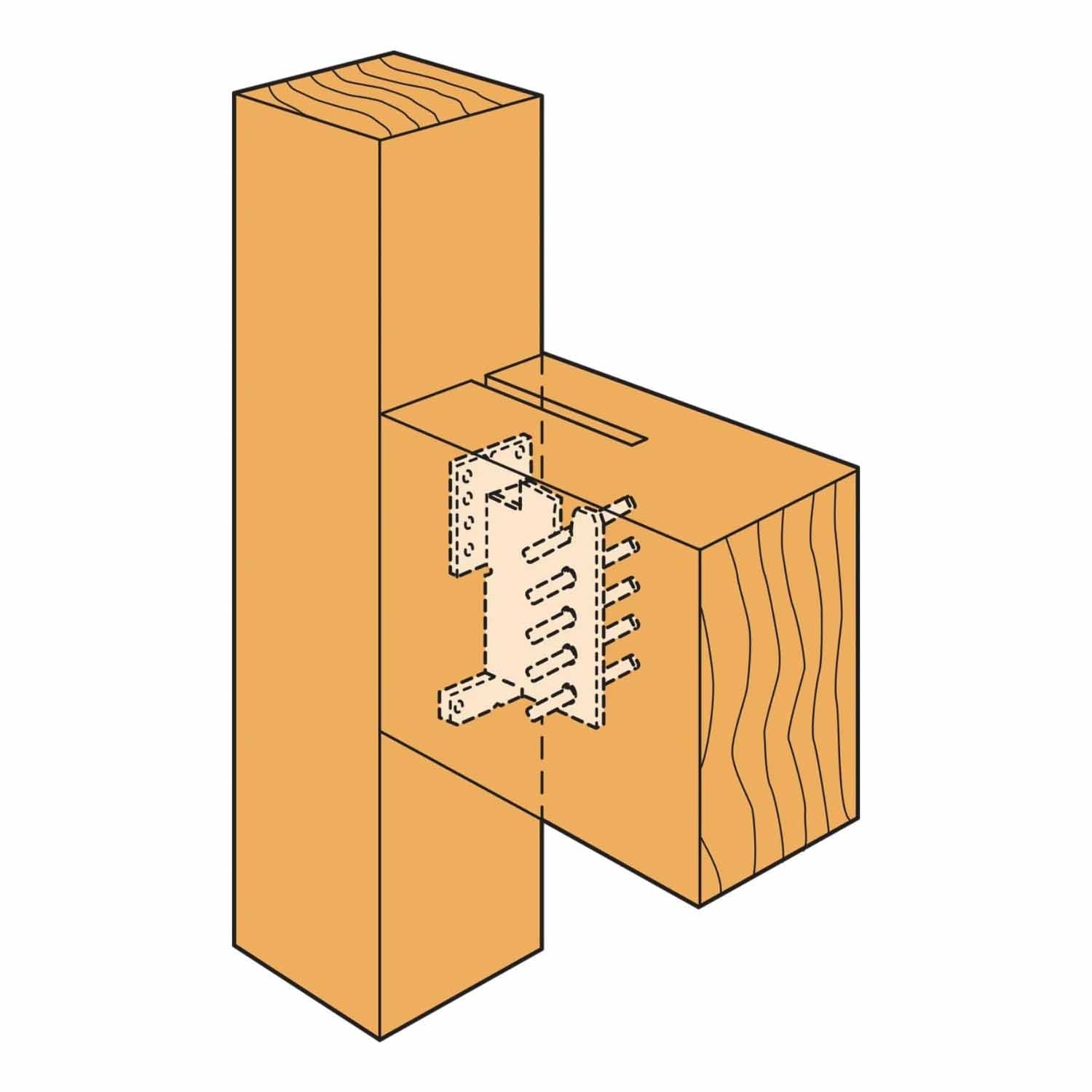

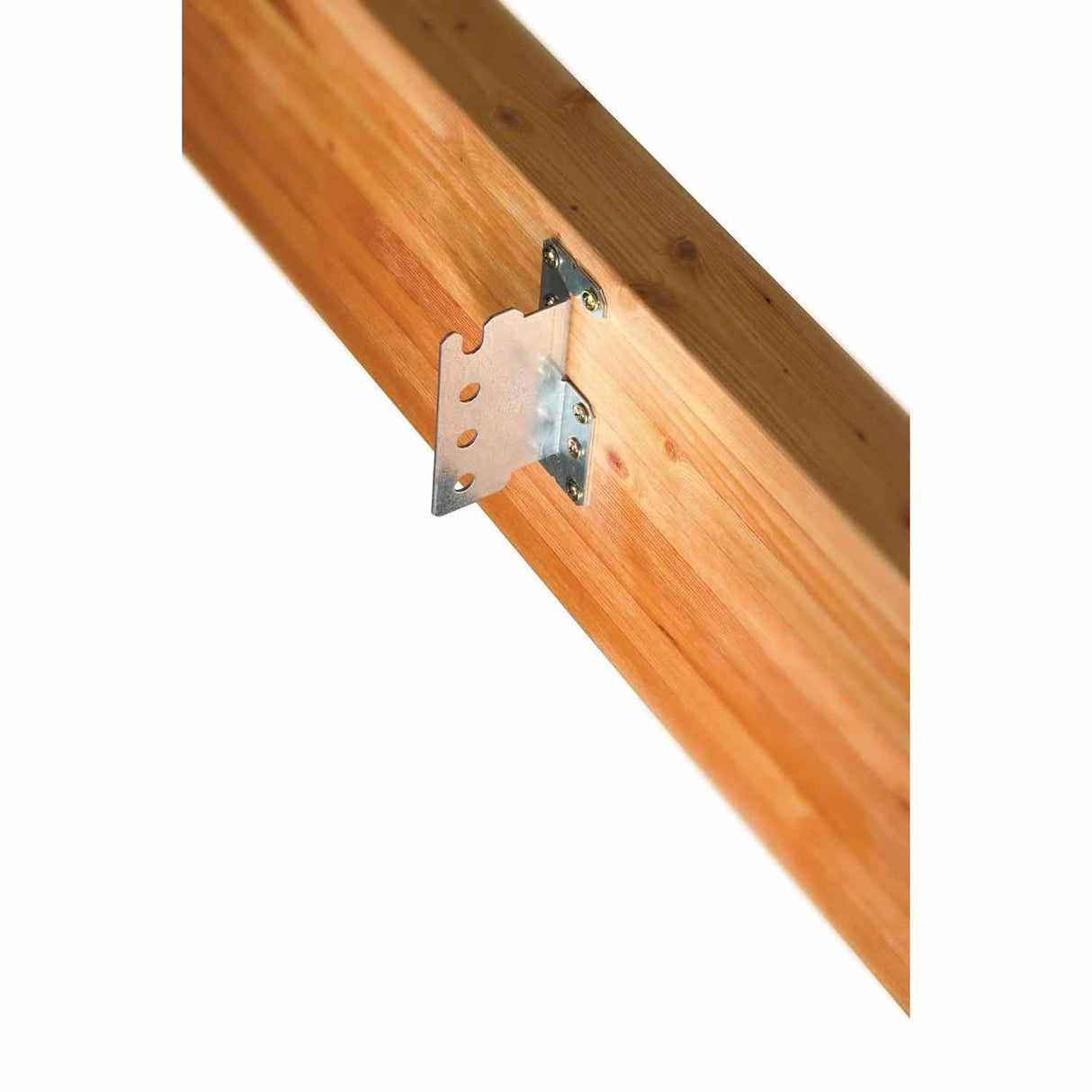

The Simpson Strong-Tie CJT4ZS Concealed Joist Tie is designed for creating strong, concealed connections between headers/posts and beams. It features a ZMAX coating for enhanced corrosion resistance.

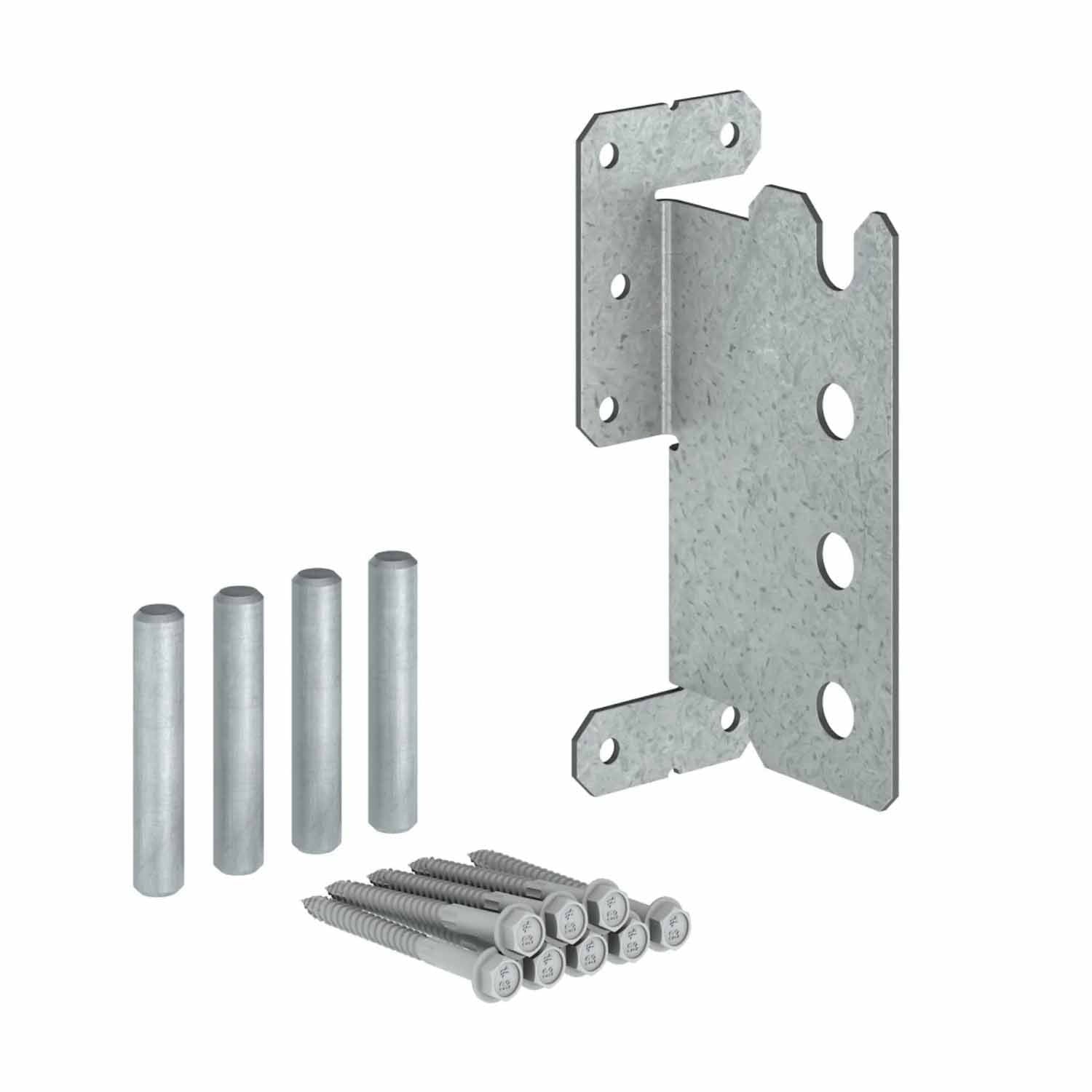

Simpson Strong-Tie CJT4ZS Includes
- (1) Concealed Joist Tie
- (1) Set of Steel Pins
- (1) Set of Strong-Drive SDS Heavy Duty Connector Screws
Simpson Strong-Tie CJT4ZS Features
- ZMAX coating for enhanced corrosion resistance
- Includes all necessary steel pins and screws
- Supports sloped members up to 45 degrees
Simpson Strong-Tie CJT4ZS Applications

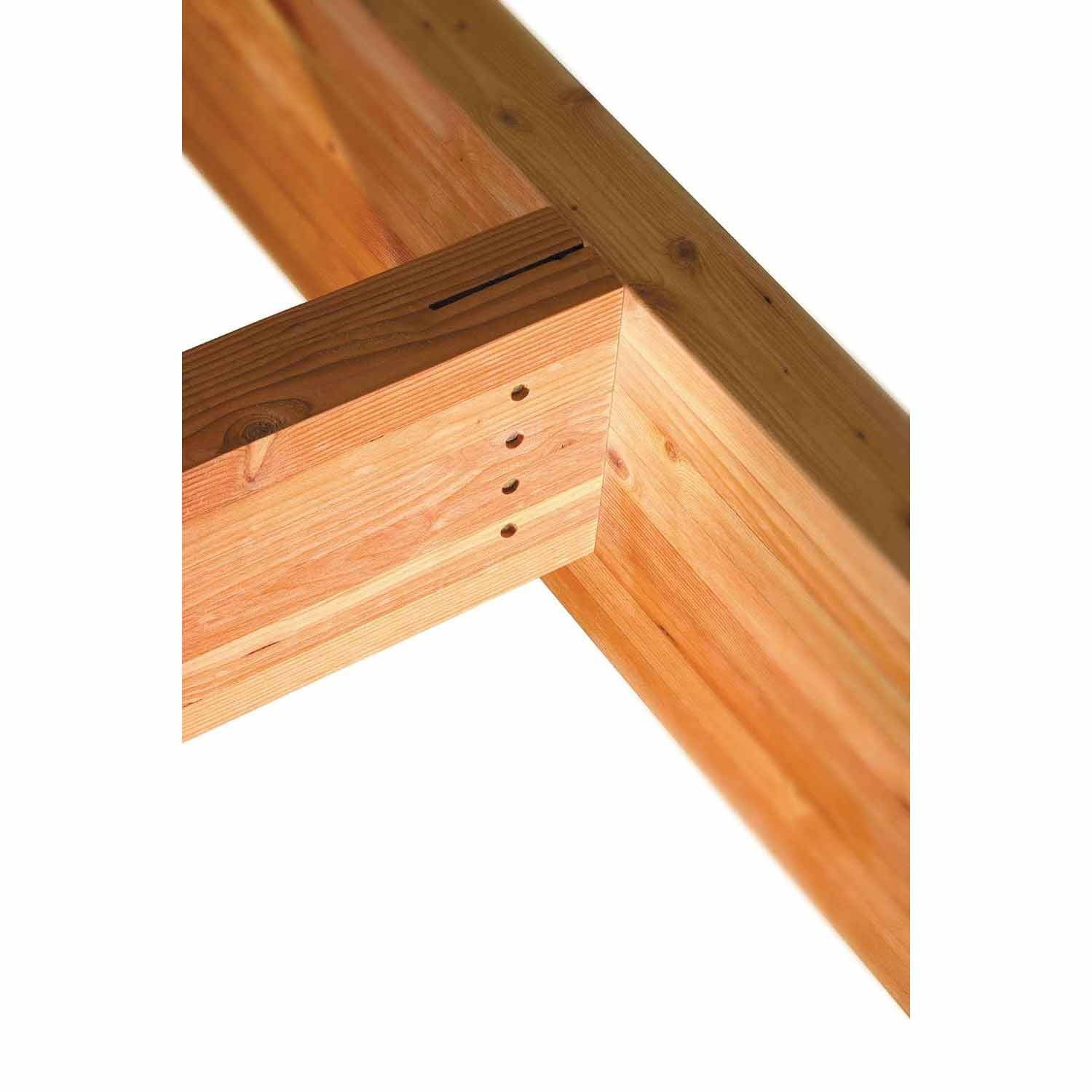

- Wood-to-wood fastening for concealed connections
- Use in headers, posts, and beams
Simpson Strong-Tie CJT4ZS Installation Overview
- Use all specified fasteners
- Ensure screws are installed with a hex-head driver

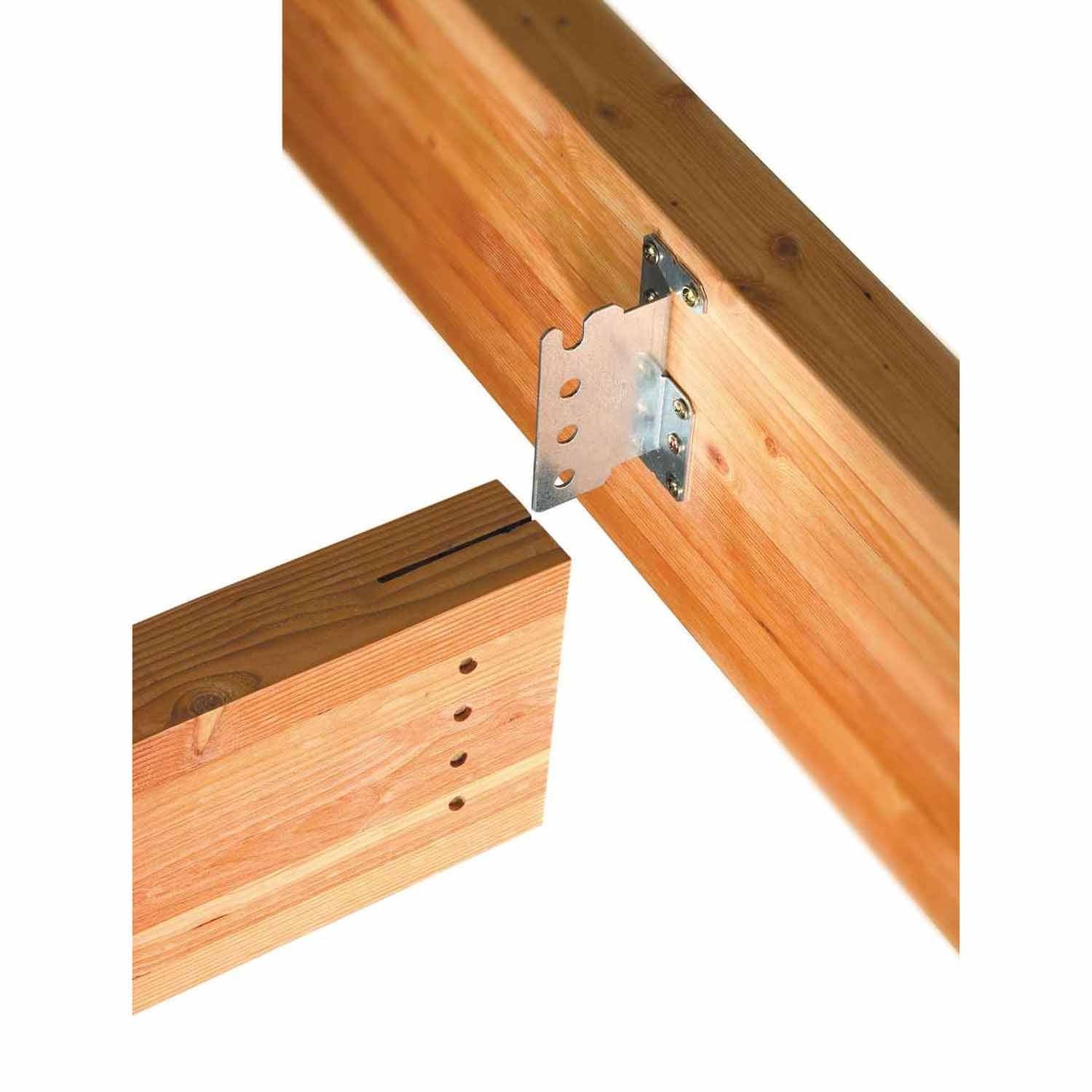

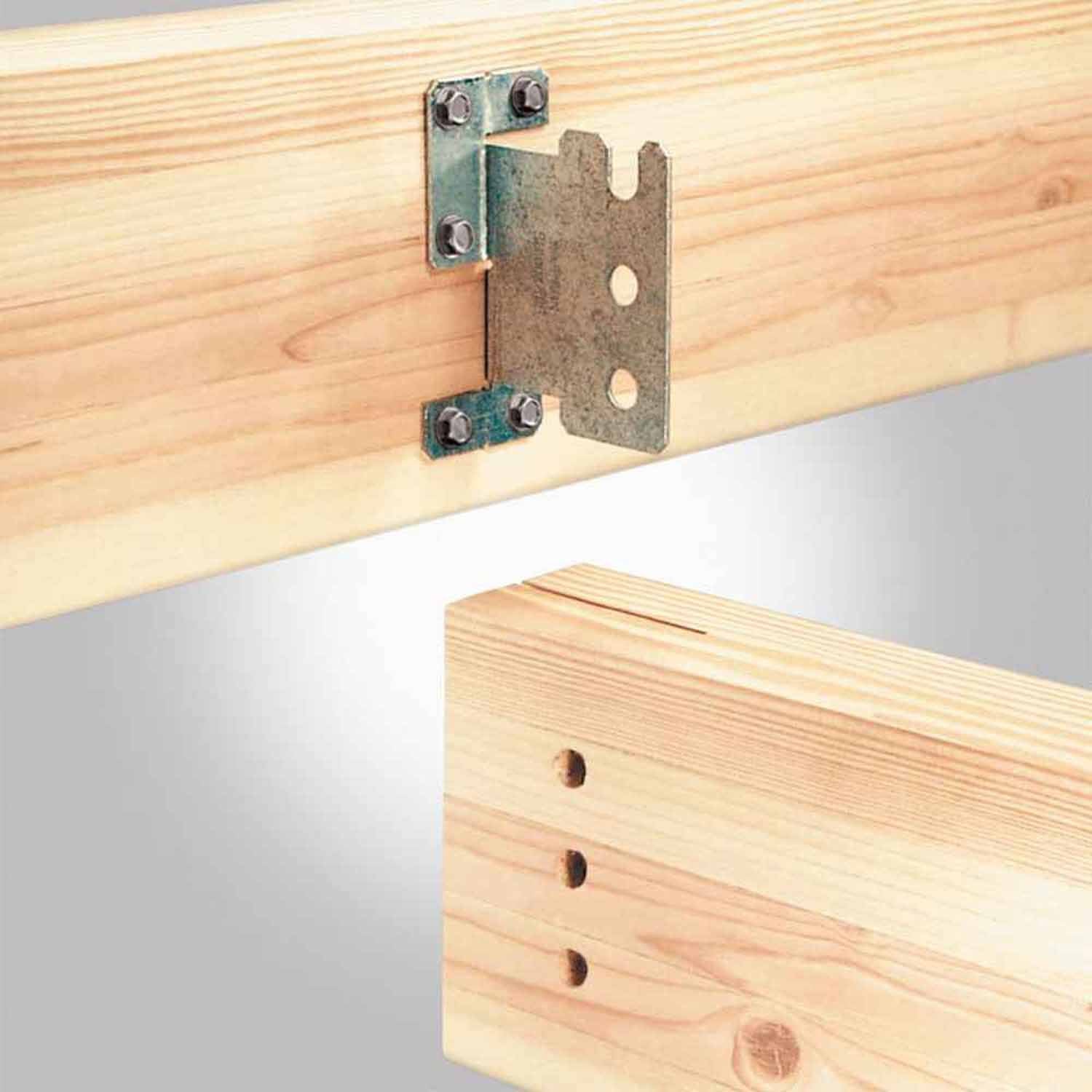

- Router end of beam for flush installation
- Center dowel in beam for maximum beam width
Simpson Strong-Tie CJT4ZS Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Weight | 2.6 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
