Simpson Anchors | SKU:
CJT5ZS
Simpson Strong-Tie CJT5ZS (12-Gauge) ZMAX Galvanized Concealed Joist Tie with Short Pins
$63.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CJT5ZS Description

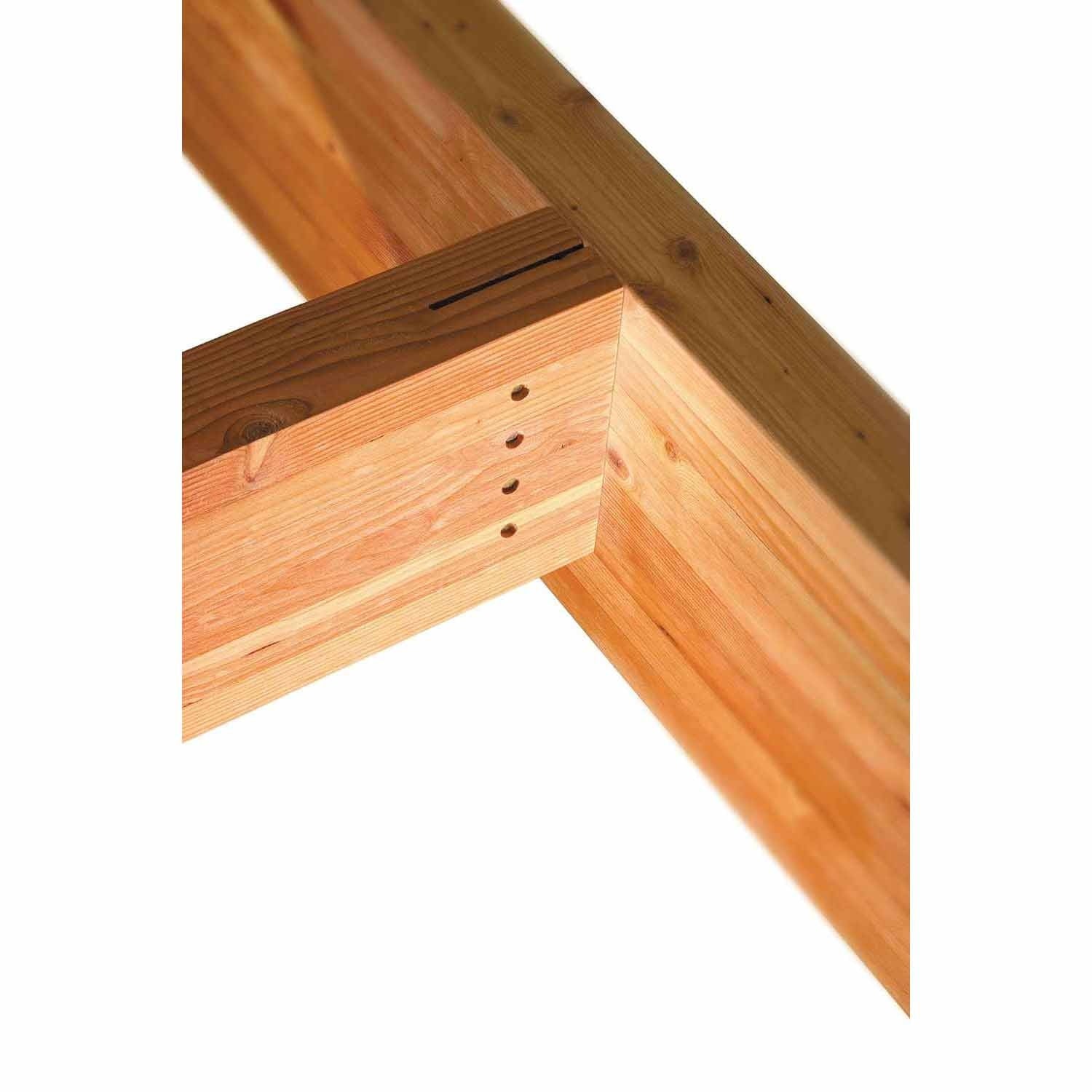

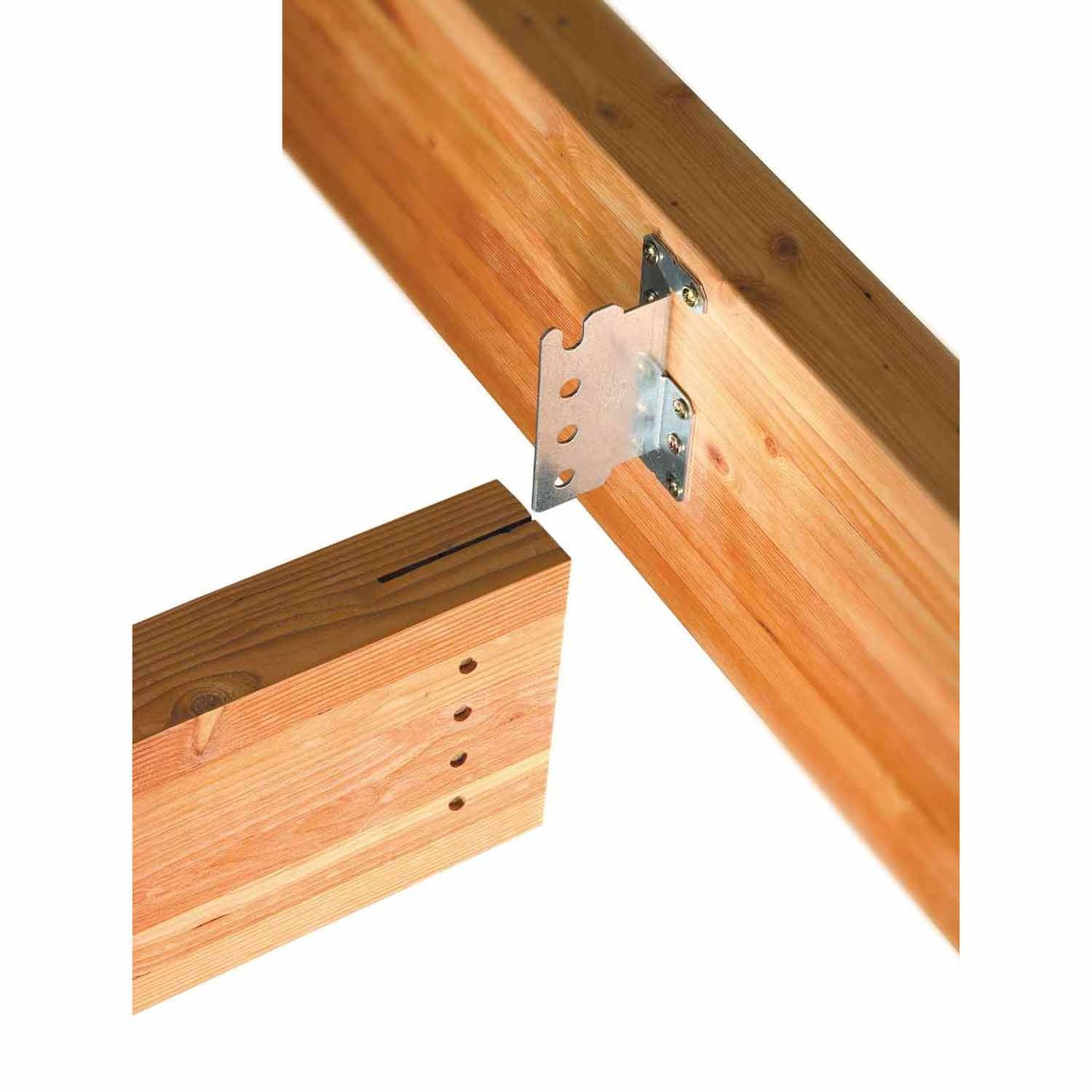

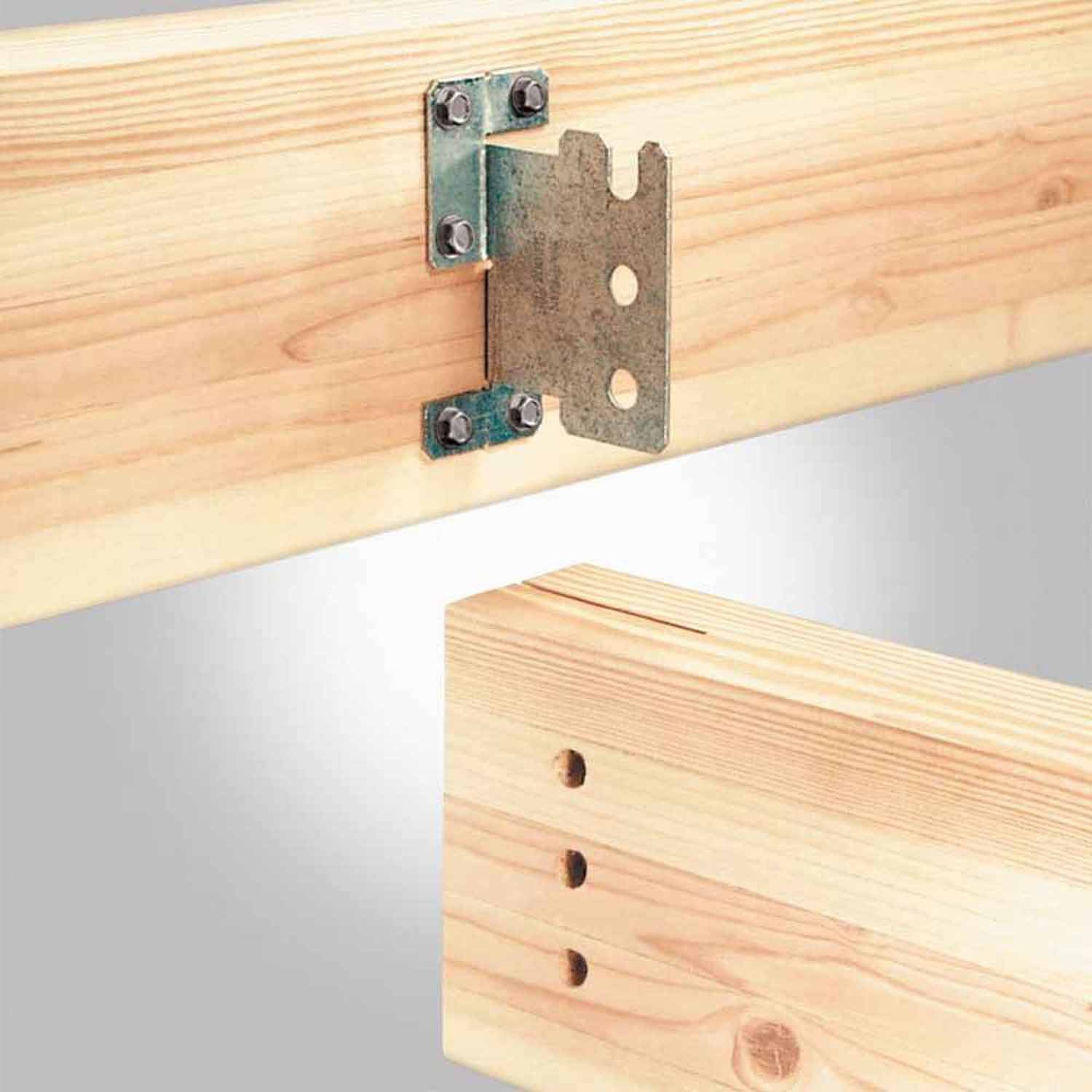

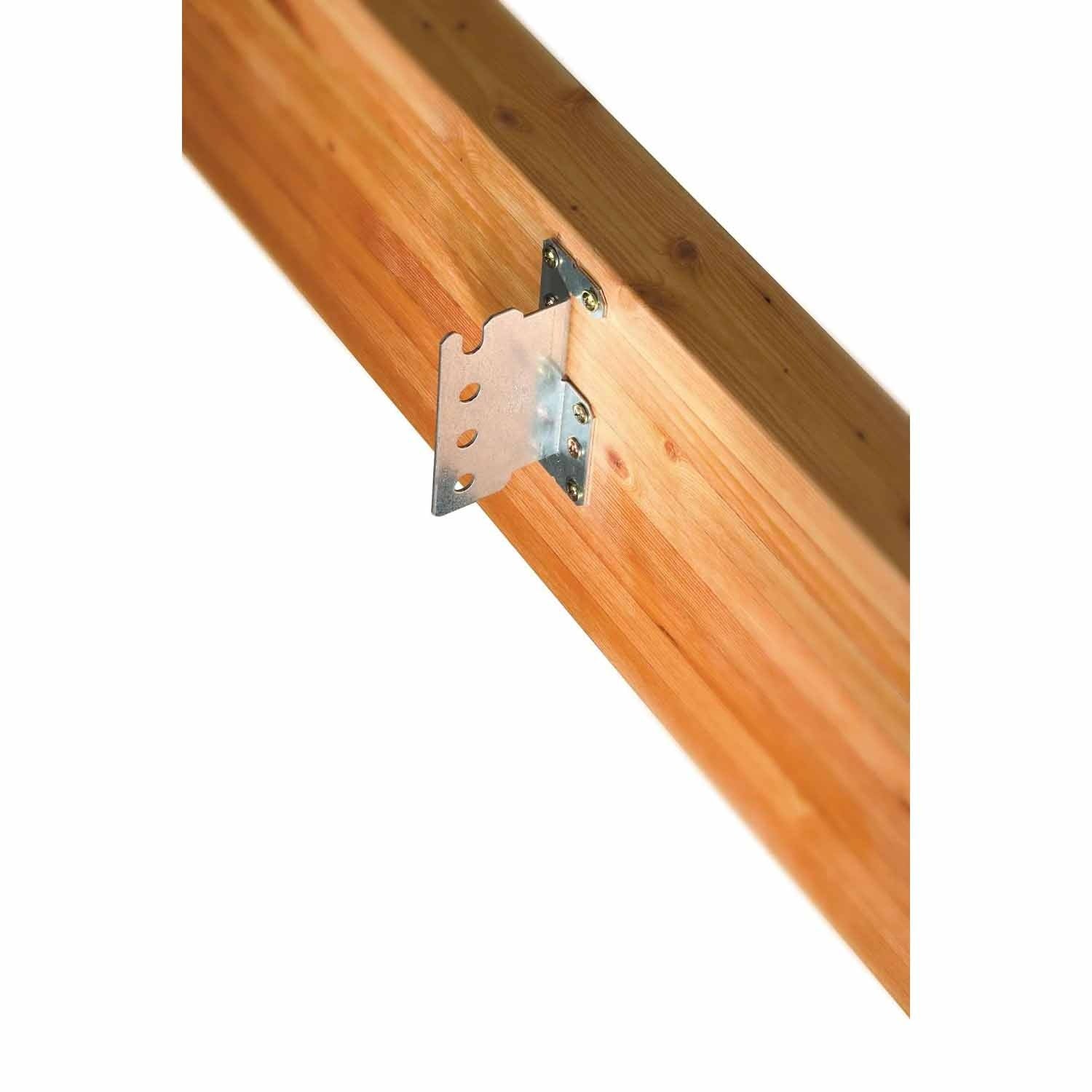

The Simpson Strong-Tie CJT5ZS Concealed Joist Tie is designed for creating strong, concealed connections between headers/posts and beams, featuring a ZMAX coating for enhanced corrosion resistance.

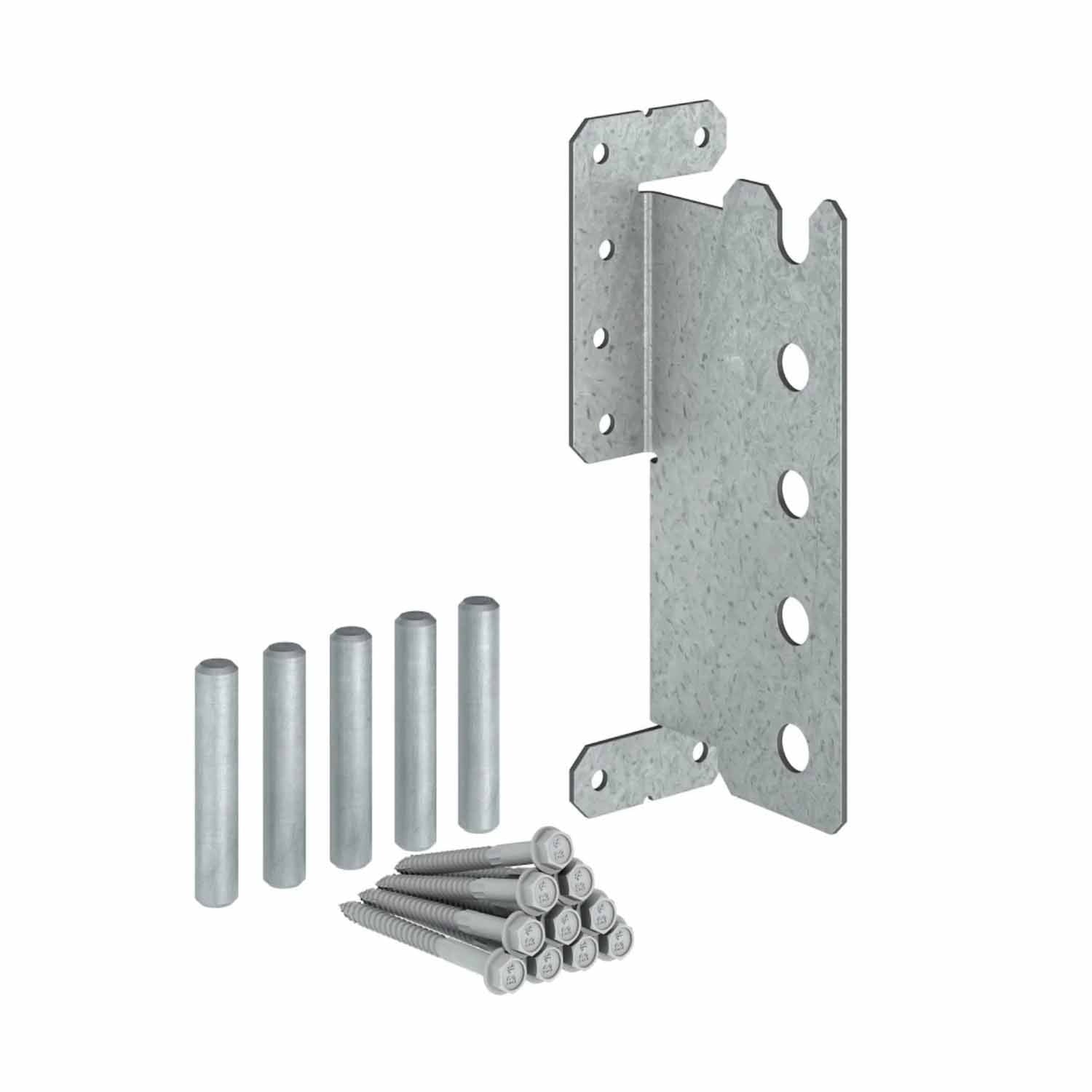

Simpson Strong-Tie CJT5ZS Includes
- (1) Concealed Joist Tie
- (1) Set of Steel Pins
- (1) Set of Strong-Drive SDS Heavy Duty Connector Screws
Simpson Strong-Tie CJT5ZS Features
- ZMAX coating for enhanced corrosion resistance
- Includes all necessary steel pins and screws
- Supports sloped members up to 45 degrees
Simpson Strong-Tie CJT5ZS Applications
- Wood-to-wood fastening for concealed connections
- Ideal for headers, posts, and beams

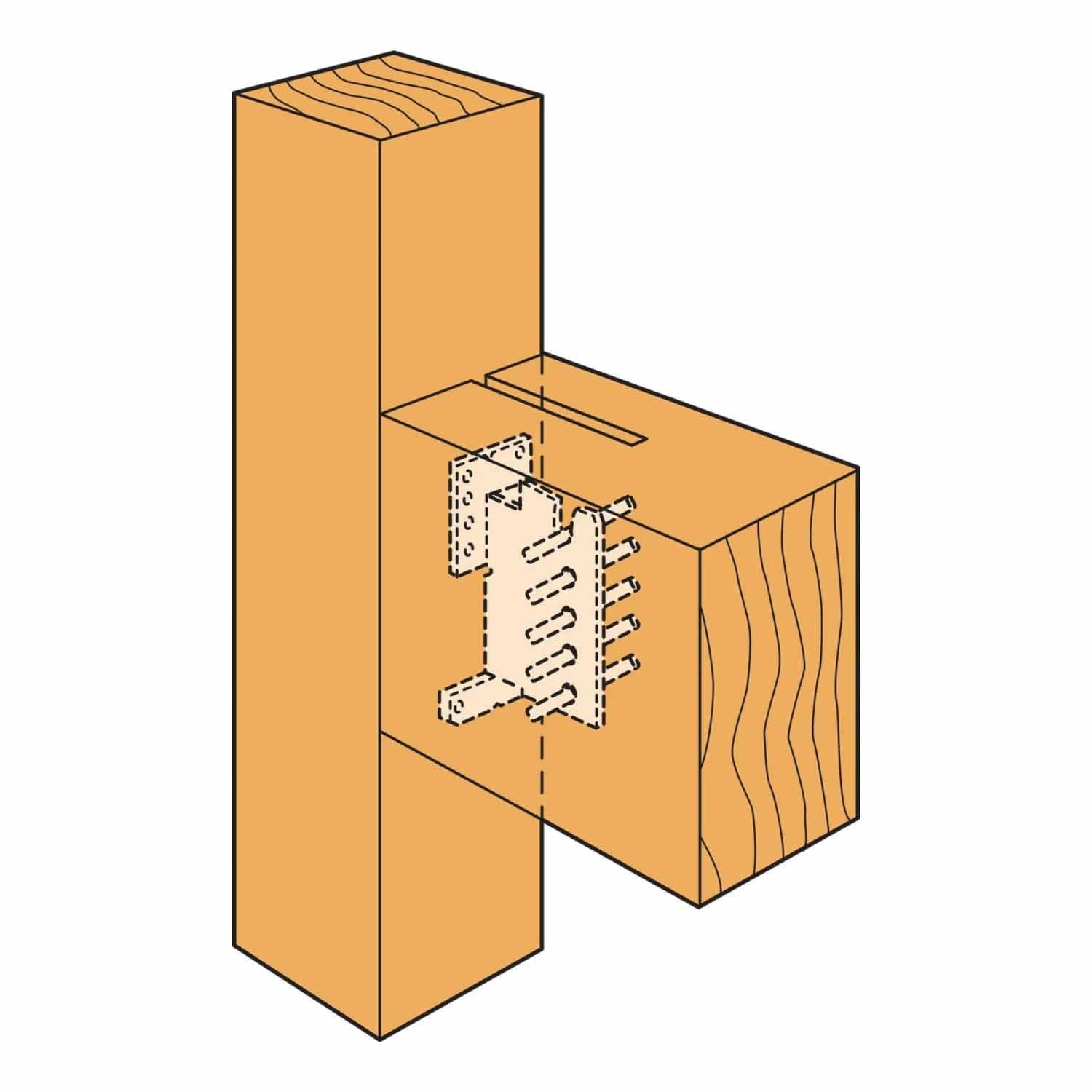

Simpson Strong-Tie CJT5ZS Installation Overview
- Use all specified fasteners as per guidelines
- Ensure proper alignment and centering of dowels
- Router end of beam for flush installation of screw heads
- Install carried member with a slope up to 45 degrees if required
Simpson Strong-Tie CJT5ZS Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Weight | 3.1 lb |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
