Simpson Strong-Tie CNW5/8-R Description

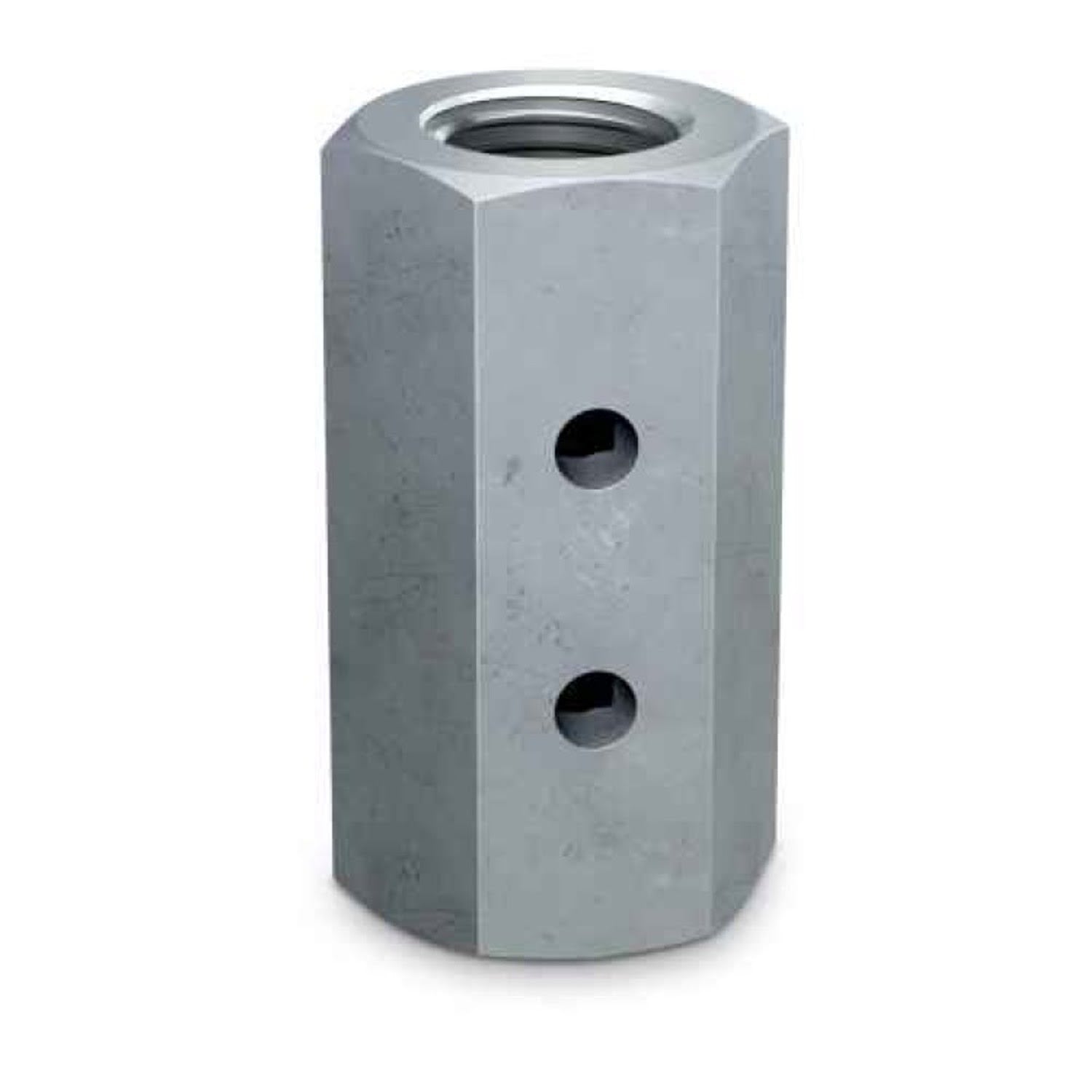

The CNW5/8-R Coupler Nut from Simpson Strong-Tie features a witness hole for ensuring proper installation and a positive stop for secure thread engagement.
Simpson Strong-Tie CNW5/8-R Includes
- (1) Coupler Nut
Simpson Strong-Tie CNW5/8-R Features

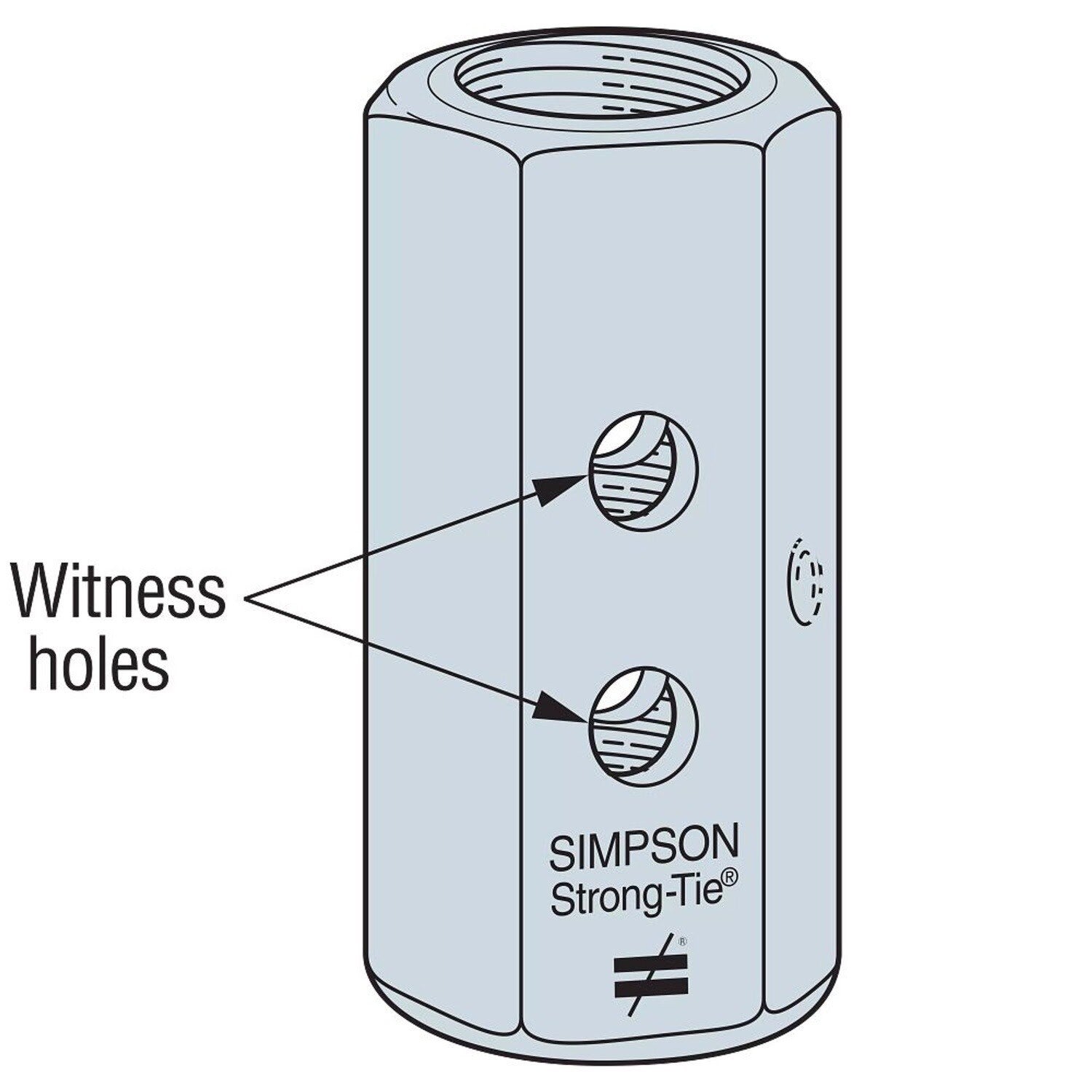

- Witness hole for proper installation
- Positive stop for secure thread engagement
- Available in standard and high strength options
- Zinc plated or uncoated finish
Simpson Strong-Tie CNW5/8-R Applications
- Multi-story high-wind construction
- Rod connection in structural applications
Simpson Strong-Tie CNW5/8-R Installation Overview

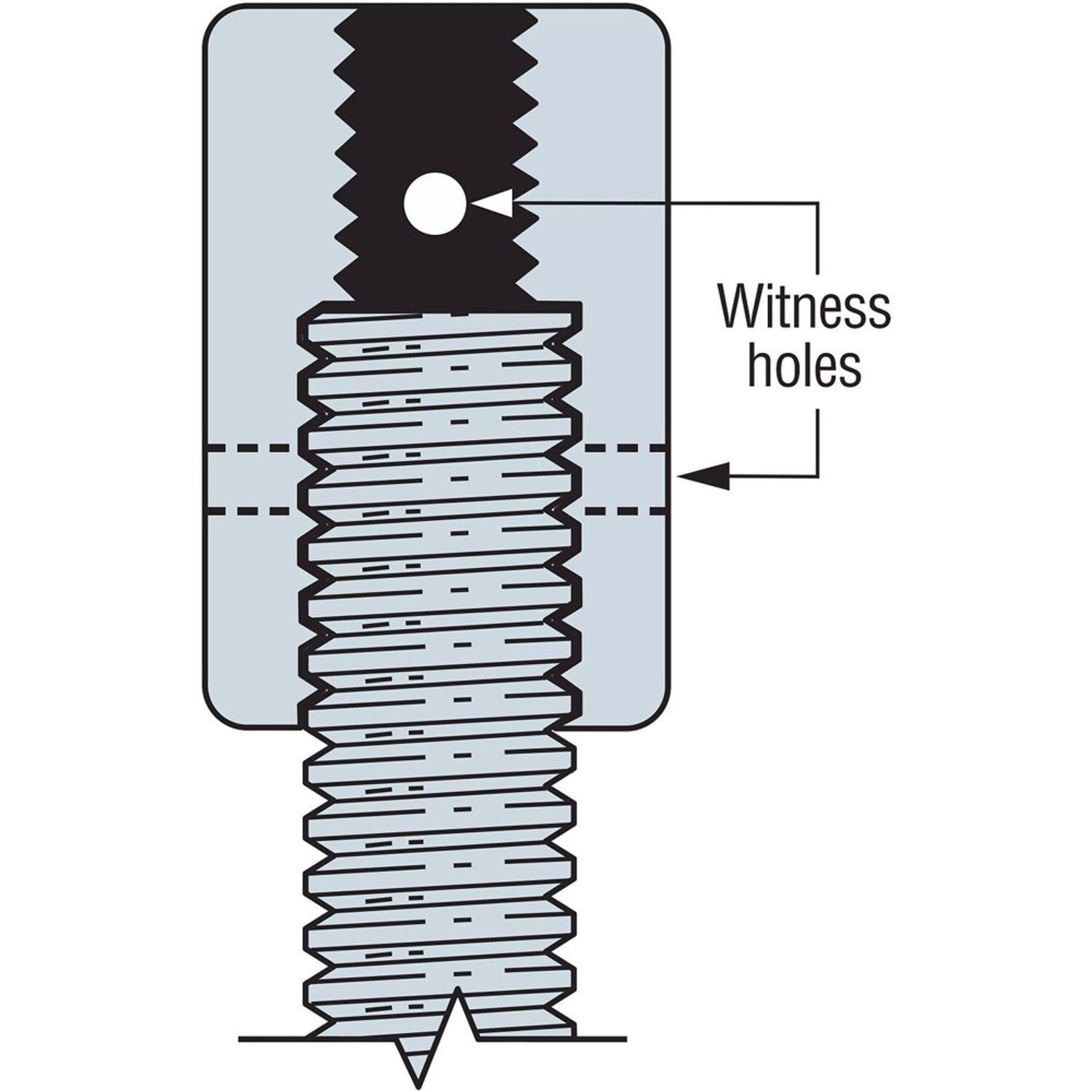

- Tighten the two rods until each all-thread rod is visible in the witness hole.
- For transition couplers, thread the coupler onto the larger rod first, then thread the smaller rod into the coupler.
- Use standard CNW or HSCNW models with non-hot-dip galvanized all-thread rods only.
Simpson Strong-Tie CNW5/8-R Specifications
| Finish | Zinc plated or uncoated |
| Rod Diameter | 5/8 in. |
| Model No. | CNW5/8-R |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
