Simpson Strong-Tie CNW5/8 Coupler Nut with Witness Hole for Threaded Rod
$1.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CNW5/8 Description

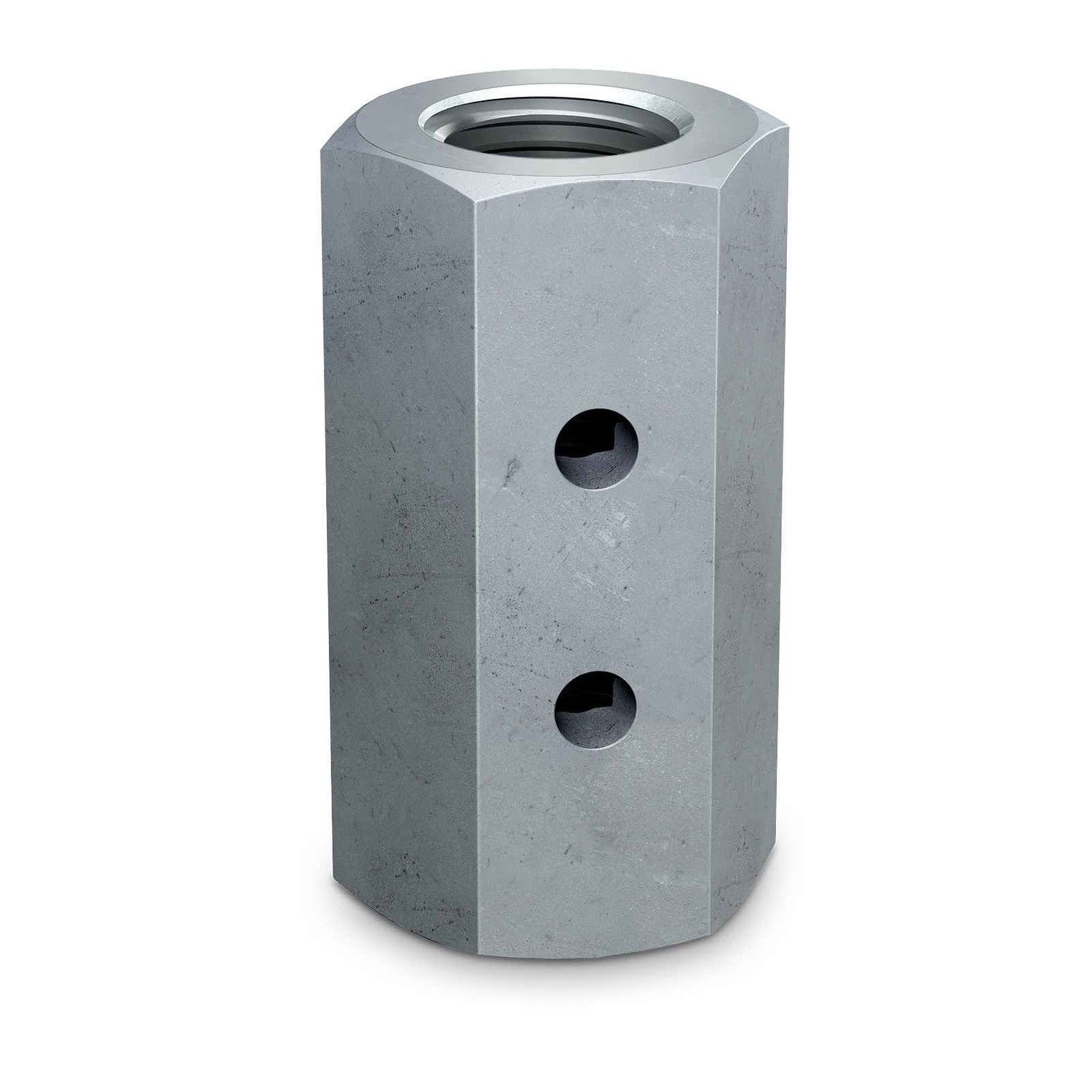

The CNW5/8 Coupler Nut by Simpson Strong-Tie is designed to securely connect threaded rods and anchor bolts, featuring a witness hole for proper installation verification.
Simpson Strong-Tie CNW5/8 Includes
- (1) Coupler Nut
Simpson Strong-Tie CNW5/8 Features
- Positive Stop: Ensures even threading into each end of the nut.

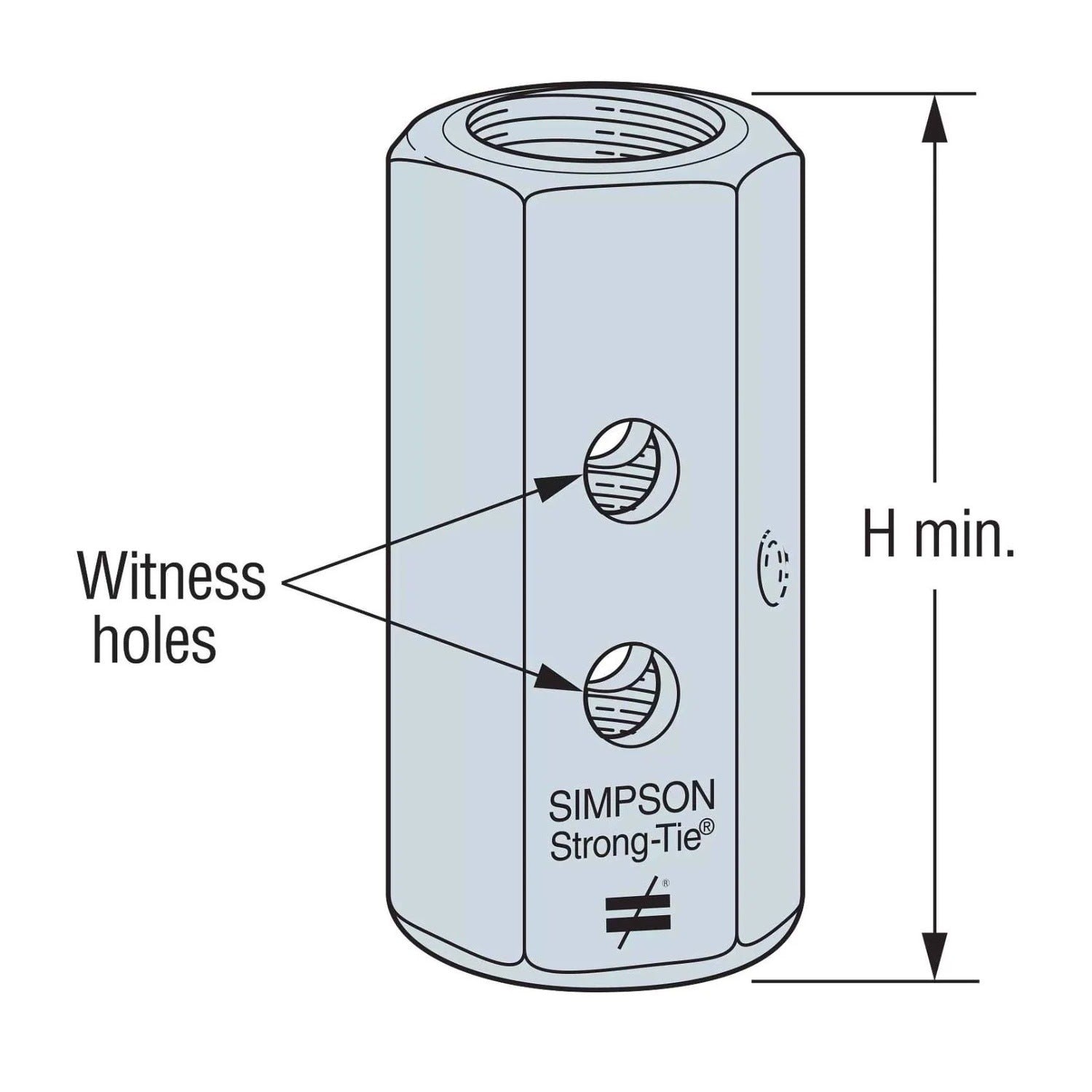

- Witness Hole: Allows for visual confirmation that rods are properly installed.
- Zinc Plated Finish: Provides corrosion resistance for durability.
- Versatile Applications: Suitable for connecting threaded rods to each other or to anchor bolts in various construction projects.
Simpson Strong-Tie CNW5/8 Applications

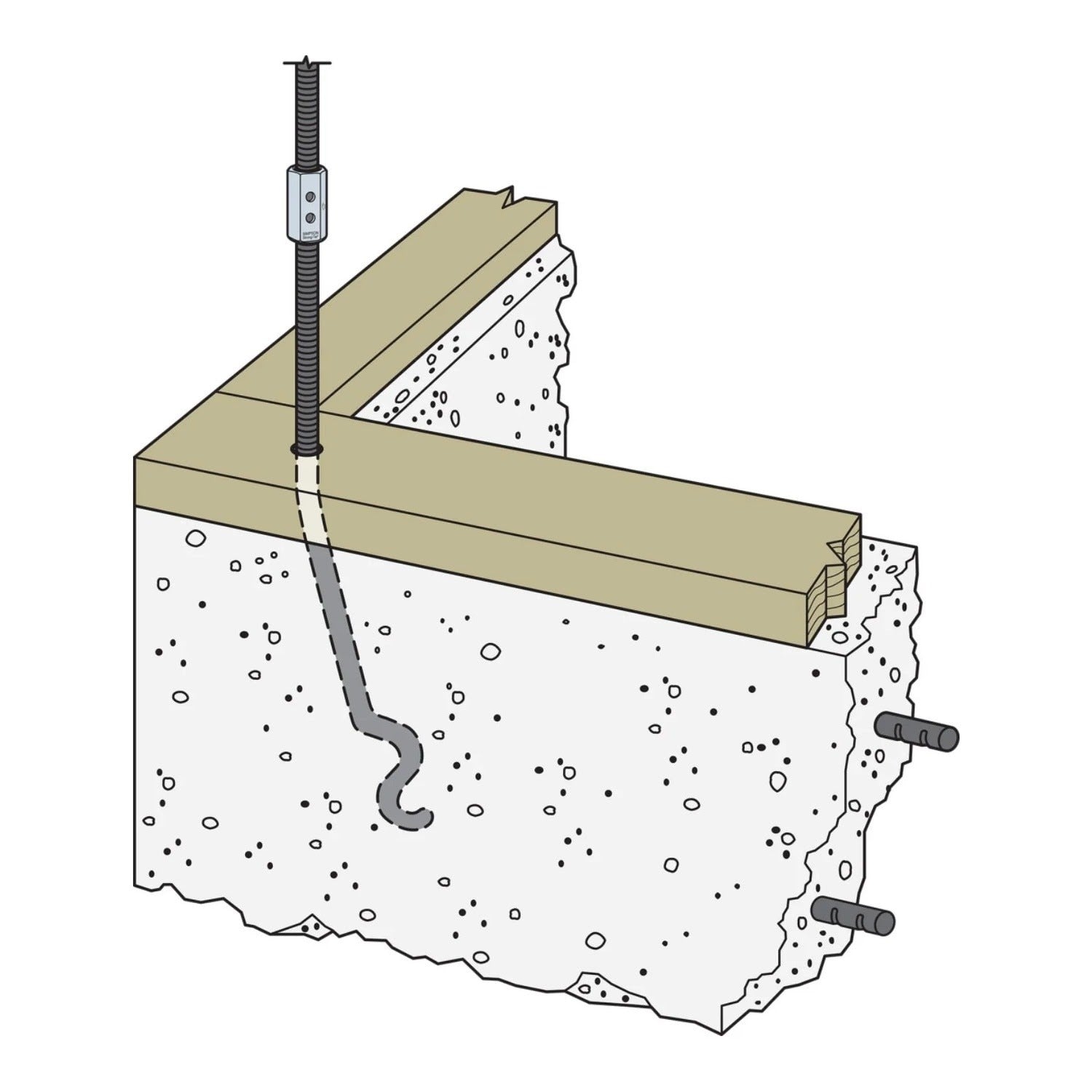

- Connecting threaded rods to each other for structural support.
- Securing anchor bolts in construction projects.
- Providing reliable connections in various construction applications.
Simpson Strong-Tie CNW5/8 Installation Overview
- Align the threaded rod with the coupler nut.
- Thread the rod into the coupler nut until it reaches the positive stop.
- Verify proper installation using the witness hole.
Simpson Strong-Tie CNW5/8 Specifications
| Diameter | 5/8" |
| Accepts rod size | 5/8" |
| Allowable Tension Load | 6,675 lbs |
| Height | 1-7/8" |
| Finish | Zinc Plated |
