Simpson Anchors | SKU:
CNW7/8-5/8

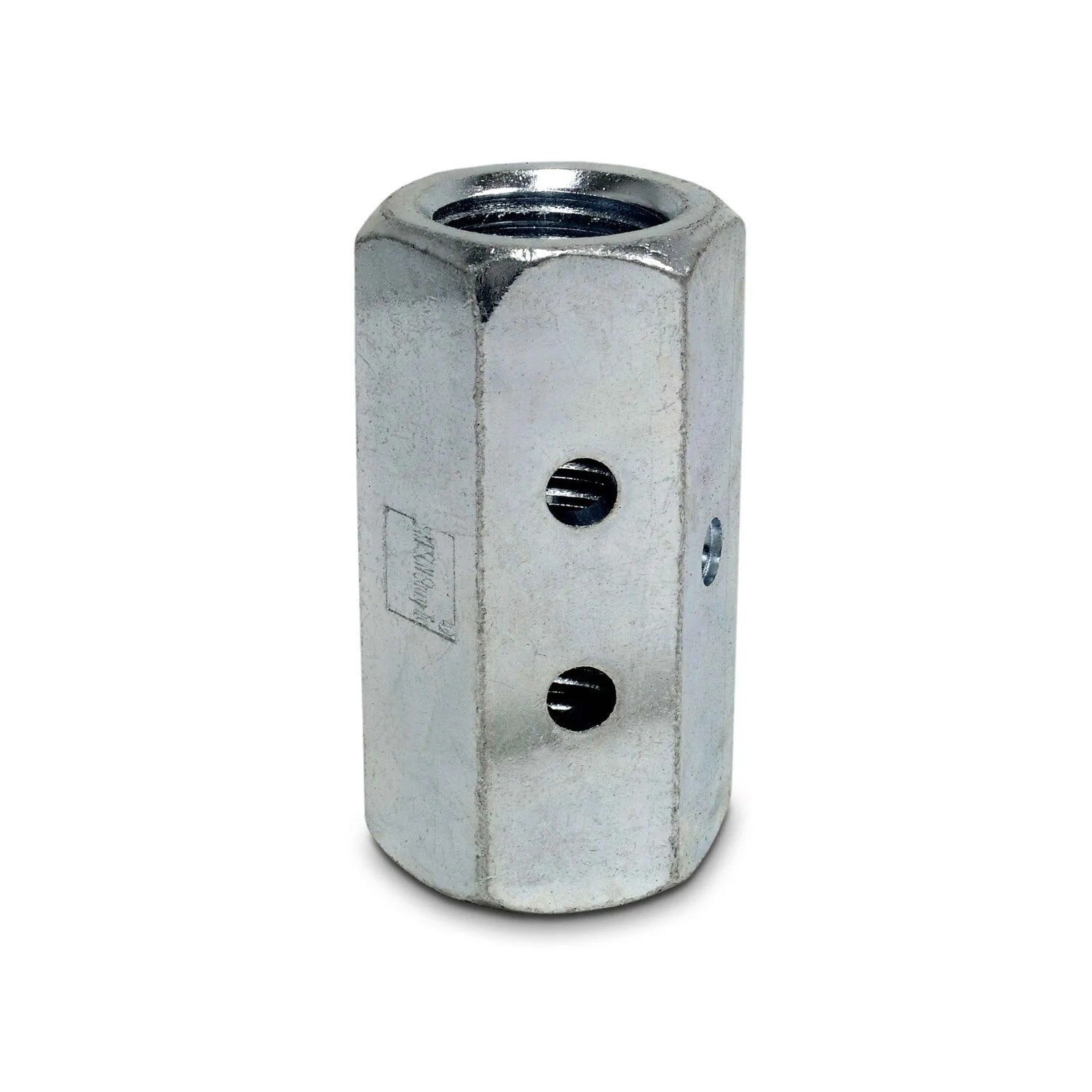

Simpson Strong-Tie CNW7/8-5/8 (7/8 in. to 5/8 in.) Coupler Nut with Witness Hole
$10.20
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CNW7/8-5/8 Description
The CNW7/8-5/8 Coupler Nut by Simpson Strong-Tie is designed to securely connect threaded rods of differing diameters, featuring a witness hole for proper installation verification and a zinc-plated finish for corrosion resistance.
Simpson Strong-Tie CNW7/8-5/8 Includes
- (1) CNW7/8-5/8 Coupler Nut
Simpson Strong-Tie CNW7/8-5/8 Features
- Witness hole for proper installation verification
- Positive stop for even threading into each end
- Zinc-plated finish for corrosion resistance
- Compatible with 7/8" and 5/8" threaded rods
Simpson Strong-Tie CNW7/8-5/8 Applications
- Connecting threaded rods in construction projects
- Structural applications requiring secure rod connections
- Renovation projects involving differing rod diameters
Simpson Strong-Tie CNW7/8-5/8 Installation Overview
- Tighten the two rods until each all-thread rod is visible in the witness hole.
- For transition couplers, thread the coupler onto the larger rod first, then thread the smaller rod into the coupler.
- Ensure proper thread engagement into each end of the nut.
Simpson Strong-Tie CNW7/8-5/8 Specifications
| Diameter | 7/8" - 5/8" |
| Finish | Zinc Plated or Uncoated |
| Height | 2" |
| Allowable Tension Load | 6,675 lbs |
