Simpson Anchors | SKU:
CPS4-R
Simpson Strong-Tie CPS4-R Composite Plastic Standoff for 4x4
$3.96
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CPS4-R Description

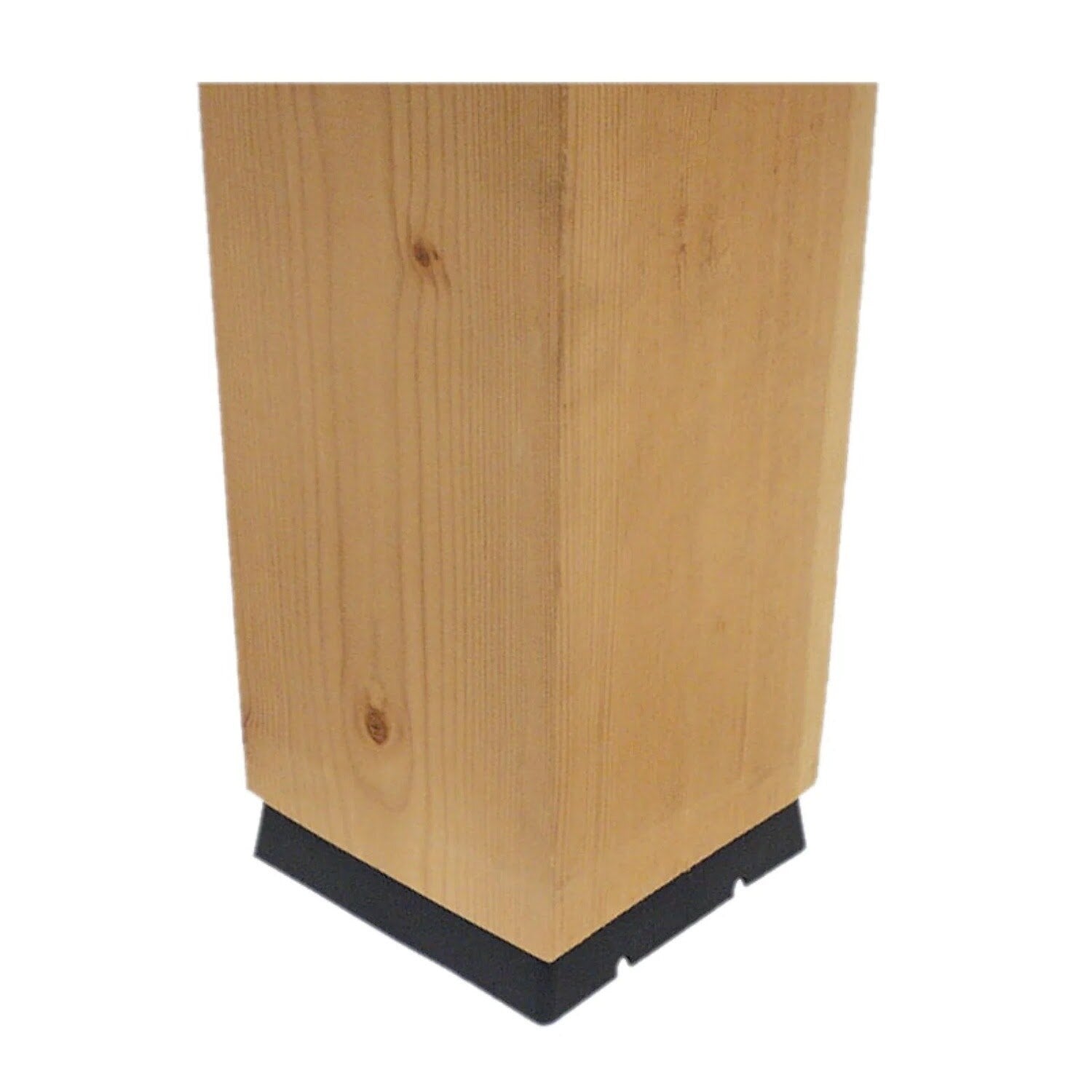

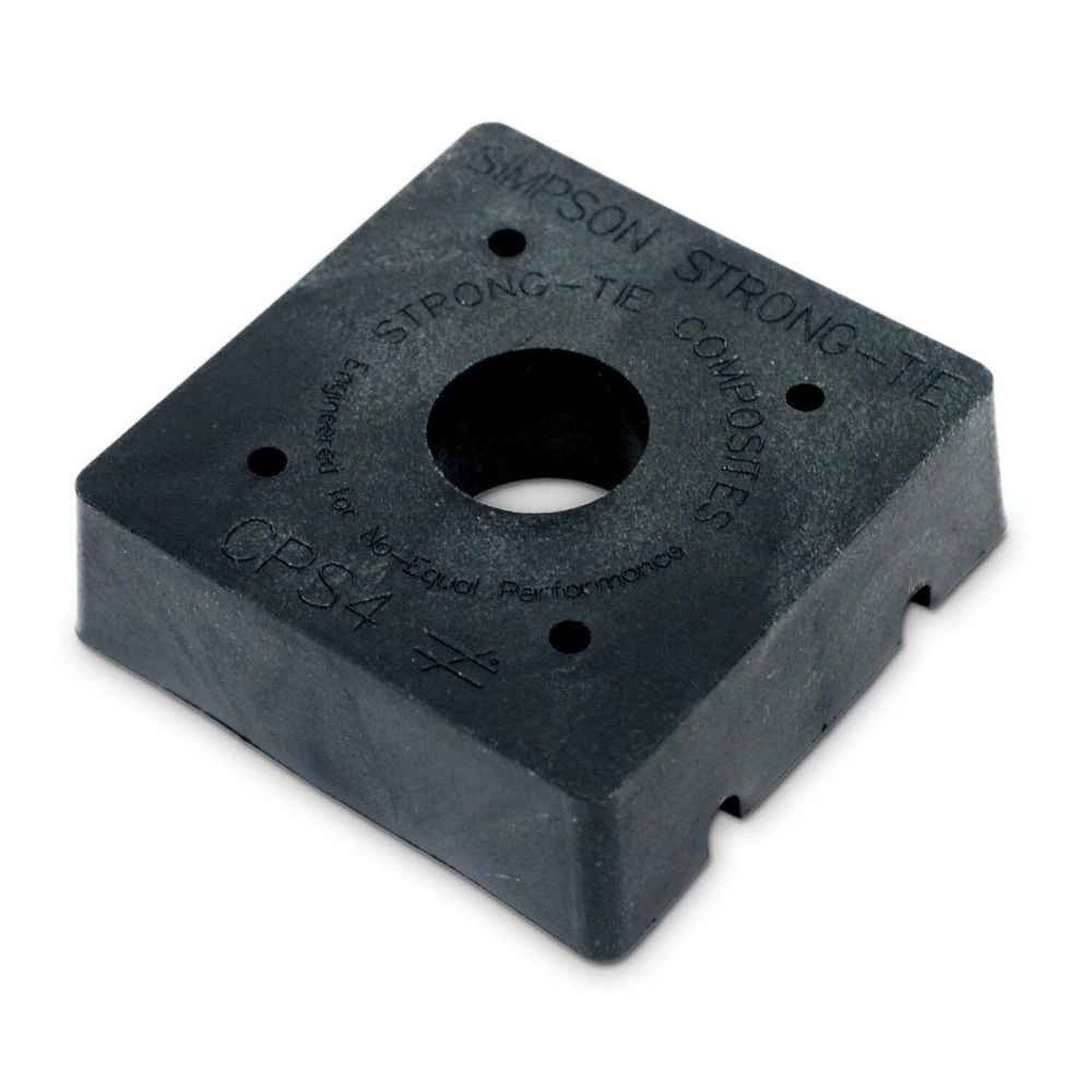

The CPS4-R Composite Plastic Standoff provides a code-required 1" standoff for 4x4 posts, featuring a durable composite plastic construction and a black finish for a custom look.
Simpson Strong-Tie CPS4-R Includes
- (1) Composite Plastic Standoff for 4x4
Simpson Strong-Tie CPS4-R Features
- Provides code-required 1" standoff
- Multiple sizes to support a variety of projects
- Black finish for a custom look
Simpson Strong-Tie CPS4-R Applications
- Fastening wood to concrete or masonry
- Indoor architectural projects requiring decorative hardware

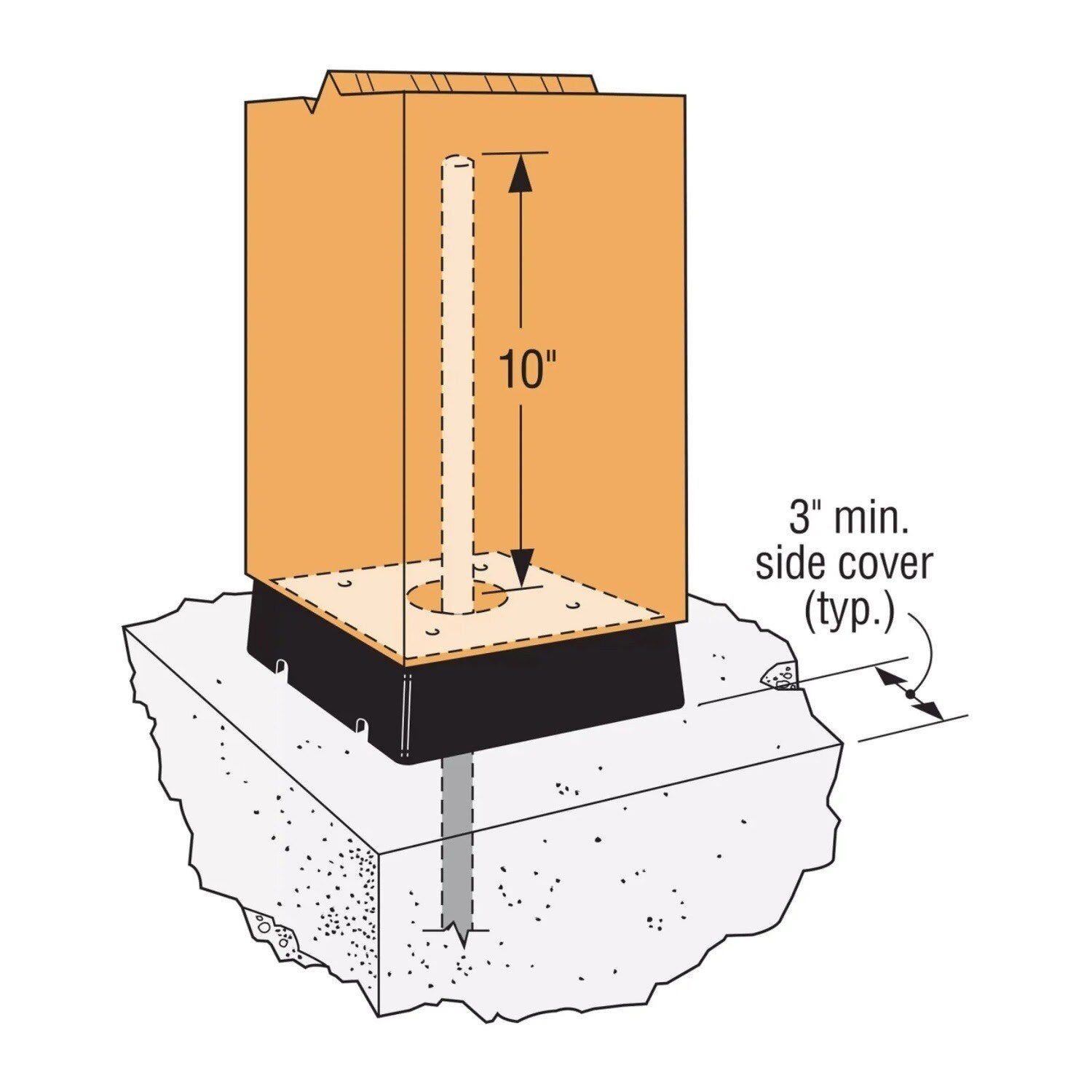

Simpson Strong-Tie CPS4-R Installation Overview
- Drill a 3/4"-diameter hole, 10" into the center of the post.
- Clean out sawdust and fill hole halfway with Simpson Strong-Tie SET-3G epoxy anchoring adhesive.
- Insert all-thread rod while twisting the rod, and allow the epoxy to set and cure.
- Secure standoff to post using four 0.148" x 3" nails.
- Drill a 3/4"-diameter hole per anchor design for concrete.
- Clean out dust and fill hole halfway with Simpson Strong-Tie SET-3G, ET-3G or AT-3G anchoring adhesive.
- Insert post subassembly into hole, and allow the epoxy to set and cure.
Simpson Strong-Tie CPS4-R Specifications
| Nominal Post Size | 4x4 |
| Width (in.) | 3 1/4 |
| Length (in.) | 3 1/4 |
| Height (in.) | 1 |
| Material | Composite Plastic |
| Packaging Quantity | 1 |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
