Simpson Strong-Tie CPS46 Description

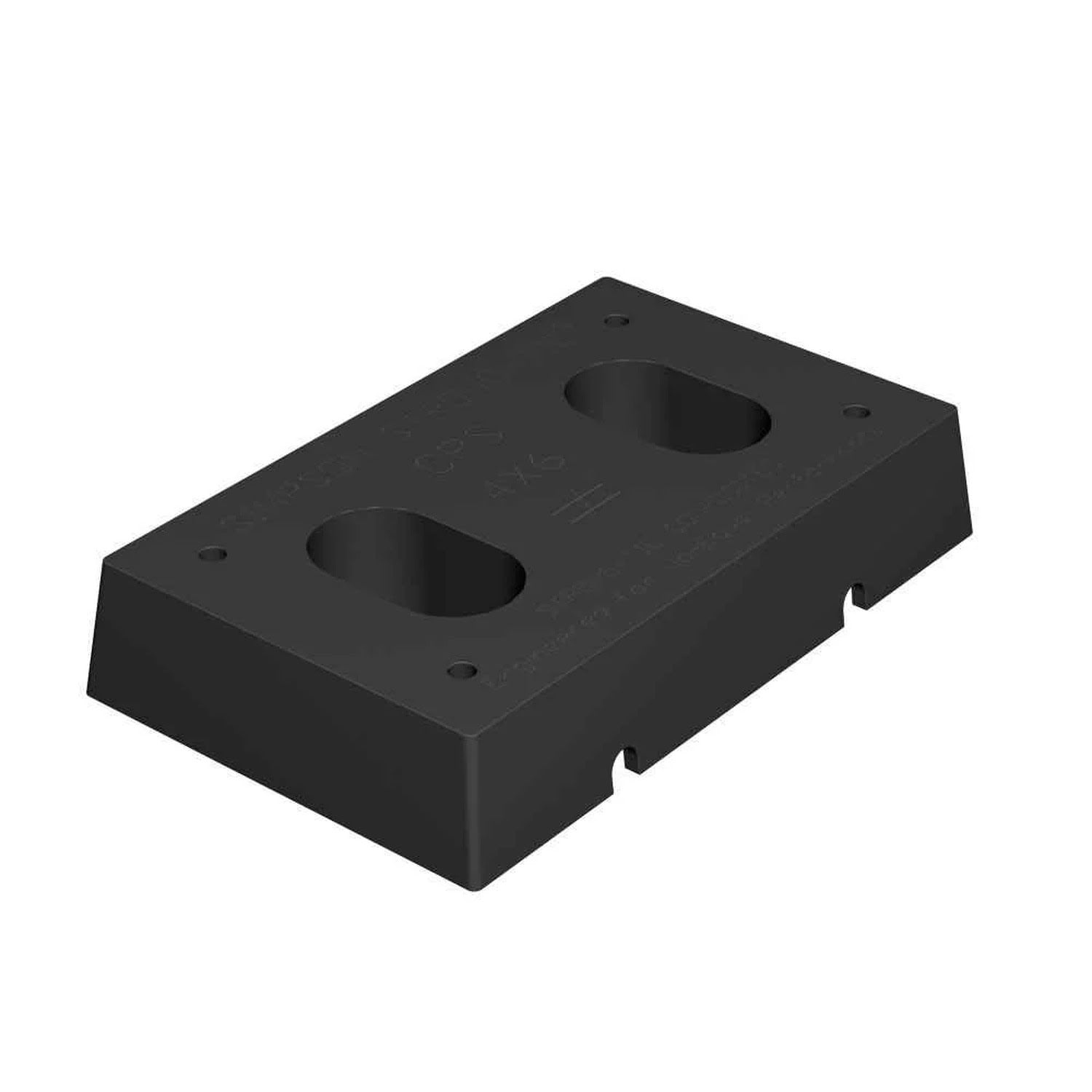

The Simpson Strong-Tie CPS46 is a composite-plastic standoff designed for increased concrete surface area and maximum durability.
Simpson Strong-Tie CPS46 Includes
- (1) Composite Plastic Standoff
Simpson Strong-Tie CPS46 Features
- Made from durable composite plastic
- Designed to increase concrete surface area
- Rust-resistant material
- Compatible with 4x6 posts
Simpson Strong-Tie CPS46 Applications
- Post bases for structural support
- Concrete surface applications
- Wooden post installations

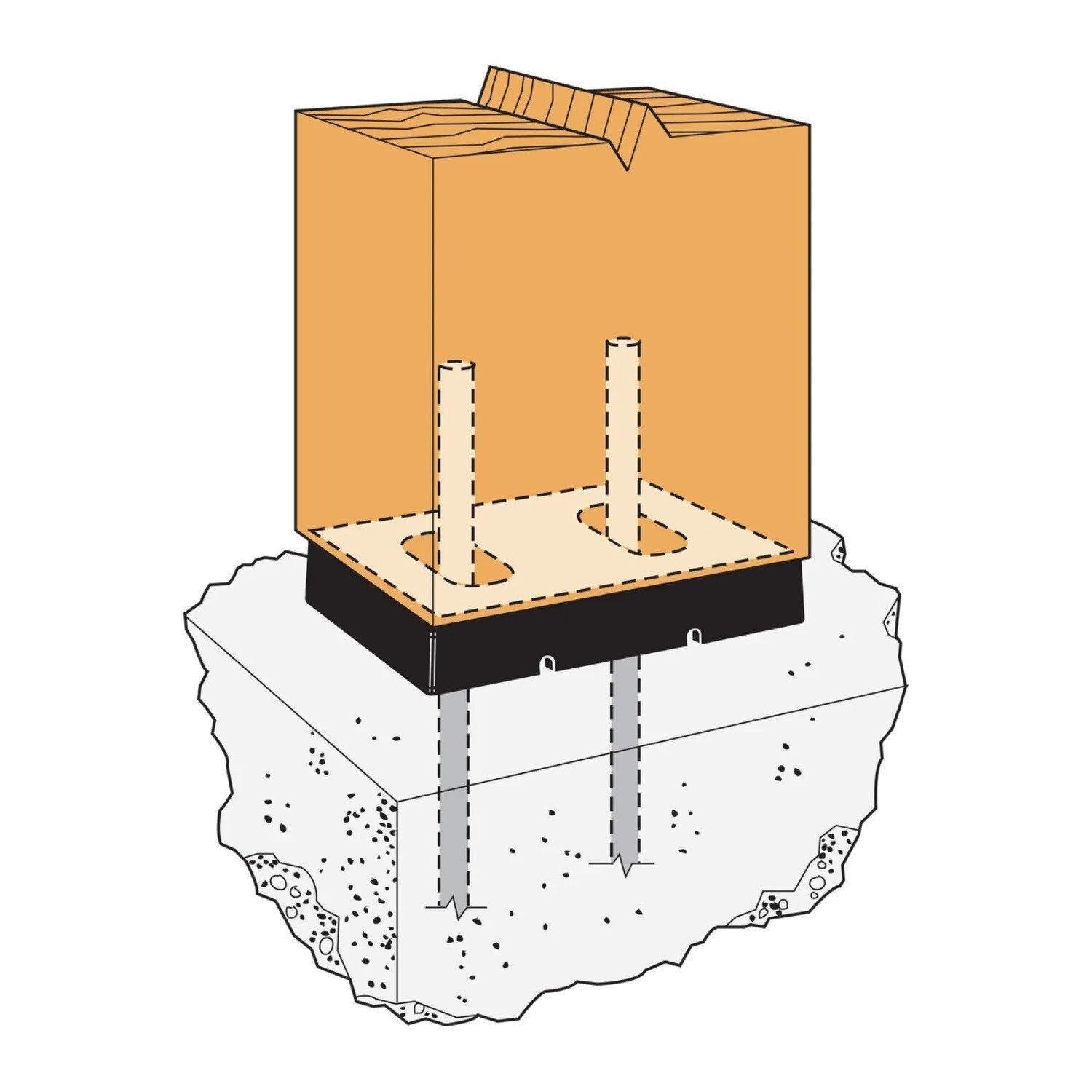

Simpson Strong-Tie CPS46 Installation Overview
- Drill a 3/4" diameter hole into the center of the post.
- Clean out dust and fill hole halfway with epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to cure.
- Secure standoff to post using specified fasteners.
- Drill a 3/4" diameter hole in concrete per anchor design.
- Clean out dust and fill hole halfway with epoxy anchoring adhesive.
- Insert post subassembly into hole and allow epoxy to cure.

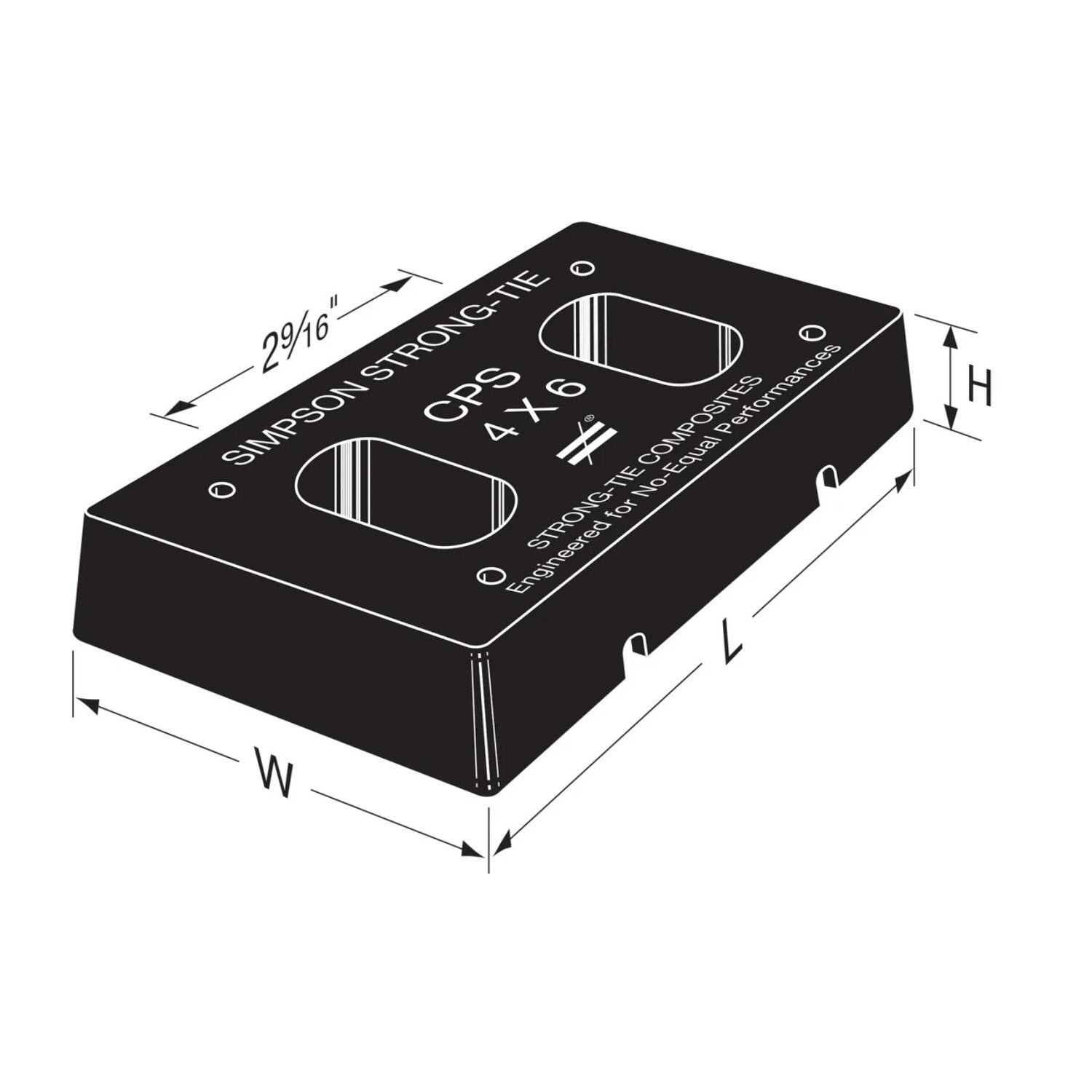

Simpson Strong-Tie CPS46 Specifications
| Length | 5-5/16" |
| Height | 1" |
| Post size | 4X6 |
| Material | Black Engineered Composite Plastic |
| Fasteners required | (4) 0.148 x 3" Nails, (2) 5/8" Concrete Anchors |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
