Simpson Anchors | SKU:
CPS5
Simpson Strong-Tie CPS5 Composite Plastic Standoff for 5x5
$10.85
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CPS5 Description

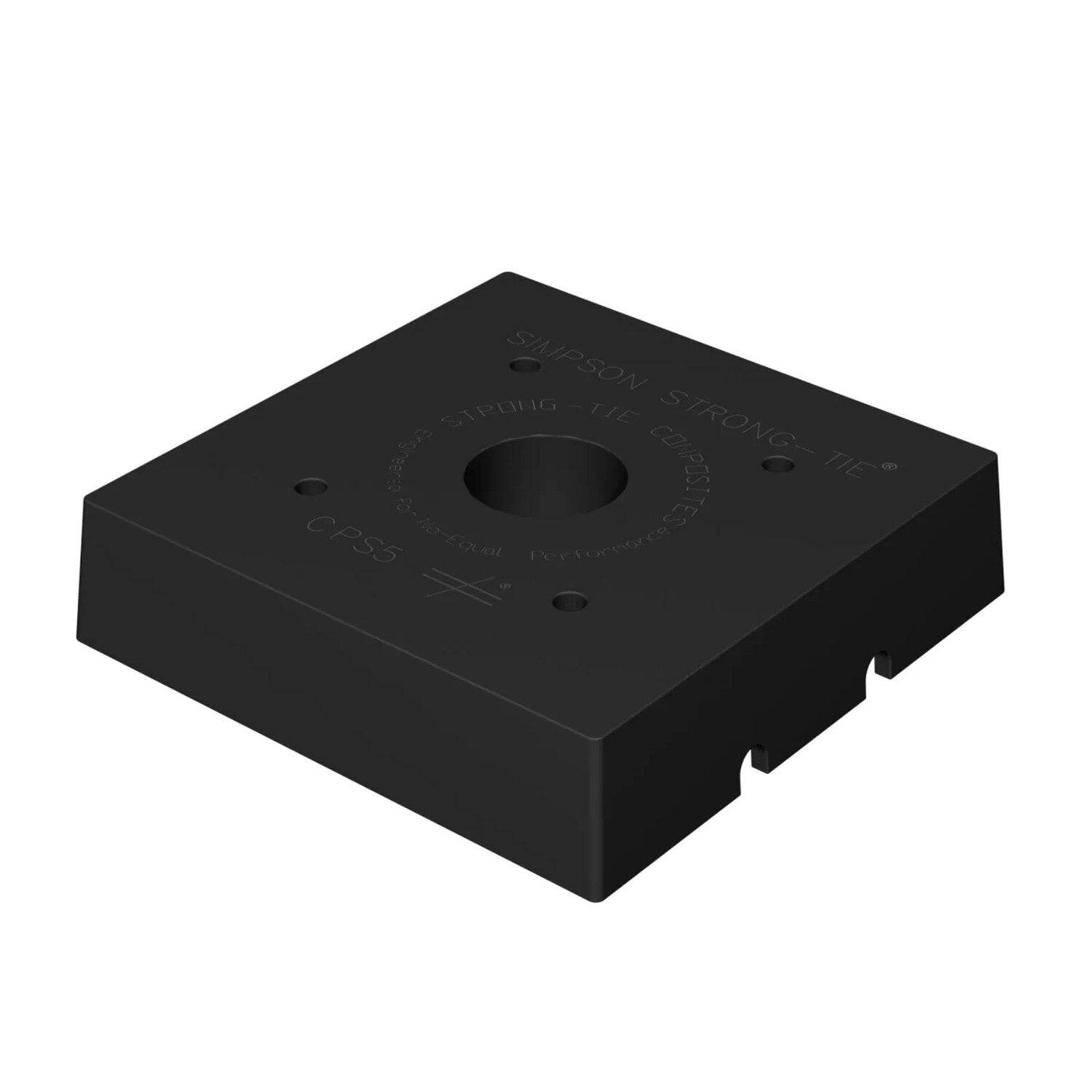

The Simpson Strong-Tie CPS5 is a composite-plastic standoff designed for increased concrete surface area and maximum durability.
Simpson Strong-Tie CPS5 Includes
- (1) Composite Plastic Standoff
Simpson Strong-Tie CPS5 Features
- Made from durable composite plastic
- Designed to increase concrete surface area
- Rust-resistant material

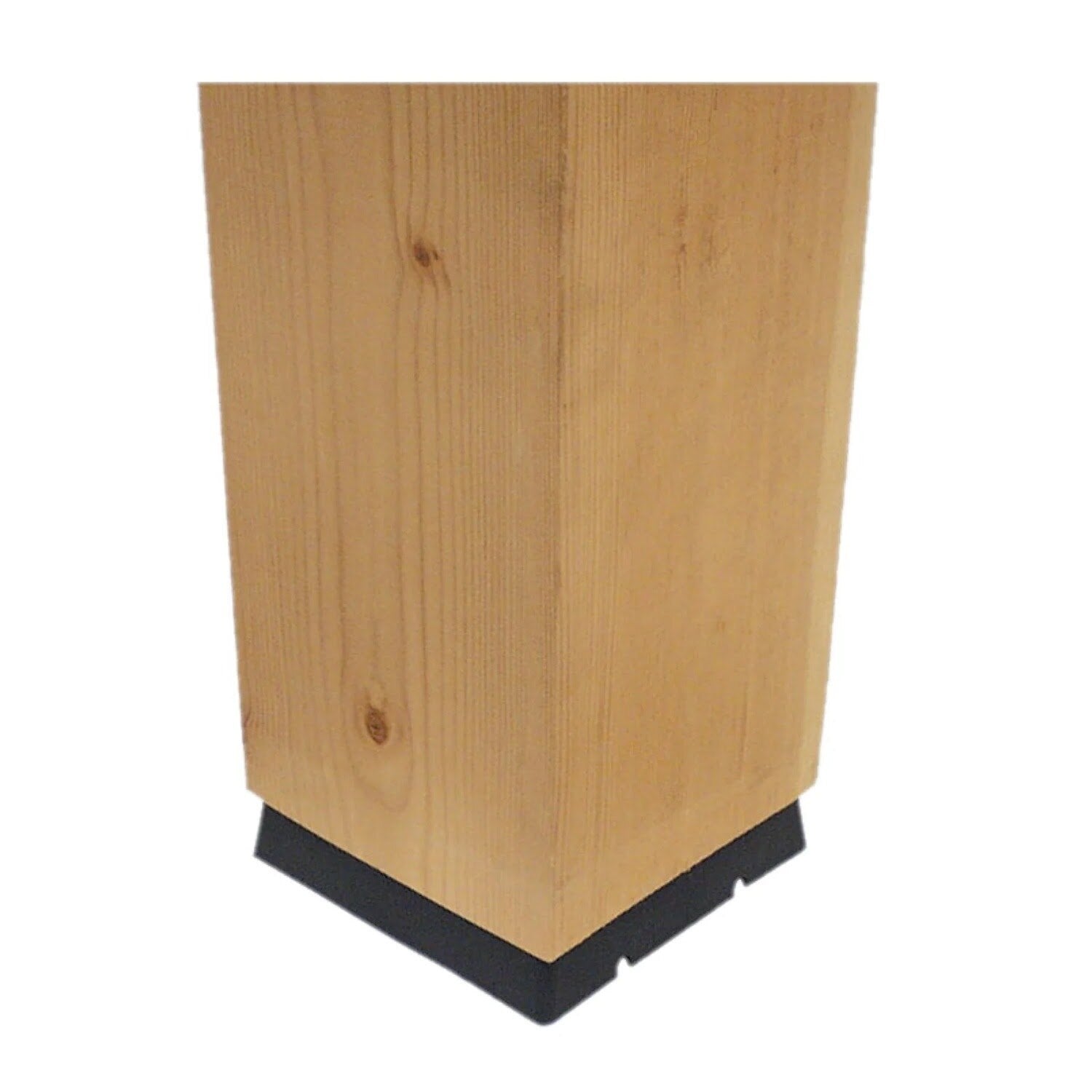

- Compatible with 5x5 posts
Simpson Strong-Tie CPS5 Applications
- Post installations for decks and fences
- Concrete surface applications requiring standoffs
- Durable support for structural posts
Simpson Strong-Tie CPS5 Installation Overview
- Drill a 3/4" diameter hole into the center of the post.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to set and cure.
- Secure standoff to post using four 10d nails.
- Drill a 3/4" diameter hole per anchor design in concrete.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert post subassembly into the hole and allow epoxy to set and cure.
Simpson Strong-Tie CPS5 Specifications
| Length | 4-1/8" |
| Height | 1" |
| Post size | 5X5 |
| Material | Black Engineered Composite Plastic |
| Fasteners required | (4) 0.148 x 3" Nails, (1) 5/8" Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
