Simpson Anchors | SKU:
CPS6

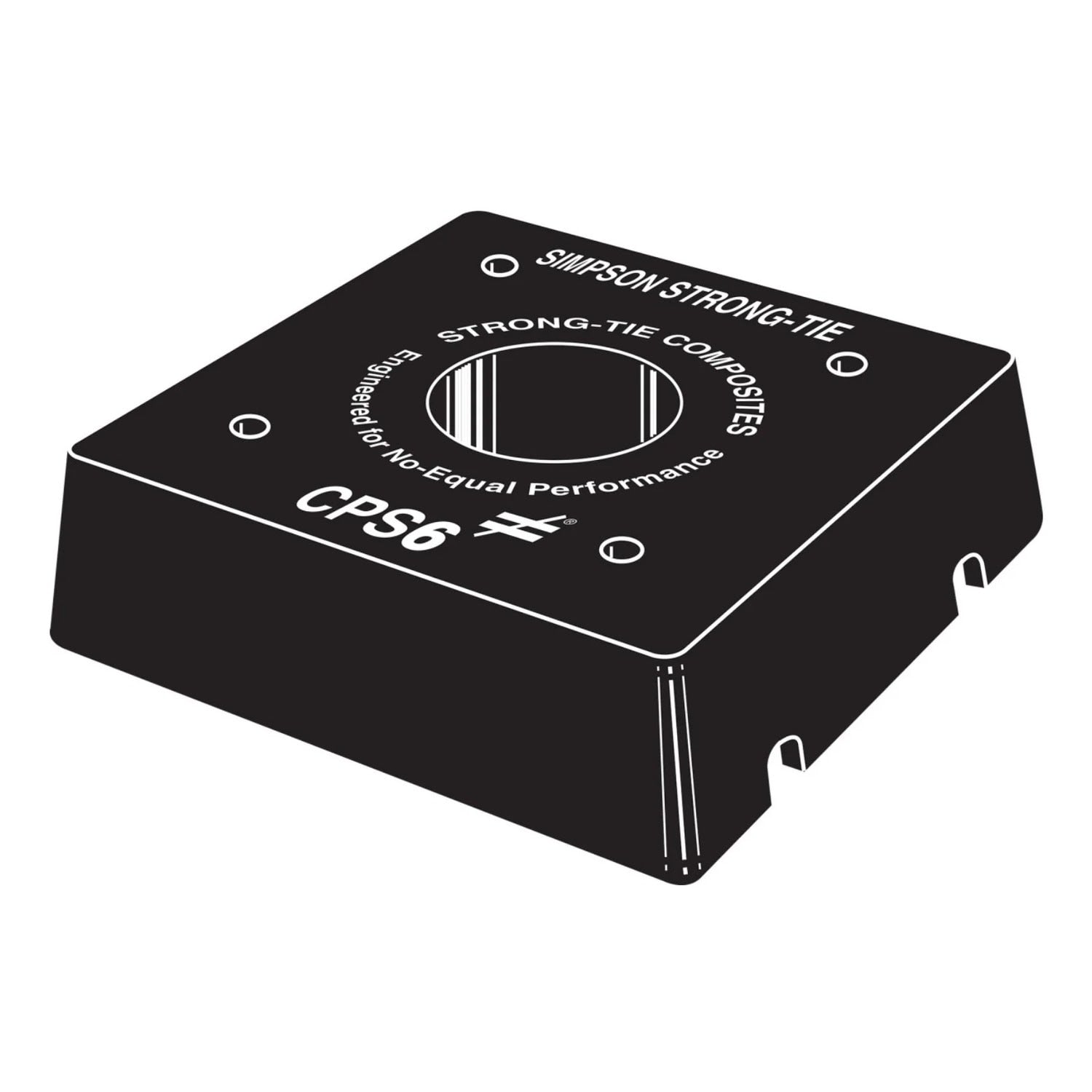

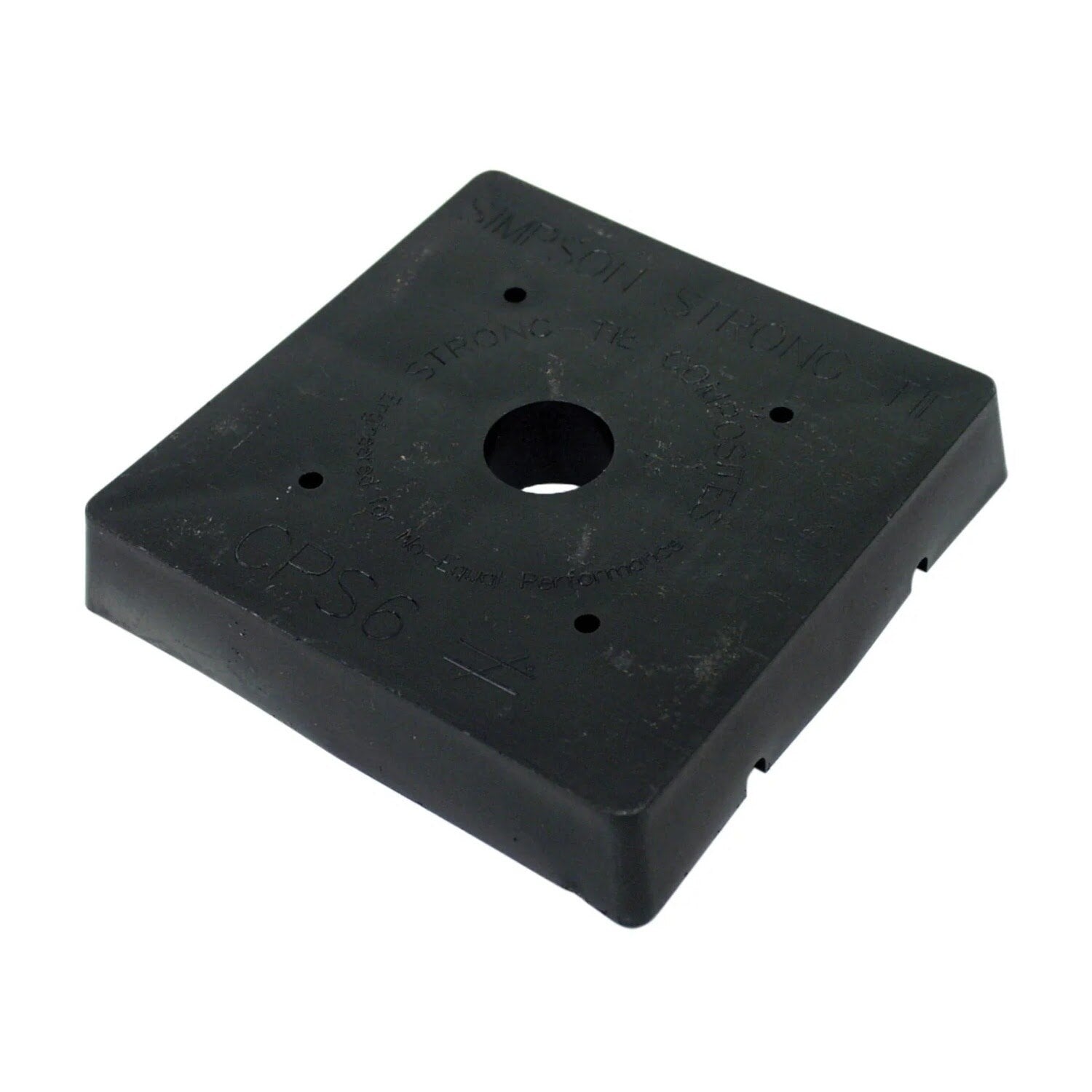

Simpson Strong-Tie CPS6 Composite Plastic Standoff for 6x6
$11.79
Unit price
/
Unavailable
Description
Description
Simpson CPS6 Description
The Simpson CPS6 Composite Plastic Standoff is designed for increased concrete surface area and maximum durability, featuring a rust-free molded composite plastic construction.
Simpson CPS6 Includes
- (1) Composite Plastic Standoff for 6x6
Simpson CPS6 Features
- Rust-free molded composite plastic construction
- Designed for increased concrete surface area
- Maximum durability for long-lasting performance
Simpson CPS6 Applications

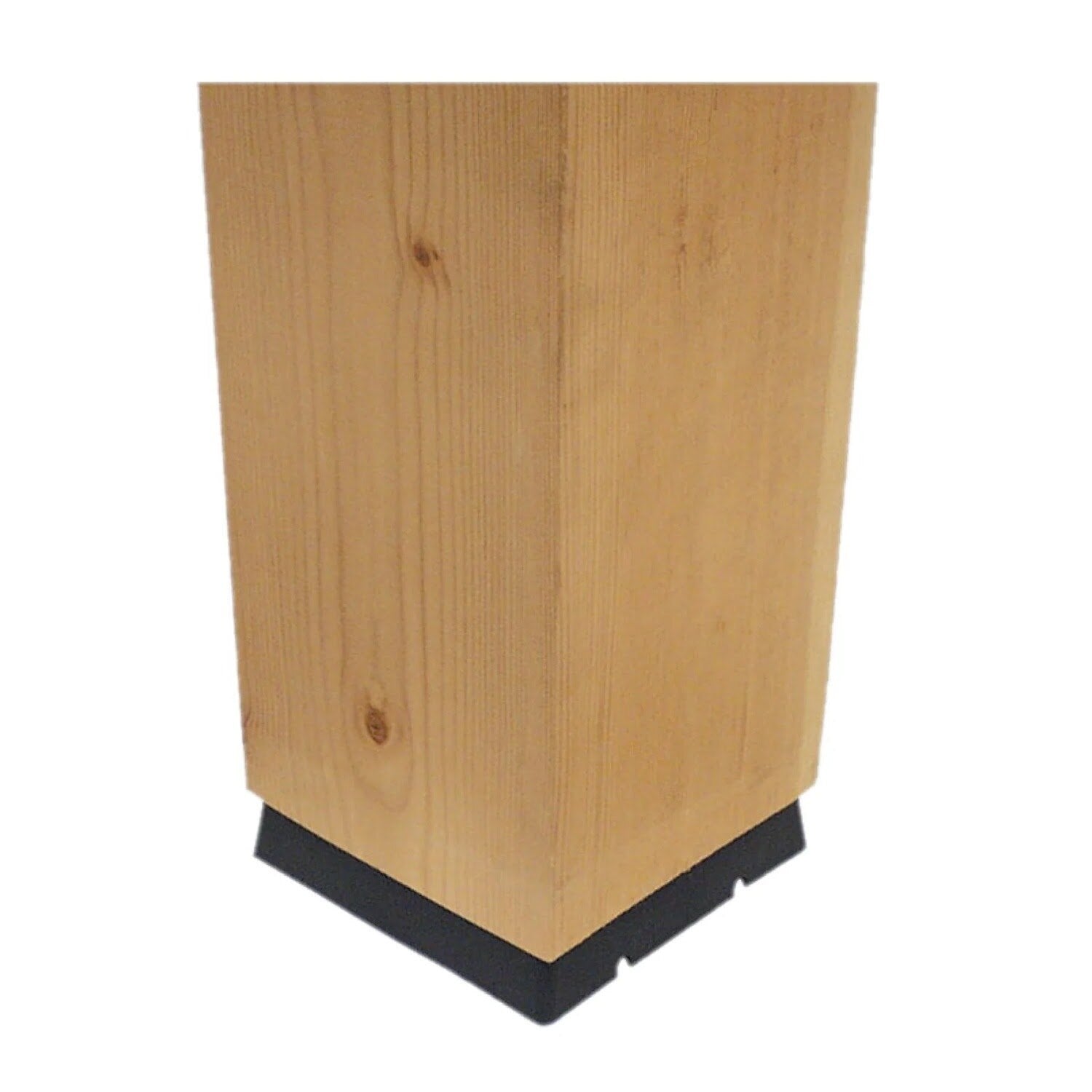

- Securing 6x6 posts to concrete surfaces
- Providing structural support for posts in construction projects

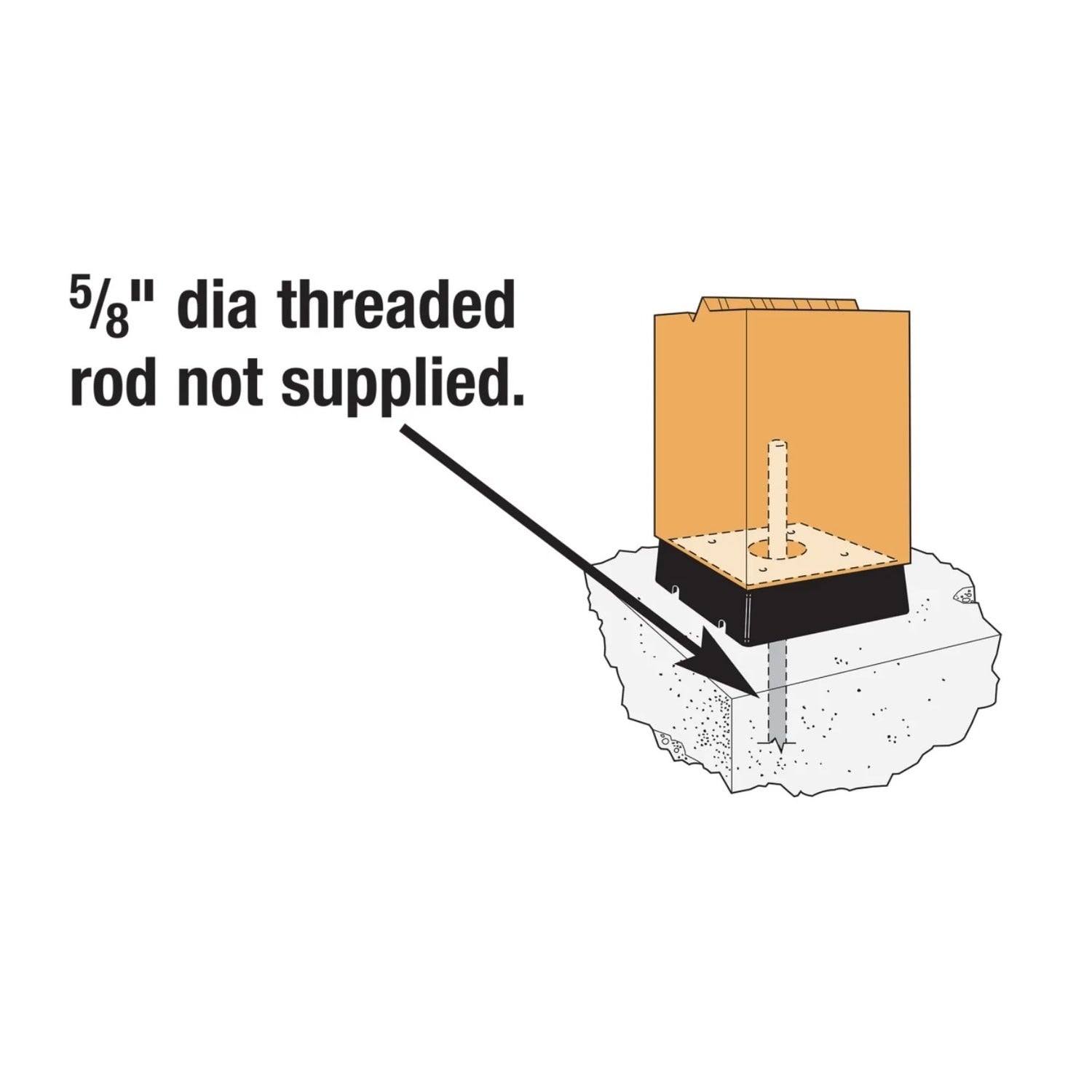

Simpson CPS6 Installation Overview
- Drill a 3/4" diameter hole, 10" into the center of the post.
- Clean out dust and fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to set and cure.
- Secure standoff to post using four 10d nails.
- Drill a 3/4" diameter hole per anchor design in concrete.
- Clean out dust and fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert post subassembly into hole and allow epoxy to set and cure.
Simpson CPS6 Specifications
| Length | 5-5/16" |
| Height | 1" |
| Post size | 6X6 |
| Fasteners required | (4) 0.148 x 3" Nails, (1) 5/8" Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
