Simpson Anchors | SKU:
CPT44SS
Simpson Strong-Tie CPT44SS (4" x 4") Stainless-Steel Concealed Post Base (1 Piece)
$197.57
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CPT44SS Description
The CPT44SS is a stainless-steel concealed post base designed for 4x4 posts, offering durability and aesthetic appeal for deck and post-to-footing applications.
Simpson Strong-Tie CPT44SS Includes

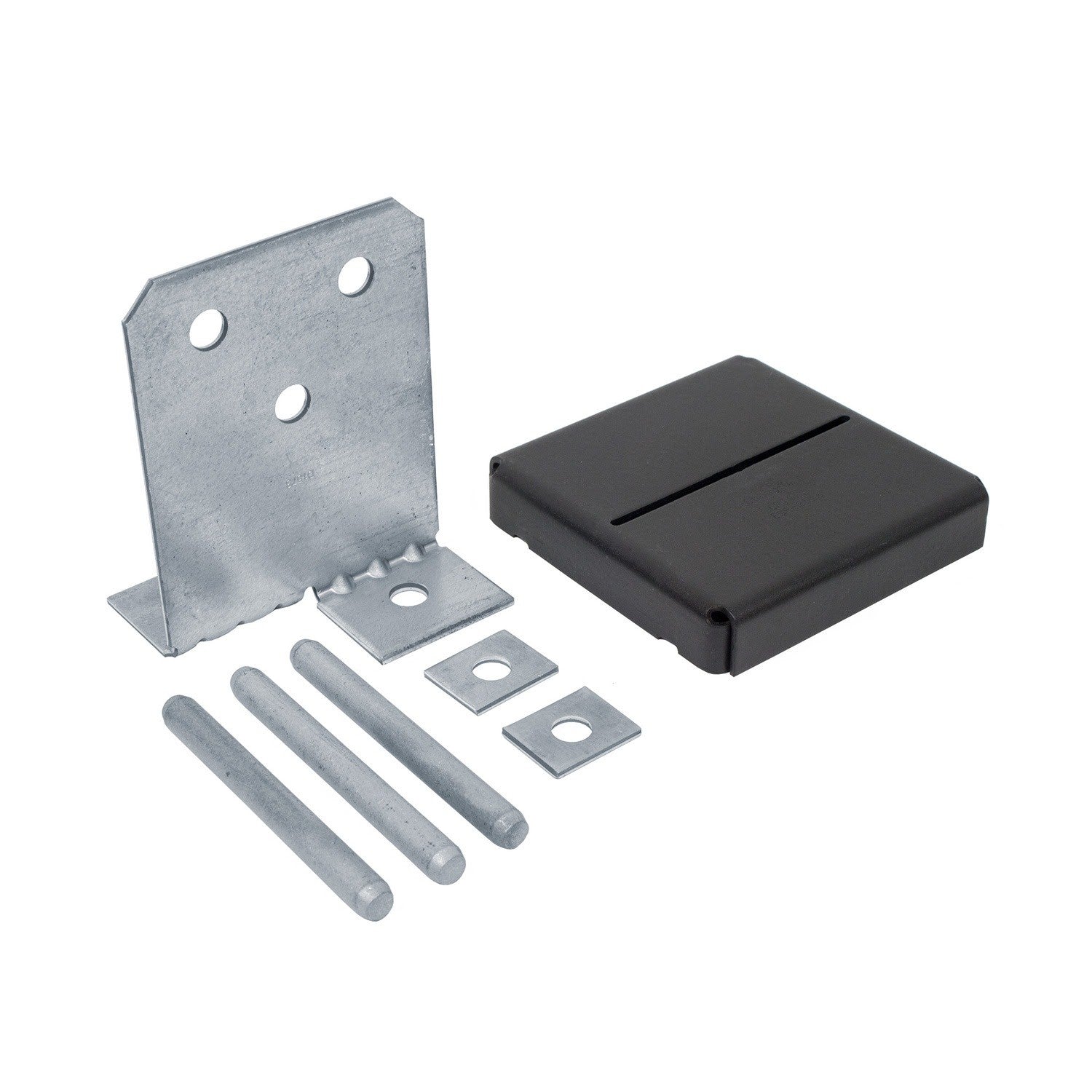

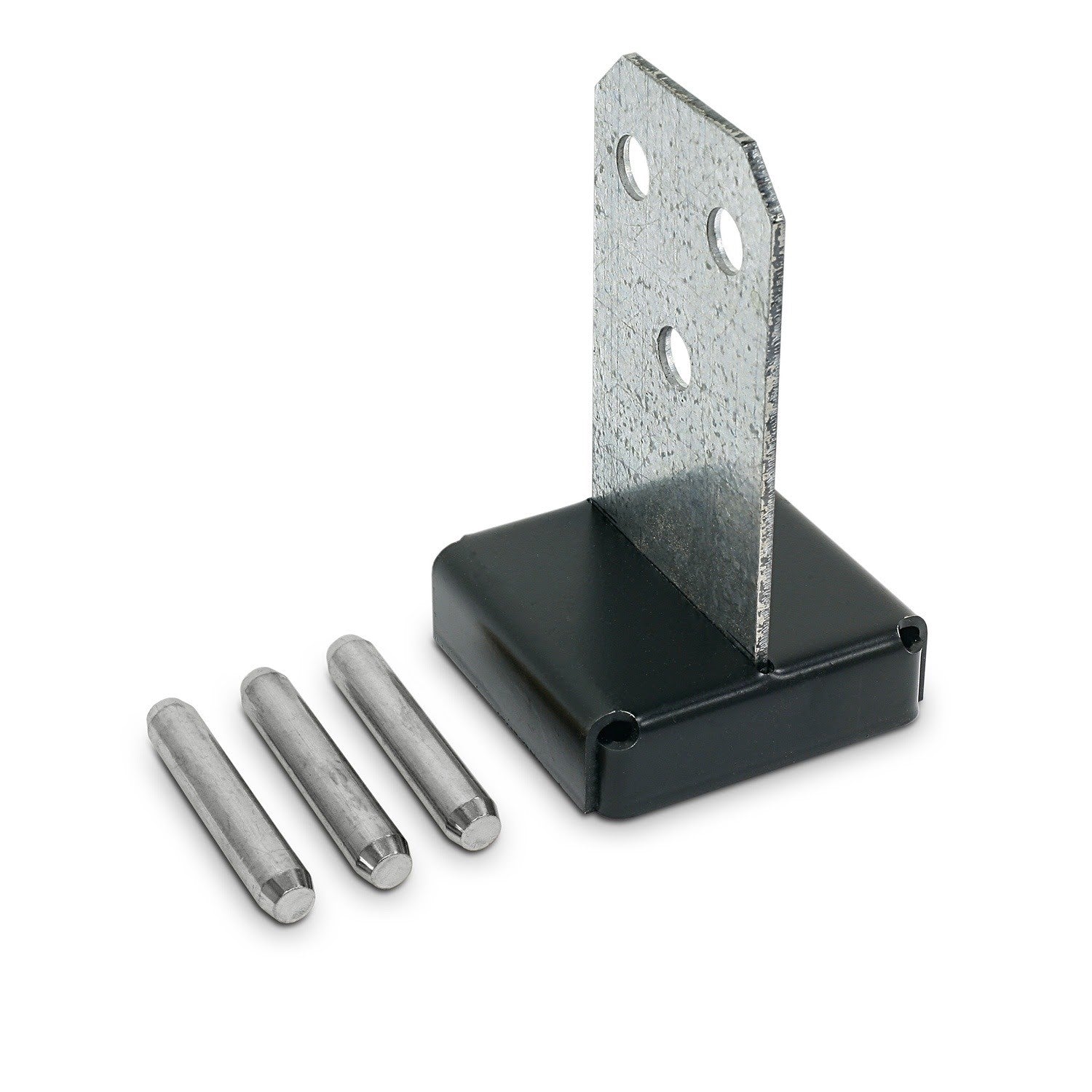

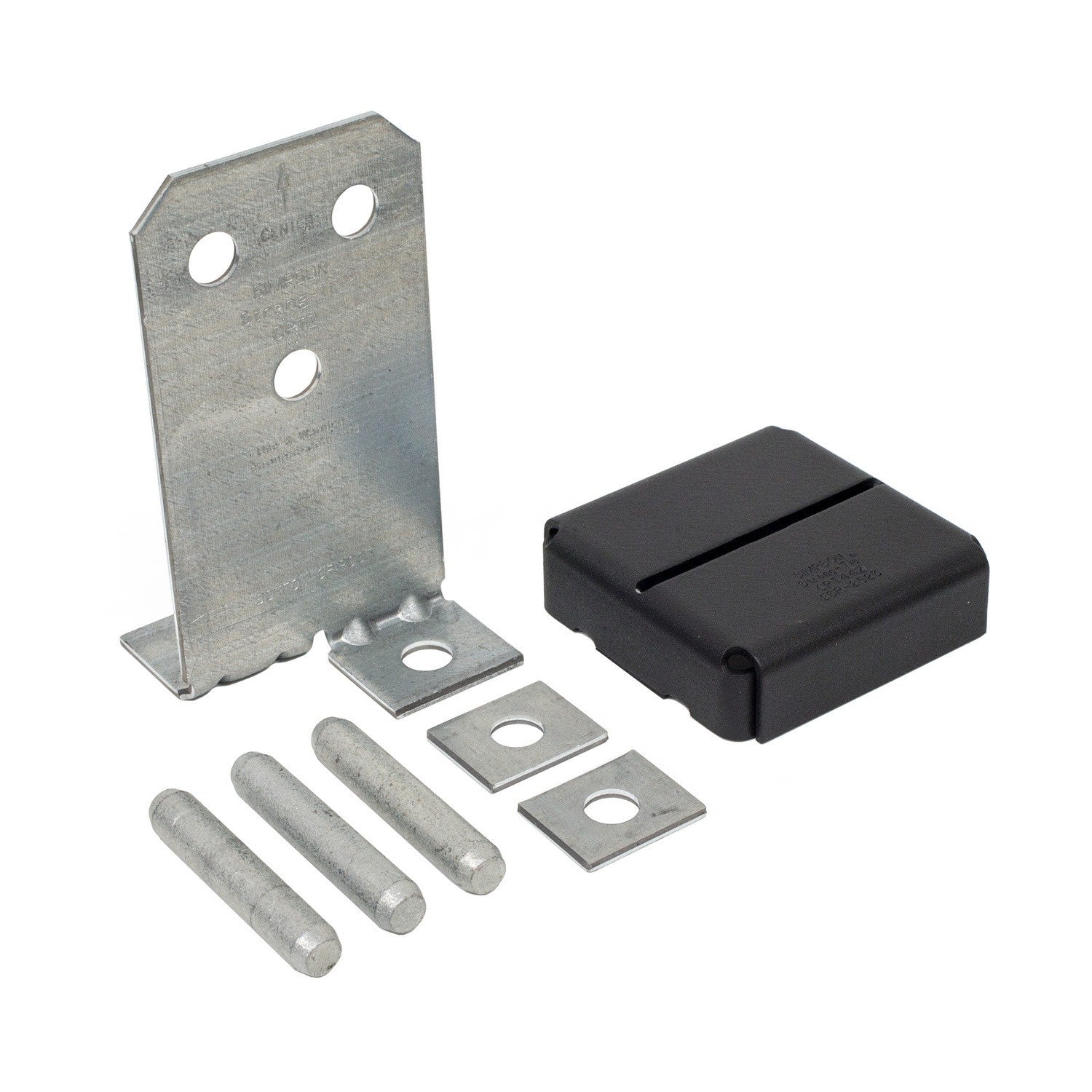

- (1) Stainless-Steel Concealed Post Base for 4x4
Simpson Strong-Tie CPT44SS Features
- Durable stainless-steel construction
- Concealed design for aesthetic appeal
- Suitable for 4x4 posts
- Includes knife plate, washers, and standoff base
- Mechanically galvanized drift dowels
Simpson Strong-Tie CPT44SS Applications
- Decks: Securely connects posts to footings
- Post-to-Footings: Provides stable and durable connections
Simpson Strong-Tie CPT44SS Installation Overview
- Use knife blade portion of CPTZ as a template to mark dowel/bolt locations on post.
- Drill 1/2"-diameter holes perpendicular to post at marked locations.
- Cut a 3/16"-wide slot in the end of the post adjacent to the holes.
- Install the knife blade portion of the connector on the anchor bolts.
- Place the supplied washers over the connector tabs and anchor bolt.
- Attach the knife blade and washers to the anchors using nuts.
- Slide the standoff base onto the knife blade assembly.

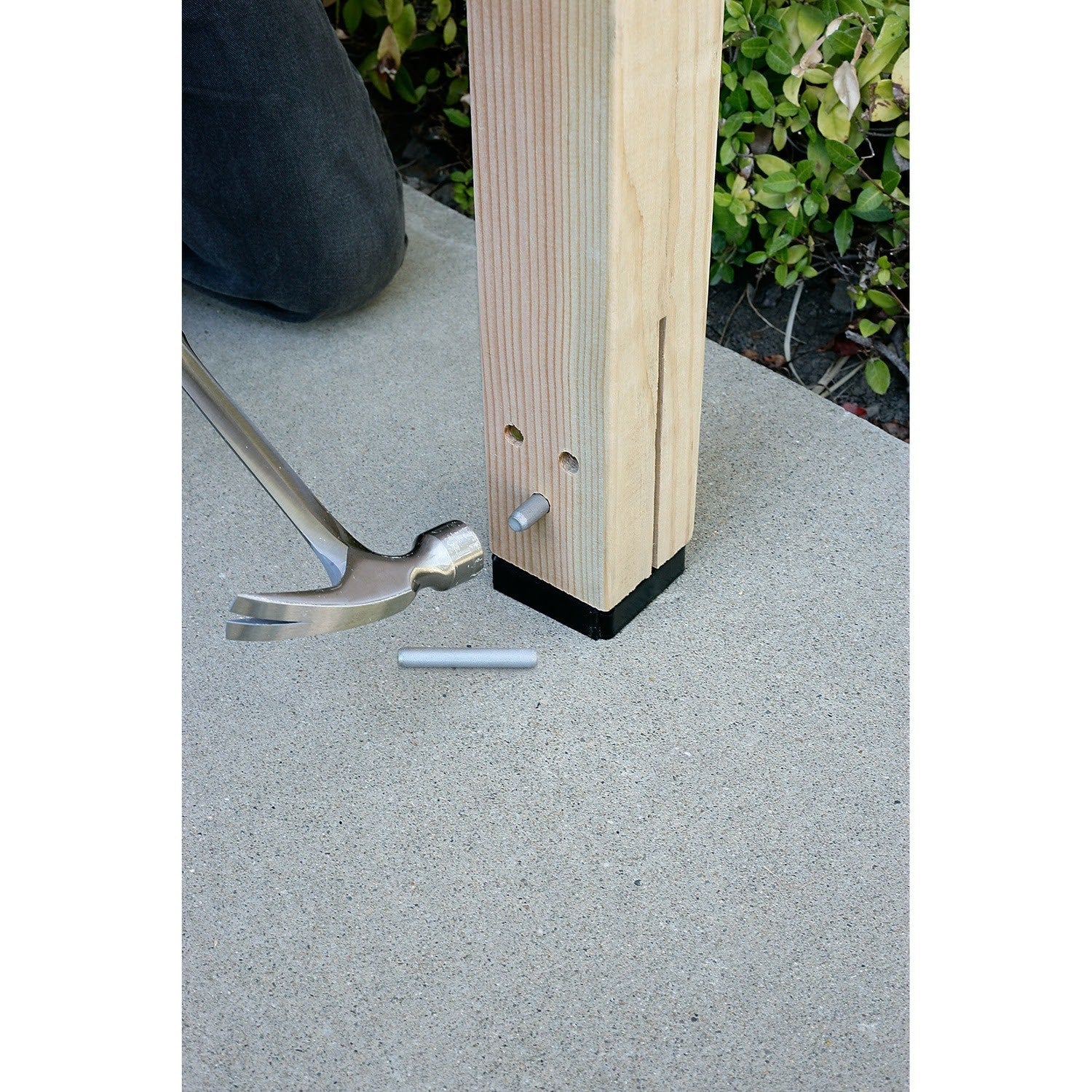

- Stand the post on the knife blade and drive in the dowels supplied with the connector.
Simpson Strong-Tie CPT44SS Specifications
| Material | Stainless Steel |
| Finish | ZMAX-galvanized steel with textured, flat black powder-coat finish |
| Application | Decks — Post-to-Footings |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
