Simpson CS14-R Description
The Simpson CS14-R is a 14-gauge galvanized coiled strap designed for wood construction, offering versatility and strength for various applications.
Simpson CS14-R Includes

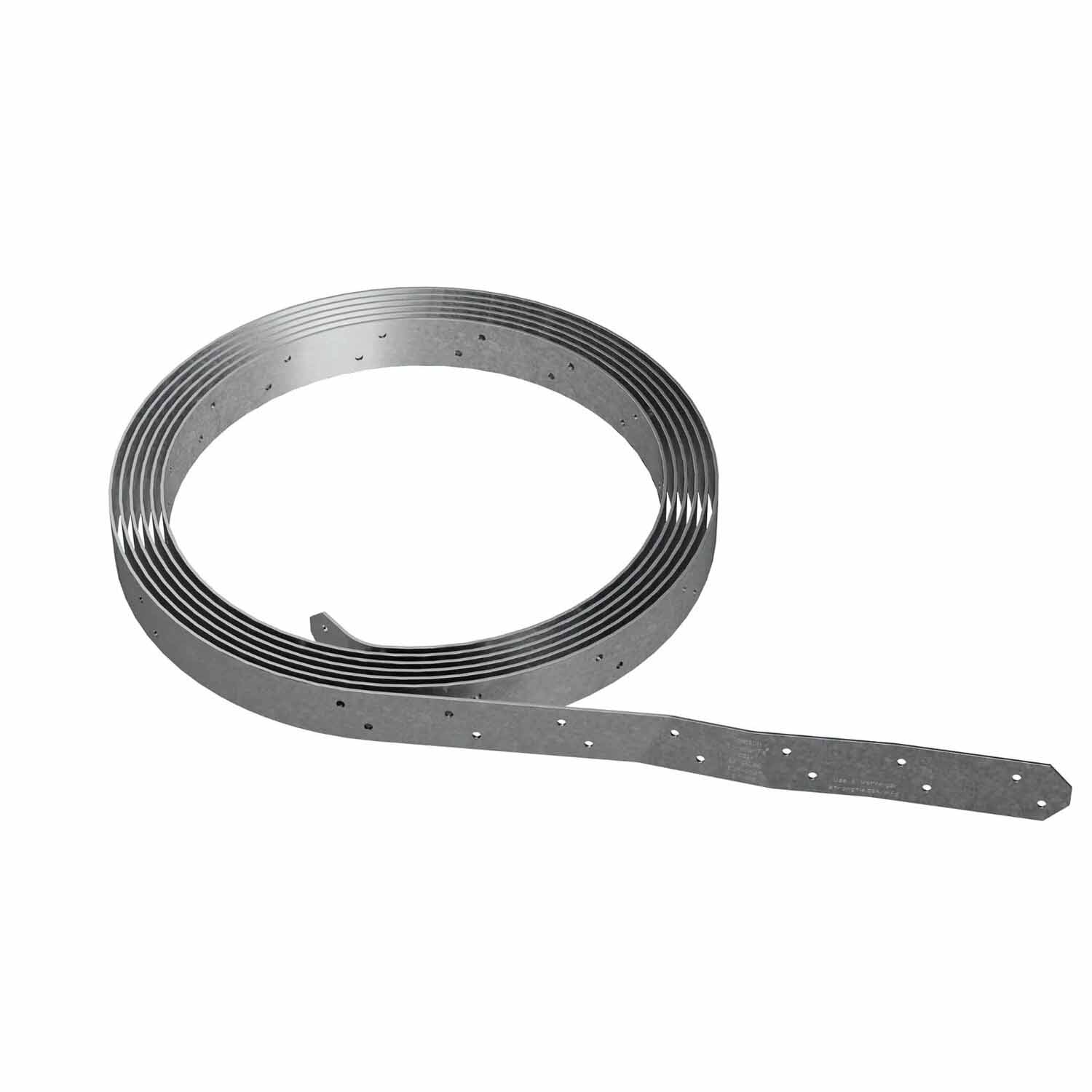

- (1) 14-Gauge Galvanized Coiled Strap for Wood Construction (25 ft.)
Simpson CS14-R Features
- Available in shorter rolls for smaller projects

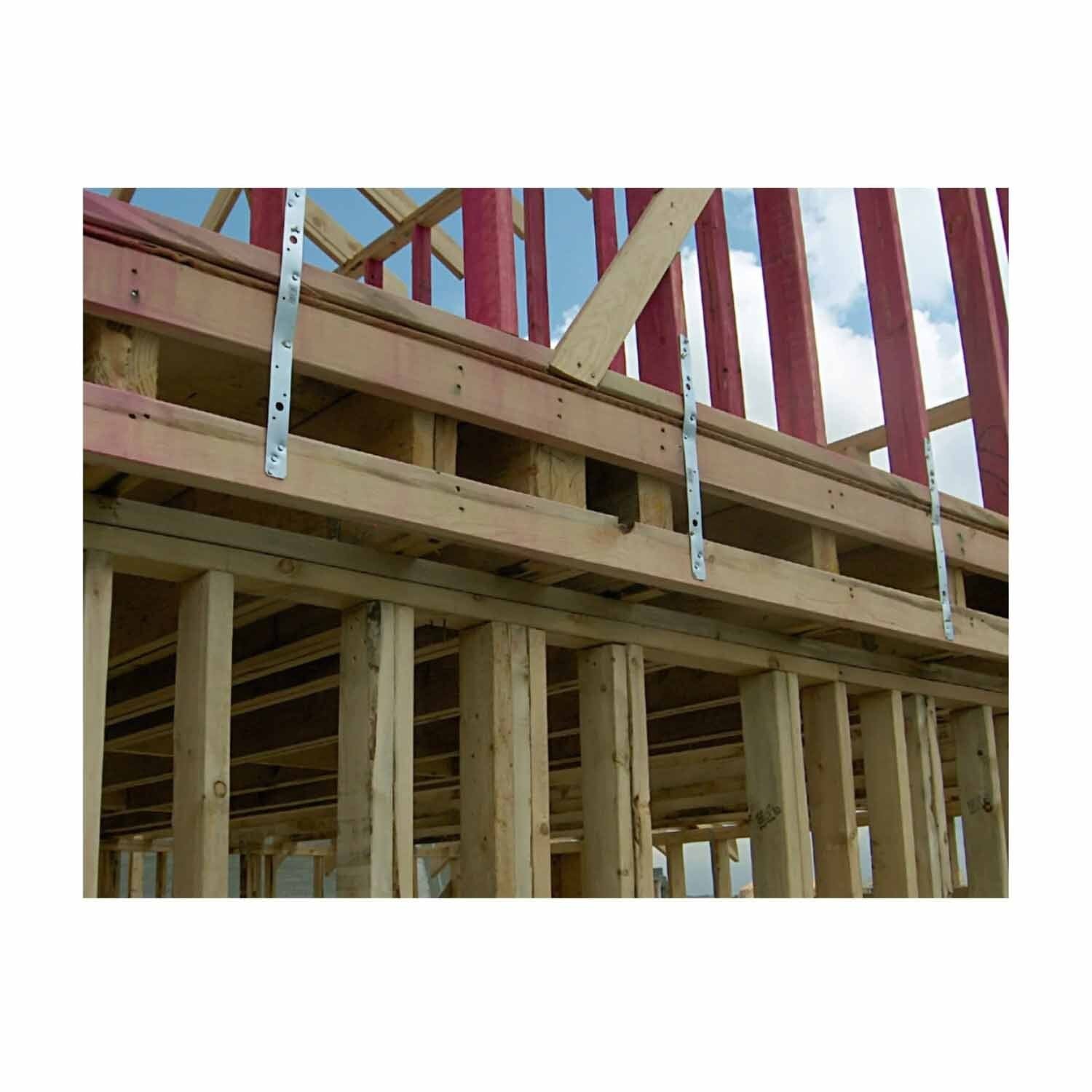

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson CS14-R Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood construction fastening
Simpson CS14-R Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances

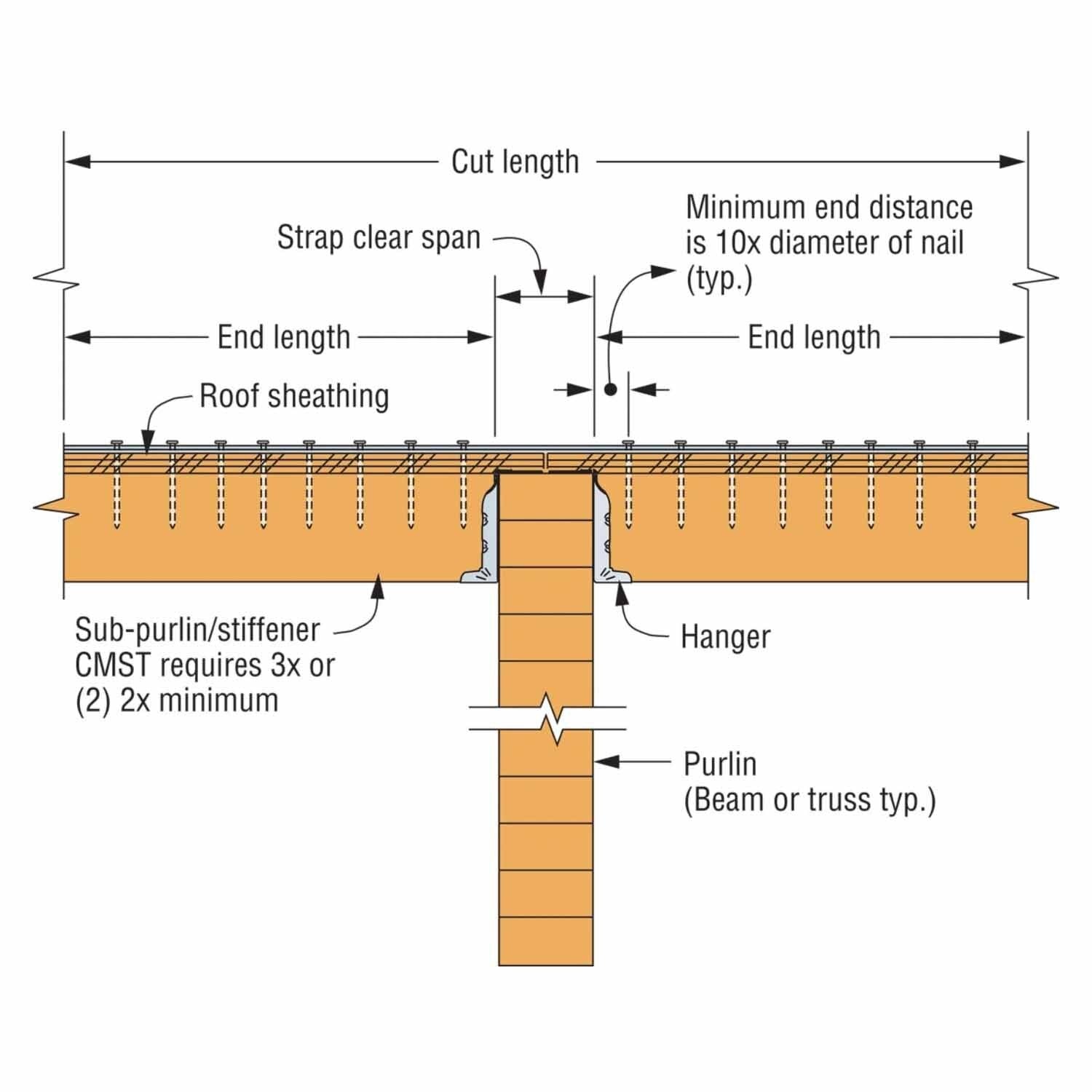

- The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension
Simpson CS14-R Specifications
| Gauge | 14 |
| Width | 1 1/4" |
| Length | 25 ft. |
| Finish | Galvanized (G90) |
| Weight | 8.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
820795
