Simpson Anchors | SKU:
CS14
Simpson Strong-Tie CS14 (14-Gauge 100') Galvanized Coiled Strap for Wood Construction
$195.90
Unit price
/
Unavailable
Description
Description
Simpson CS14 Description
The Simpson CS14 strap is a continuous utility strap that can be cut to length on the job site for maximum versatility. It is packaged in a lightweight carton for easy handling.
Simpson CS14 Includes

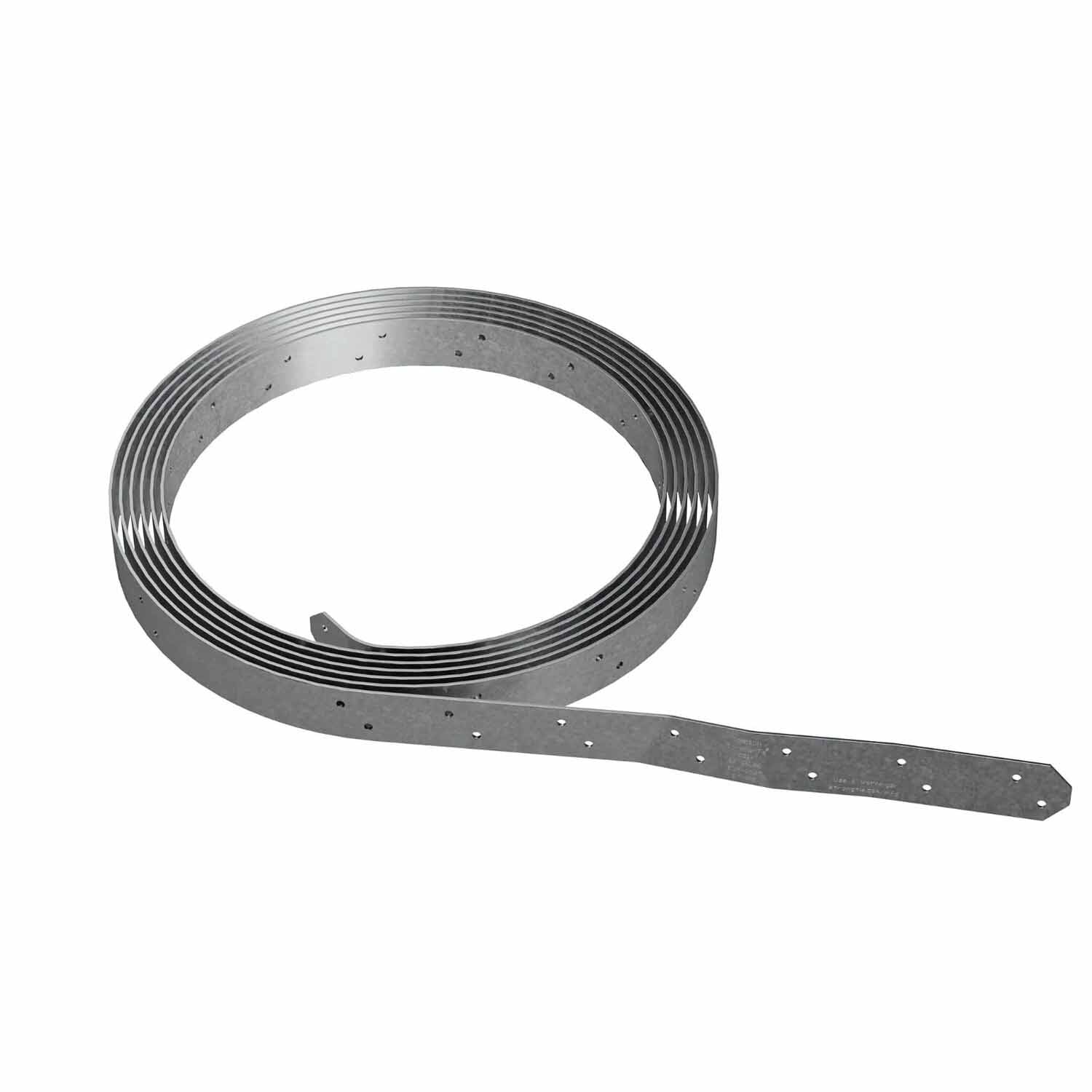

- (1) 14-Gauge Galvanized Coiled Strap, 100 ft.
Simpson CS14 Features
- Continuous utility strap for versatile applications
- Can be cut to length on the job site
- Packaged in a lightweight carton for easy handling
- Provides roof uplift and shear wall overturning resistance
- Cost-effective alternative to pre-cut straps
Simpson CS14 Applications

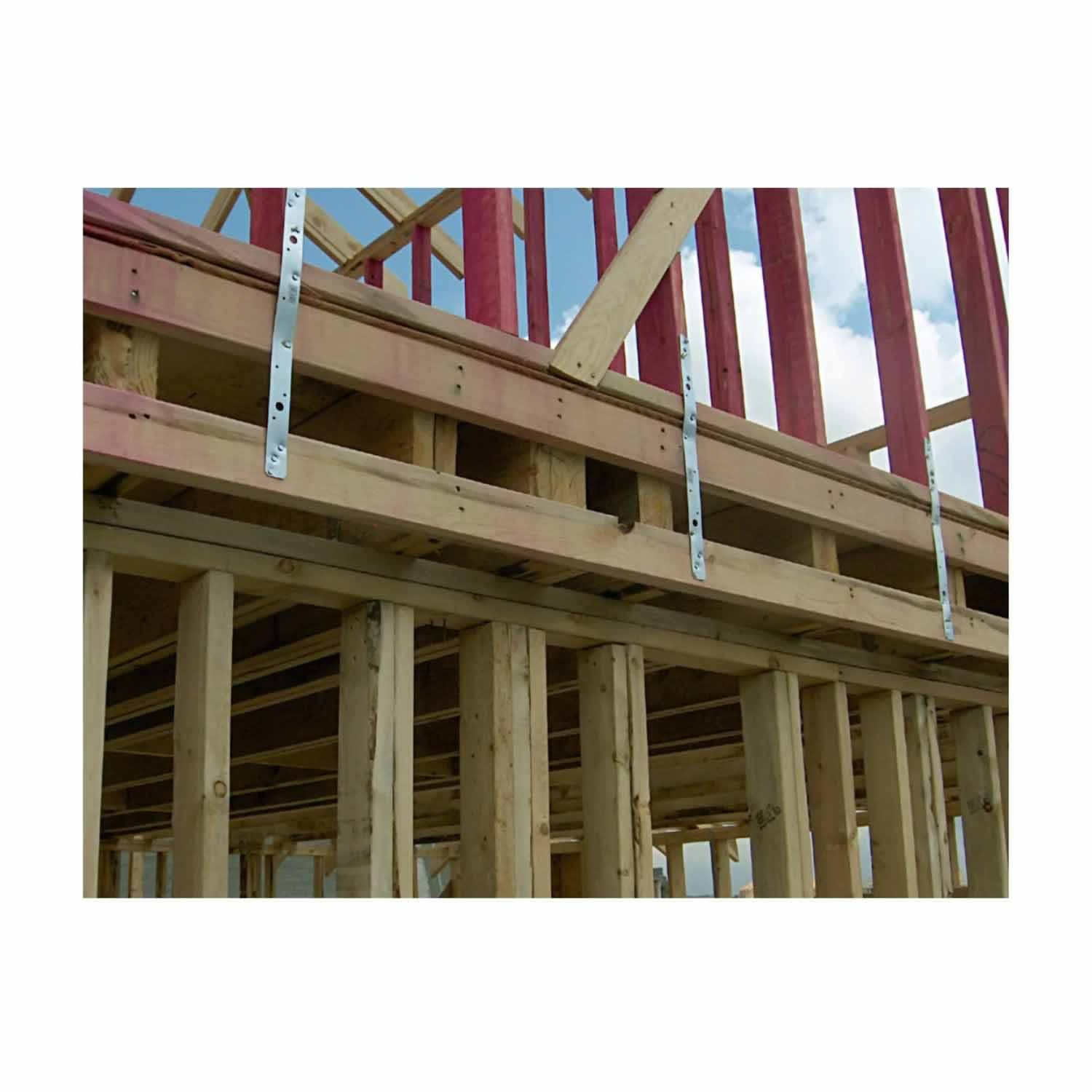

- Roof uplift resistance
- Shear wall overturning resistance
- Wood-to-wood fastening
Simpson CS14 Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension
Simpson CS14 Specifications
| Gauge | 14 |
| Width | 1-1/4" |
| Length | 100 ft. |
| Finish | Galvanized (G90) |
| Weight | 32 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
