Simpson CS20-R Description

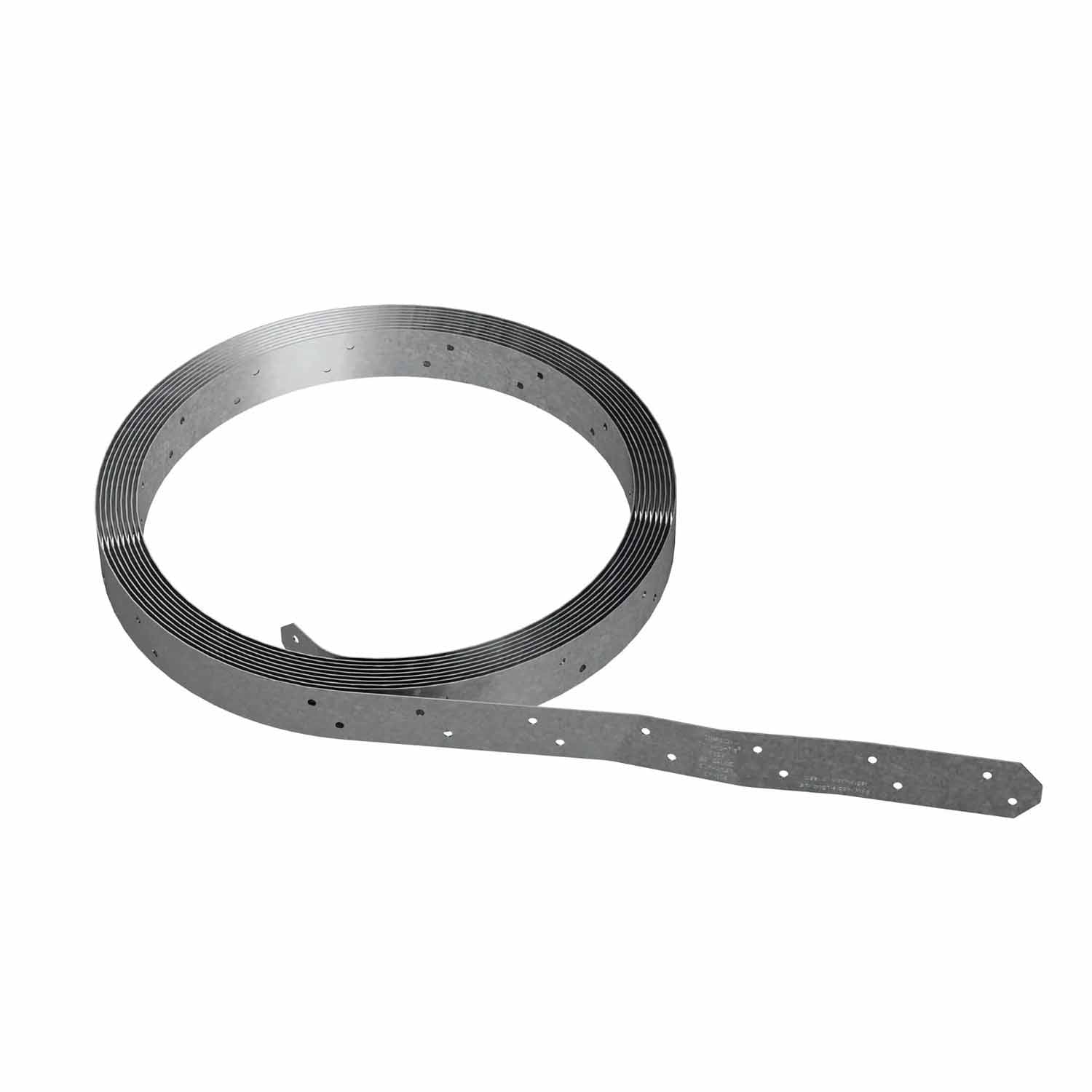

The Simpson Strong-Tie CS20-R strap is a continuous utility strap that can be cut to length on the job site for maximum versatility.
Simpson CS20-R Includes
- (1) 20-Gauge Galvanized Coiled Strap 25 ft.
Simpson CS20-R Features
- Available in shorter rolls for smaller projects
- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps

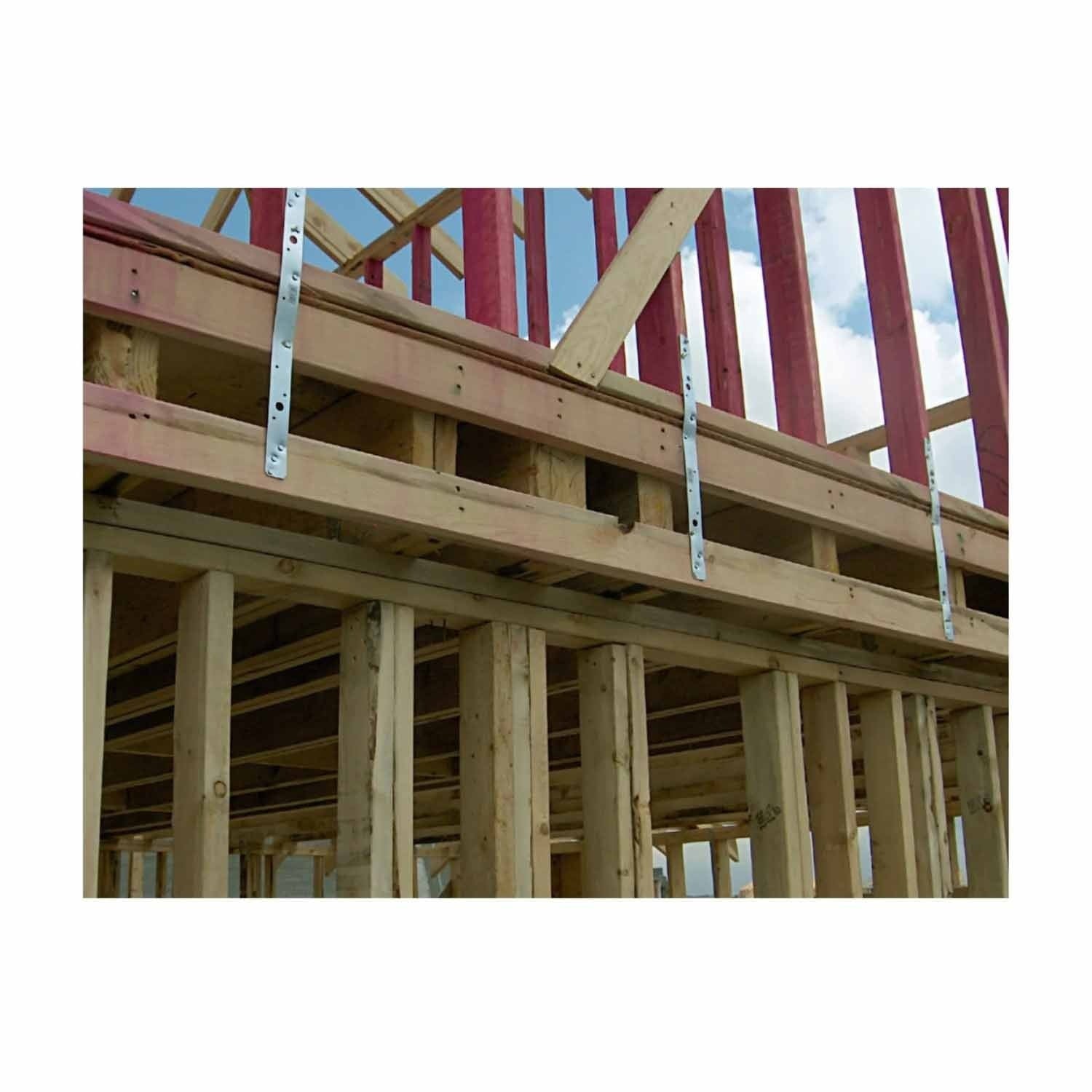

Simpson CS20-R Applications
- Roof uplift resistance
- Shear wall overturning resistance

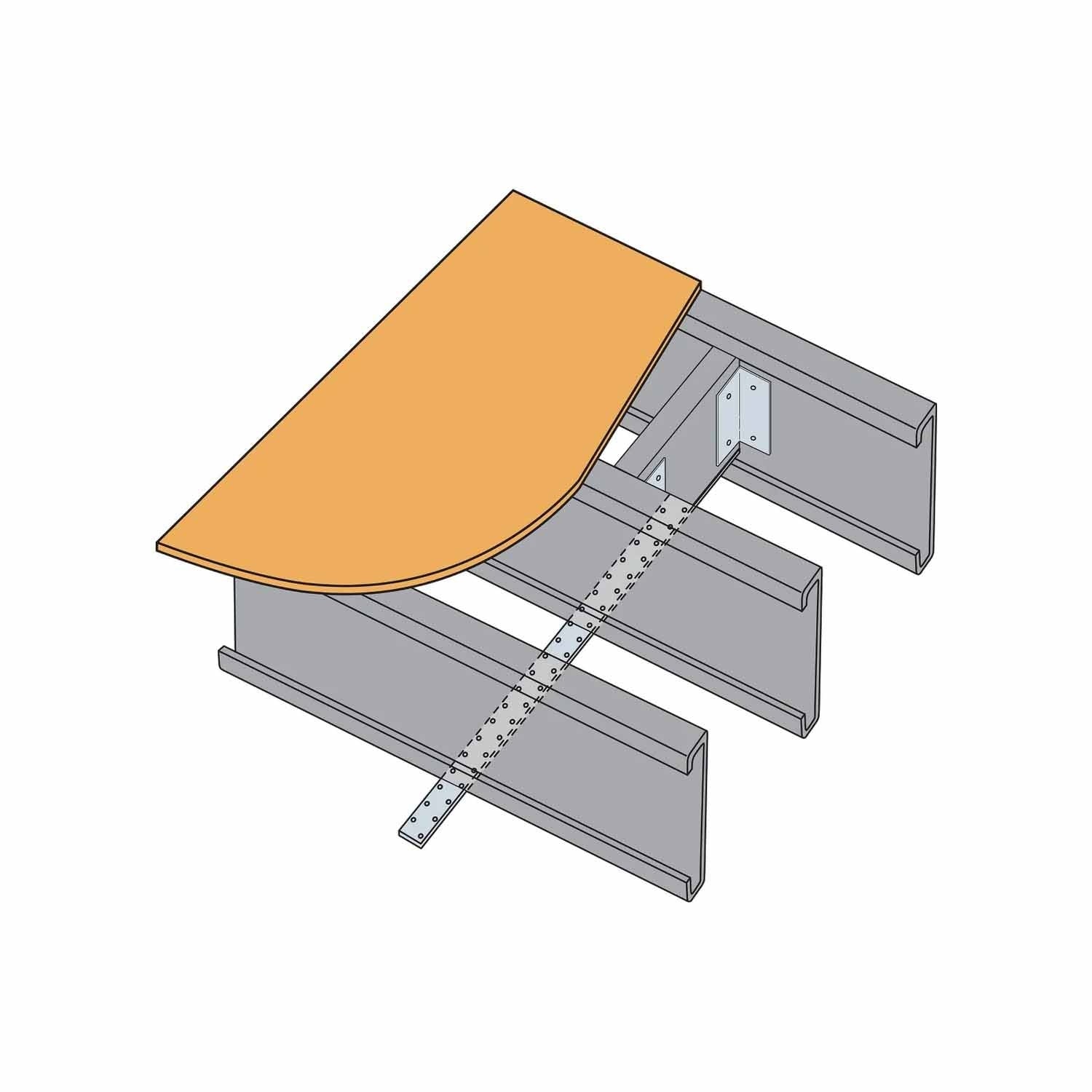

- General wood-to-wood fastening
Simpson CS20-R Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the 'End Length' noted in the table plus the clear span dimension
Simpson CS20-R Specifications
| Gauge | 20 |
| Width | 1-1/4" |
| Length | 25 ft. |
| Finish | Galvanized (G90) |
| Weight | 3.9 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Toolup Part # :
820790
