Simpson Strong-Tie CS22 Description

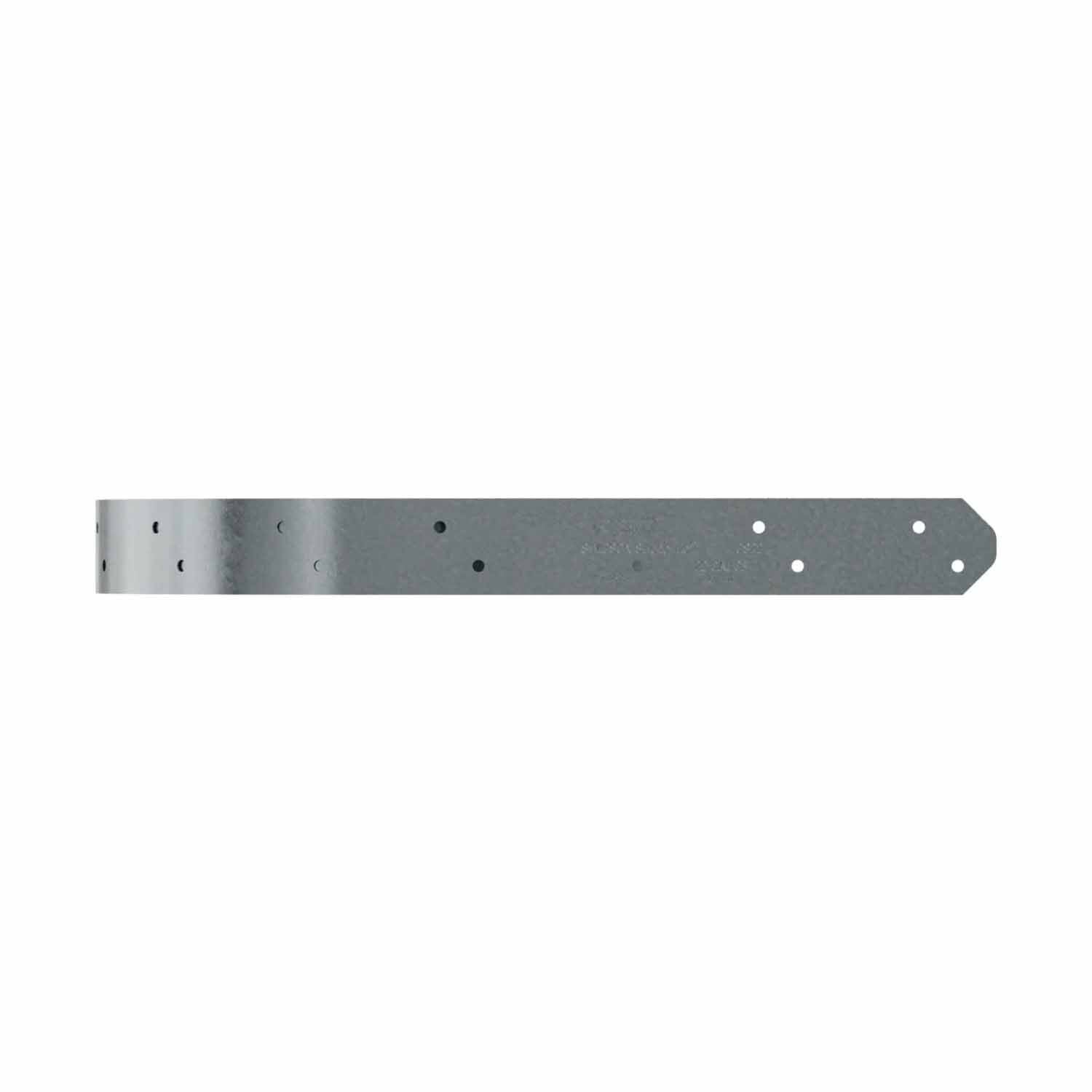

The Simpson Strong-Tie CS22 strap is a continuous utility strap designed to resist tension, that can be cut to length on the job site for maximum versatility.
Simpson Strong-Tie CS22 Includes

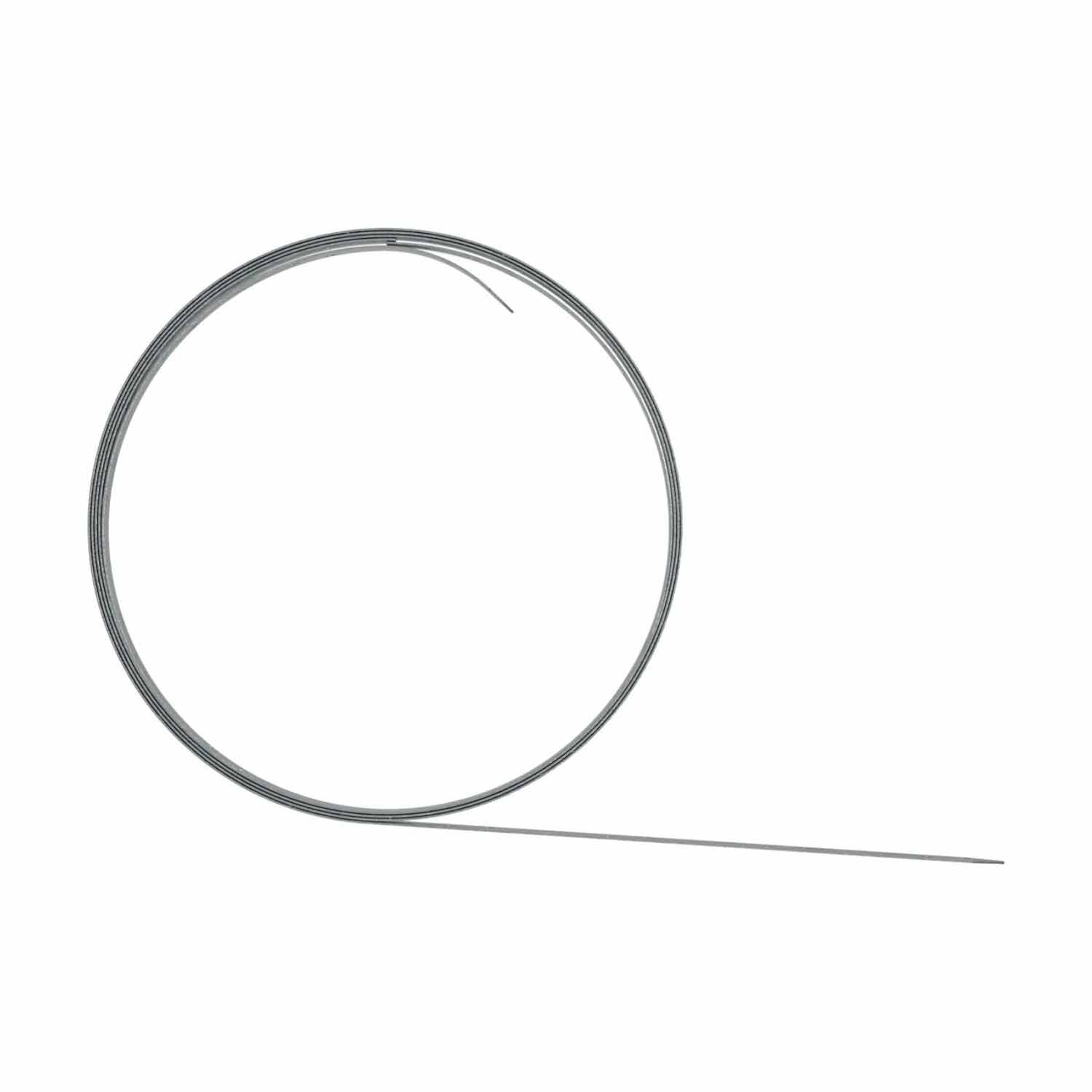

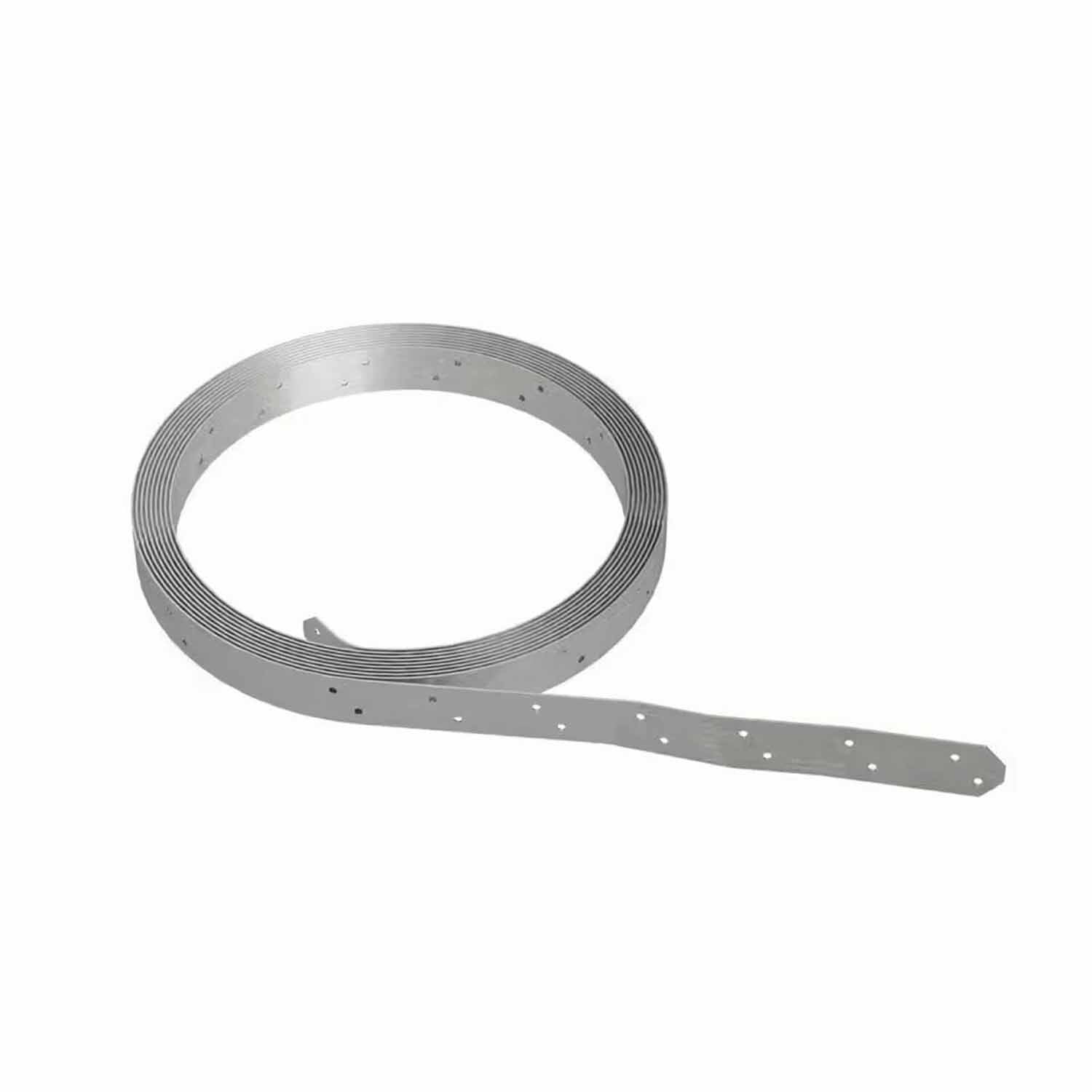

- (1) 22-Gauge Galvanized Coiled Strap
Simpson Strong-Tie CS22 Features
- Available in shorter rolls for smaller projects

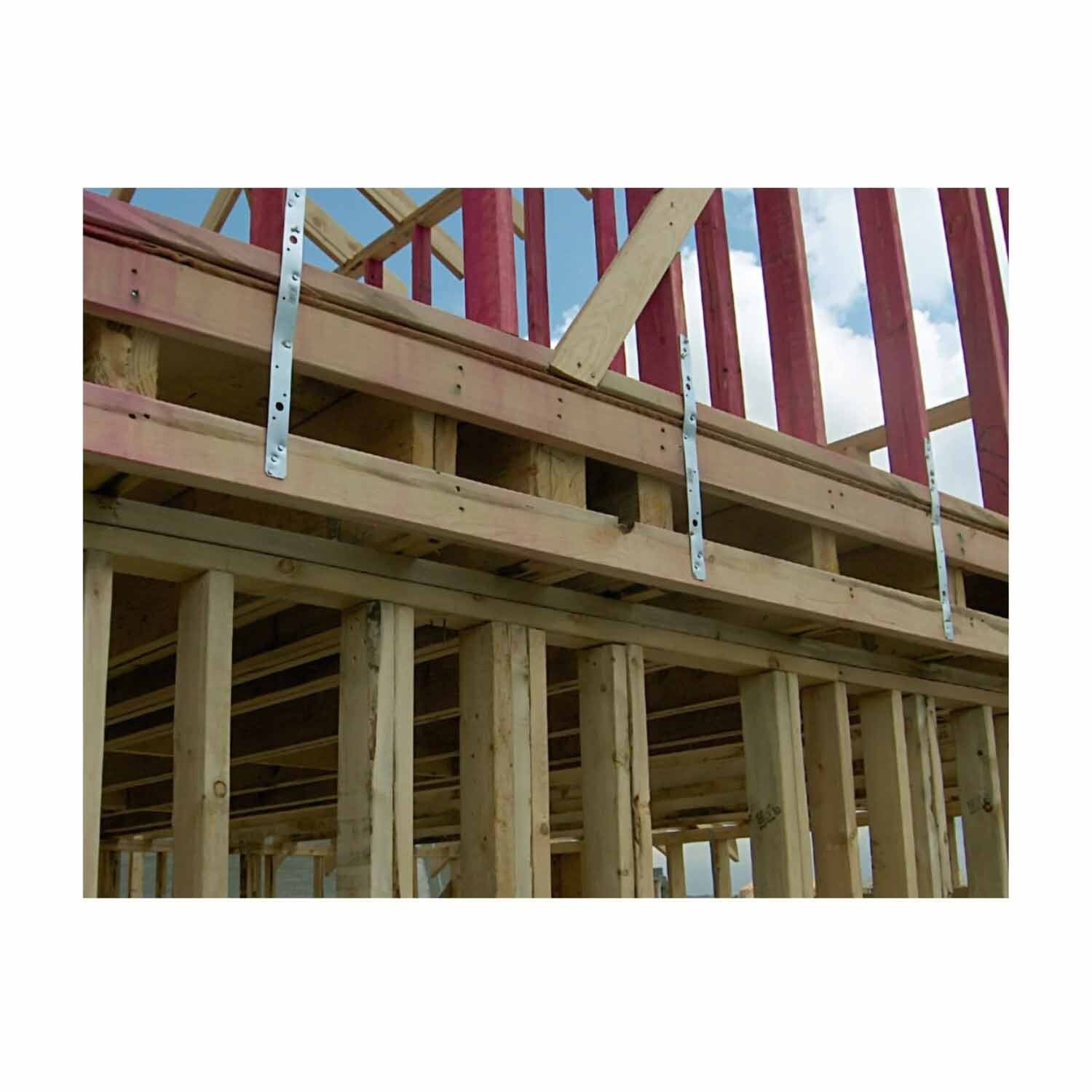

- Used for roof uplift and shear wall overturning resistance
- A cost-effective alternative to pre-cut straps
Simpson Strong-Tie CS22 Applications
- Roof uplift resistance
- Shear wall overturning resistance
- General wood-to-wood fastening
Simpson Strong-Tie CS22 Installation Overview
- Use all specified fasteners
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances
- The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension
Simpson Strong-Tie CS22 Specifications
| Gauge | 22 |
| Width | 1 1/4" |
| Length | 300 ft. |
| Material | Zinc Galvanized, G90 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
Toolup Part # :
820887
