Simpson Anchors | SKU:
CSD25200
Simpson Strong-Tie CSD25200 (1/4 in. x 2 in.) Zinc-Plated Split-Drive Anchor (100 Pack)
$27.92
$30.45
Unit price
/
Unavailable
Description
Description

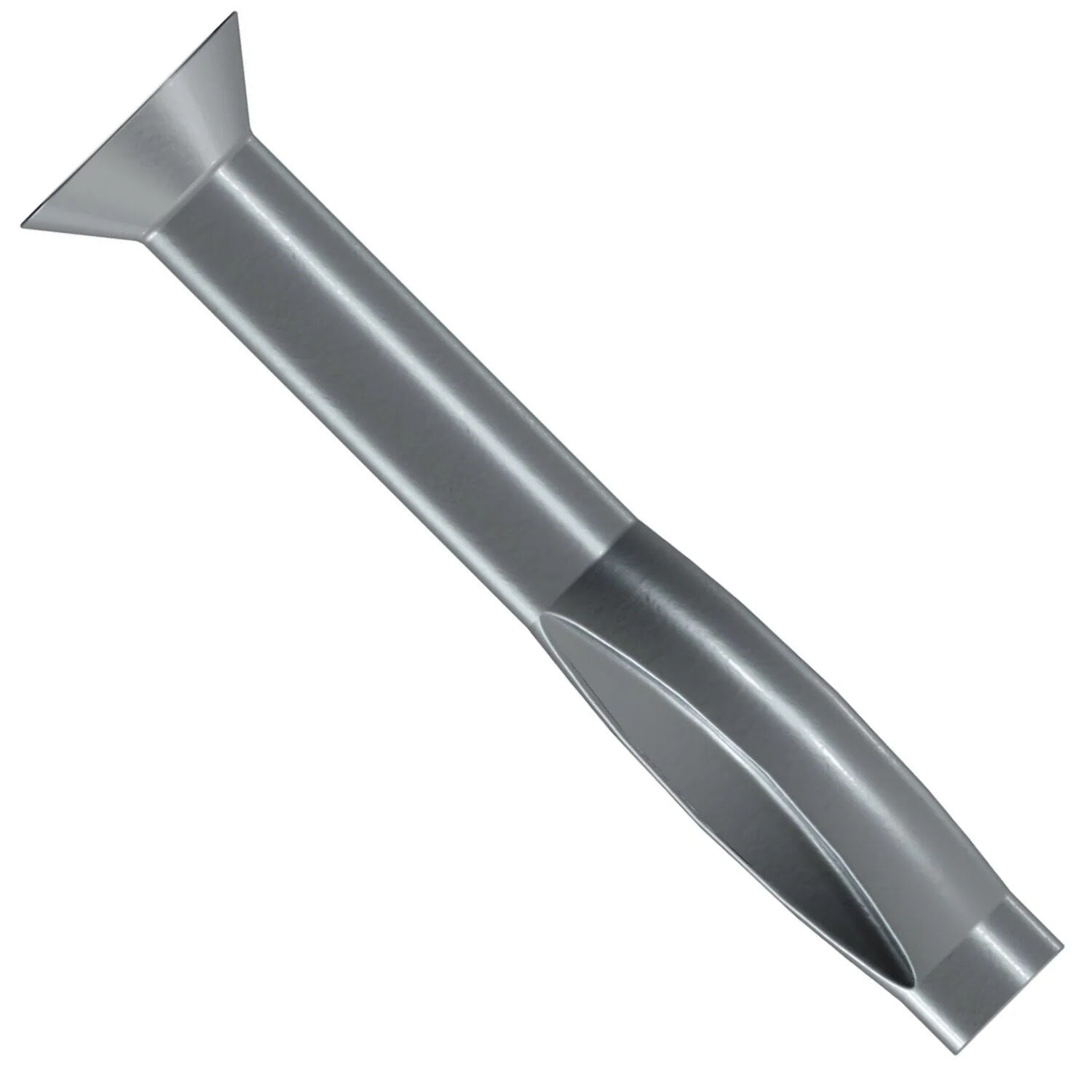

Simpson Strong-Tie CSD25200 Description
The Split-Drive anchor is a one-piece expansion anchor designed for concrete, grout-filled block, and stone. Its countersunk head ensures a smooth surface when attaching materials.
Simpson Strong-Tie CSD25200 Includes
- (100) 1/4" x 2" Split-Drive Anchor
Simpson Strong-Tie CSD25200 Features
- Countersunk head for a smooth surface
- One-piece expansion anchor for secure installation
- Zinc-plated for corrosion resistance
- Designed for concrete, grout-filled block, and stone
Simpson Strong-Tie CSD25200 Applications
- Attaching wood to concrete surfaces
- Securing light gauge steel to grout-filled block
- General fastening in concrete and stone
Simpson Strong-Tie CSD25200 Installation Overview
- Drill a 1/4" diameter hole to the specified depth.
- Blow clean the hole using compressed air.
- Position the fixture and insert the anchor through the fixture hole.
- Drive the anchor until the head is flush against the fixture.
Simpson Strong-Tie CSD25200 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4" |
| Length | 2" |
| Head Type | Countersunk Head |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Oversized holes in the base material will greatly reduce the anchor’s load capacity. For CSD, embedment depths greater than 1 1/2" may cause bending during installation.
