Simpson Anchors | SKU:
CSD25212

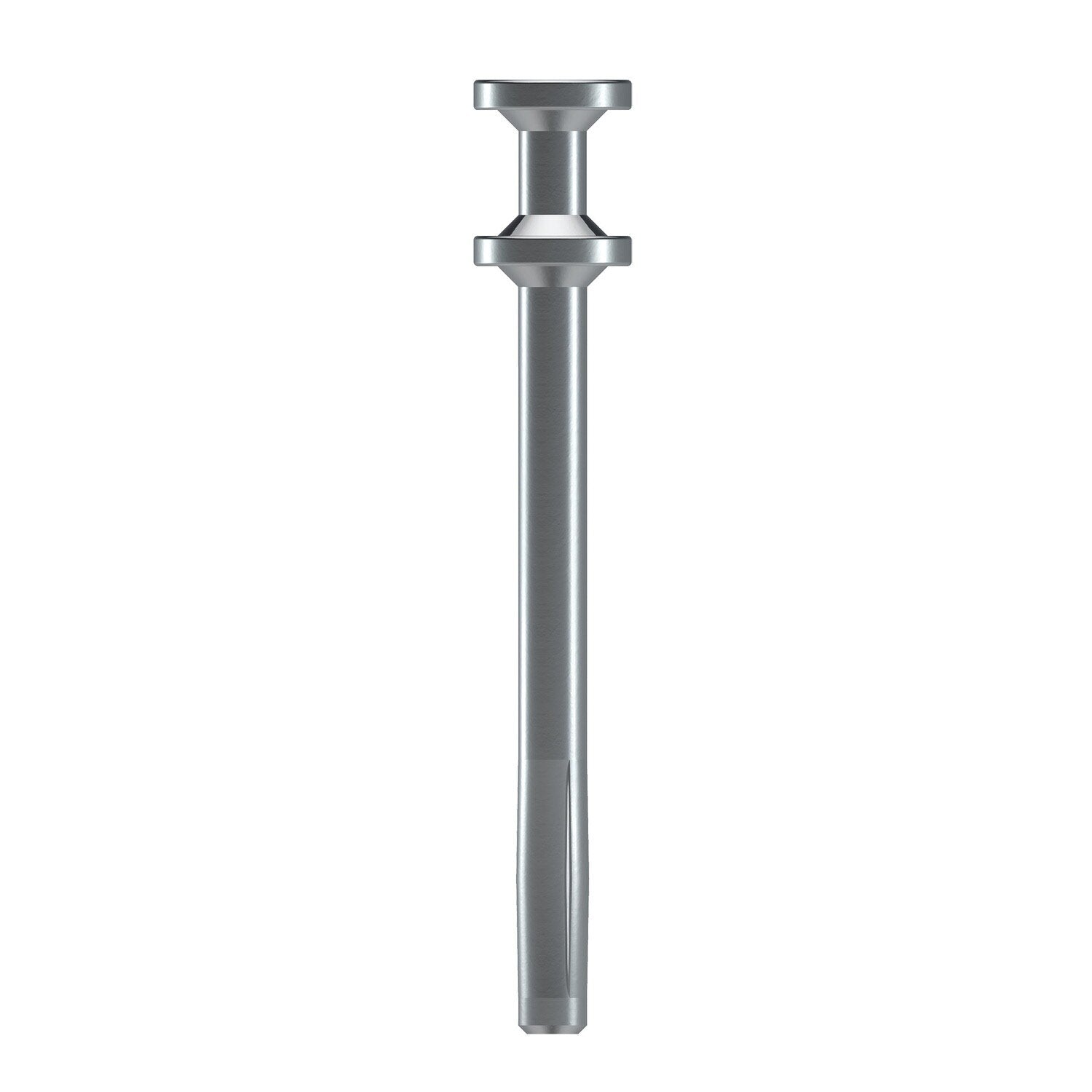

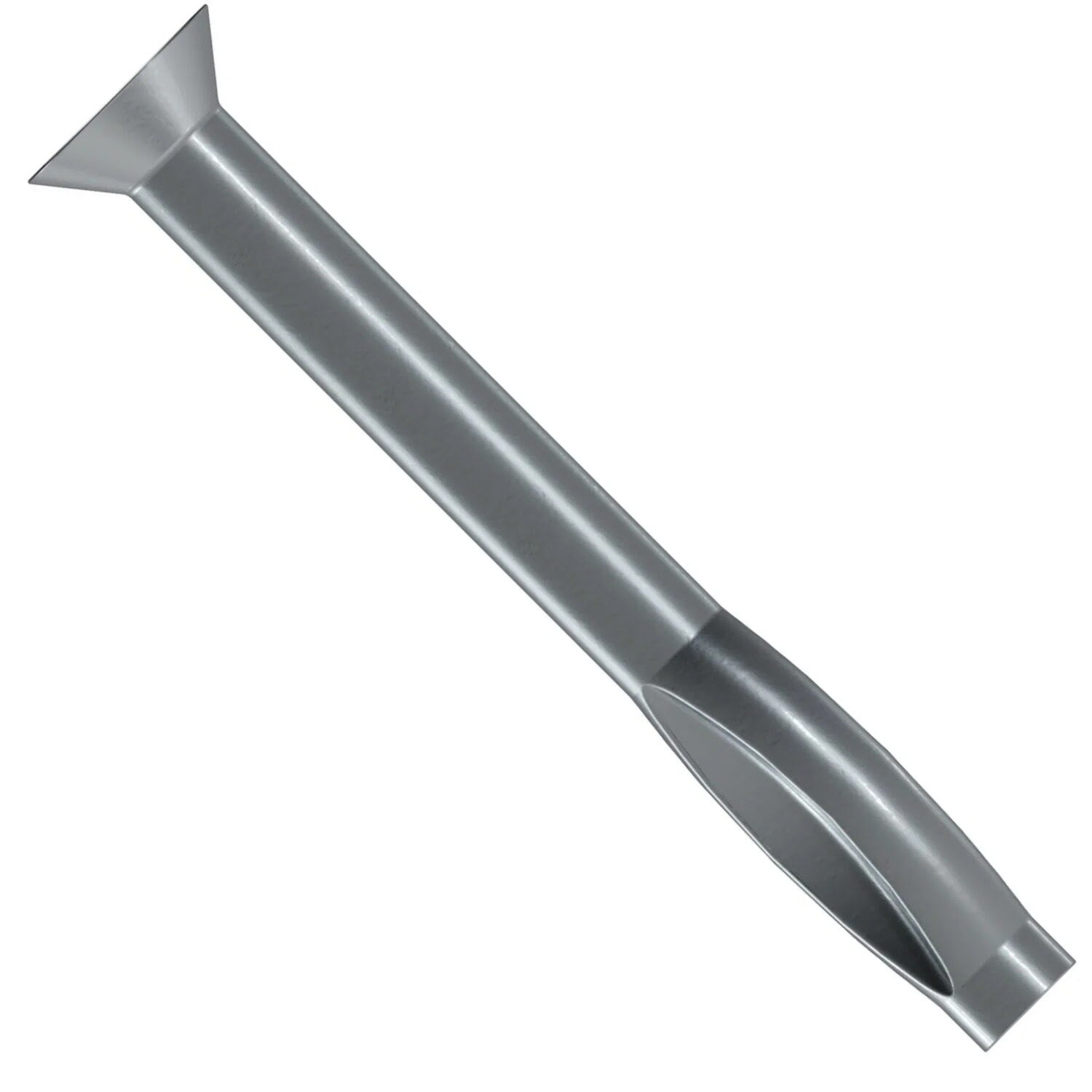

Simpson Strong-Tie CSD25212 (1/4" x 2-1/2") Zinc-Plated Split-Drive Anchor (100 Pack)
$31.10
$34.28
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CSD25212 Description
The Split-Drive anchor is a one-piece expansion anchor designed for concrete, grout-filled block, and stone. Its countersunk head ensures a smooth surface when attaching materials.
Simpson Strong-Tie CSD25212 Includes
- (100) 1/4" x 2-1/2" Split-Drive Anchor
Simpson Strong-Tie CSD25212 Features
- Countersunk head for a smooth surface
- Zinc-plated for corrosion resistance
- Designed for concrete, grout-filled block, and stone
- One-piece expansion mechanism for secure anchoring
Simpson Strong-Tie CSD25212 Applications
- Concrete and grout-filled block anchoring
- Attaching wood or light gauge steel to concrete surfaces
Simpson Strong-Tie CSD25212 Installation Overview
- Drill a 1/4" diameter hole to the specified depth.
- Blow clean the hole using compressed air.
- Position the fixture and insert the anchor through the fixture hole.
- Drive the anchor until the head is flush against the fixture.
Simpson Strong-Tie CSD25212 Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4" |
| Length | 2-1/2" |
| Head Type | Countersunk Head |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Oversized holes in the base material will greatly reduce the anchor’s load capacity. For CSD, embedment depths greater than 1 1/2" may cause bending during installation.
