Simpson Anchors | SKU:
CSD25400

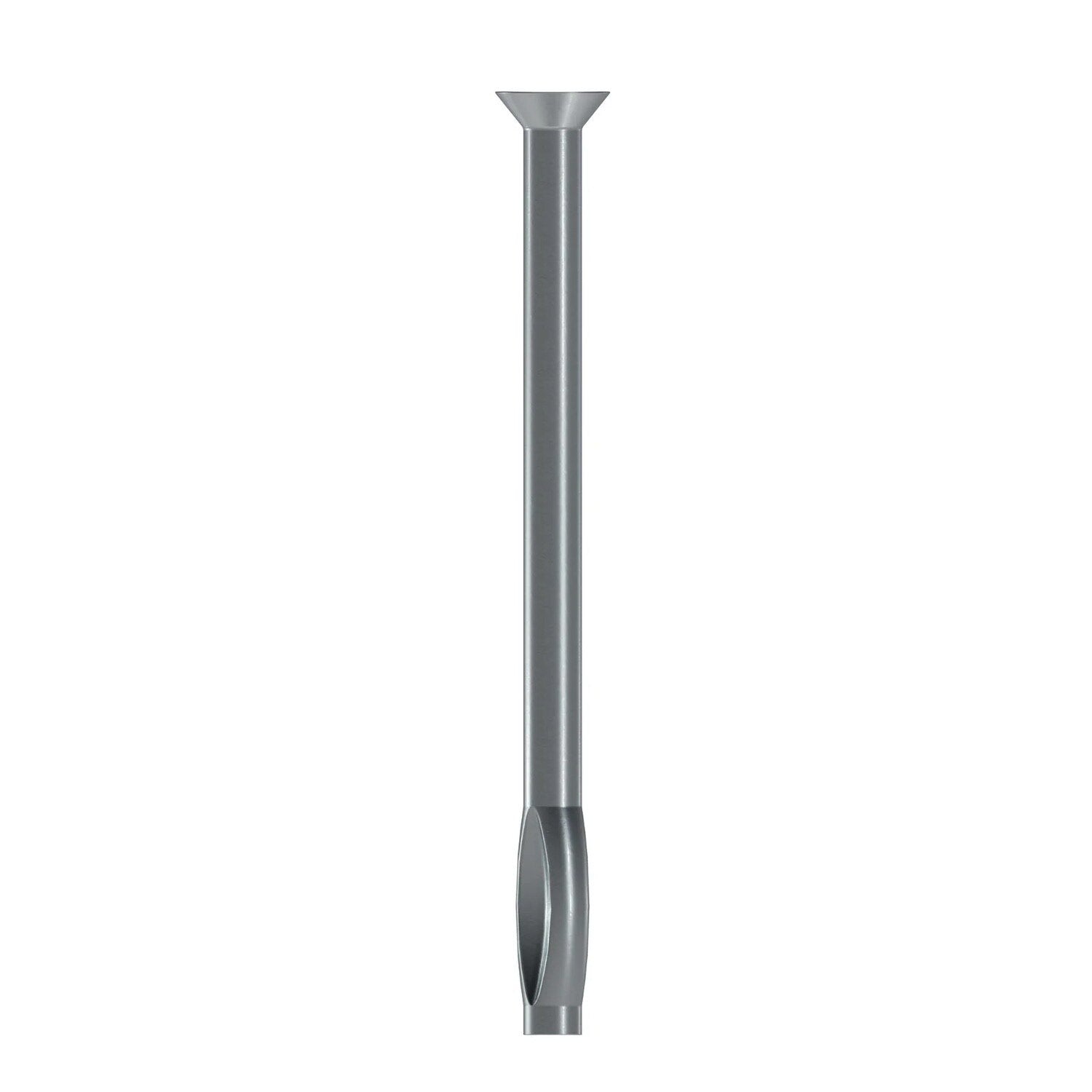

Simpson Strong-Tie CSD25400 (1/4" x 4") Zinc-Plated Split-Drive Anchor (100 Pack)
$45.77
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CSD25400 Description
The Split-Drive Anchor Zinc-Plated is designed for secure anchoring in concrete block applications, featuring a countersunk head for flush installation.
Simpson Strong-Tie CSD25400 Includes
- (100) Split-Drive Anchor Zinc-Plated
Simpson Strong-Tie CSD25400 Features
- Available in countersunk (CSD) and duplex-head (DSD) styles
- DSD anchor can be removed with a claw hammer for temporary applications
Simpson Strong-Tie CSD25400 Applications
- Concrete Block: Suitable for grouted applications
Simpson Strong-Tie CSD25400 Installation Overview
- Drill a hole in base material using a 1/4"-diameter carbide-tipped drill. Drill hole to specified embedment depth and blow clean using compressed air.
- Position fixture and insert split-drive anchor through fixture hole.
- Drive anchor until head is flush against fixture.
Simpson Strong-Tie CSD25400 Specifications
| Material | Carbon steel |
| Finish | Zinc plated; mechanically galvanized |
| Size | 1/4 x 4 |
| Drill Bit Diameter | 1/4" |
| Box Quantity | 100 |
| Carton Quantity | 400 |
NOTE: Oversized holes in the base material will greatly reduce the anchor’s load capacity. For CSD, embedment depths greater than 1 1/2" may cause bending during installation.
