Simpson Anchors | SKU:
CSD25400MG

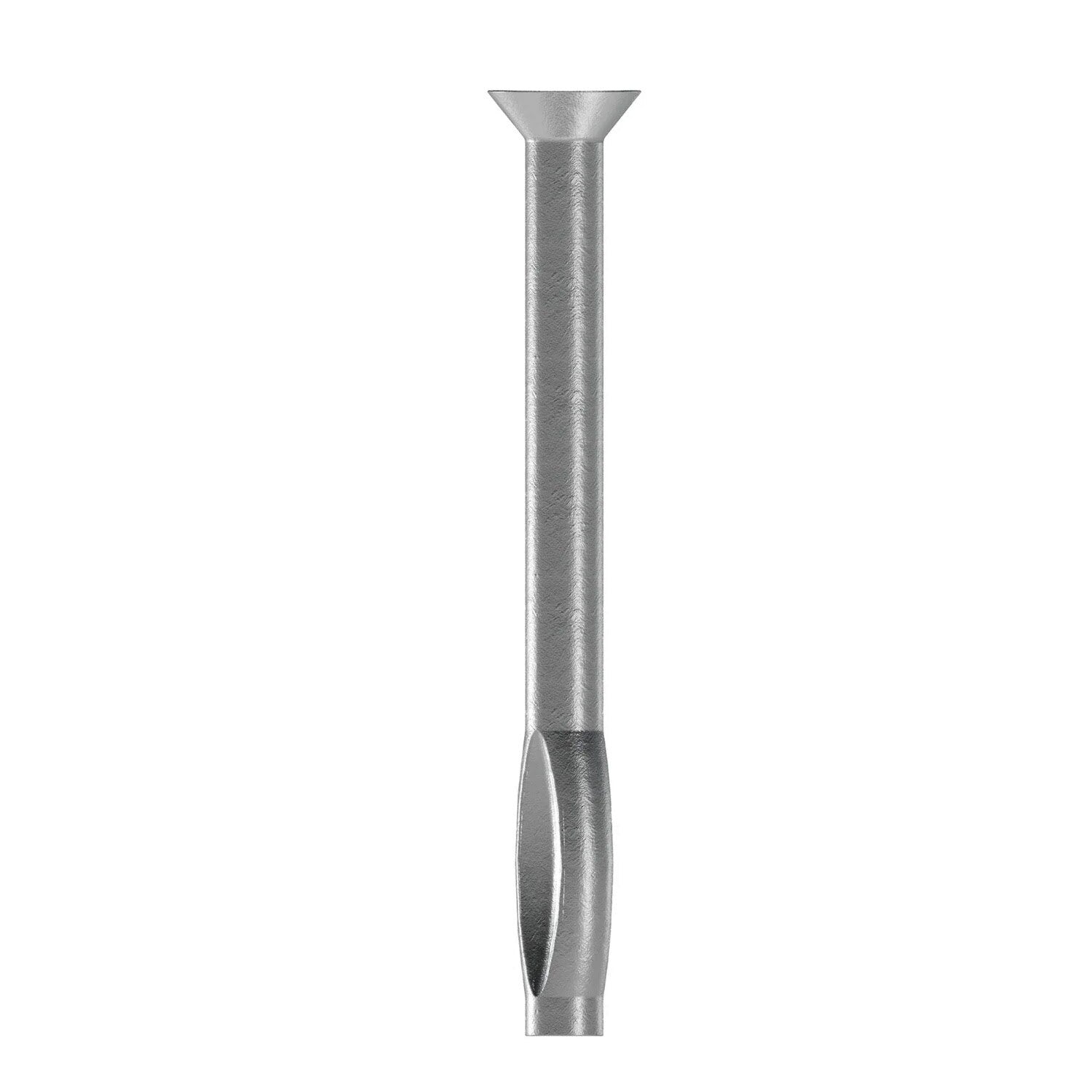

Simpson Strong-Tie CSD25400MG (1/4" x 4") Split-Drive Anchors Mechanically Galvanized (100 Pack)
$54.32
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CSD25400MG Description
The Split-Drive anchor is a one-piece expansion anchor designed for concrete, grout-filled block, and stone. It features a countersunk head for a smooth surface and a split-type expansion mechanism for secure attachment.
Simpson Strong-Tie CSD25400MG Includes
- (100) 1/4 in. x 4 in. Split-Drive Anchors
Simpson Strong-Tie CSD25400MG Features
- Countersunk head for a smooth surface
- Split-type expansion mechanism for secure attachment
- Mechanically galvanized for corrosion resistance
- Made from durable carbon steel
Simpson Strong-Tie CSD25400MG Applications
- Concrete and grout-filled block anchoring
- Attaching wood or light gauge steel to concrete surfaces
Simpson Strong-Tie CSD25400MG Installation Overview
- Drill a 1/4 in. diameter hole to the specified depth.
- Blow clean the hole using compressed air.
- Position the fixture and insert the anchor through the fixture hole.
- Drive the anchor until the head is flush against the fixture.
Simpson Strong-Tie CSD25400MG Specifications
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Diameter | 1/4 in. |
| Length | 4 in. |
| Head Type | Countersunk Head |
| Drill Bit Size | 1/4 in. |
| Quantity | 100 |
NOTE: Oversized holes in the base material will greatly reduce the anchor’s load capacity. For CSD, embedment depths greater than 1 1/2" may cause bending during installation.
