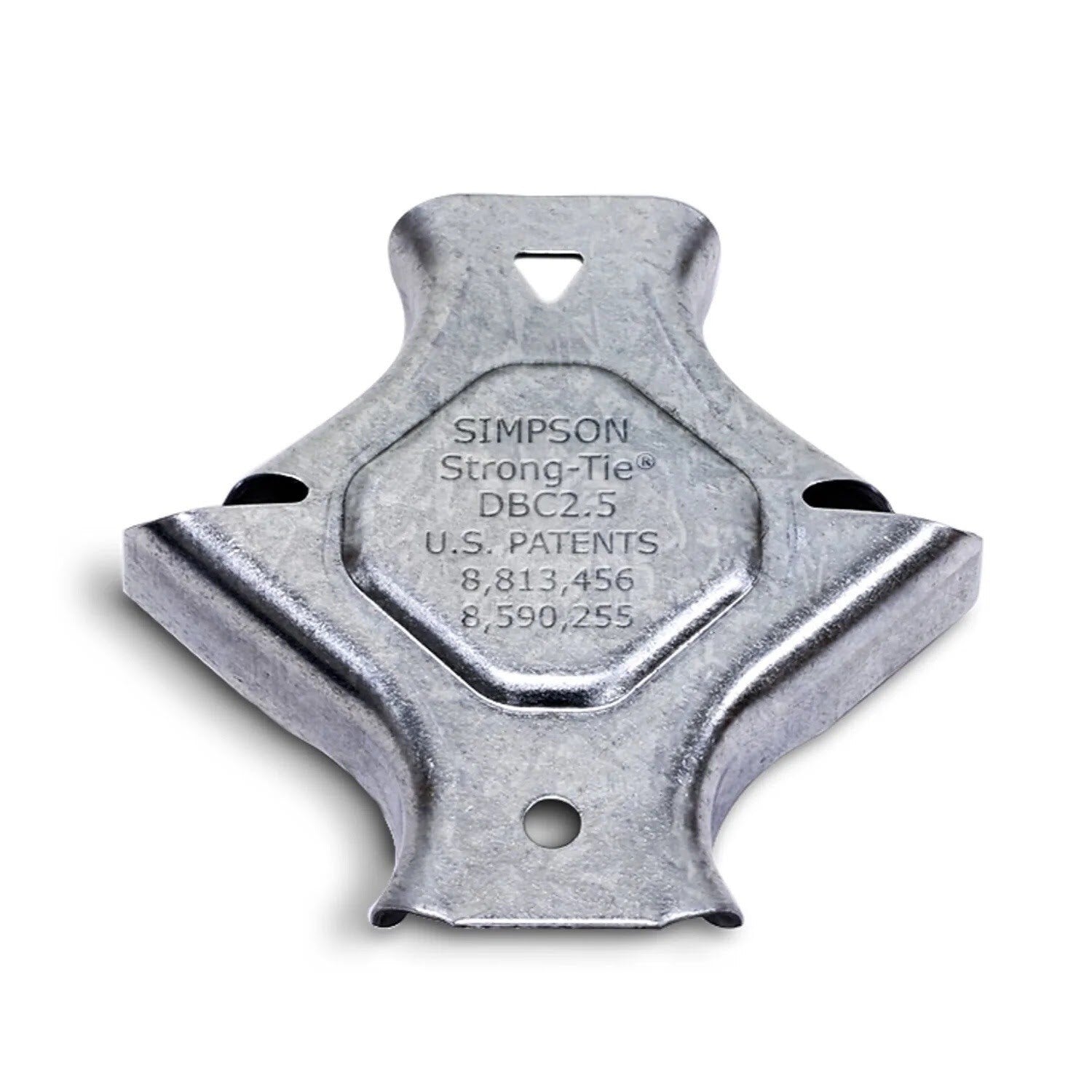

Simpson Strong-Tie DBC2.5-R200 Description
The Simpson DBC Drywall Bridging Connector is designed for efficient and secure installation, reducing labor and material costs.
Simpson Strong-Tie DBC2.5-R200 Includes
- (200) Drywall Bridging Connector
Simpson Strong-Tie DBC2.5-R200 Features
- Patented design allowing for one- or two-screw installation
- Compatible with drywall stud depths of 3 5/8" and 6" with 1 1/2" wide knockouts
- Designed for 3/4" u-channel to fit smaller web knockouts common to drywall studs
- Most applications require only a single screw
Simpson Strong-Tie DBC2.5-R200 Applications
- Drywall construction requiring bridging connectors
- Cold-formed steel construction

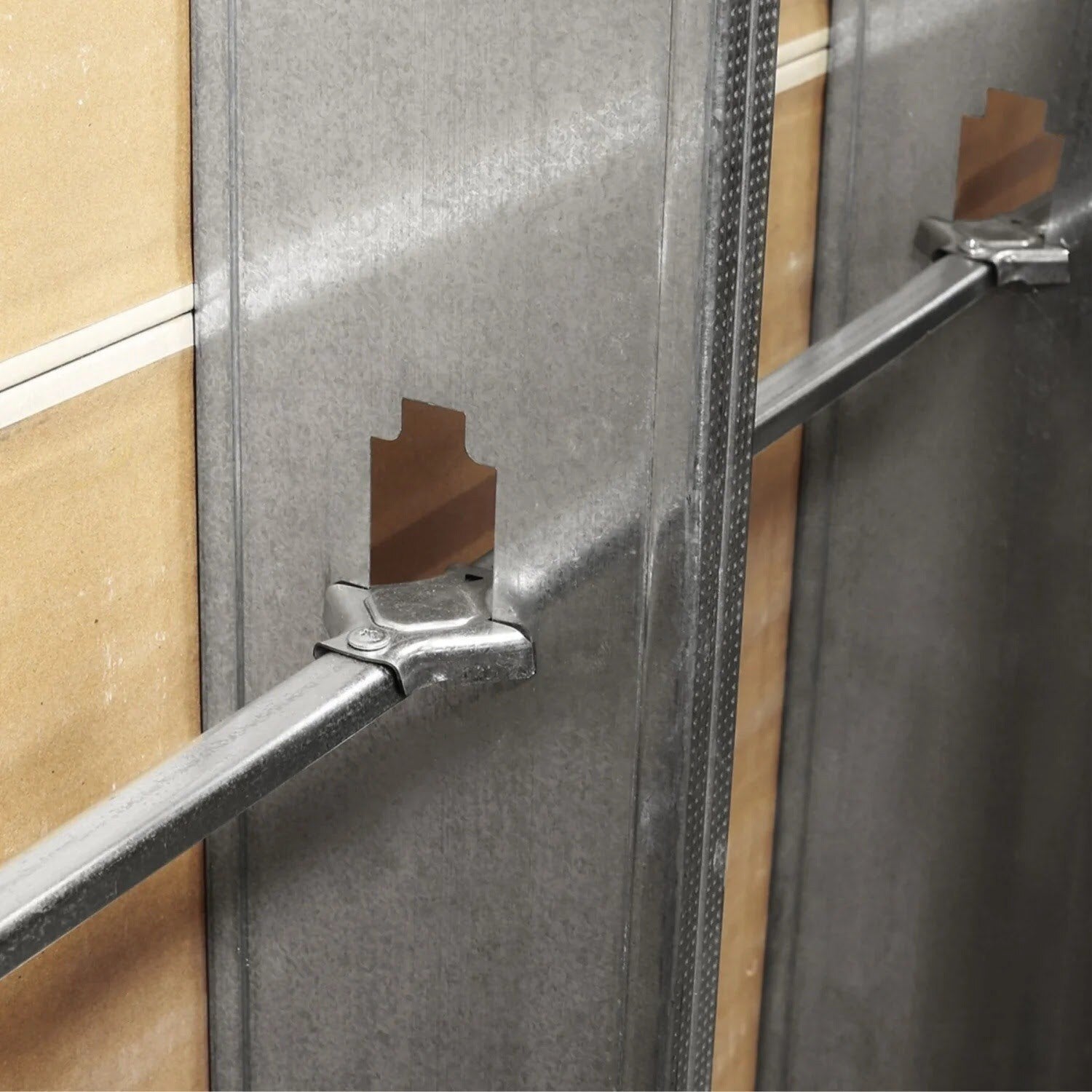

Simpson Strong-Tie DBC2.5-R200 Installation Overview
- Insert the DBC2.5 through the stud web knockouts
- Engage the DBC slots with the stud web and flanges with the u-channel
- Fasten the DBC to the u-channel using the specified number of #8 screws
Simpson Strong-Tie DBC2.5-R200 Specifications
| Material | 33 mil (20 ga.) carbon steel |
| Finish | Galvanized (G90) |
| Weight | 12.7 lb |
| Packaging Quantity | 200 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
