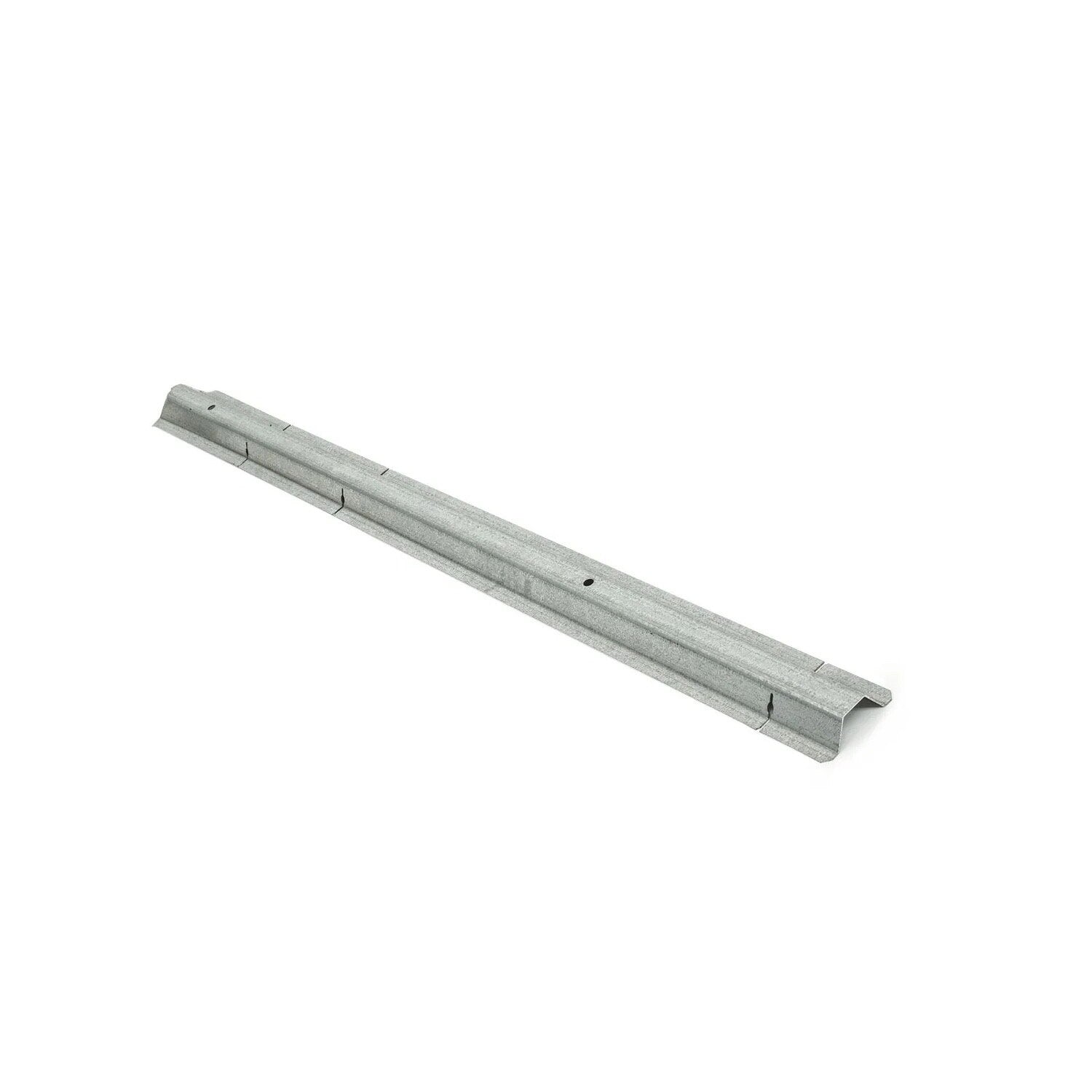

Simpson Strong-Tie DBR/30-R20 Description
The DBR Spacer Bracer is a precision-engineered solution for cold-formed steel construction, designed to reduce installation costs and improve stud alignment.
Simpson Strong-Tie DBR/30-R20 Includes
- (20) DBR Spacer Bracers
Simpson Strong-Tie DBR/30-R20 Features
- Precision-engineered with prepunched slots for easy stud alignment
- Compatible with 2-1/2", 3-5/8", and 6" studs
- Supports stud thicknesses from 15 mil (25 ga.) to 33 mil (20 ga.)
- Eliminates the need for bridging clips with on-module studs
- Provides bracing along the length of the stud
Simpson Strong-Tie DBR/30-R20 Applications
- Cold-formed steel construction
- Interior wall stud alignment
- Drywall attachment support
Simpson Strong-Tie DBR/30-R20 Installation Overview
- Feed the spacer bracer through the stud knockout at a 90° angle until aligned with slots.
- Rotate the spacer bracer back to the flat position with slotted flanges on the bottom.
- For off-layout studs, manually snip the flanges and secure with specified connectors.
- Always wear gloves during handling and installation.

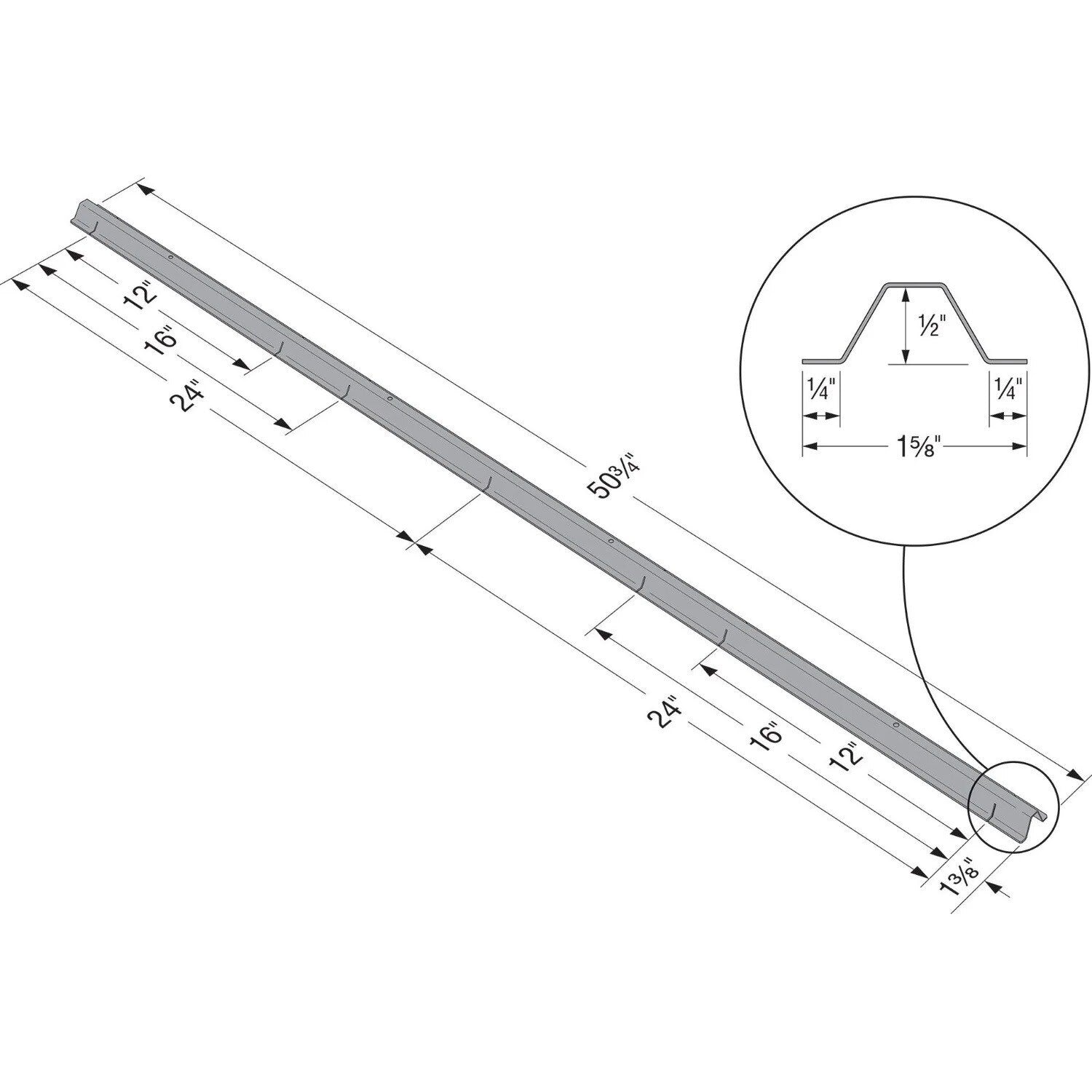

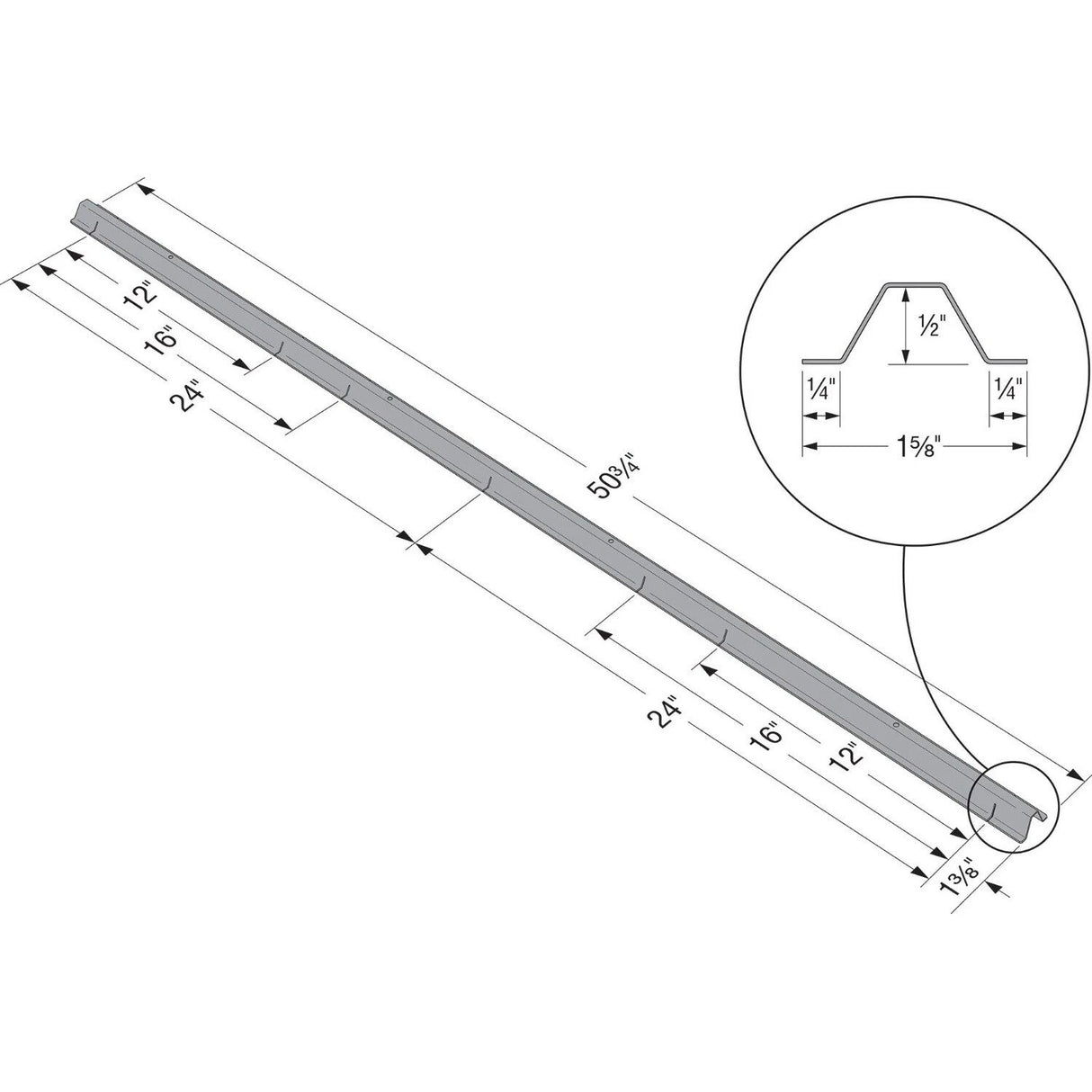

Simpson Strong-Tie DBR/30-R20 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Gauge | 22 |
| Length | 50 3/4 in. |
| Weight | 18.4 lb |
| Packaging Quantity | 20 |
Toolup Part # :
825806
