Simpson Anchors | SKU:
DCU234MB305GR01

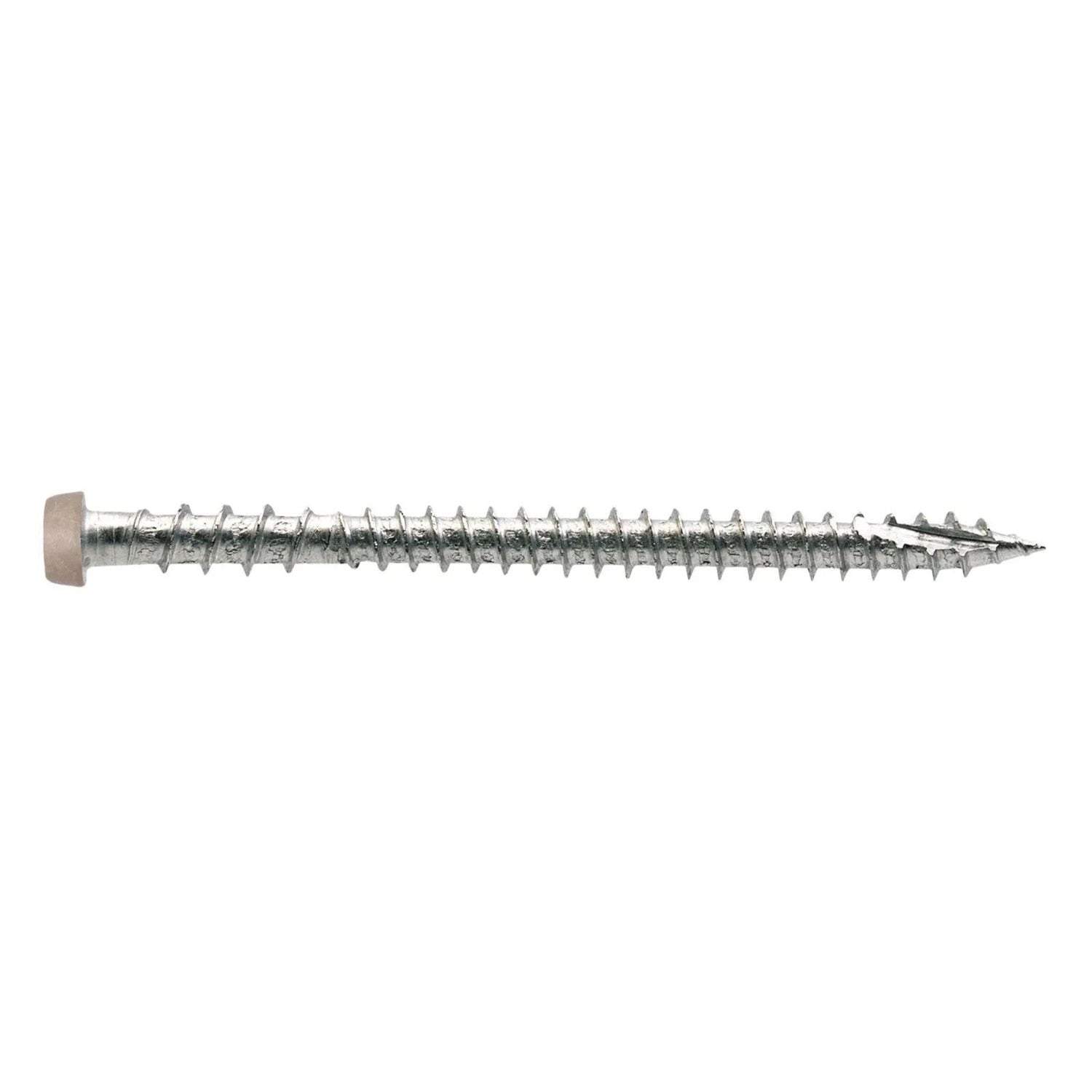

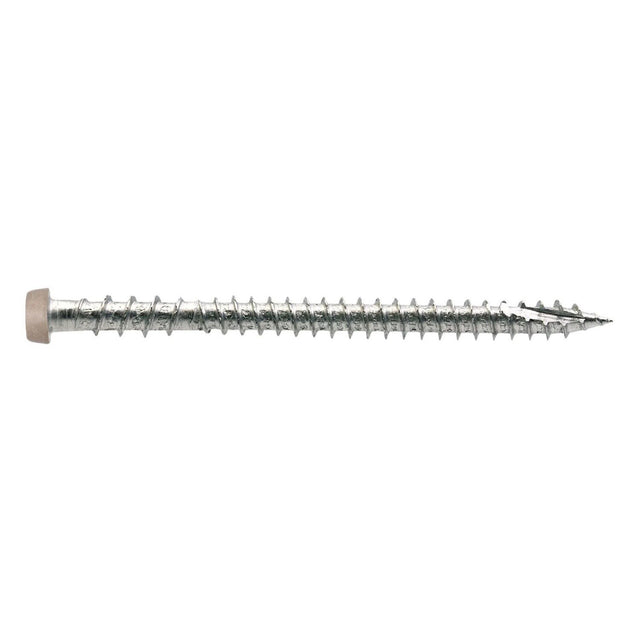

Simpson Strong-Tie DCU234MB305GR01 Deck-Drive (#10 x 2-3/4") T20 DCU Stainless Steel Composite Screw, Gray 01 (1750 Pack)
Free Shipping
$486.43
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DCU234MB305GR01 Description
The Deck-Drive DCU Composite Screw is designed for composite decking applications, offering a clean finish and reliable performance.
Simpson Strong-Tie DCU234MB305GR01 Includes
- (1750) Deck-Drive DCU Composite Screw #10 x 2-3/4 in. T20 Type 305 Gray 01
Simpson Strong-Tie DCU234MB305GR01 Features
- Tri-lobe thread design reduces damage to the composite board while driving
- Inverted upper threads clear excess material for a clean finish
- Unique cut point penetrates composite decking with ease
- Cap head prevents mushrooming for a smooth installation
- Approved fastener for Trex composite decking
- Available collated for the Quik Drive system
Simpson Strong-Tie DCU234MB305GR01 Applications
- Fastening composite decking boards
- Fastening roof sleeper assemblies
Simpson Strong-Tie DCU234MB305GR01 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Decks — Deck Boards Composite |
| API Approval | Approved - Full |
| Coating/Material | Type 305 Stainless Steel |
| Screw Size | #10 |
| Length (in.) | 2 3/4 |
| Head Diameter (in.) | 0.23 |
| Drive Type | T20 6-Lobe |
| Head Type | Cap Head |
| Thread Type | Tri-Lobe Threads |
| Point Type | Type-17 Point |
| Color | Gray 01 |
| Packaging Qty. | 1750 |
NOTE: Ensure proper penetration into wooden roof deck sleeper without exceeding the specified depth.
