Simpson Anchors | SKU:
DCU234S316

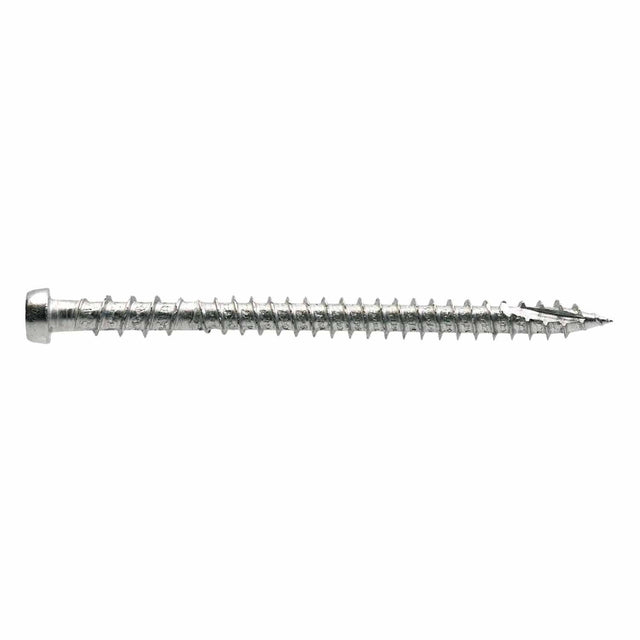

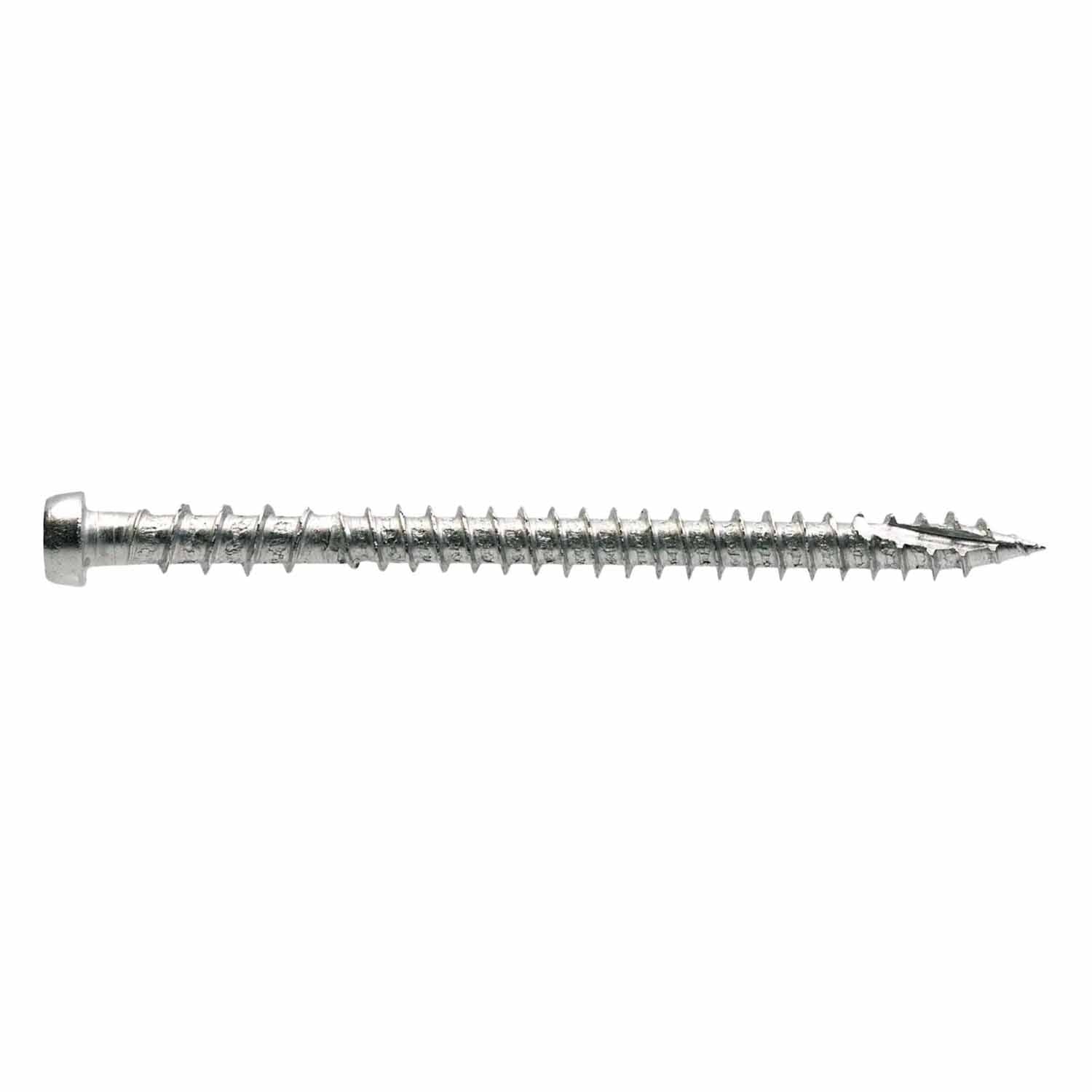

Simpson Strong-Tie DCU234S316 Deck-Drive (#10 x 2-3/4") T20 DCU Collated Composite Screw, Type 316 (1000 Pack)
Free Shipping
$554.04
Unit price
/
Unavailable
Description
Description
Simpson DCU234S316 Description
The Deck-Drive DCU Composite Screw is designed for composite decking applications, offering superior corrosion resistance and a clean finish.
Simpson DCU234S316 Includes
- (1000) #10 x 2-3/4 in. Deck-Drive DCU Composite Screws
Simpson DCU234S316 Features
- Type 316 Stainless Steel for high corrosion resistance
- Tri-lobe thread design minimizes damage to composite boards
- Inverted upper threads ensure a clean finish
- Unique cut point for easy penetration into composite decking
- Cap-head design prevents mushrooming for a smooth installation
- Approved fastener for Trex composite decking
- 6-lobe drive recess for secure driving
- Compatible with Quik Drive auto-feed screw driving system
Simpson DCU234S316 Applications
- Fastening composite decking boards
- Securing roof sleeper assemblies
Simpson DCU234S316 Installation Overview
- Prepare the composite decking boards and ensure alignment.
- Use the Quik Drive auto-feed screw driving system for installation.
- Drive screws into the composite boards using the specified tools.
- Ensure screws are flush with the surface for a clean finish.
Simpson DCU234S316 Specifications
| Fastener Type | Quik Drive Collated Screw |
| Material | 316 Stainless Steel |
| Diameter | #10 |
| Length | 2-3/4 in. |
| Drive Type | T20 Star Drive |
| Head Type | Cap Head |
| Thread Type | Tri-Lobe Threads |
| Point Type | Type-17 Point |
| Packaging Quantity | 1000 |
NOTE: Ensure the screws are installed with the correct tools and techniques to achieve optimal performance.
