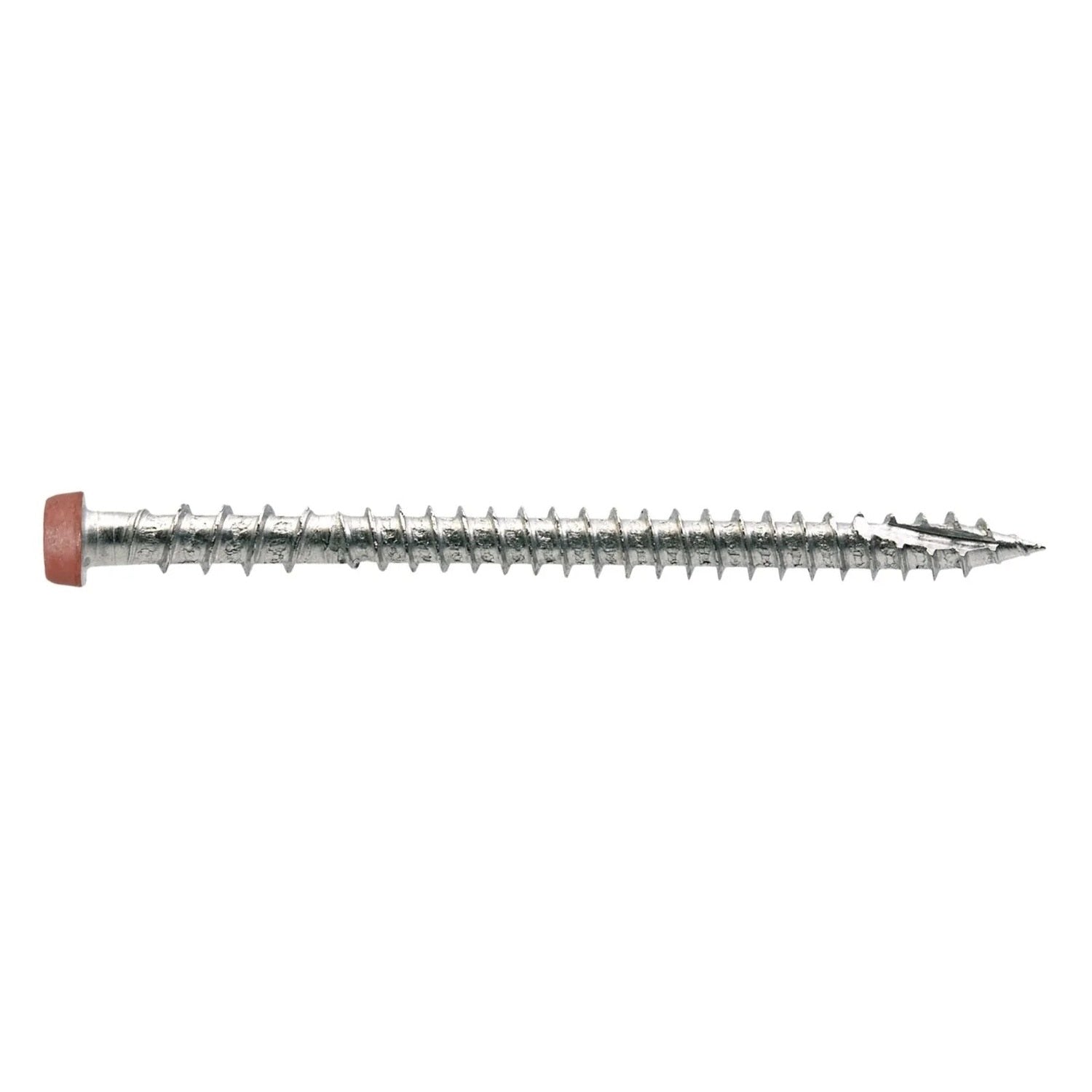

Simpson Strong-Tie DCU234S316RD Deck-Drive (#10 x 2-3/4") Collated DCU Composite Screw, Type 316 - Red (1000 Pack)
Free Shipping
$612.30
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DCU234S316RD Description
The Deck-Drive DCU Composite Screw is a high-performance fastener designed for composite decking applications, offering durability and a clean finish.
Simpson Strong-Tie DCU234S316RD Includes
- (1000) #10 x 2-3/4 in. Type 316 Stainless Steel Red Collated Screws
Simpson Strong-Tie DCU234S316RD Features
- Available in carbon steel, as well as Type 305 and Type 316 stainless steel for high to severe levels of corrosion resistance
- Tri-lobe thread design reduces damage to the composite board while driving
- Inverted upper threads clear excess material to ensure that the screw has a clean finish
- Unique cut point penetrates composite decking with ease for fast starts
- Cap-head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
- Approved fastener for Trex composite decking
- 6-lobe drive recess for secure driving
Simpson Strong-Tie DCU234S316RD Applications
- Fastening composite decking boards
- Fastening roof sleeper assemblies
Simpson Strong-Tie DCU234S316RD Specifications
| Fastener Type | Quik Drive® Collated Screw |
| Application | Decks — Deck Boards Composite |
| API Approval | Approved - Full |
| Coating/Material | Type 316 Stainless Steel |
| Screw Size | #10 |
| Length (in.) | 2 3/4 |
| Head Diameter (in.) | 0.23 |
| Drive Type | T20 6-Lobe |
| Head Type | Cap Head |
| Thread Type | Tri-Lobe Threads |
| Point Type | Type-17 Point |
| Color | Red |
| Compatible Tools | Quik Drive® PRO300SG2 |
| Packaging Qty. | 1000 |
