Simpson Strong-Tie DETAL20 Description
The Simpson DETAL20 is a high-capacity embedded truss anchor designed for concrete and masonry walls, providing secure attachment for trusses with enhanced lateral and uplift capacity.
Simpson Strong-Tie DETAL20 Includes

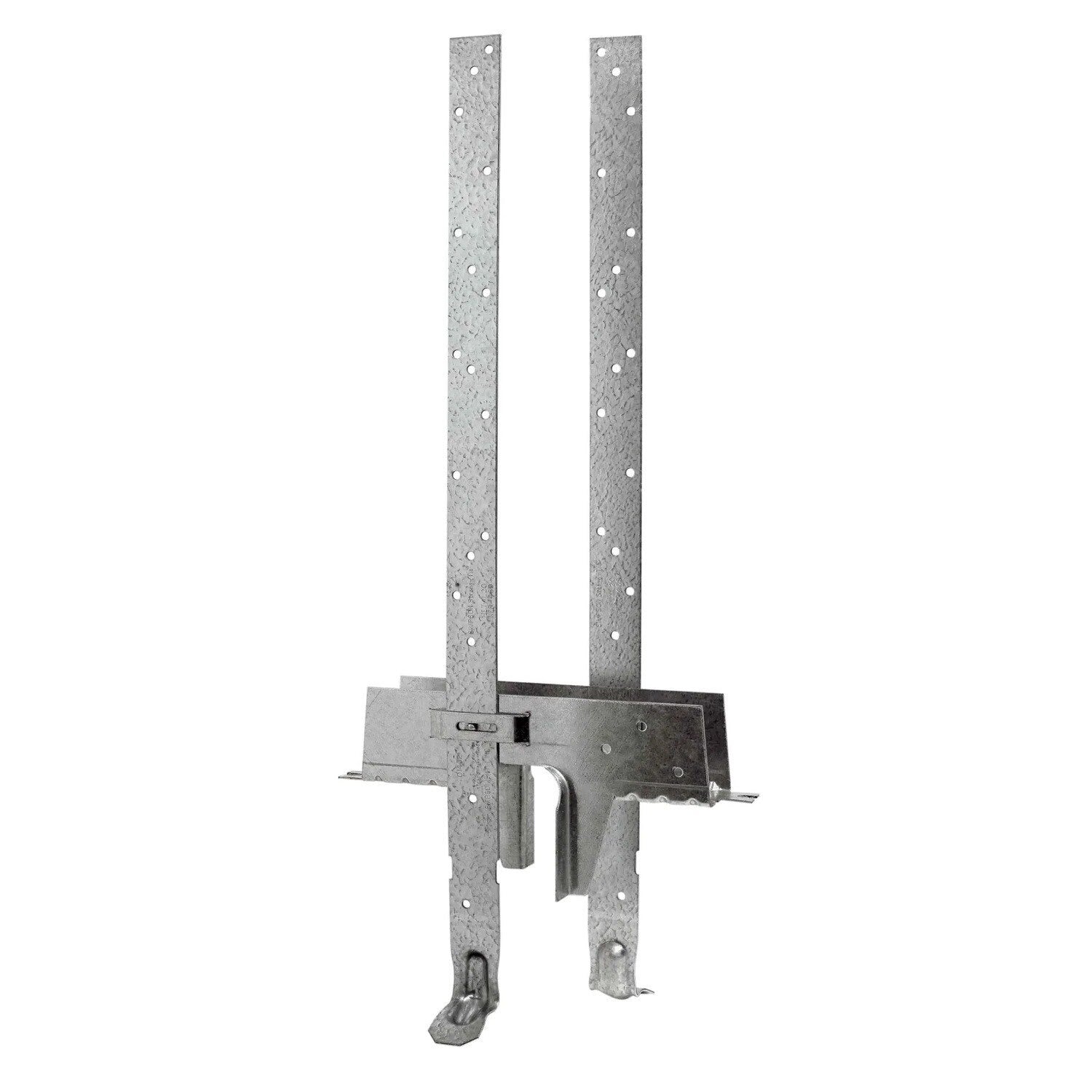

- (1) DETAL20 Embedded Truss Anchor
Simpson Strong-Tie DETAL20 Features
- Tabs at each end of moisture-barrier seat for optional attachment to form boards
- Moisture-barrier seat partially embedded in concrete or grout
- Strap can be installed straight or field-bent around truss or rafter members
- Load rated for wind and seismic forces
Simpson Strong-Tie DETAL20 Applications
- High-wind construction

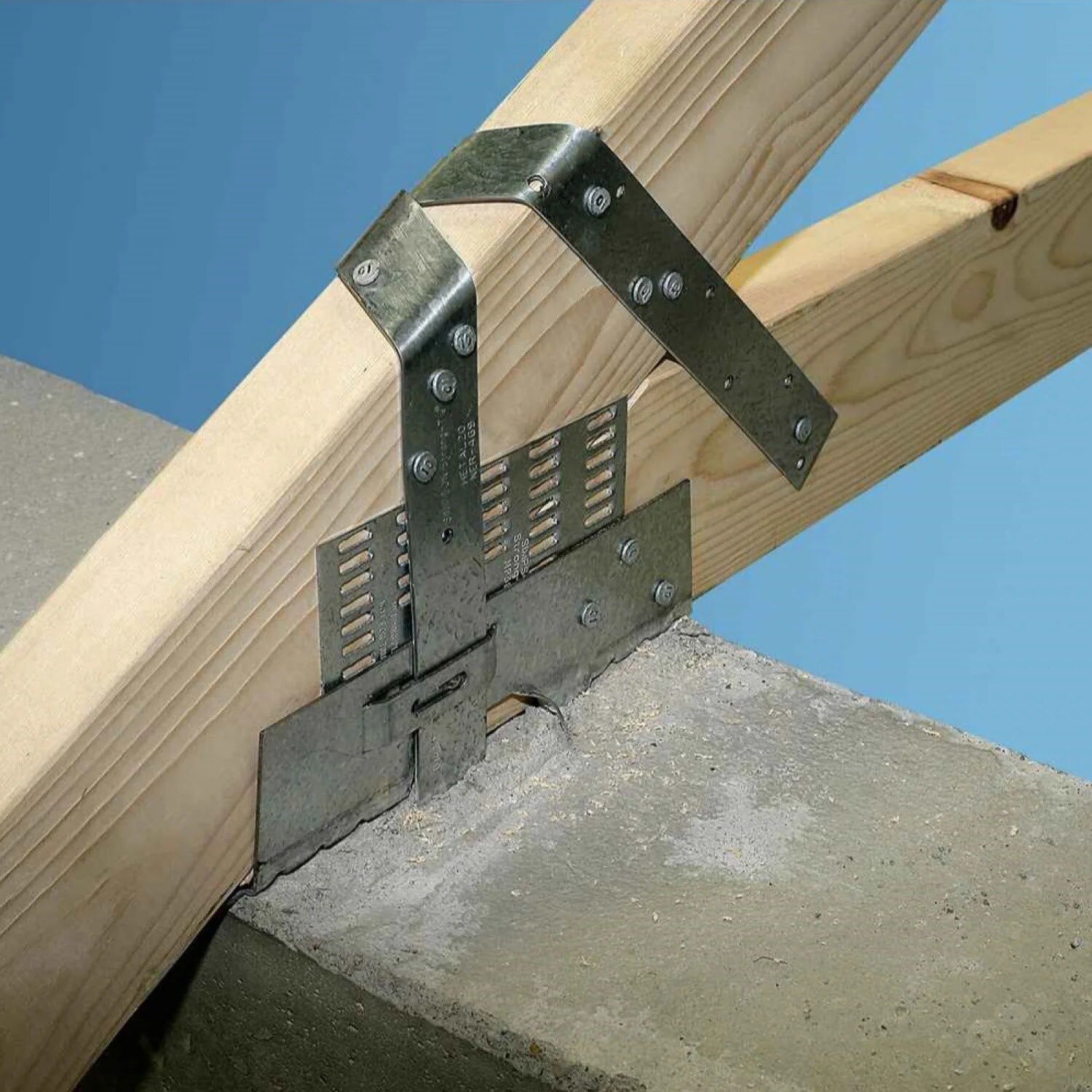

- Secure attachment of trusses to concrete and masonry walls
Simpson Strong-Tie DETAL20 Installation Overview
- Use all specified fasteners as per guidelines

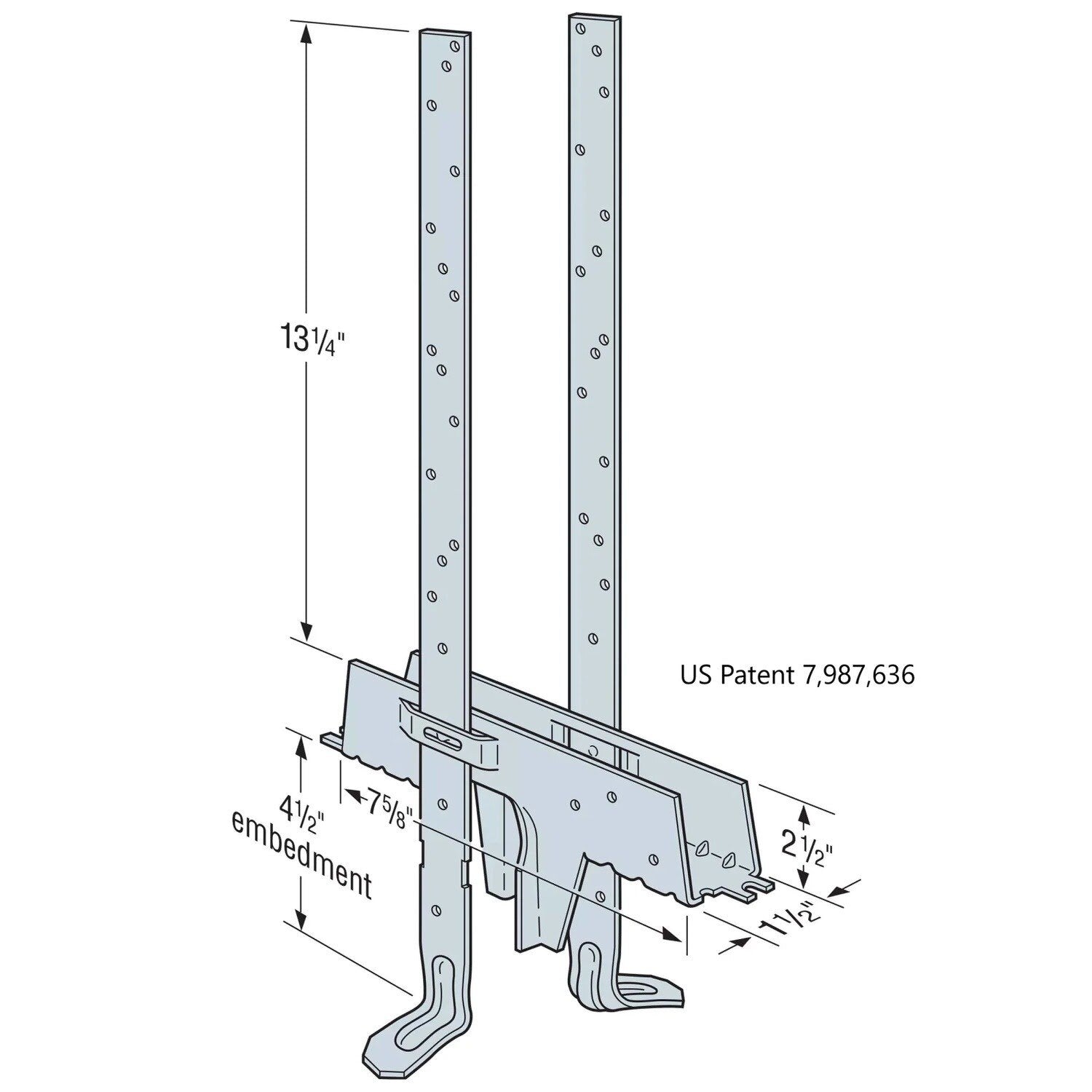

- Embed 4 1/2 inches into concrete or grout
- Install centered and flush on top of an 8-inch masonry bond beam or concrete tie beam
- Ensure proper spacing and alignment for double anchor installations
Simpson Strong-Tie DETAL20 Specifications
| Material | 16 gauge (barrier 18 gauge) |
| Finish | Galvanized |
| Height | 15 3/4 inches |
| Fasteners required | (18) 0.148 x 1 1/2 nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
