Simpson Anchors | SKU:
DGT1.81/11.88

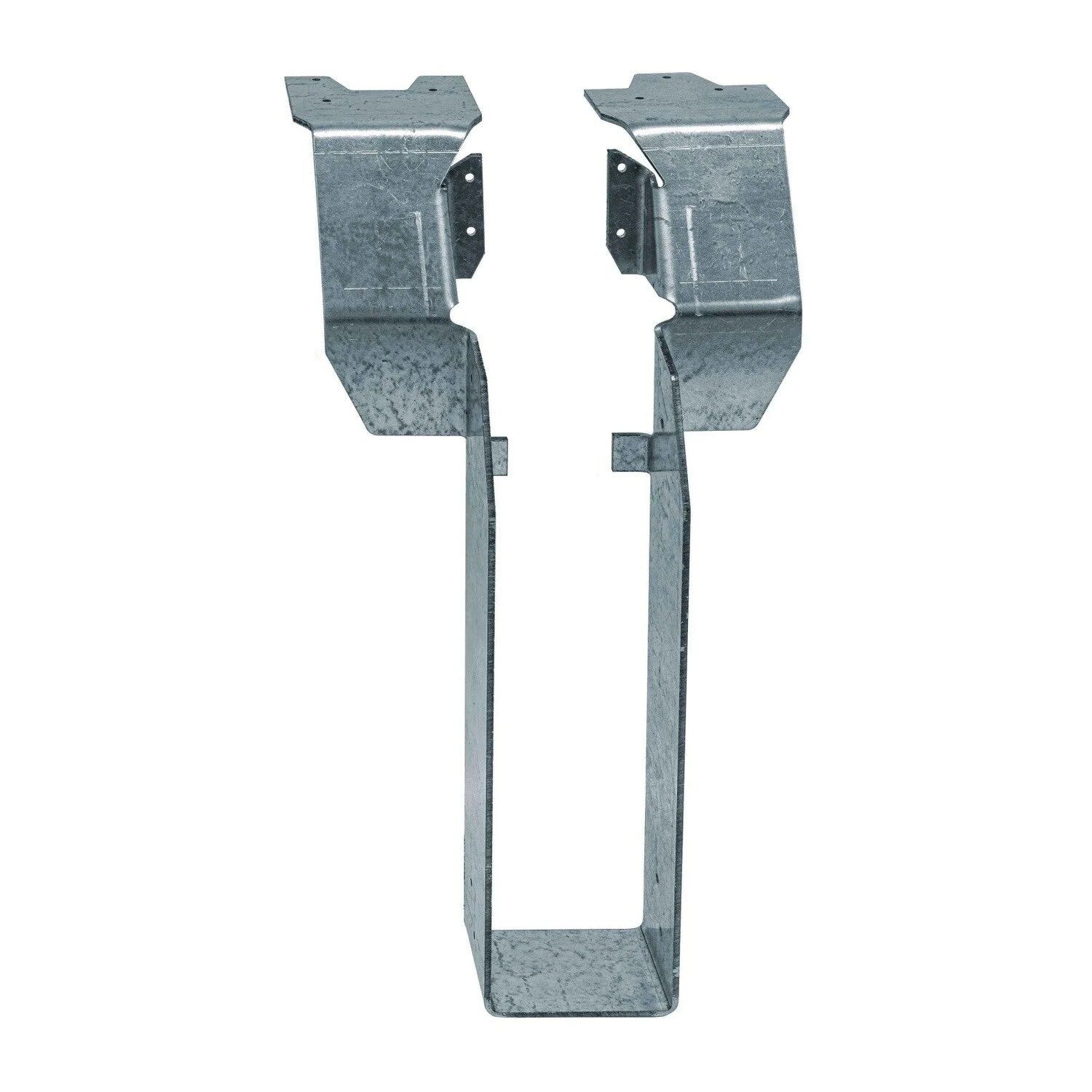

Simpson Strong-Tie DGT1.81/11.88 (1-3/4" x 11-7/8") Top-Flange Fire Wall Hanger for Engineered Wood
$42.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DGT1.81/11.88 Description
The Simpson DGT1.81/11.88 Top-Flange Fire Wall Hanger is designed for robust, fire-rated connections in multifamily and multilevel Type III residential constructions.
Simpson Strong-Tie DGT1.81/11.88 Includes
- (1) Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGT1.81/11.88 Features
- Two-hour fire rating for 2x4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2x6 (min.) walls

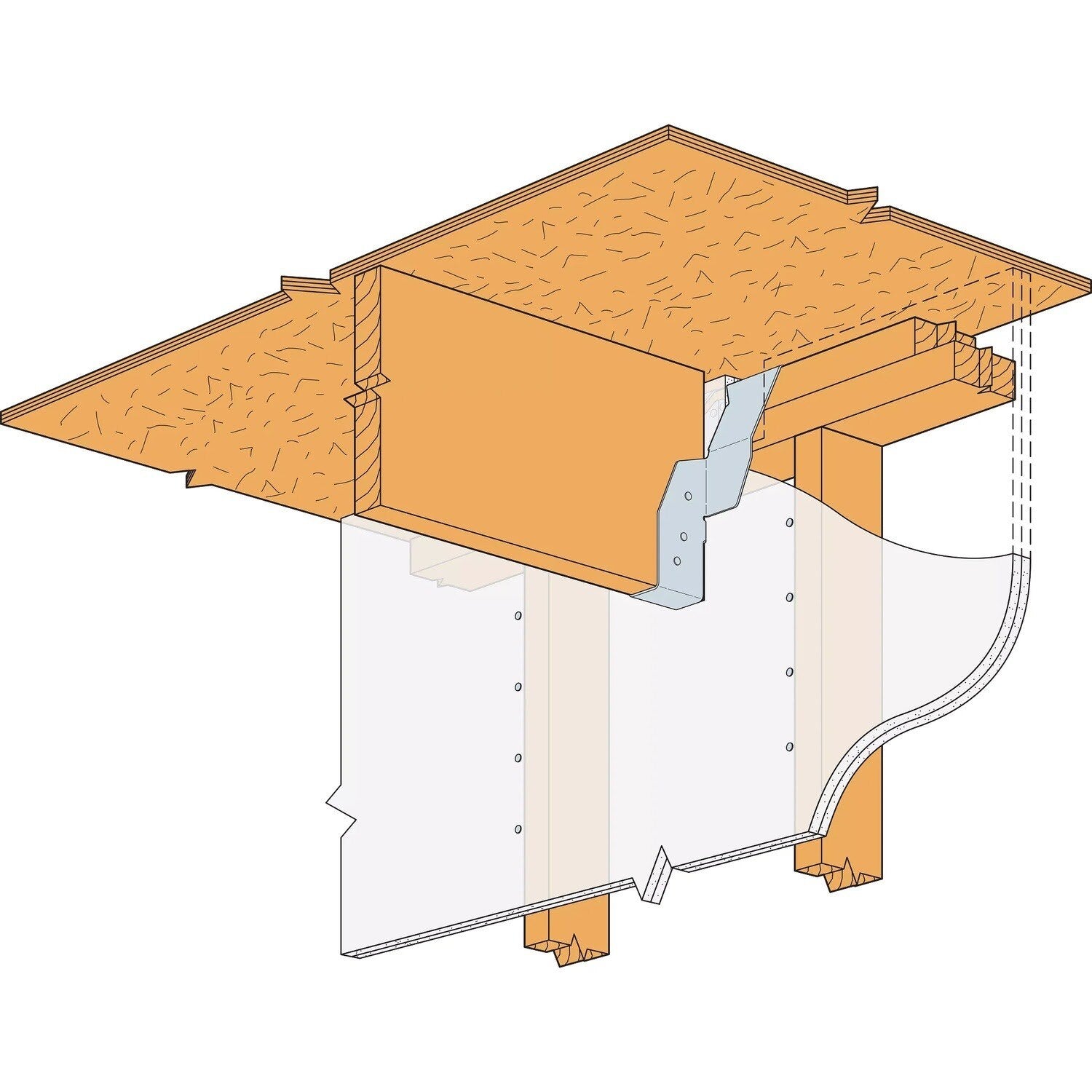

- Space for two layers of 5/8" drywall after framing
- Compatible with power-driven or hand-installed nails
Simpson Strong-Tie DGT1.81/11.88 Applications
- Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
- Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
- Type III Construction: Ideal for multilevel residential and commercial buildings.

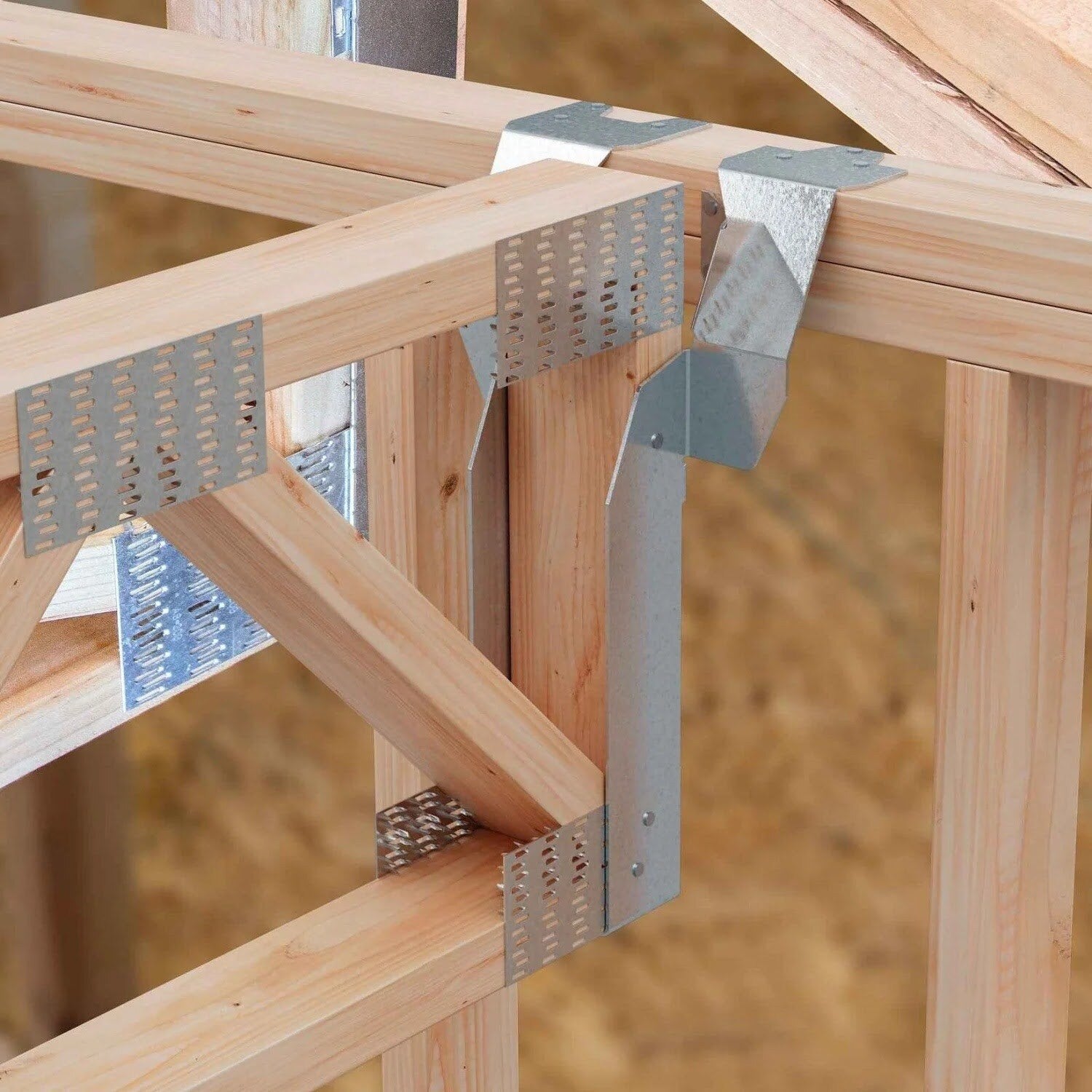

Simpson Strong-Tie DGT1.81/11.88 Installation Overview
- Use all specified fasteners. I-joists require web stiffeners.
- DGT is mounted like a standard top-flange hanger.
- Stud wall-plate splices must occur at a stud location.
- DGT welded to steel header with (4) 1/8" x 1 1/2" fillet welds and (6) joist nails achieves a download of 1,700 lb. Face flanges require full backing.

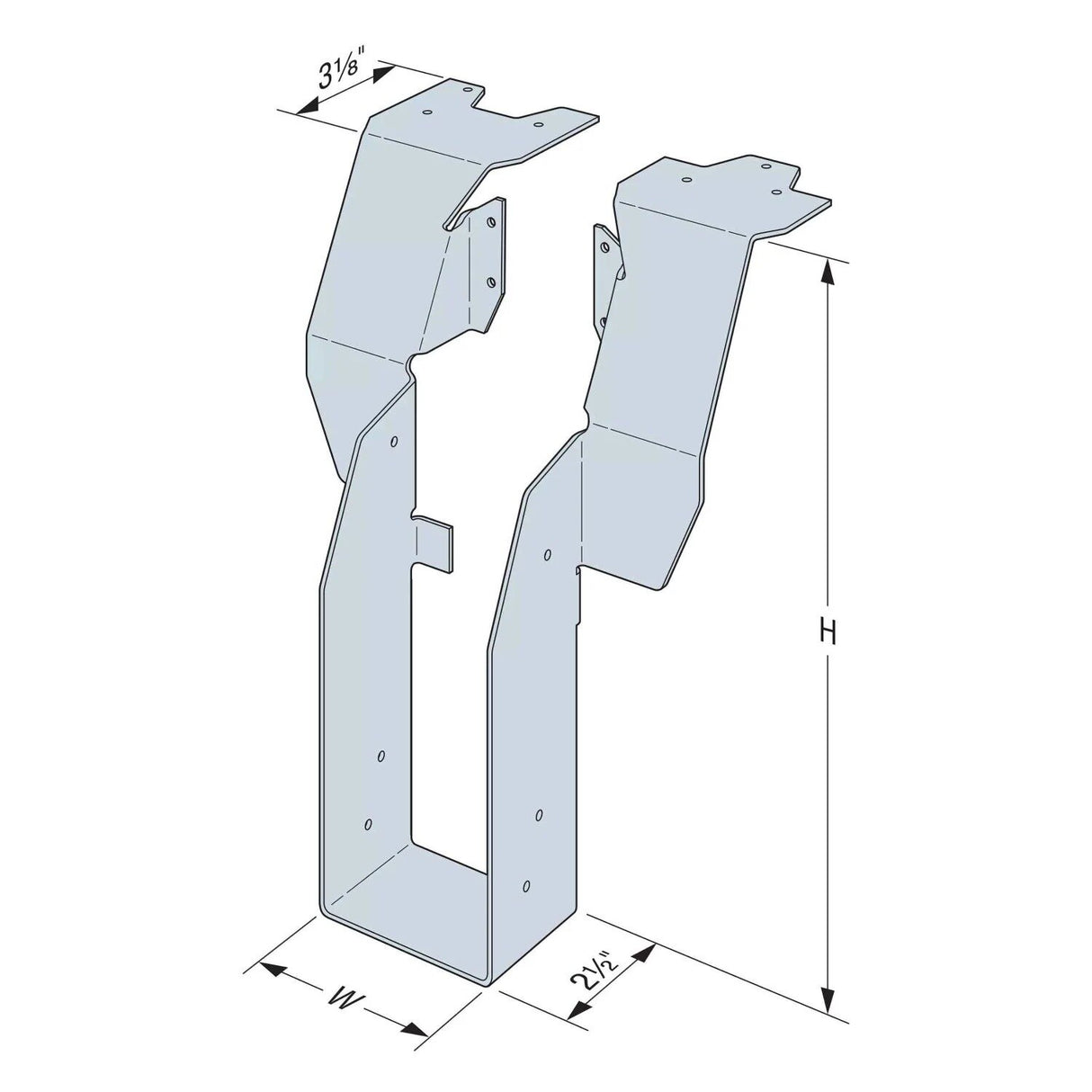

Simpson Strong-Tie DGT1.81/11.88 Specifications
| Material | 12 Gauge Galvanized Steel |
| Finish | G90 Galvanized |
| Joist Size | 1-3/4" x 11-7/8" |
| Height | 11-13/16" |
| Width | 1-13/16" |
| For Treated Lumber | No |
