Simpson Anchors | SKU:
DGT210

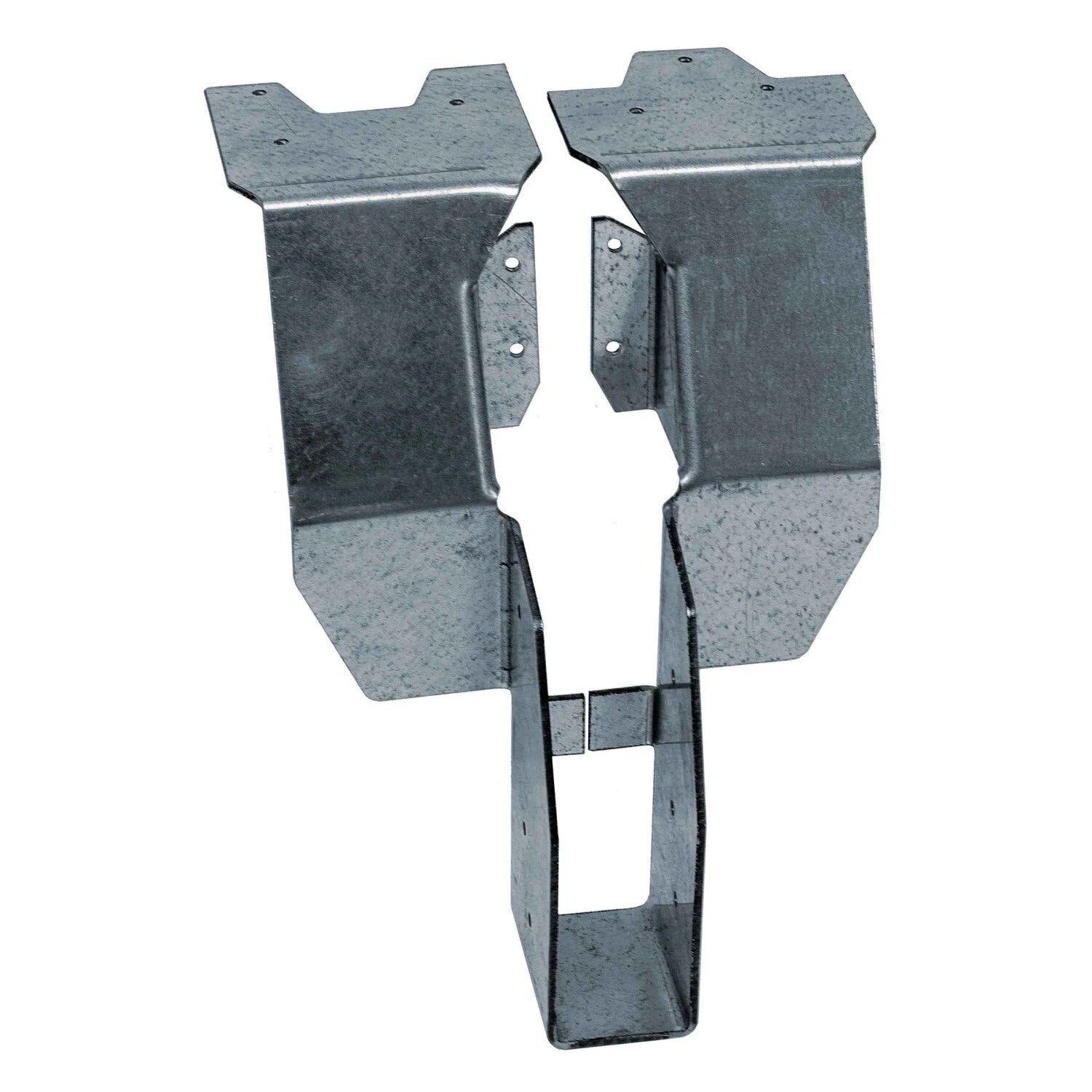

Simpson Strong-Tie DGT210 (2" x10") Top-Flange Fire Wall Hanger for Engineered Wood
$40.95
Unit price
/
Unavailable
Description
Description
Simpson DGT210 Description
The Simpson DGT210 Top-Flange Fire Wall Hanger is designed for robust, fire-rated connections in multifamily and multilevel Type III residential constructions.
Simpson DGT210 Includes
- (1) Top-Flange Fire Wall Hanger for 2x10
Simpson DGT210 Features
- Two-Hour Fire Rating: Tested according to ASTM E814 standards.
- Efficient Installation: Compatible with power nailers for quick attachment.

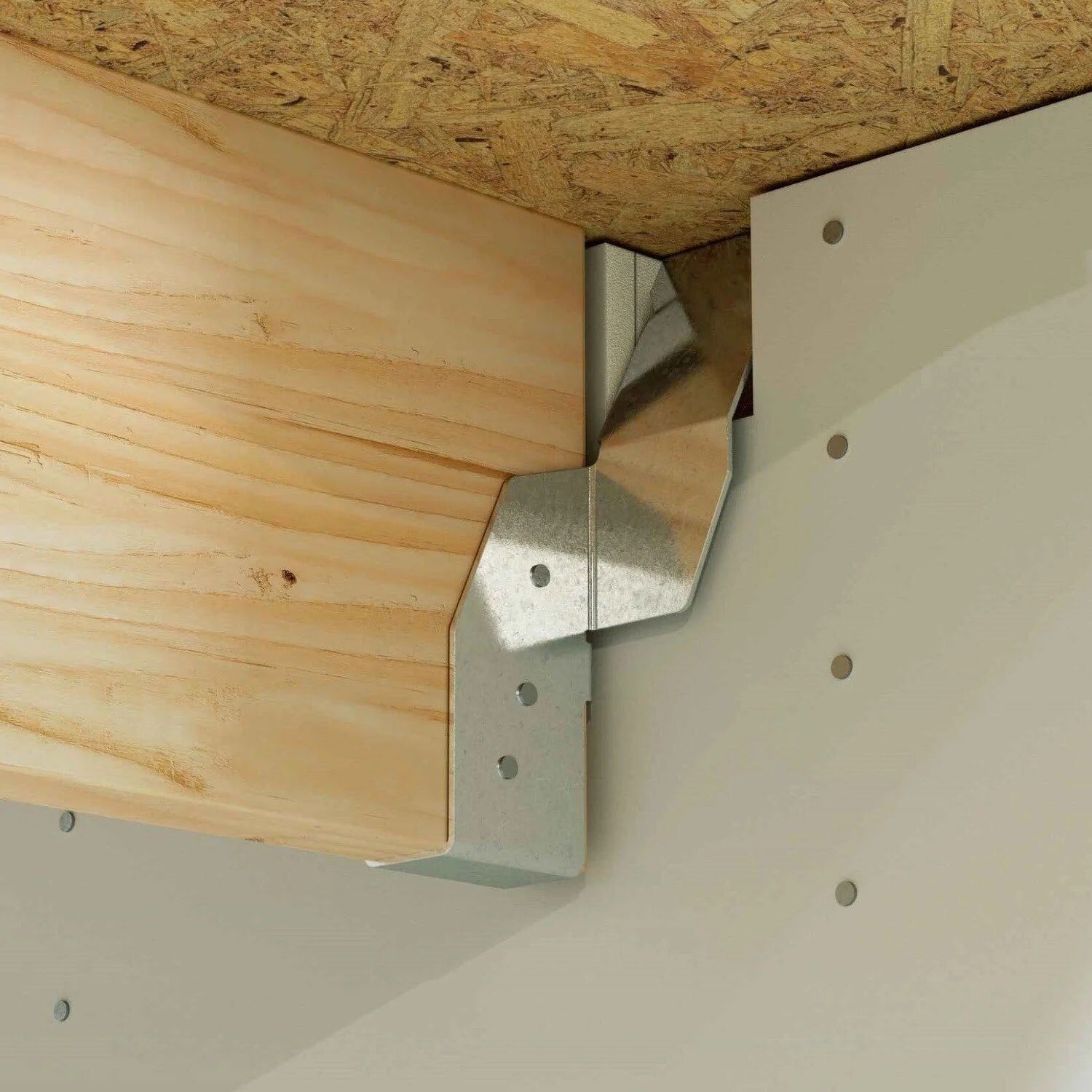

- Drywall Accommodation: Allows installation of two layers of 5/8" gypsum board.
- Versatile Application: Suitable for back-to-back installation on minimum 2x6 walls.
Simpson DGT210 Applications
- Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
- Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
- Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
- Retrofit Projects: Suitable for upgrading existing structures to meet fire safety standards.

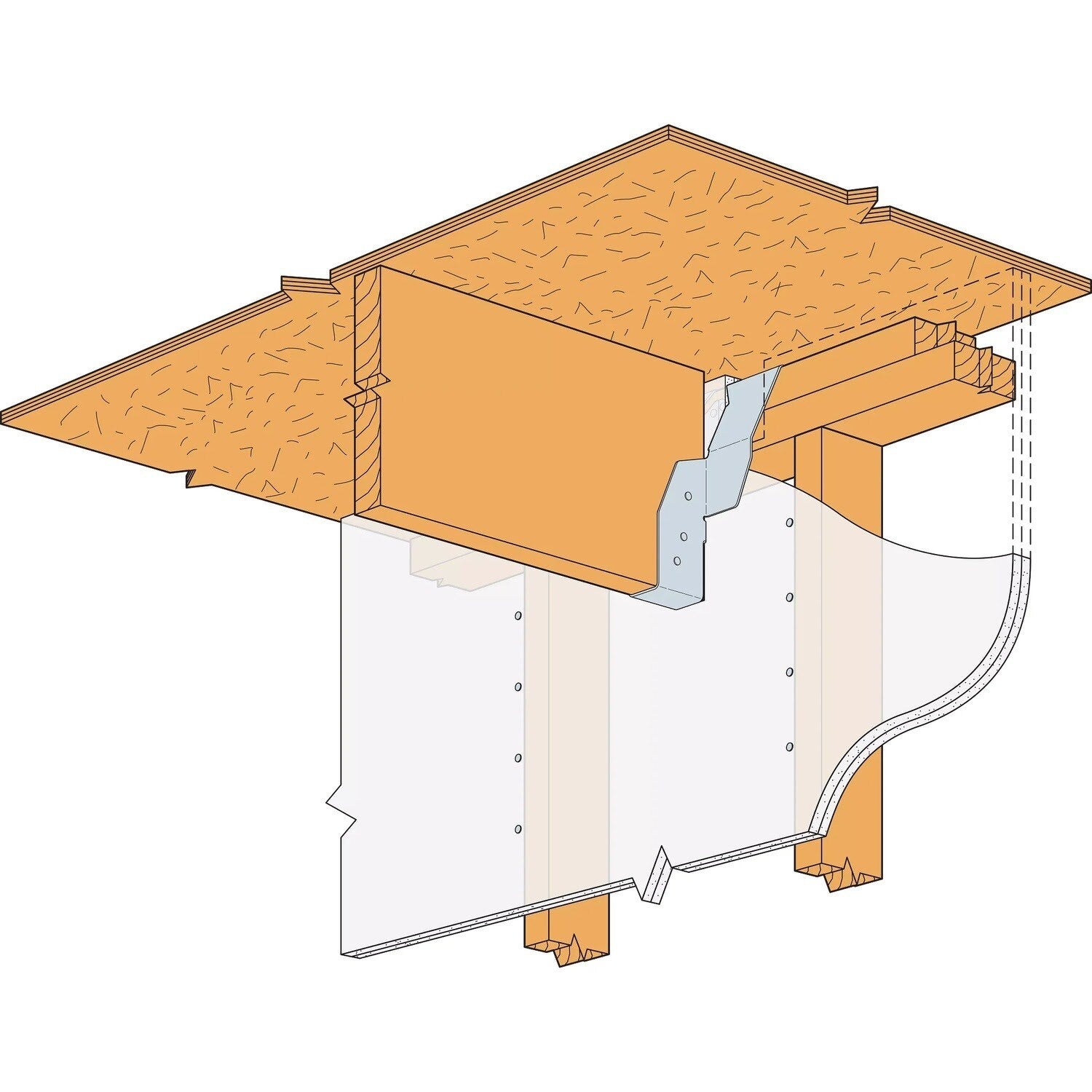

Simpson DGT210 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Install similarly to standard top-flange hangers.
- For I-joist applications, use web stiffeners.
- For steel headers, weld using specified fillet welds and secure with joist nails.

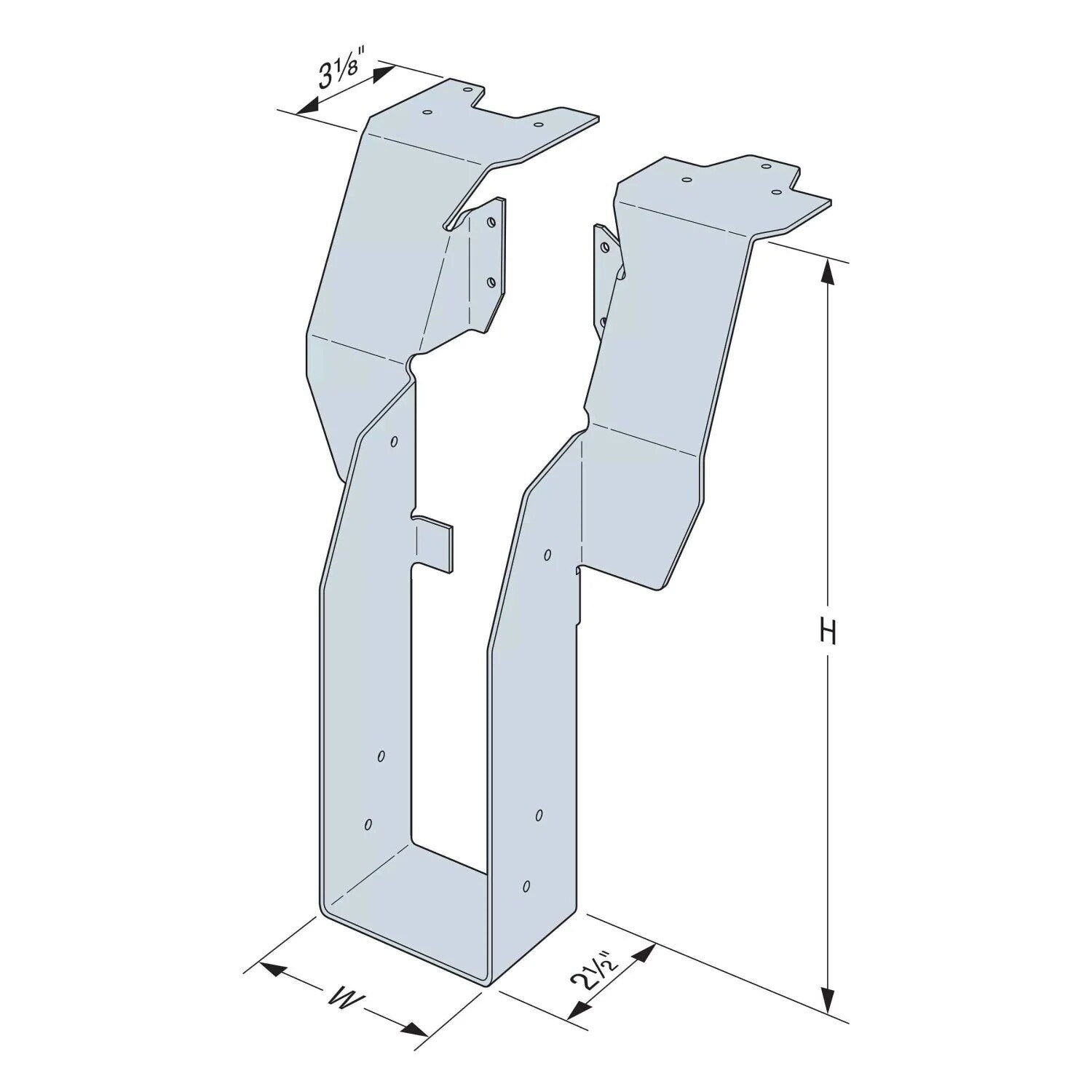

Simpson DGT210 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 9-1/8" |
| Joist size | 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 1-9/16" |
NOTE: Ensure all specified fasteners are used in the correct positions to achieve published load values.
