Simpson Anchors | SKU:
DGT212

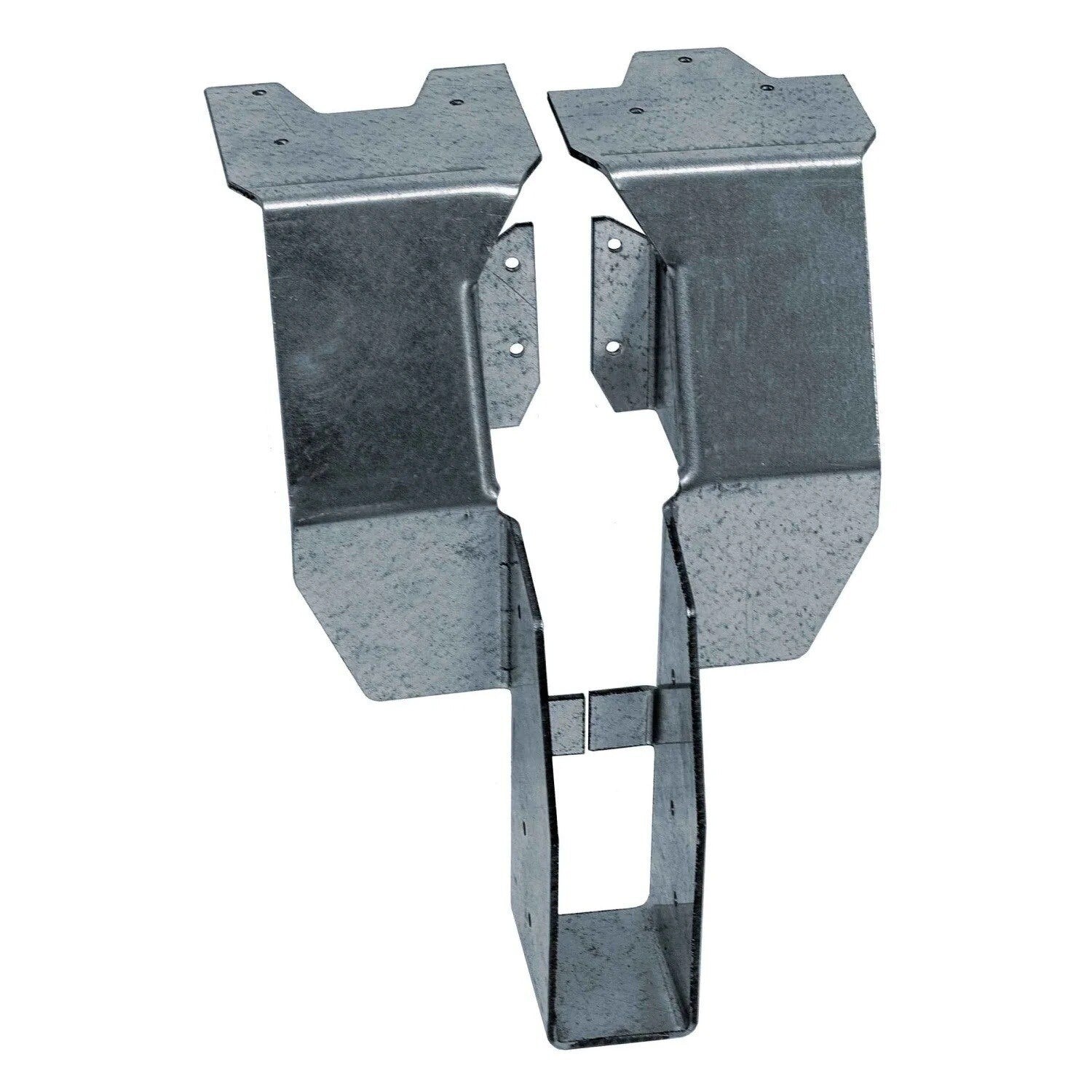

Simpson Strong-Tie DGT212 (2" x 12") Top-Flange Fire Wall Hanger for Engineered Wood
$42.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DGT212 Description
The Simpson DGT212 Top-Flange Fire Wall Hanger is designed for robust, fire-rated connections in multifamily and multilevel Type III residential constructions. It ensures structural integrity while maintaining fire-resistive wall assemblies.
Simpson Strong-Tie DGT212 Includes
- (1) Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGT212 Features
- Two-hour fire rating tested to ASTM E814 standards
- Efficient installation with power nailers
- Accommodates two layers of 5/8" gypsum board
- Versatile for back-to-back installation on 2x6 walls
Simpson Strong-Tie DGT212 Applications
- Multifamily residential buildings requiring fire-rated connections
- Commercial structures adhering to fire safety standards
- Type III constructions with non-combustible exterior walls
- Retrofit projects for upgrading fire-rated assemblies

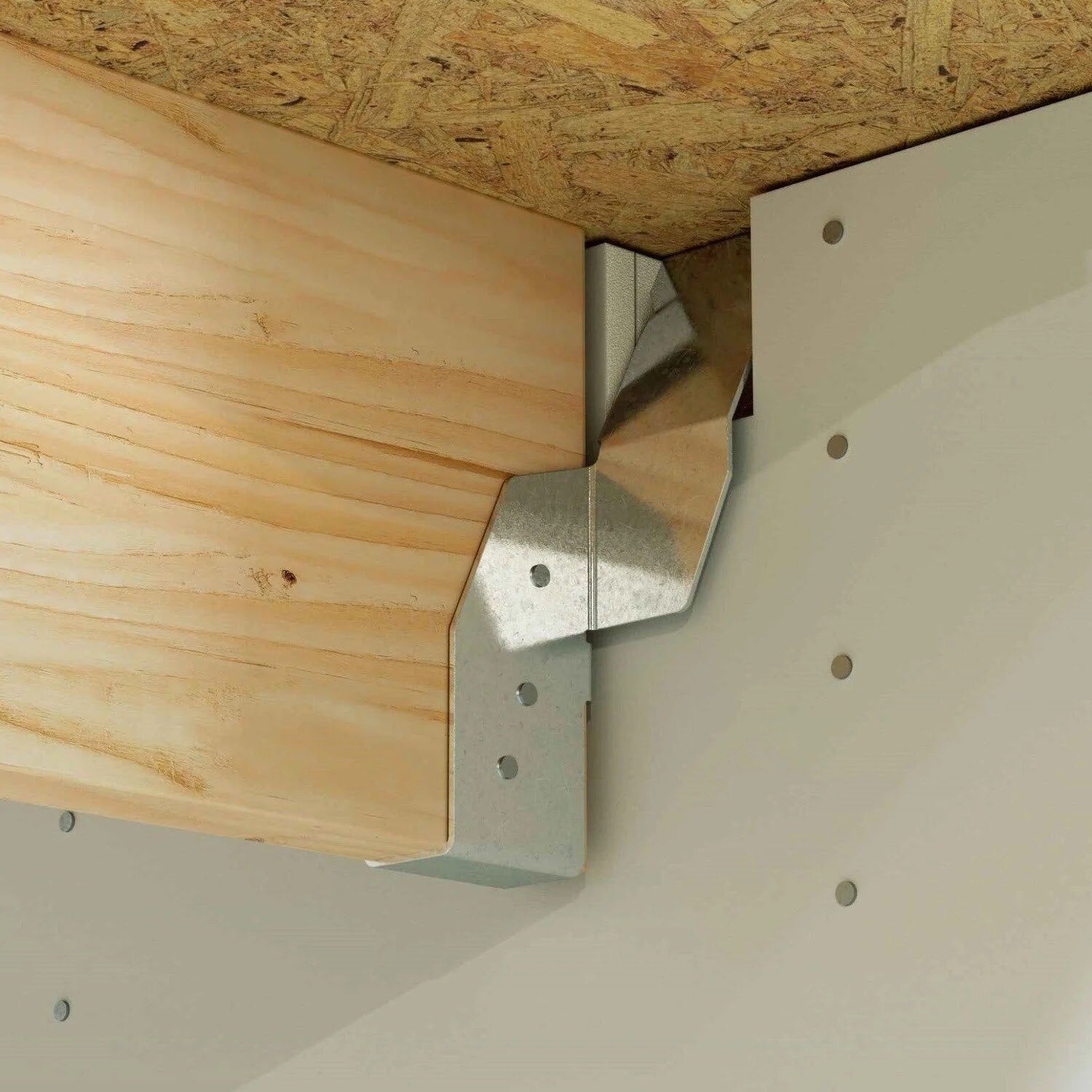

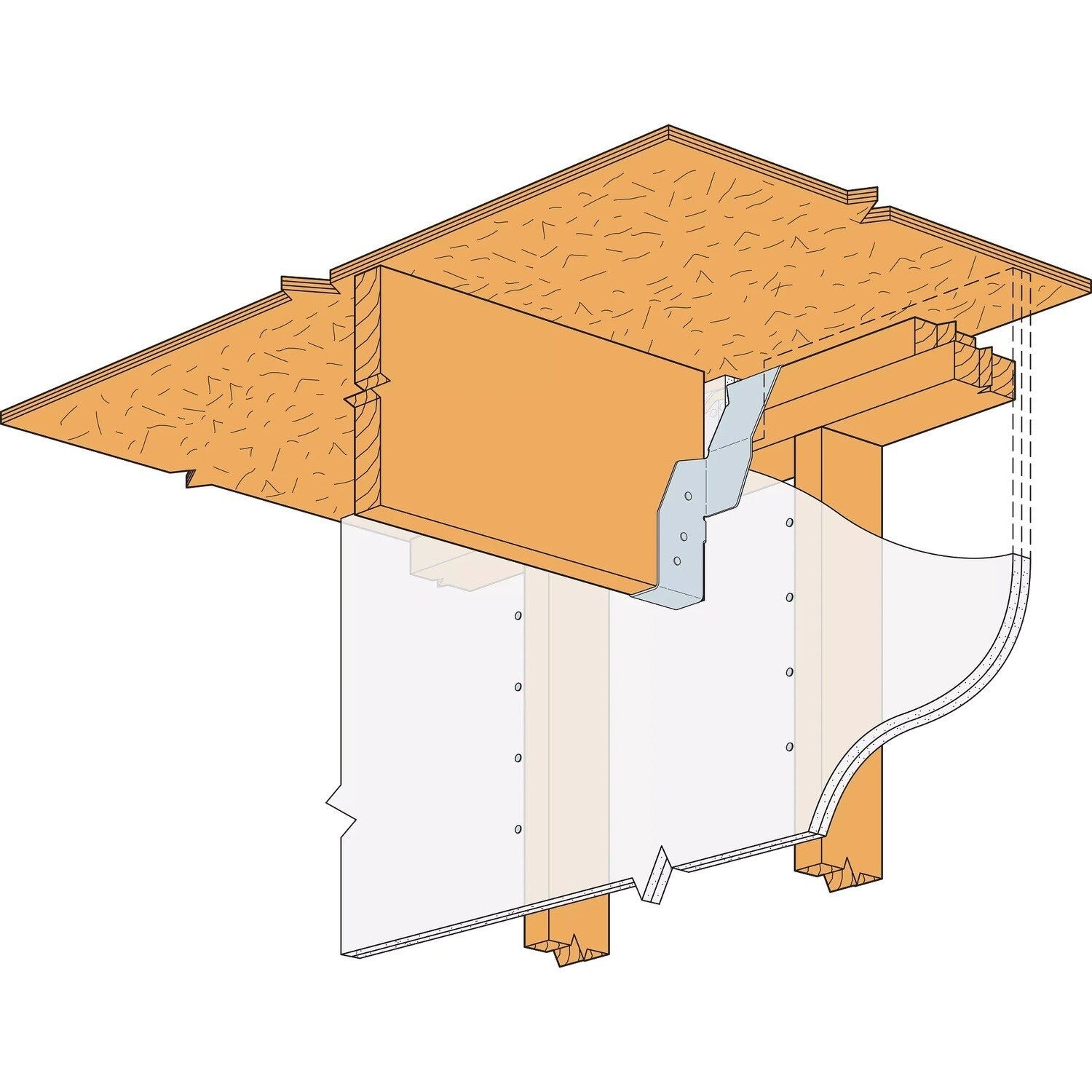

Simpson Strong-Tie DGT212 Installation Overview
- Use specified fasteners as per guidelines
- Install similarly to standard top-flange hangers
- Ensure stud wall-plate splices occur at stud locations
- For I-joist applications, use web stiffeners
- For steel headers, weld with specified fillet welds and secure with joist nails

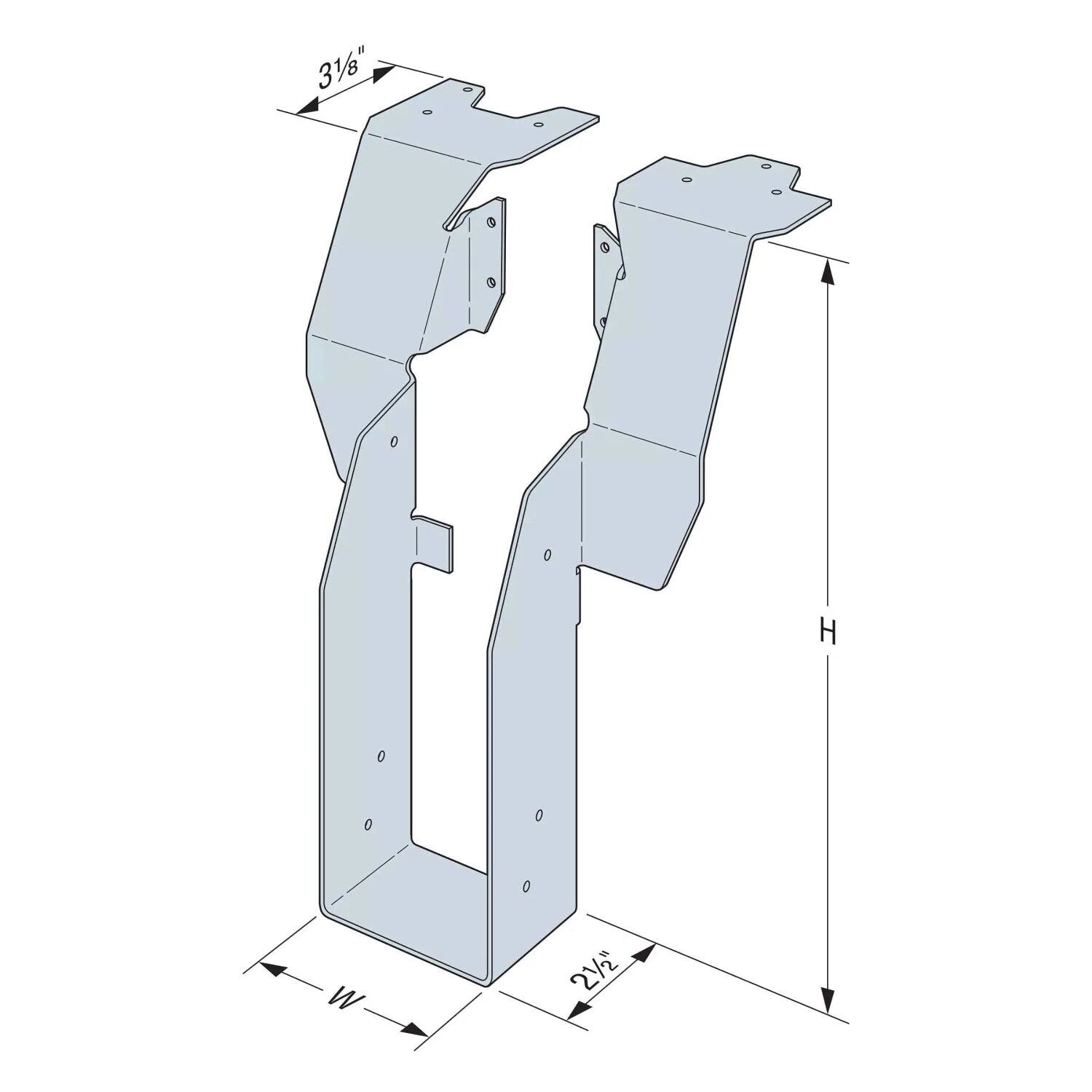

Simpson Strong-Tie DGT212 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 11-1/8" |
| Joist size | 2" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 1-9/16" |
