Simpson Anchors | SKU:
DGT3.62/20
Simpson Strong-Tie DGT3.62/20 (3-1/2" x 20") Top-Flange Fire Wall Hanger for Engineered Wood
$49.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DGT3.62/20 Description
The Simpson DGT3.62/20 Top-Flange Fire Wall Hanger is designed for robust, fire-rated connections in multifamily and multilevel Type III residential constructions, ensuring structural integrity and compliance with fire-resistive standards.
Simpson Strong-Tie DGT3.62/20 Includes

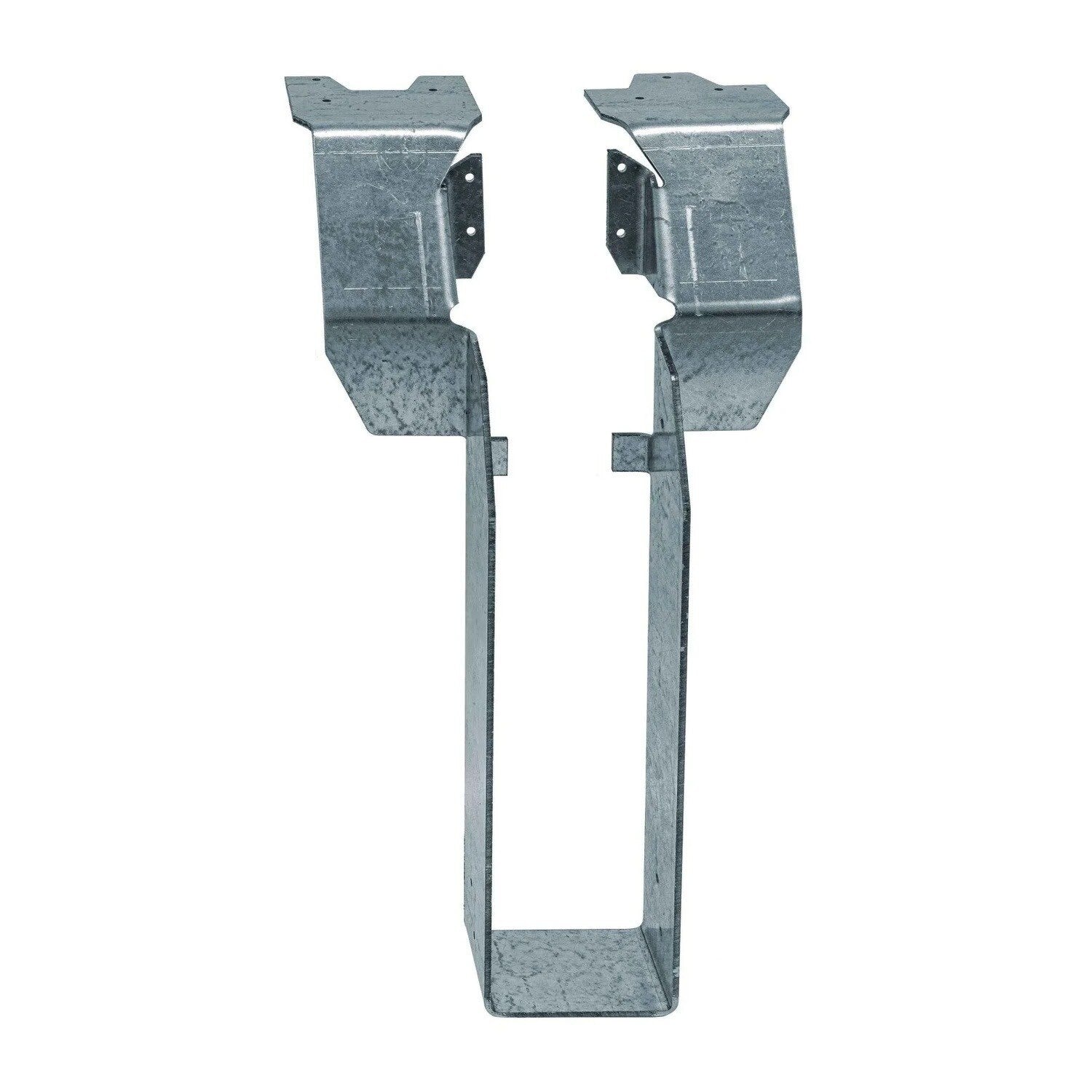

- (1) DGT3.62/20 Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGT3.62/20 Features
- Two-hour fire rating for 2x4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2x6 (min.) walls
- Space for two layers of 5/8" drywall after framing
- Compatible with power-driven or hand-installed nails
Simpson Strong-Tie DGT3.62/20 Applications
- Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
- Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
- Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
- Retrofit Projects: Suitable for upgrading existing structures to meet fire safety standards.

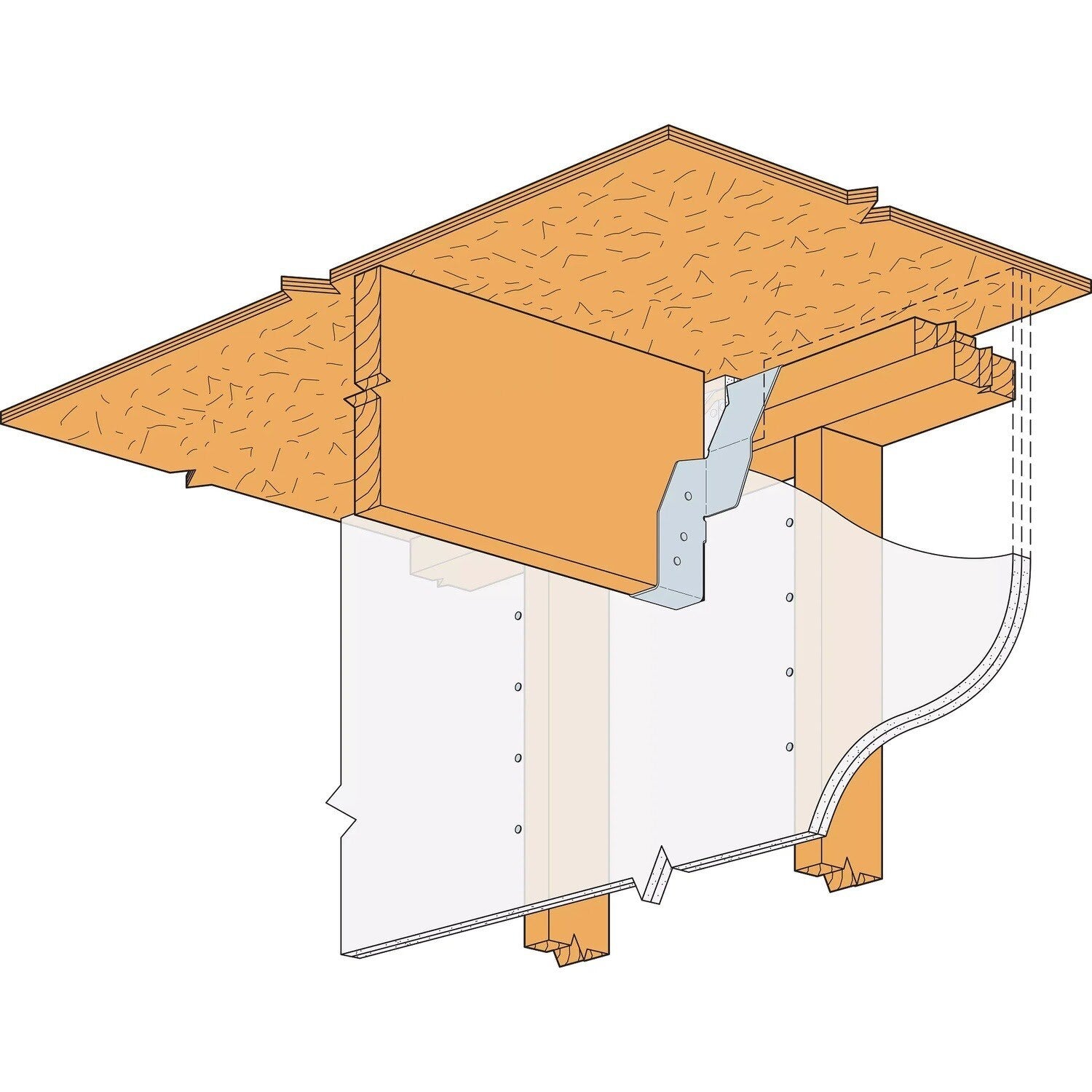

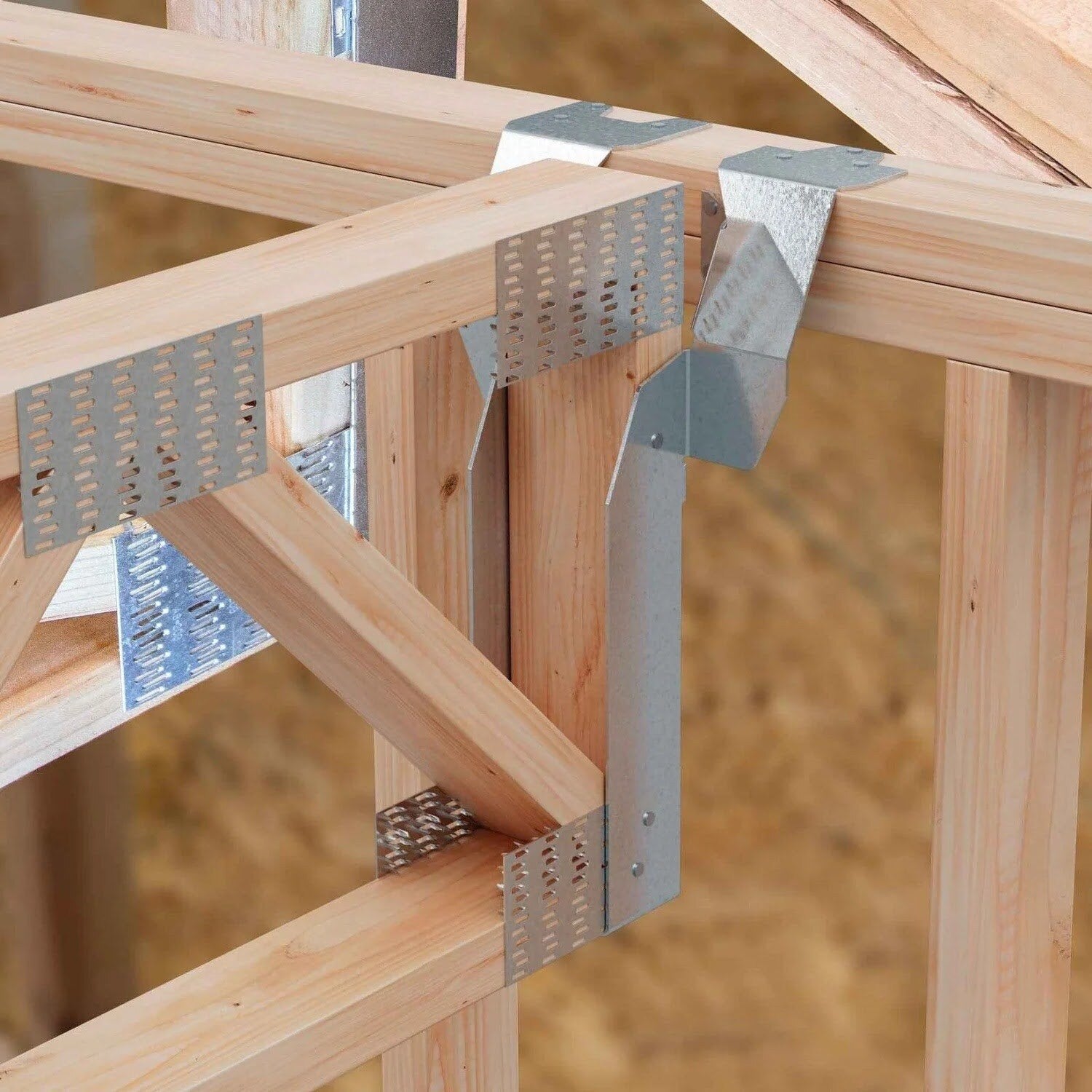

Simpson Strong-Tie DGT3.62/20 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Install the DGT hanger similarly to standard top-flange hangers.
- Ensure that stud wall-plate splices occur at stud locations for optimal support.
- For I-joist applications, web stiffeners are required to maintain structural integrity.
- When attaching to a steel header, weld the DGT hanger using four 1/8" x 1-1/2" fillet welds and secure with six joist nails to achieve a download capacity of 1,700 lbs.

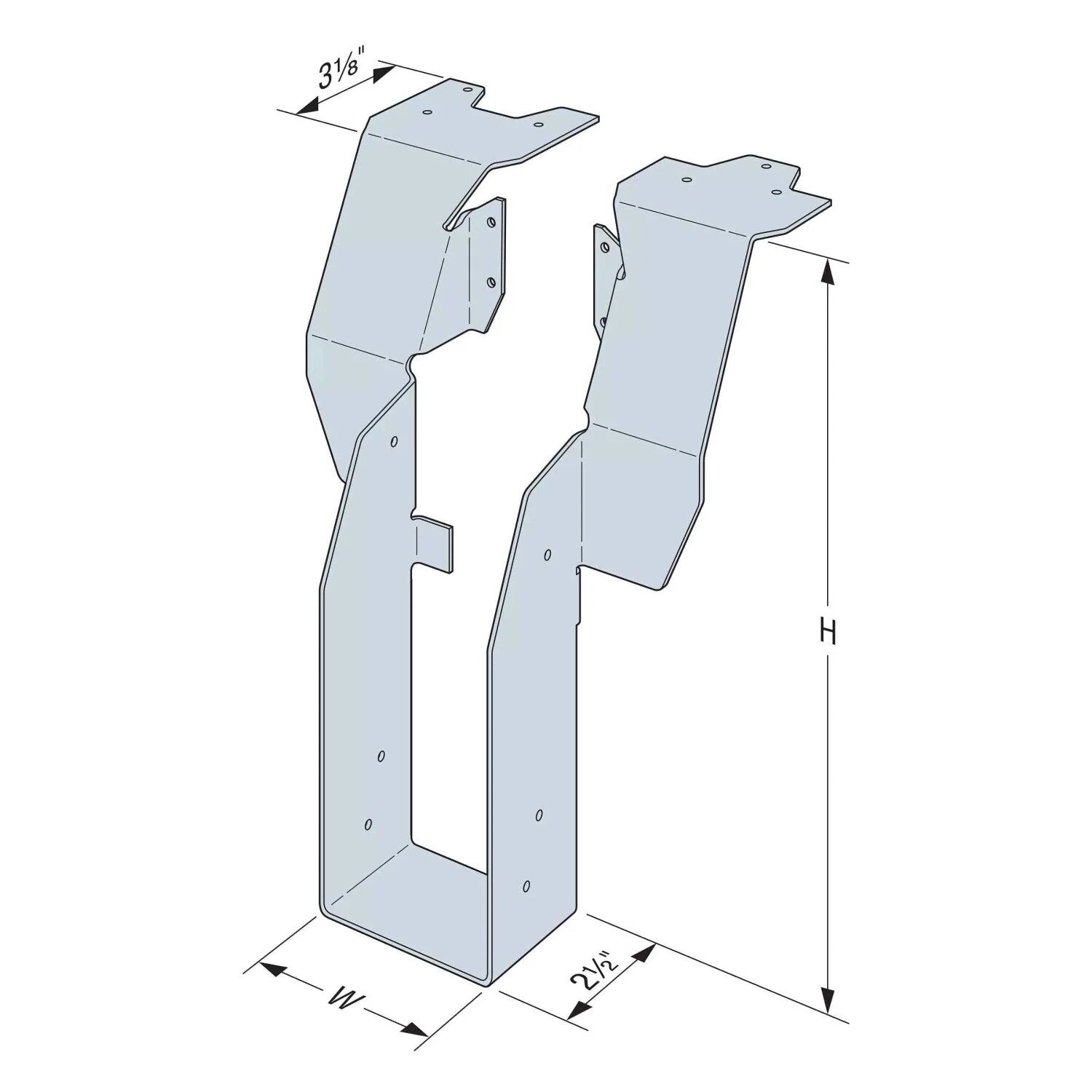

Simpson Strong-Tie DGT3.62/20 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails, FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails, POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 19-15/16" |
| Joist size | 3-1/2" X 20" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 3-5/8" |
