Simpson Anchors | SKU:
DGT3.62/24
Simpson Strong-Tie DGT3.62/24 (3-1/2" x 24") Top-Flange Fire Wall Hanger for Engineered Wood
$53.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DGT3.62/24 Description

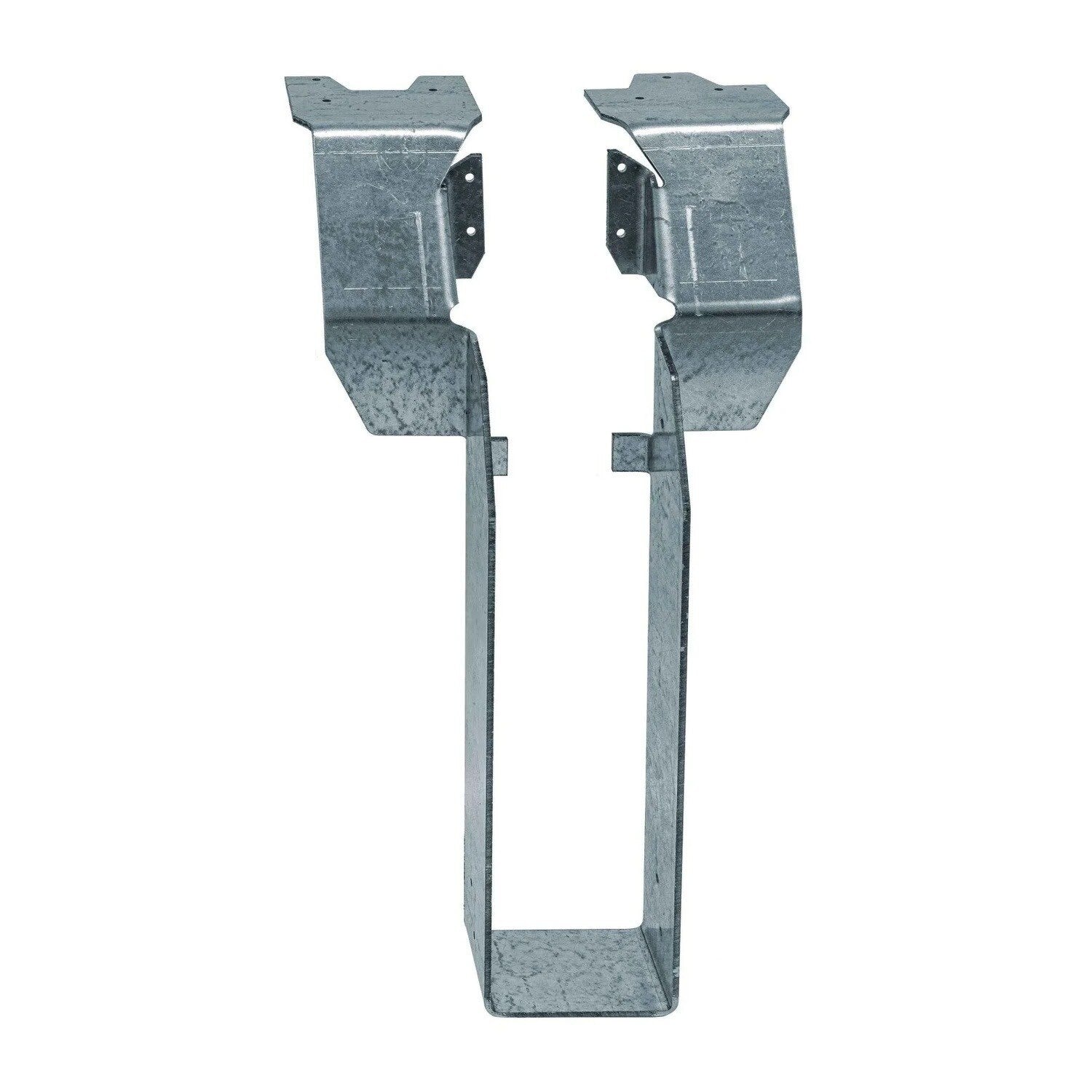

The Simpson DGT3.62/24 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in multifamily and multilevel Type III residential constructions.
Simpson Strong-Tie DGT3.62/24 Includes
- (1) Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGT3.62/24 Features
- Two-hour fire rating for 2x4 or thicker walls

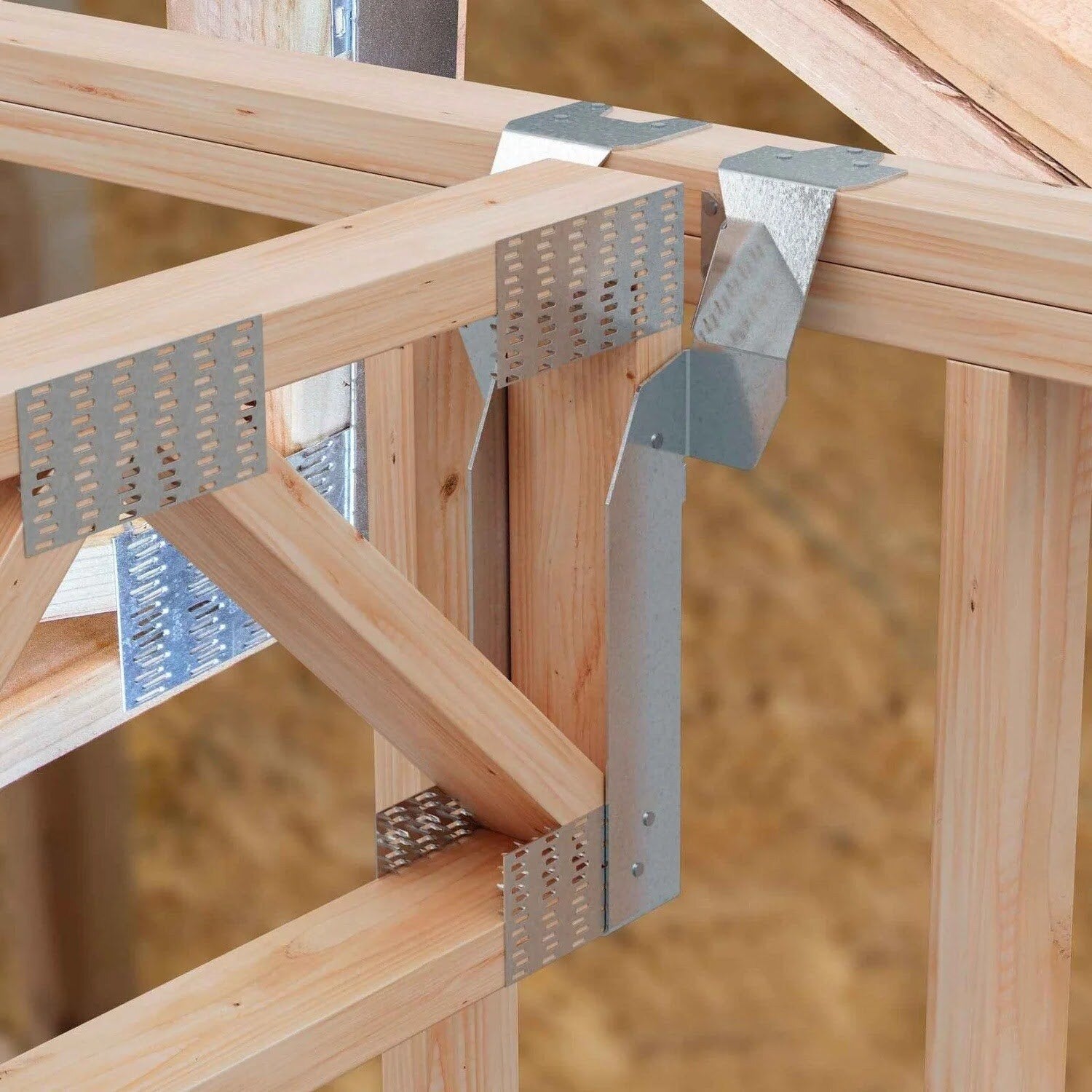

- Innovative top-flange design for back-to-back installation on 2x6 walls

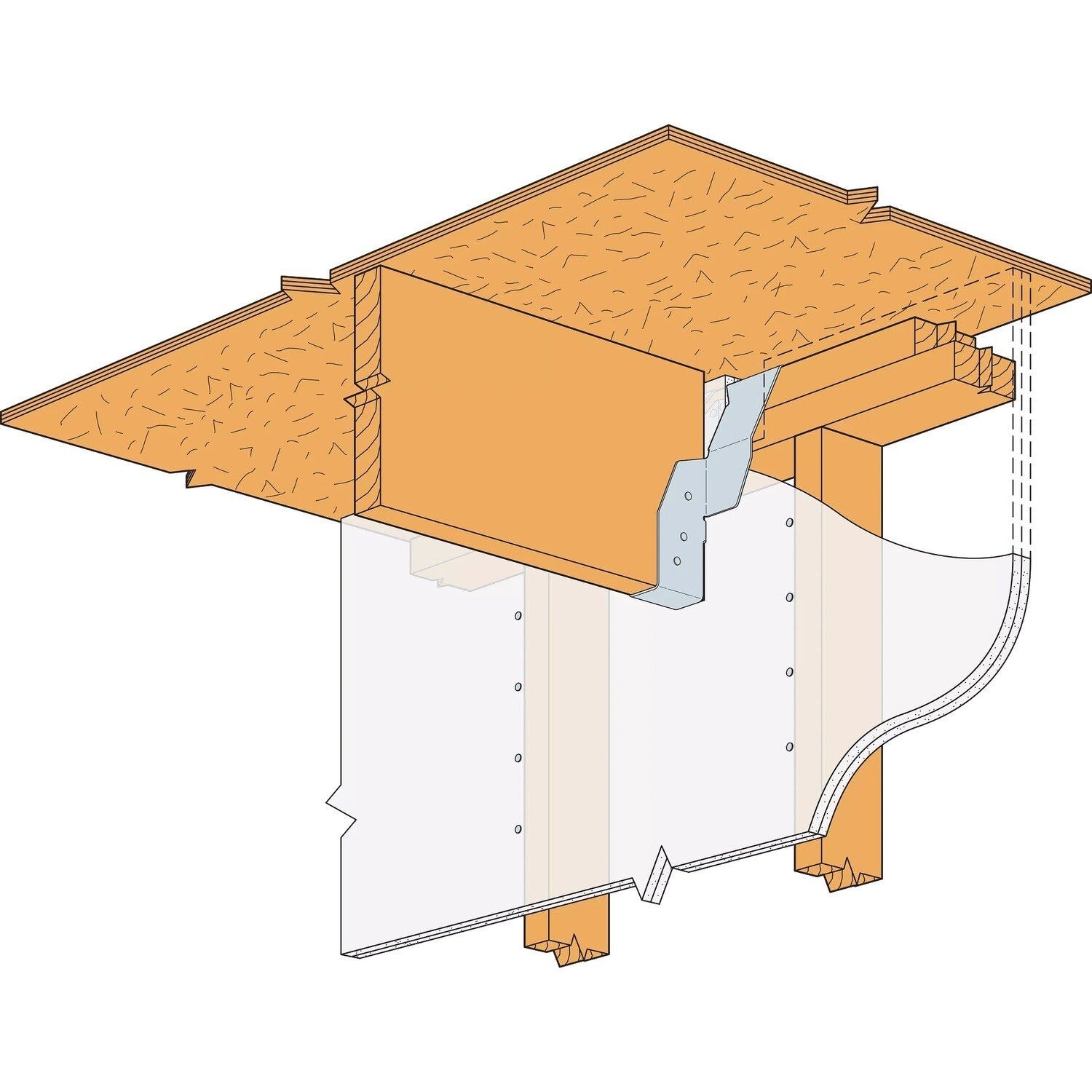

- Space for two layers of 5/8" drywall after framing
- Compatible with power-driven or hand-installed nails
- Made from galvanized steel for durability
Simpson Strong-Tie DGT3.62/24 Applications
- Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
- Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
- Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
- Retrofit Projects: Suitable for upgrading existing structures to meet fire safety standards.
Simpson Strong-Tie DGT3.62/24 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Install the hanger similarly to standard top-flange hangers.
- Ensure stud wall-plate splices occur at stud locations.
- For I-joist applications, web stiffeners are required.
- When attaching to a steel header, weld the hanger using specified fillet welds and secure with joist nails.

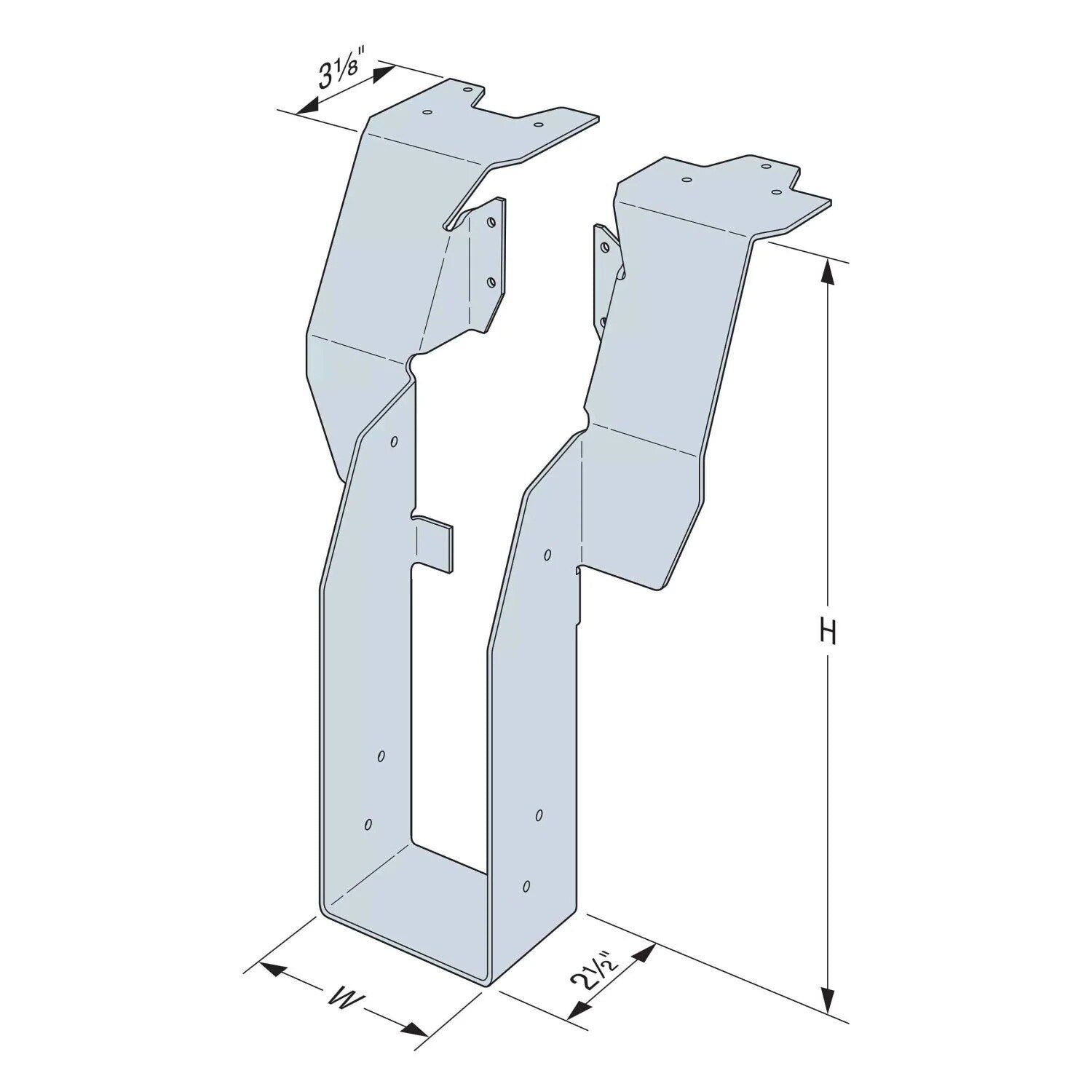

Simpson Strong-Tie DGT3.62/24 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails, FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails, POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 23-15/16" |
| Joist size | 3-1/2" X 24" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 3-5/8" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve the published load values.
