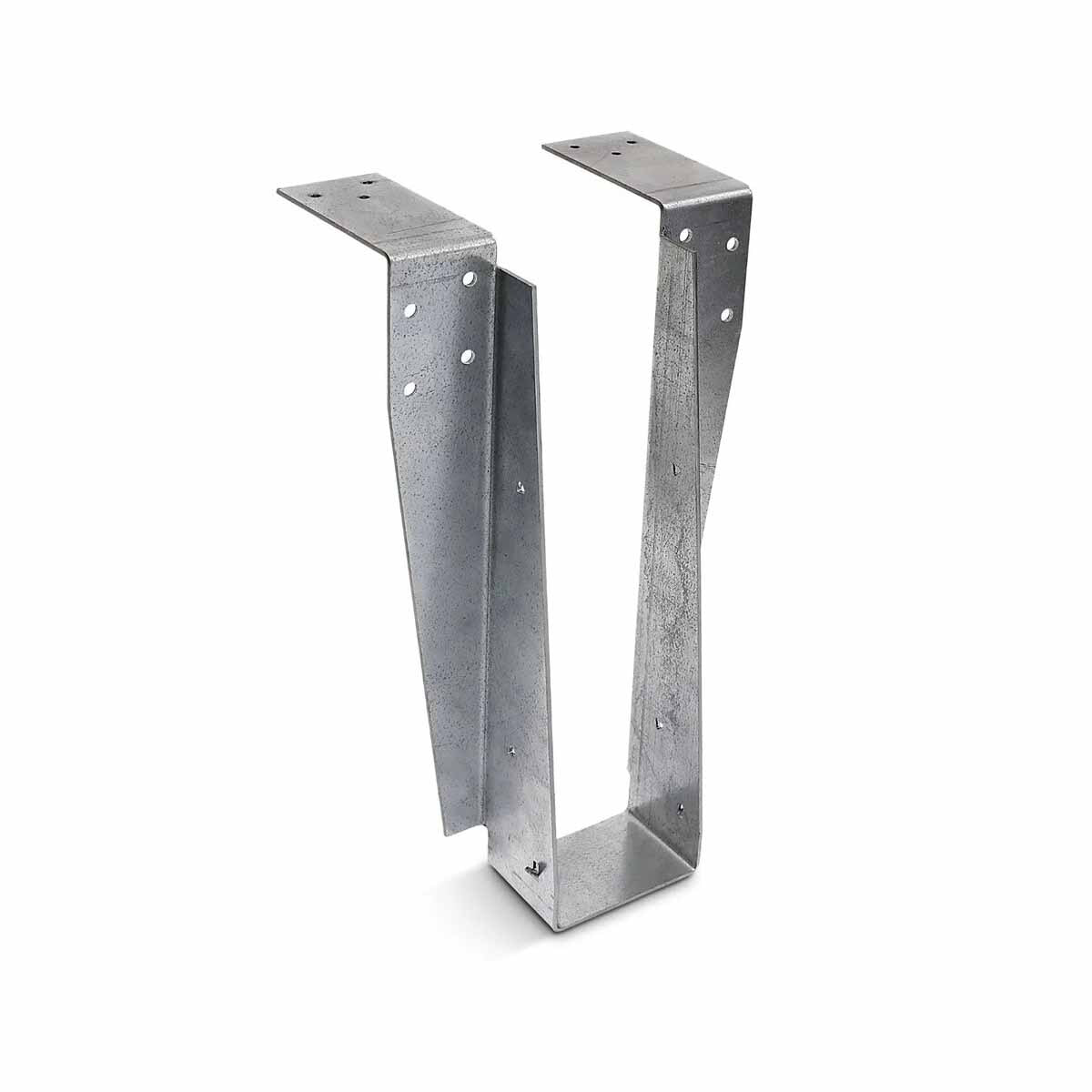

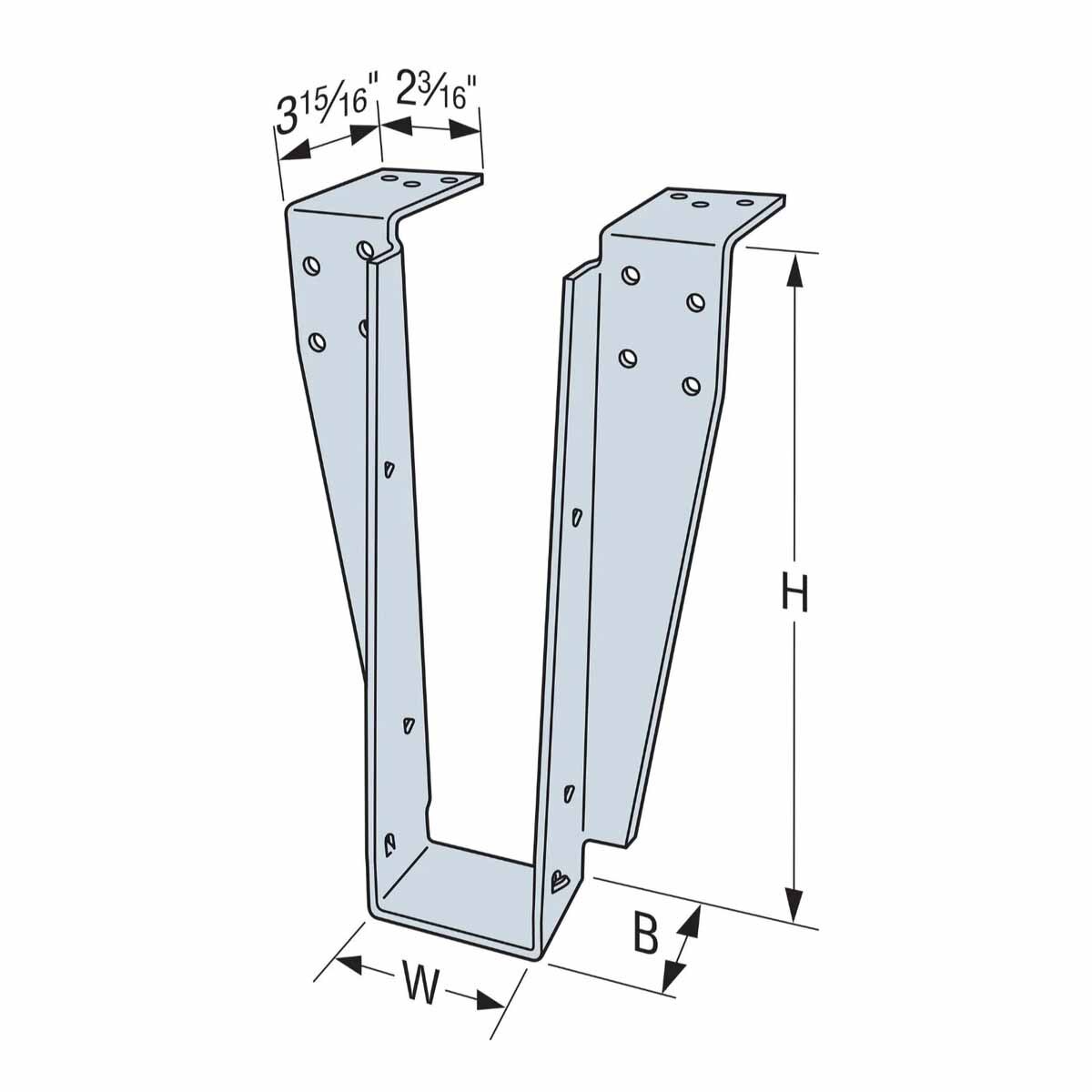

Simpson Strong-Tie DHU2.1/16TF (2" x 16") Top-Flange Drywall Hanger for Engineered Wood with SDS Screws

Simpson Strong-Tie DHU2.1/16TF Features

• Top-flange design preserves fire-rating with 1" member-to-wall gap.
• Compatible with solid sawn lumber and engineered wood members.
• Code compliant with IAPMO ER-287 listed and tested per ASTM D7147.
• Galvanized for corrosion resistance in typical interior environments.
• Available to order skewed up to 45 degrees.
• Tested for two-hour fire wall assembly rating in 2x4 or 2x6 walls.
• Code listed for structural use under ICC-ES ESR-2552.
• Tested according to ASTM E814 with F and T ratings for use on one or both sides of the wall.

Simpson Strong-Tie DHU2.1/16TF Applications

• Multi-Family Construction: Supports floor framing while preserving fire-rated assemblies between units.
• Commercial Wood-Framed Buildings: Enables secure joist or truss connections in fire-separation wall applications.
• Engineered Wood Framing: Compatible with I-joists, LVL, and other engineered members.
• Solid Sawn Applications: Ideal for dimensional lumber in traditional framing systems.

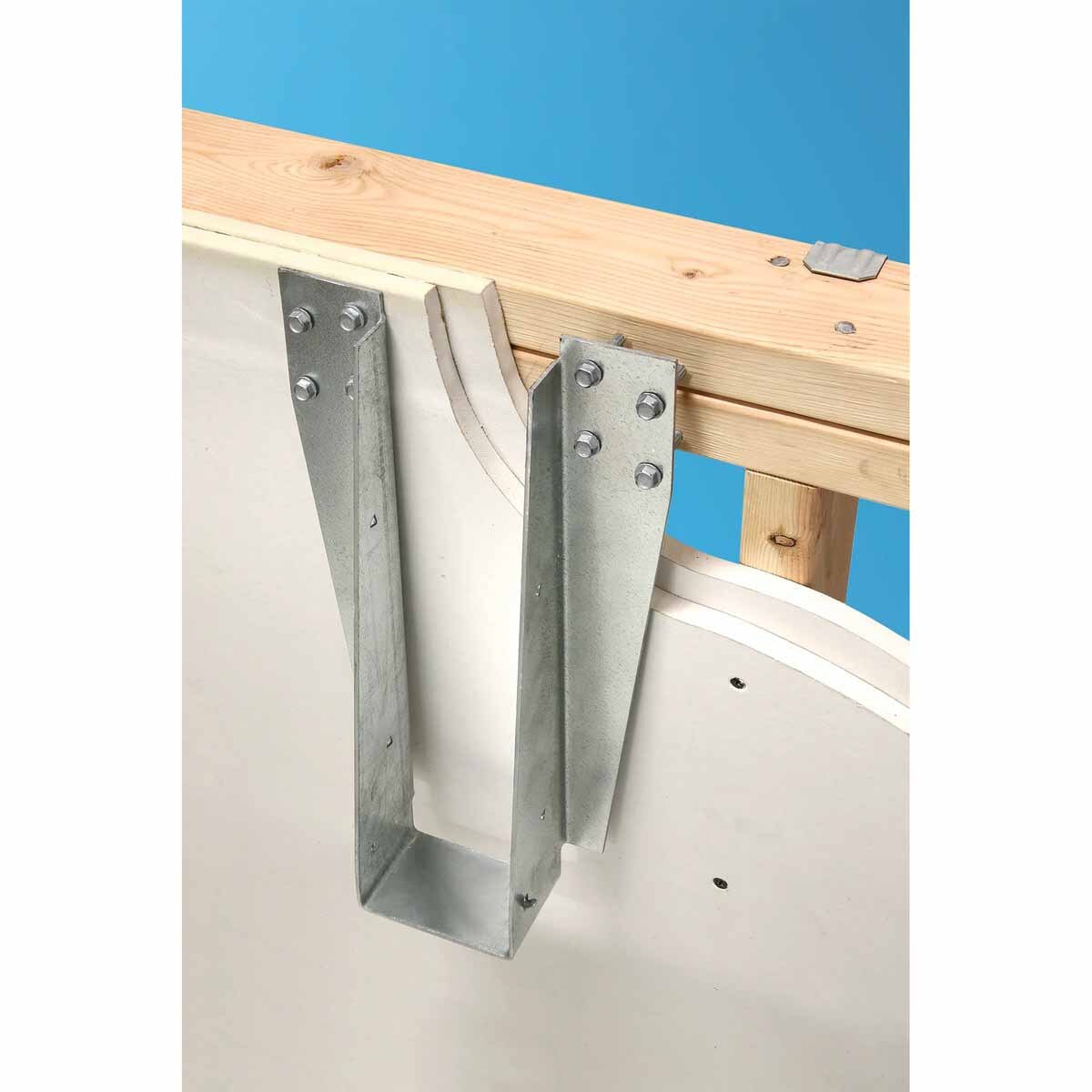

Simpson Strong-Tie DHU2.1/16TF Installation Overview

1. Install drywall first.
2. Use all specified fasteners as per guidelines.

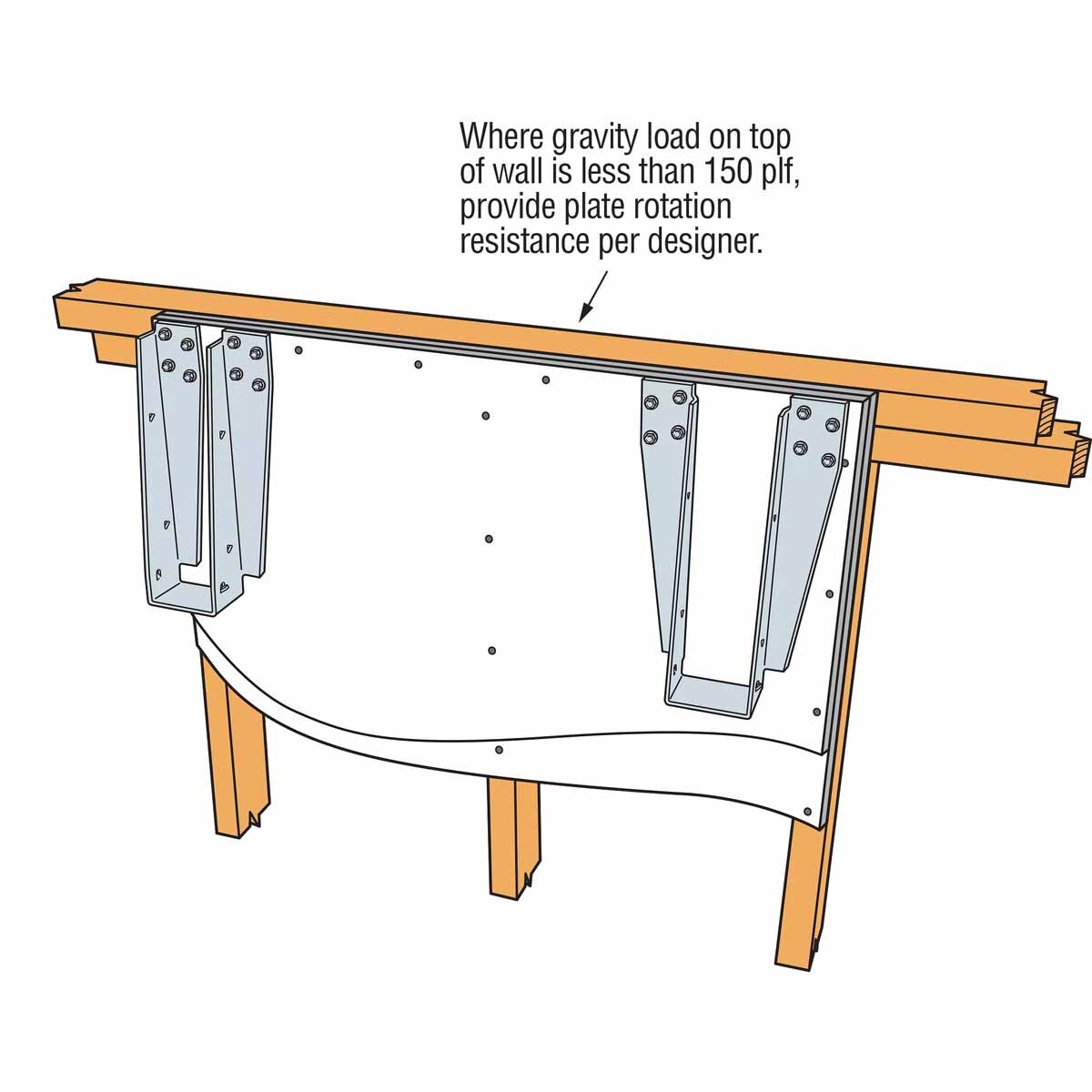

3. Ensure wall top plates are restrained to prevent rotation.
4. Upper plate splices must occur at a stud location.
5. Hanger must be installed on the cold side of the wall assembly.
