Simpson Anchors | SKU:
DHU210

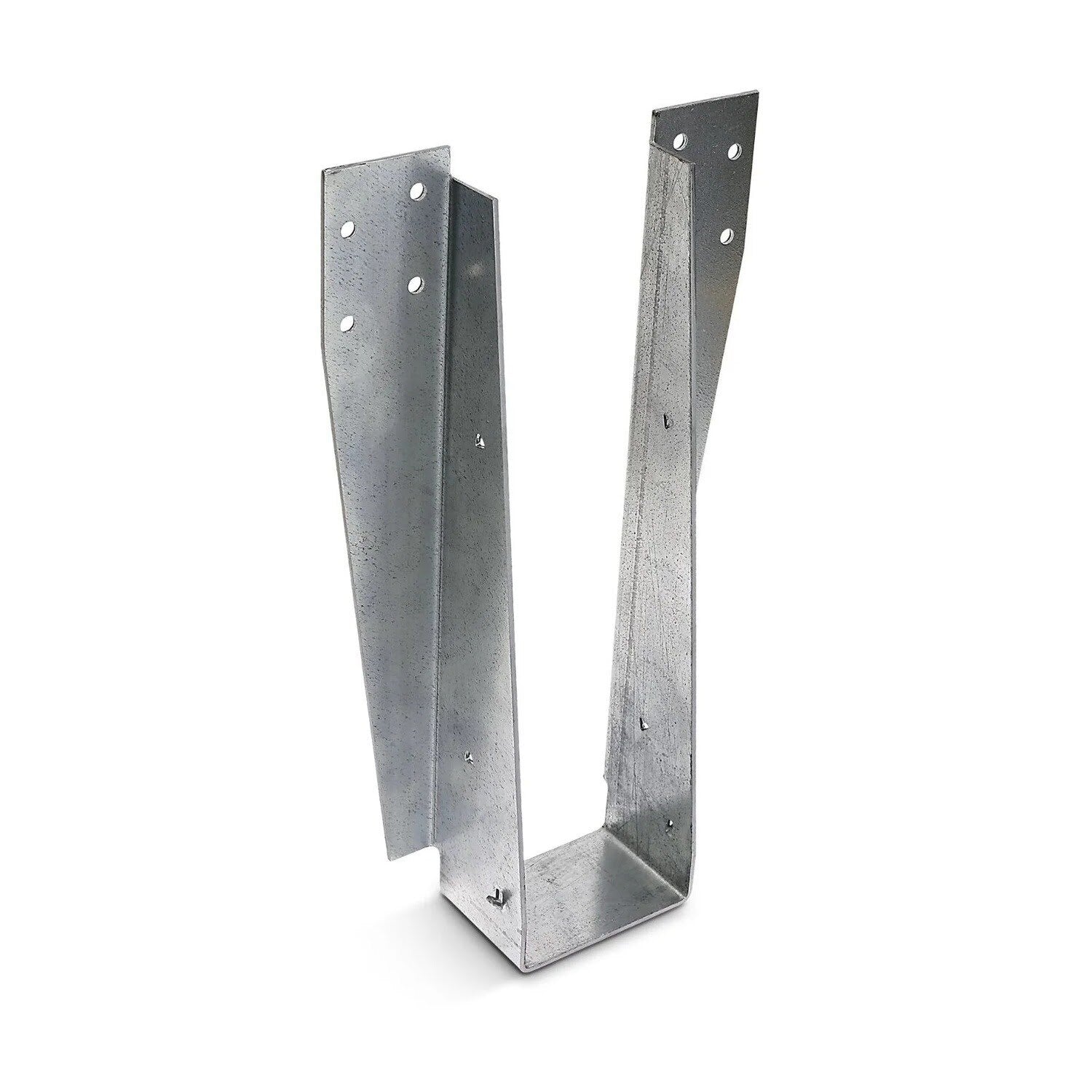

Simpson Strong-Tie DHU210 (2x10) Drywall Face Mount Hanger with SDS Screws - G90 Galvanized
$44.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DHU210 Description
The Simpson Strong-Tie DHU210 Drywall Face Mount Hanger is designed for fire-rated wall assemblies, providing structural support for joist floor loads on wood stud walls with gypsum board.
Simpson Strong-Tie DHU210 Includes
- (1) Drywall Face Mount Hanger
- (8) 1/4" x 3-1/2" SDS25312 Screws
Simpson Strong-Tie DHU210 Features
- Fire-rated performance for two-hour wall assemblies
- Compatible with plated trusses, solid sawn lumber, and engineered wood
- Flexible installation with concealed flanges or skewed up to 45°
Simpson Strong-Tie DHU210 Applications
- Multi-family residential construction for fire-rated assemblies
- Light commercial structures requiring two-hour fire wall designs
- Retrofits and remodels involving fire-rated wall assemblies

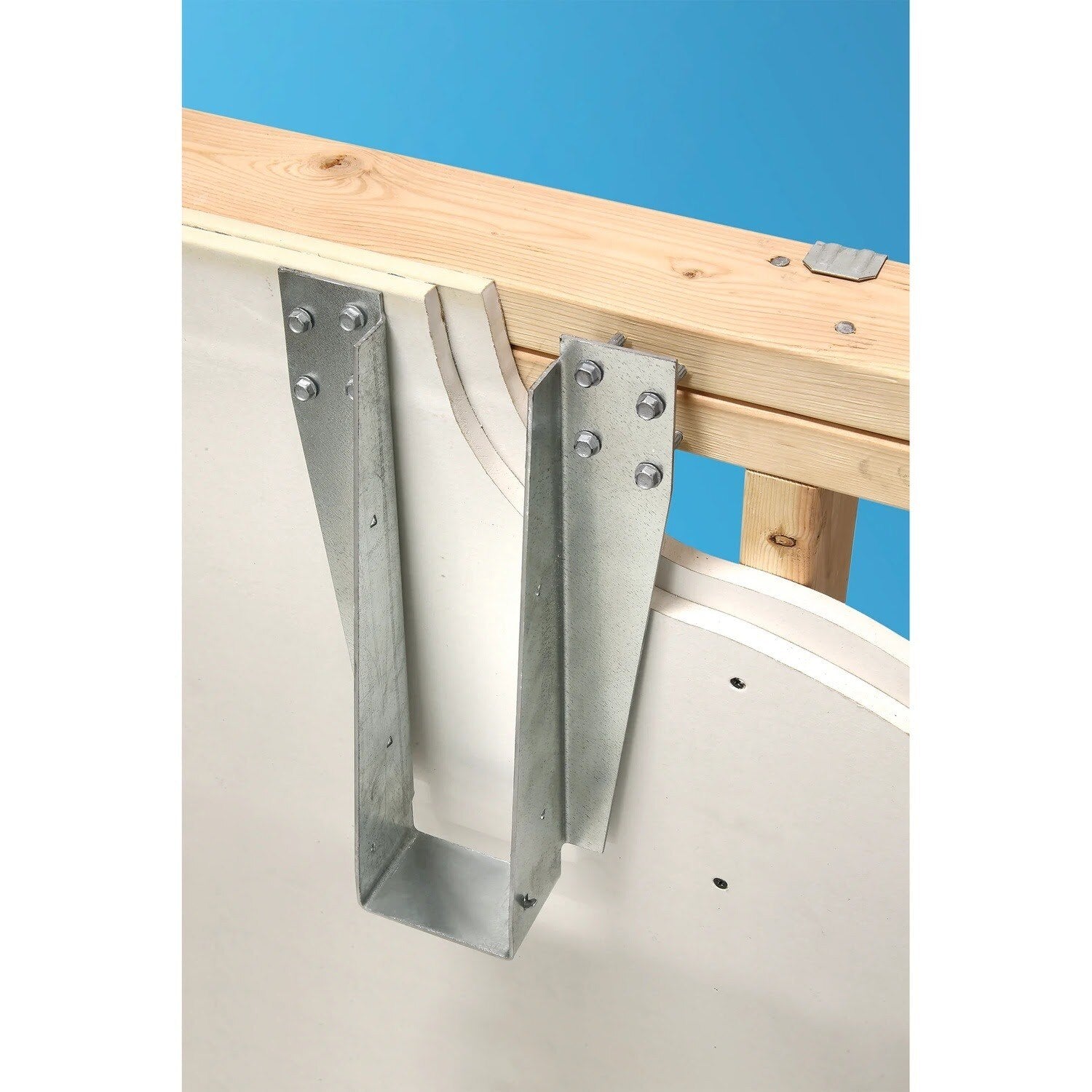

Simpson Strong-Tie DHU210 Installation Overview
- Install hanger after drywall is applied to the wall assembly.
- Fasten using Strong-Drive SDS Heavy-Duty Connector screws as specified.
- Ensure the top of the hanger is flush with the top of the wood wall and tight to the drywall face.
- Restrain wall top plates to resist rotation.
- Position top plate splices over studs for maximum structural performance.

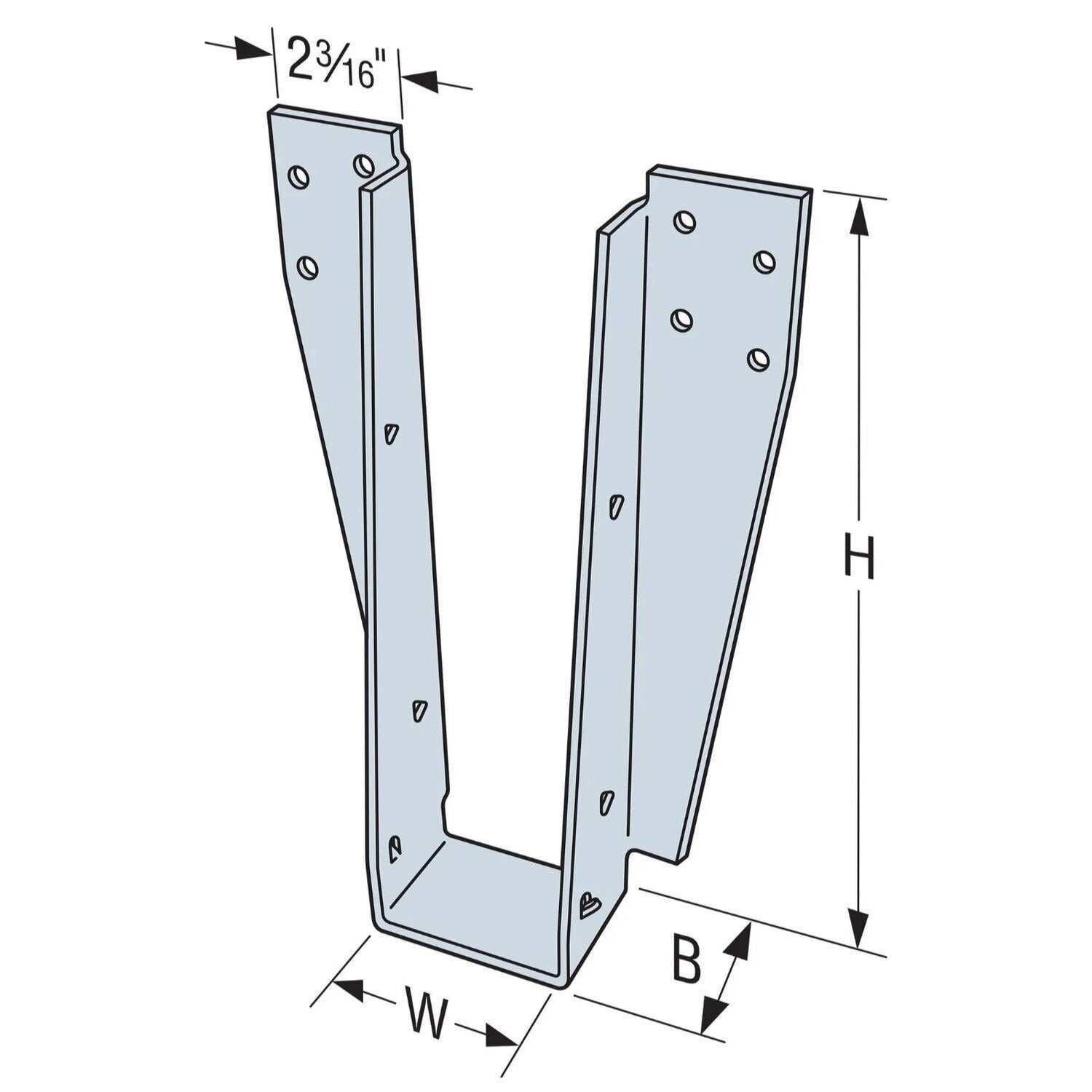

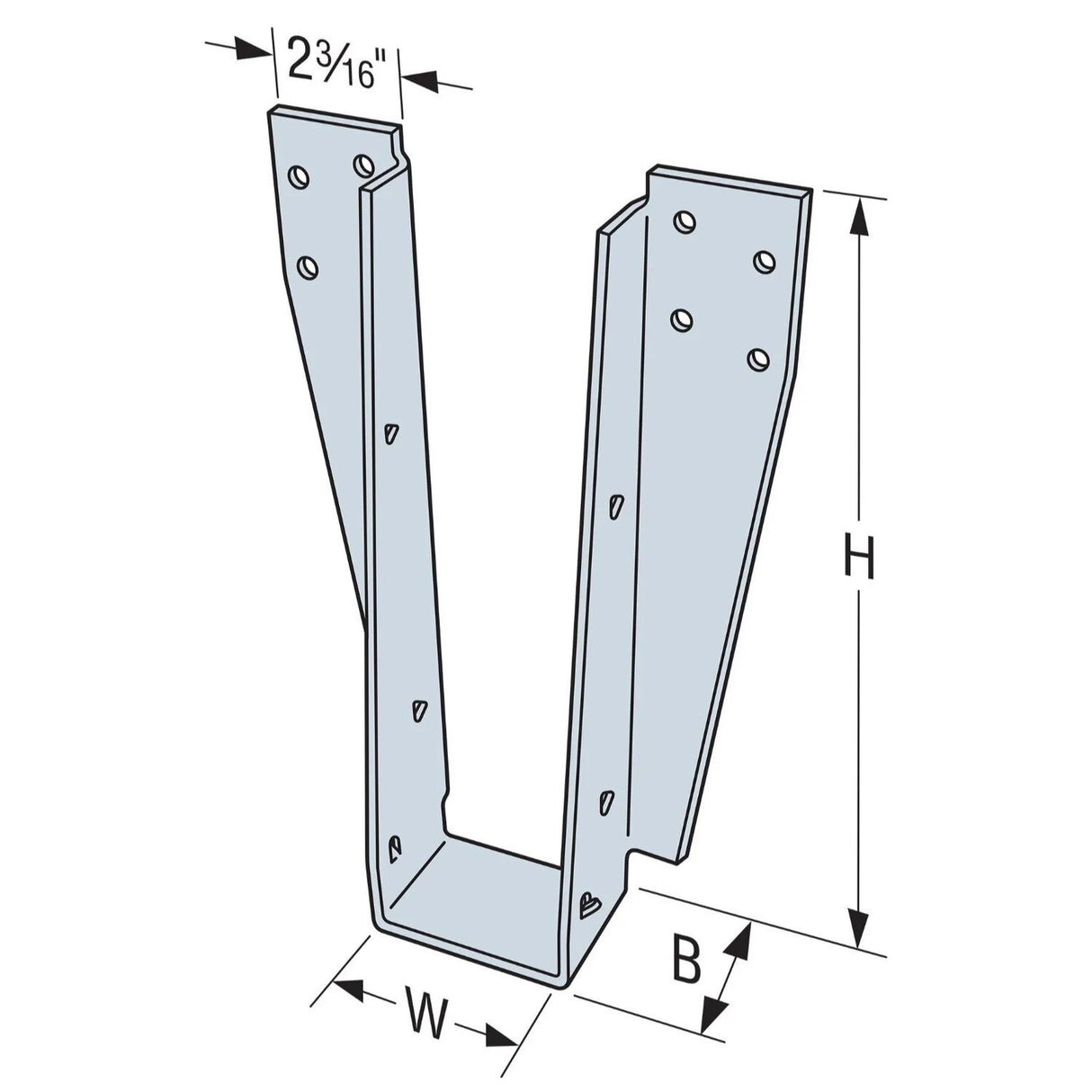

Simpson Strong-Tie DHU210 Specifications
| Finish | G90 Galvanized |
| Fasteners required | Joist - (2) 0.148" x 1-1/2" Nails, Face - (8) 1/4" x 3-1/2" SDS25312 Screws (Included) |
| For Treated Lumber | No |
| Height | 9-1/8" |
| Joist size | 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
| Width | 1-9/16" |

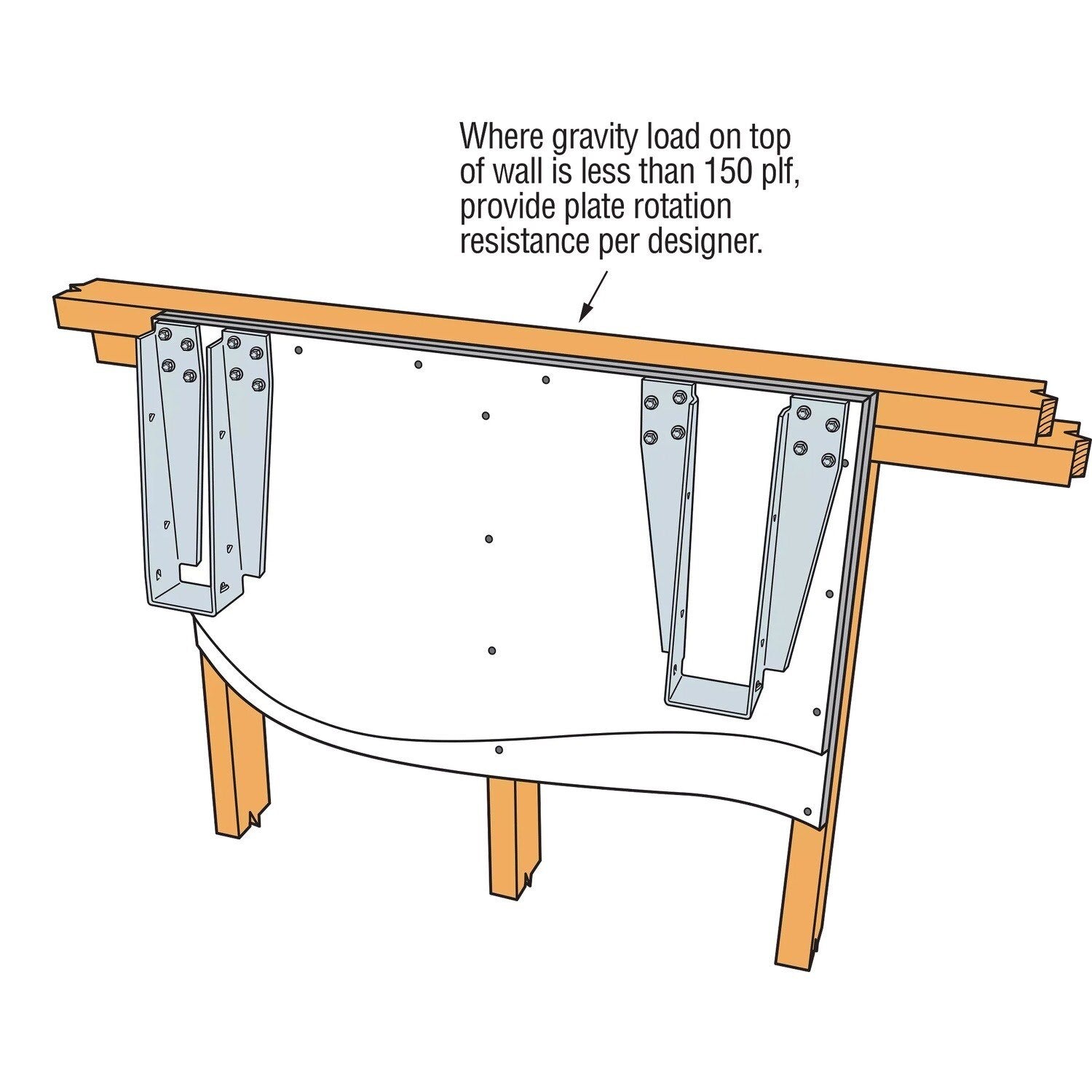

NOTE: Ensure wall top plates are restrained to resist rotation. For gravity loads under 150 plf, use a stud-plate tie connector or equivalent restraint.
