Simpson Anchors | SKU:
DHU212TF
Simpson Strong-Tie DHU212TF Top-Flange Drywall Hanger for 2x12 with SDS Screws - Fire-Rated Joist Connection
$54.82
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DHU212TF Description

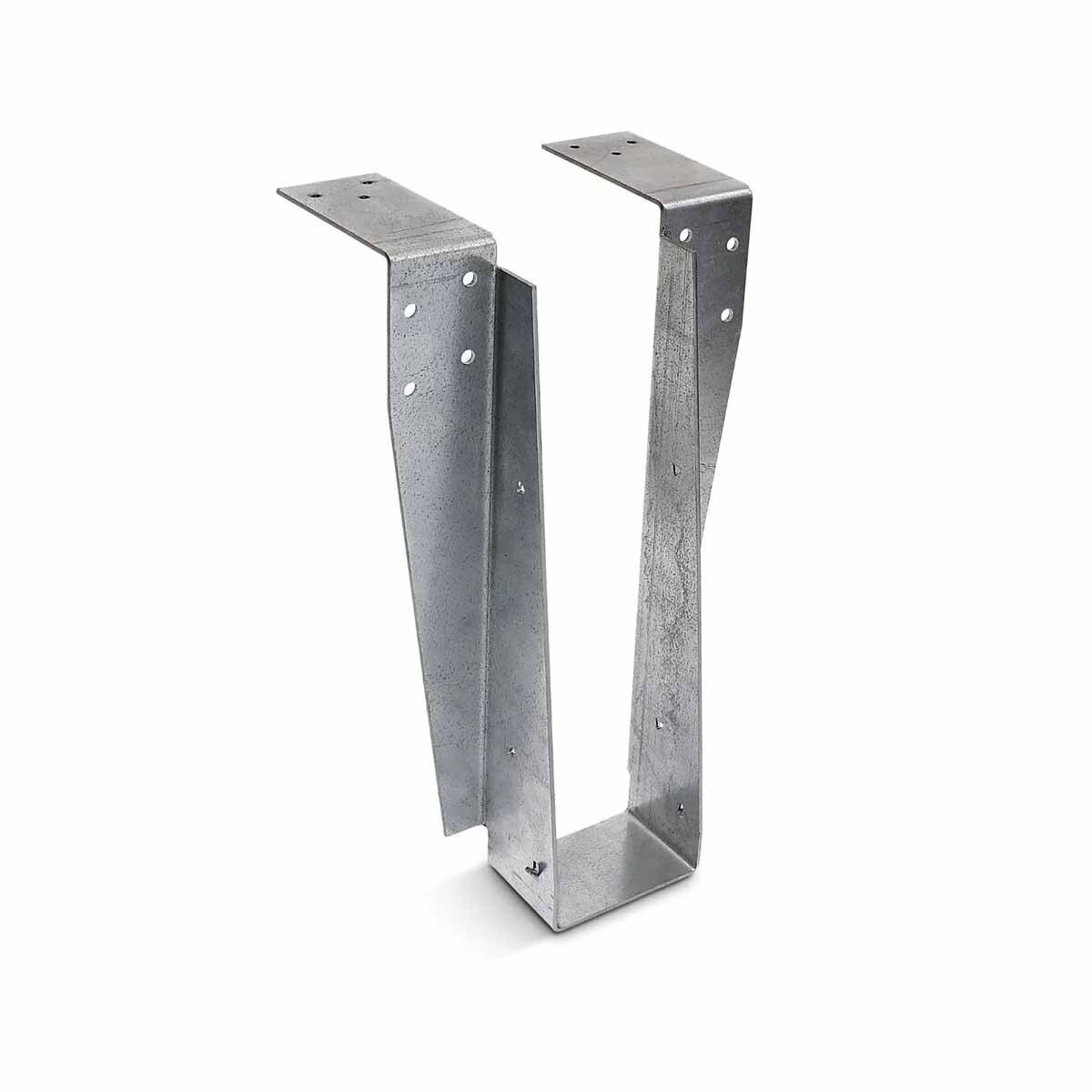

The Simpson Strong-Tie DHU212TF Top-Flange Drywall Hanger is designed for 2x12 joists, providing a fire-rated connection with included SDS screws.
Simpson Strong-Tie DHU212TF Includes
- (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws
- (1) Simpson DHU212TF Drywall Top Flange Hanger
Simpson Strong-Tie DHU212TF Features
- Top-flange design preserves fire-rating with a 1" member-to-wall gap.
- Compatible with solid sawn lumber and engineered wood members.
- IAPMO ER-287 listed and tested per ASTM D7147.
- Galvanized for corrosion resistance in typical interior environments.
- Available to order skewed up to 45°.
Simpson Strong-Tie DHU212TF Applications
- Multi-Family Construction: Supports floor framing while preserving fire-rated assemblies between units.
- Commercial Wood-Framed Buildings: Enables secure joist or truss connections in fire-separation wall applications.
- Engineered Wood Framing: Compatible with I-joists, LVL, and other engineered members.
- Solid Sawn Applications: Ideal for dimensional lumber in traditional framing systems.

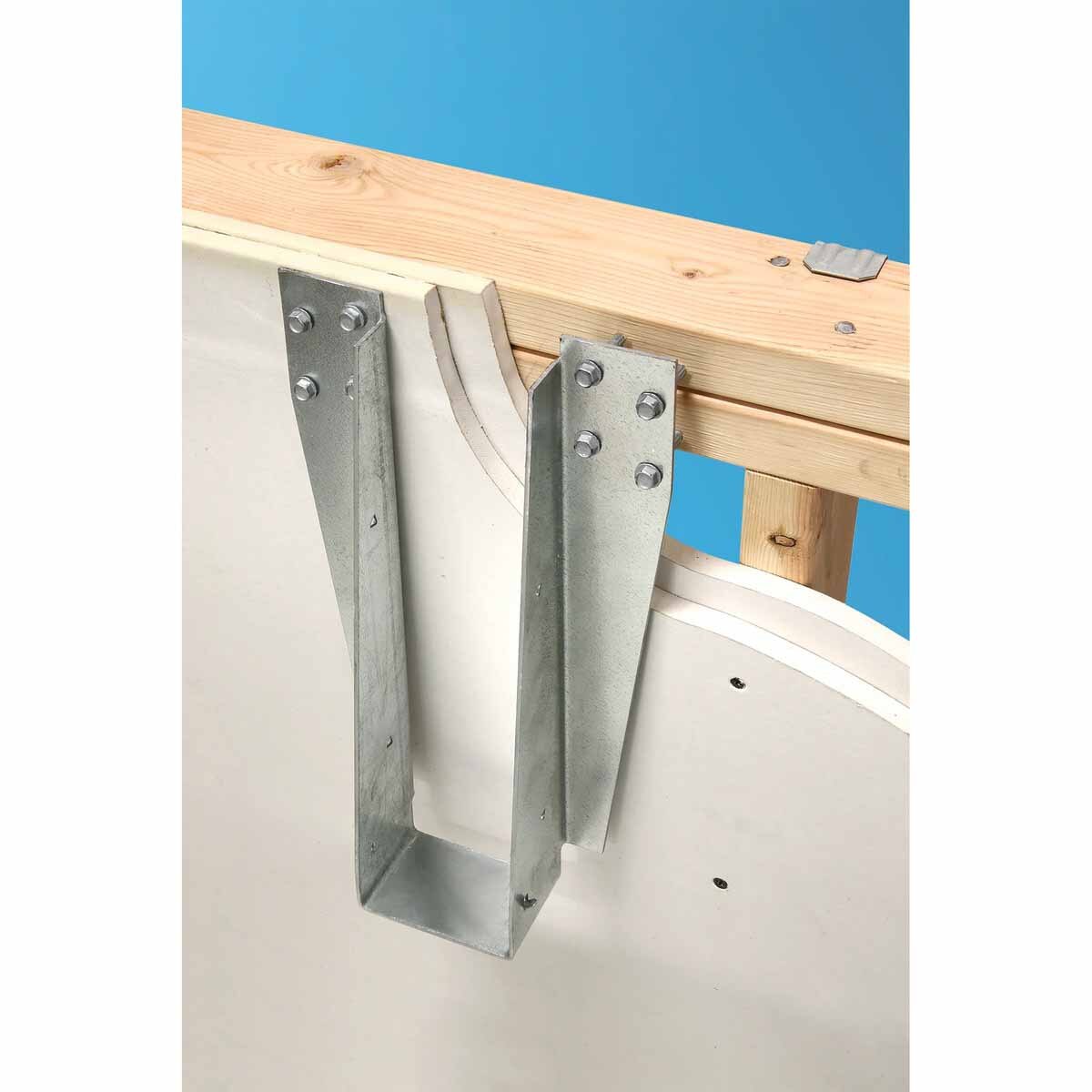

Simpson Strong-Tie DHU212TF Installation Overview
- Use all specified fasteners as per guidelines.
- Install drywall first before attaching the hanger.

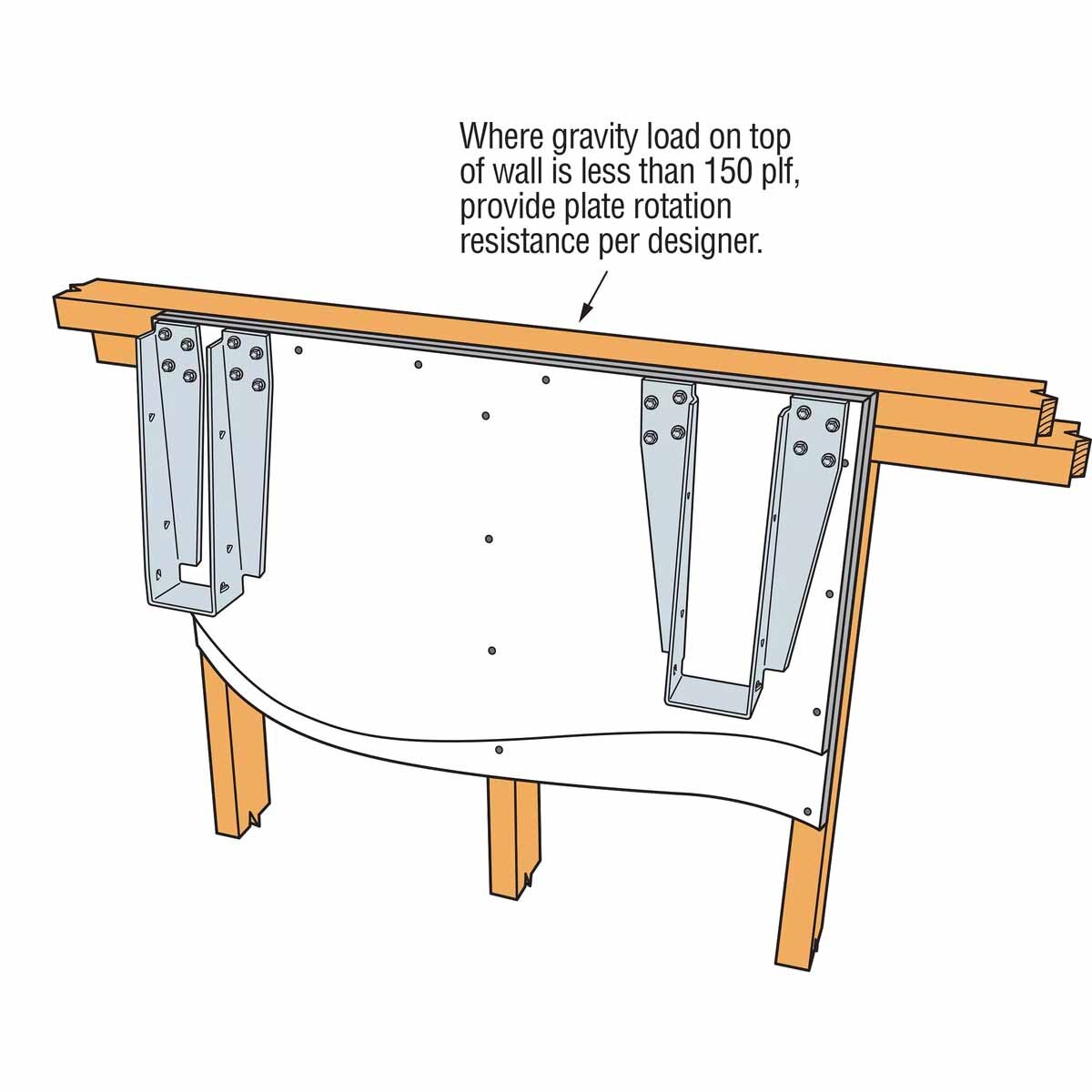

- Ensure wall top plates are restrained to prevent rotation.
- Upper plate splices must occur at a stud location.
- Hanger must be installed on the cold side of the wall assembly.

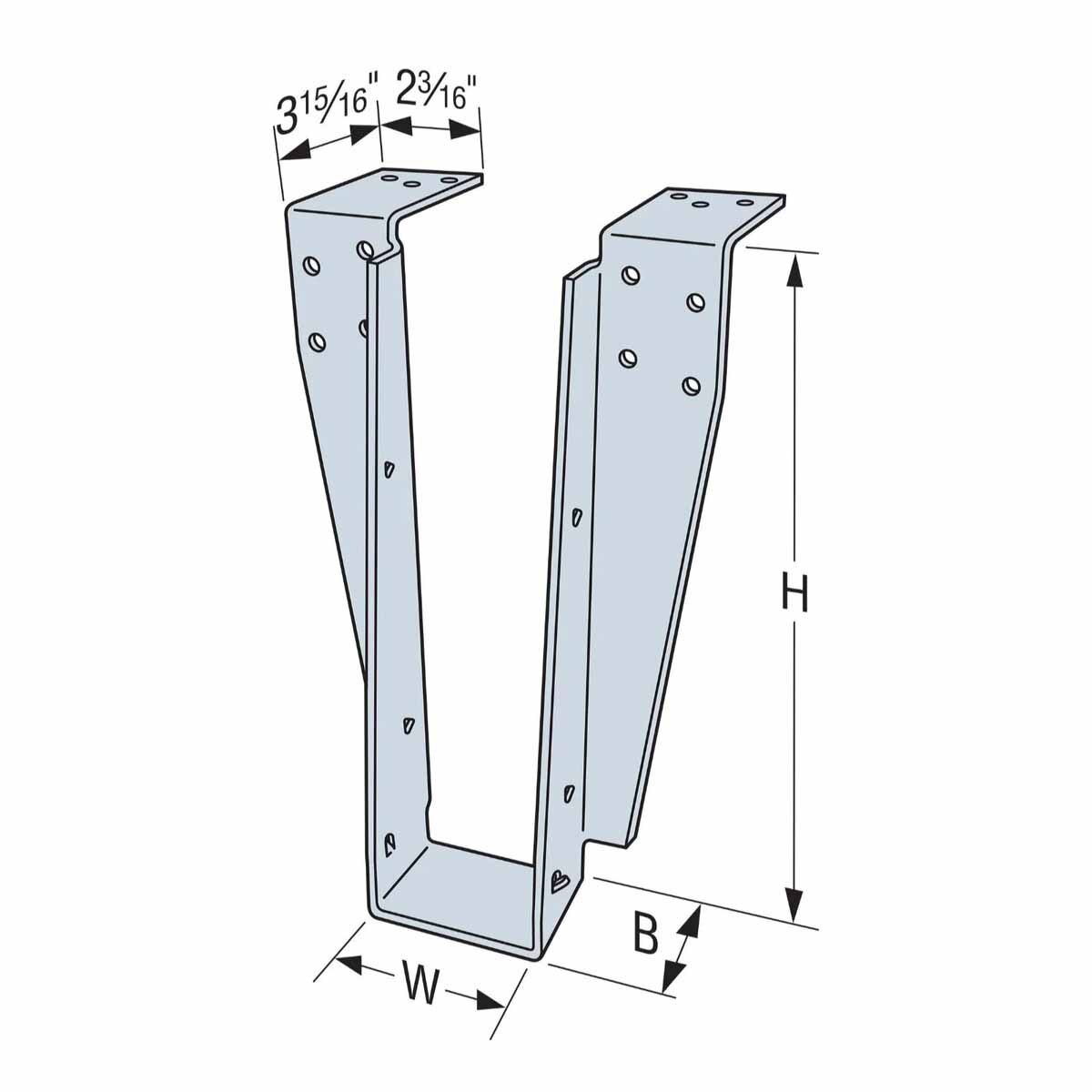

Simpson Strong-Tie DHU212TF Specifications
| Material | 12 Gauge |
| Finish | G90 Galvanized |
| Joist Size | 2x12 |
| Width | 1-9/16" |
| Height | 11-1/8" |
| Fasteners Required | Joist - (2) 0.148" x 1-1/2" Nails, Face - (8) 1/4" x 3-1/2" SDS25312 Screws (Included), Top - (6) 0.148 x 1-1/2" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
