Simpson Anchors | SKU:
DIA37SS

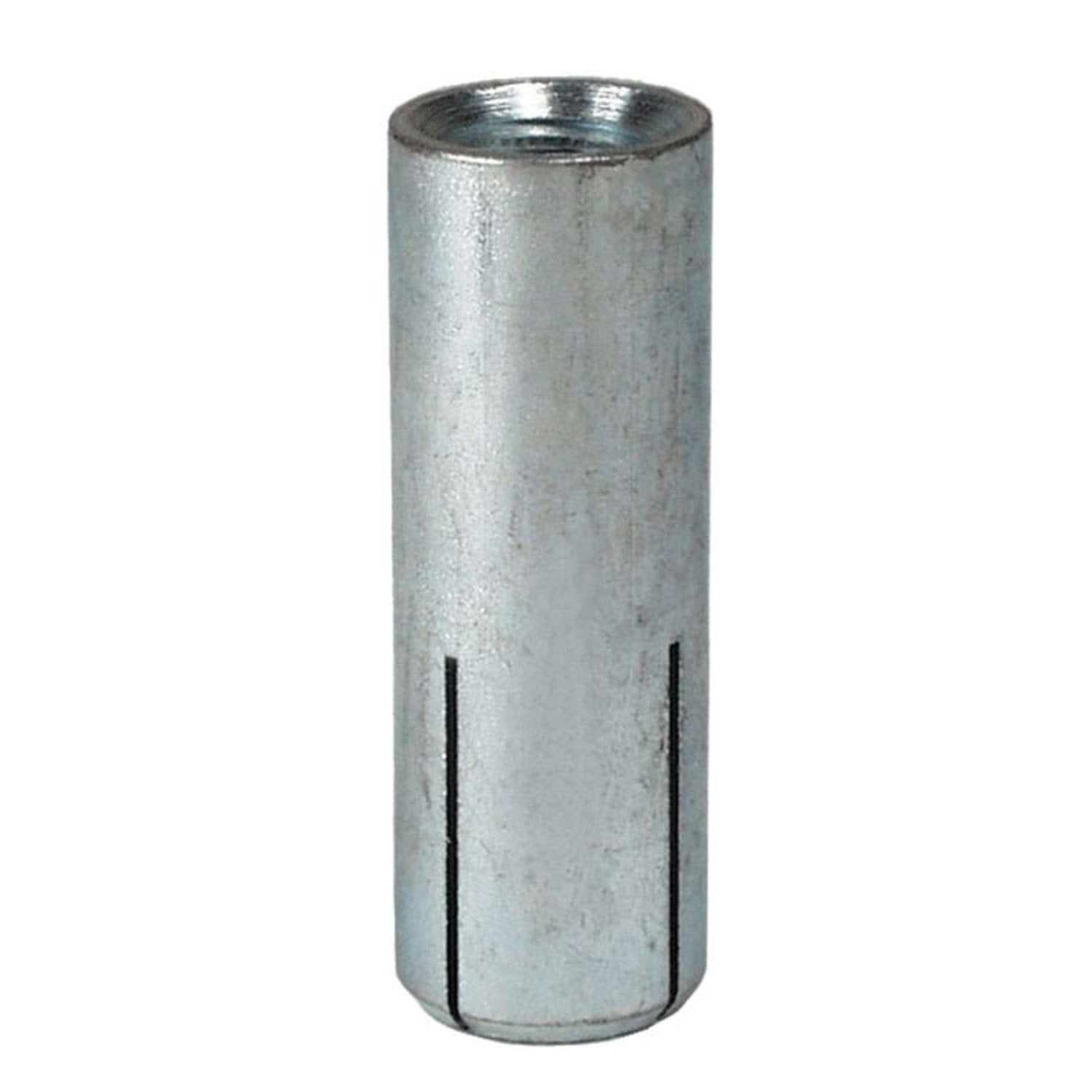

Simpson Strong-Tie DIA37SS (3/8-in) Stainless Steel Drop-In Anchor for Rod (50 Pack)
$168.19
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DIA37SS Description
Simpson Drop-In expansion anchors are internally threaded anchors designed to be used in solid base materials. Made of 303 stainless steel for added corrosion resistance.
Simpson Strong-Tie DIA37SS Includes
- (50) Stainless Steel Drop-In Anchor for 3/8-in Rod
Simpson Strong-Tie DIA37SS Features
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Simpson Strong-Tie DIA37SS Applications
- Concrete Block — Grouted
Simpson Strong-Tie DIA37SS Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
- Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIA37SS Specifications
| Material | 303 Stainless Steel |
| Length | 1-1/2" |
| Accepts rod size | 3/8" |
| Drill bit size | 1/2" |
| Thread length | 5/8" |
| Type | Straight |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
