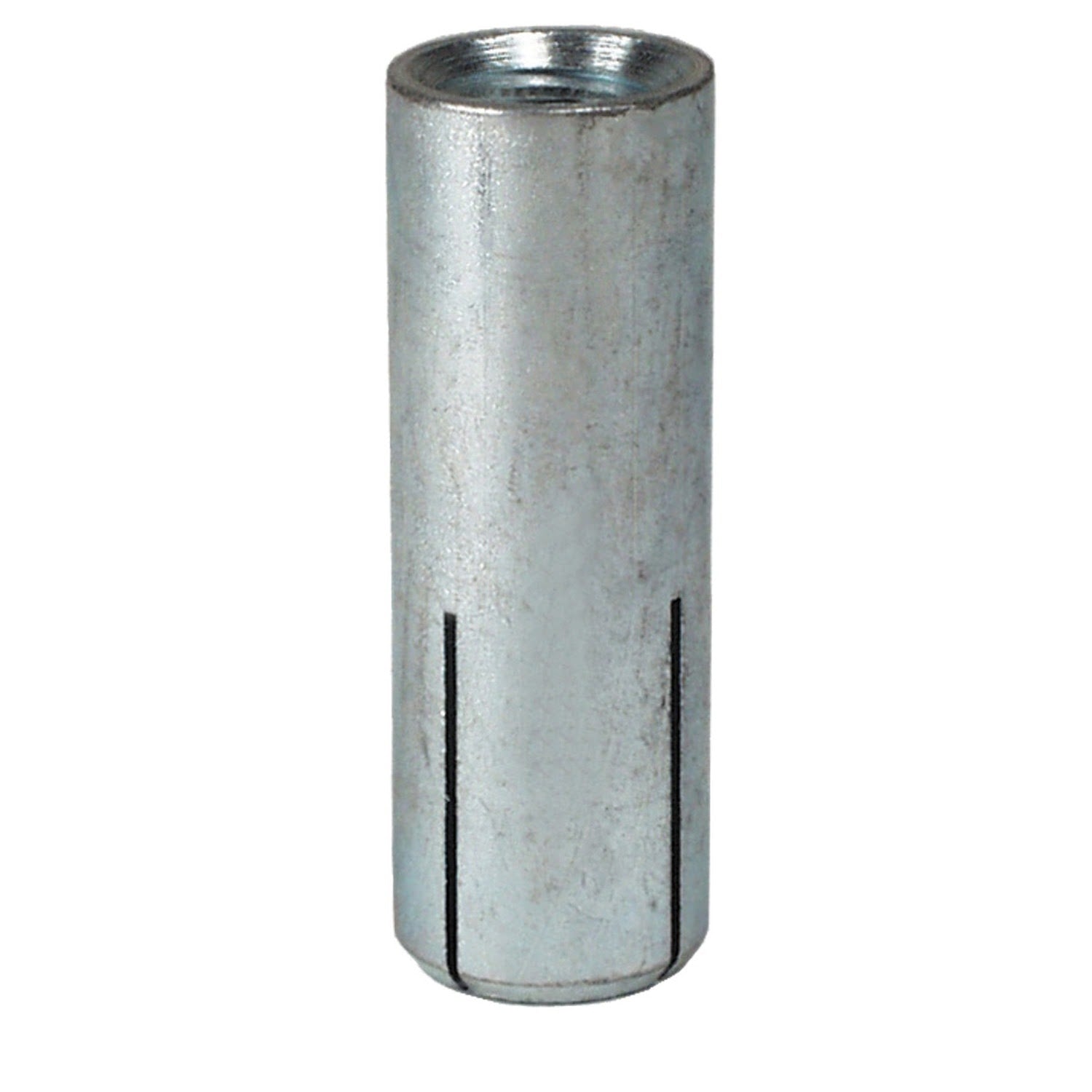

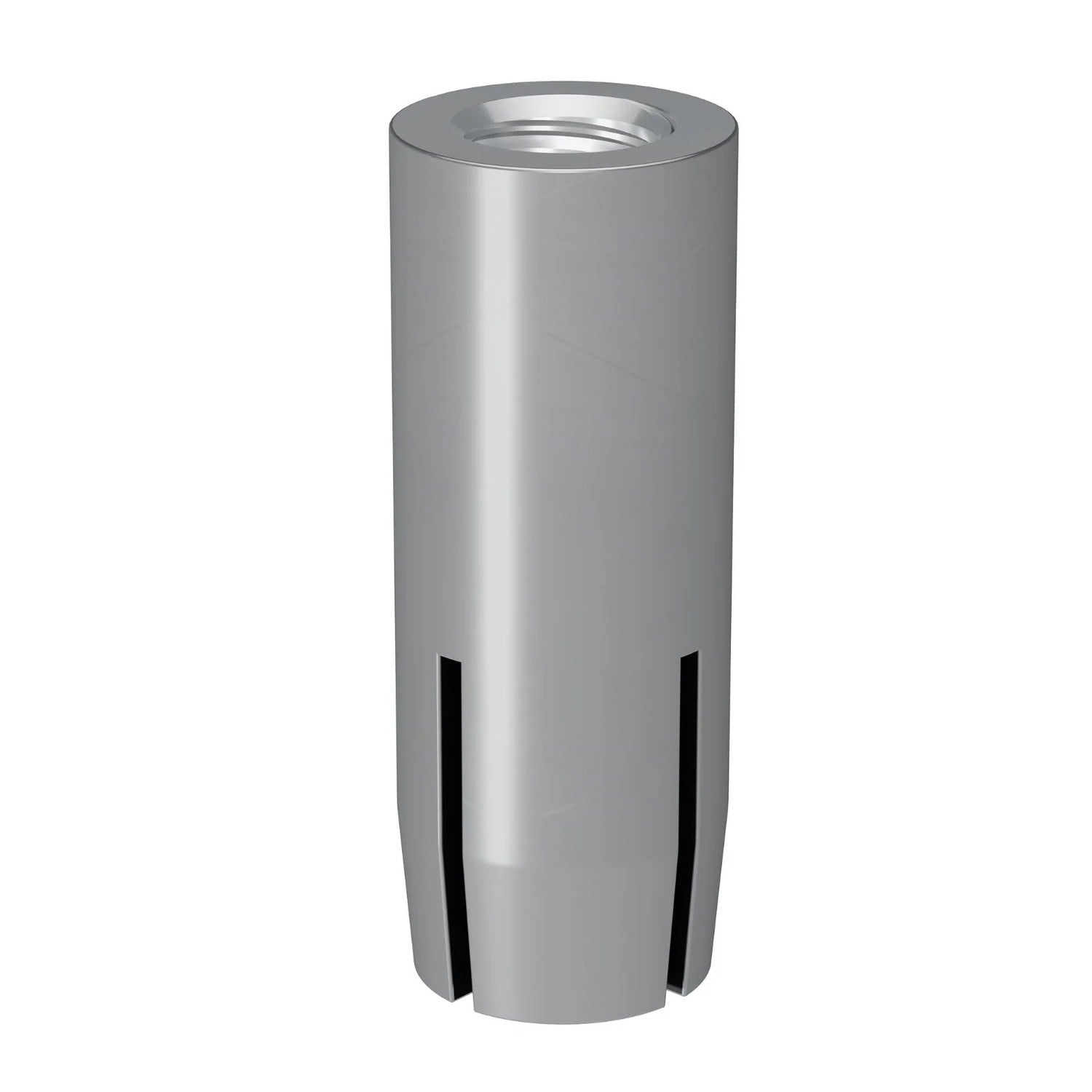

Simpson Strong-Tie DIA50SS (1/2-in.) Stainless Steel Drop-In Anchor for Rod (50 Pack)
Free Shipping
$294.29
$311.46
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DIA50SS Description
Simpson Drop-In expansion anchors are internally threaded anchors designed to be used in solid base materials. These anchors are made of 303 stainless steel for added corrosion resistance.
Simpson Strong-Tie DIA50SS Includes
- (50) Drop-In Anchor
Simpson Strong-Tie DIA50SS Features
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
Simpson Strong-Tie DIA50SS Applications
- Concrete Block — Grouted
Simpson Strong-Tie DIA50SS Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8" for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
- Insert designated anchor into hole. Tap with hammer until flush against surface.
- Using the designated drop-in setting tool, drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
- Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIA50SS Specifications
| Material | Stainless steel |
| Length | 2" |
| Accepts rod size | 1/2" |
| Drill bit size | 5/8" |
| Thread length | 3/4" |
| Type | Straight |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
