Simpson Anchors | SKU:
DIA62SS

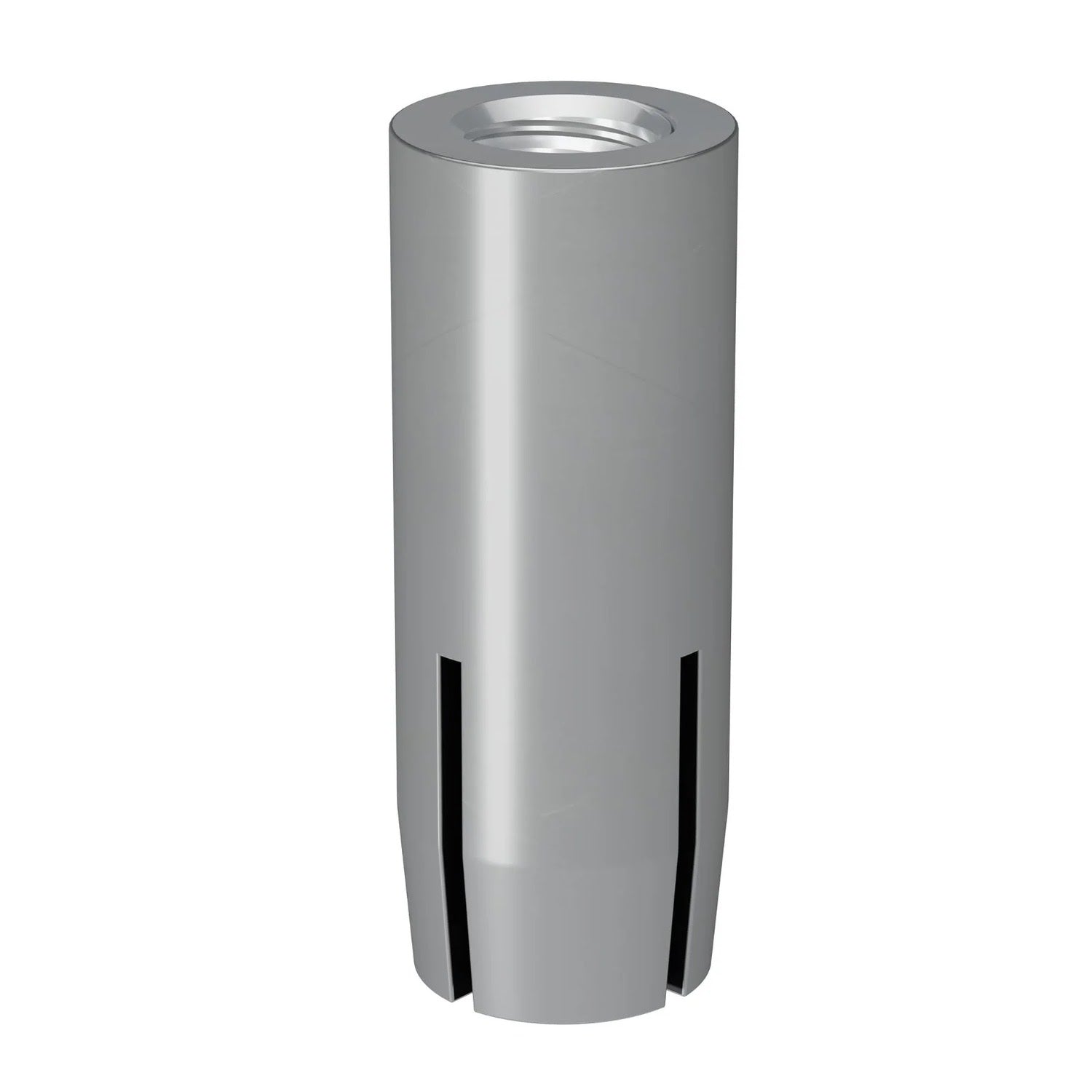

Simpson Strong-Tie DIA62SS (5/8-in) Stainless Steel Drop-In Anchor for Rod (25 Pack)
Free Shipping
$351.06
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie DIA62SS Description
Simpson Drop-In expansion anchors are internally threaded anchors designed to be used in solid base materials. These anchors are made of 303 stainless steel for added corrosion resistance.
Simpson Strong-Tie DIA62SS Includes
- (25) Stainless Steel Drop-In Anchor
Simpson Strong-Tie DIA62SS Features
- Made of 303 stainless steel for corrosion resistance
- Internally threaded for secure fastening
- Designed for use in solid base materials
- Hand- and power-setting tools available for fast installation
- Fixed-depth stop bit ensures correct drilling depth
Simpson Strong-Tie DIA62SS Applications
- Concrete Block — Grouted: Suitable for secure anchoring in grouted concrete blocks
Simpson Strong-Tie DIA62SS Installation Overview
- Drill a hole in the base material using the specified diameter carbide drill bit.
- Blow the hole clean using compressed air.
- Insert the anchor into the hole and tap with a hammer until flush.
- Use the designated drop-in setting tool to drive the expander plug.
- Ensure minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson Strong-Tie DIA62SS Specifications
| Material | 303 Stainless Steel |
| Length | 2-1/2" |
| Accepts Rod Size | 5/8" |
| Drill Bit Size | 7/8" |
| Thread Length | 1" |
| Type | Straight |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
