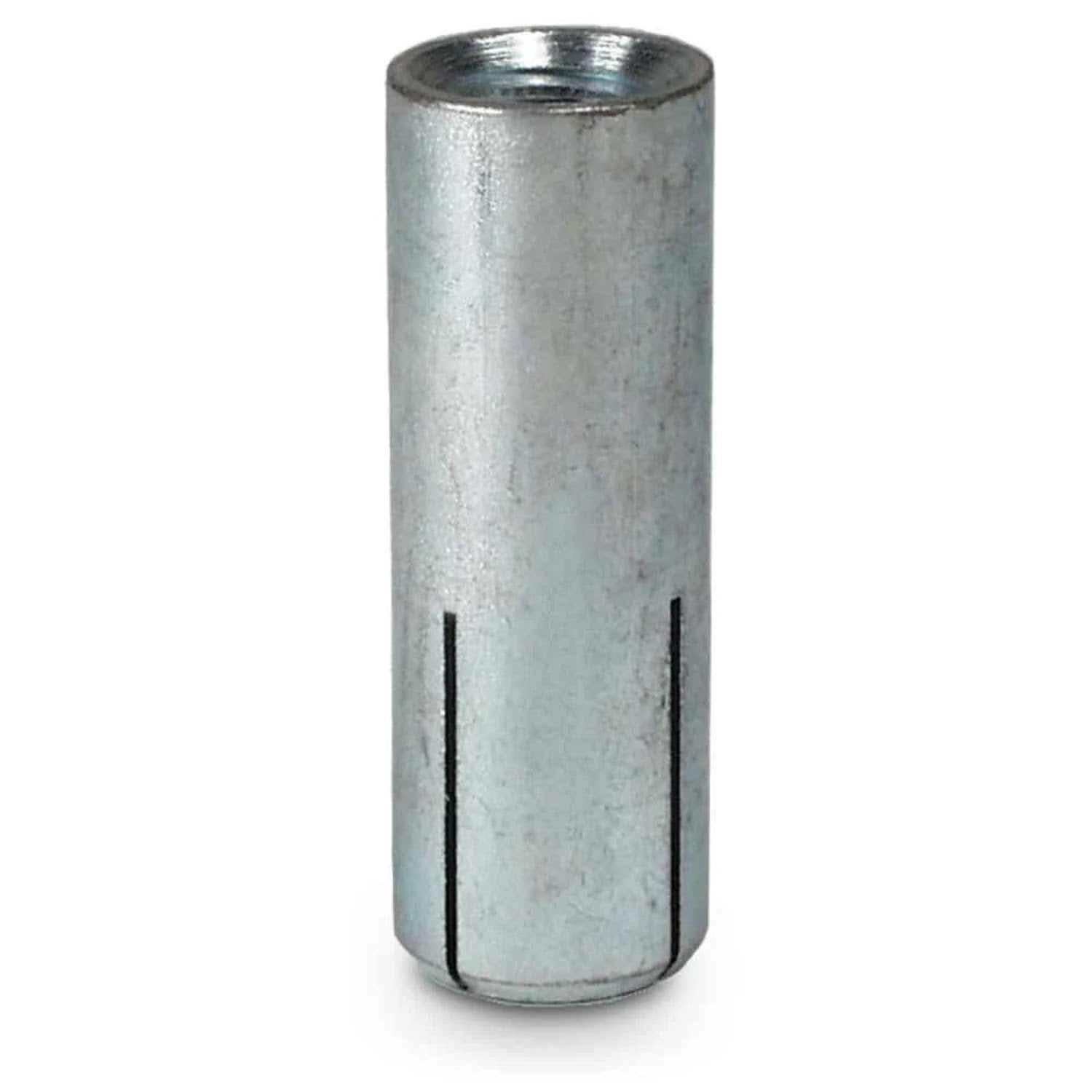

Simpson Strong-Tie DIAB37 Drop-In Internally Threaded Anchor for 3/8-in. Rod (50 Pack)
$14.24
Unit price
/
Unavailable
Description
Description
Simpson DIAB37 Description
The Simpson DIAB37 Drop-In Internally Threaded Anchor is designed for secure installation into base materials, featuring a zinc-plated finish and a positive-set marking system for proper setting.
Simpson DIAB37 Includes
- (50) Drop-In Internally Threaded Anchor for 3/8-in. Rod
Simpson DIAB37 Features
- Positive-set marking system indicates when anchor is properly set
- Lipped drop-in version available for flush installation
- Hand- and power-setting tools available for fast, easy and economical installation
- Fixed-depth stop bit helps you drill to the correct depth every time
- Available in coil-thread version for 1/2" and 3/4" coil-thread rod
Simpson DIAB37 Applications
- Mechanical installations requiring secure anchoring
- Electrical setups needing reliable threaded anchors
- Plumbing systems requiring durable anchor points
Simpson DIAB37 Installation Overview
- Drill a hole in the base material using the appropriate diameter carbide drill bit or fixed-depth bit.
- Insert the anchor into the hole and tap with a hammer until flush against the surface.
- Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor until properly set.
- Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
Simpson DIAB37 Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Length | 1-9/16" |
| Accepts rod size | 3/8" |
| Drill bit size | 1/2" |
| Thread length | 5/8" |
NOTE: Oversized holes will reduce the anchor's load capacity.
