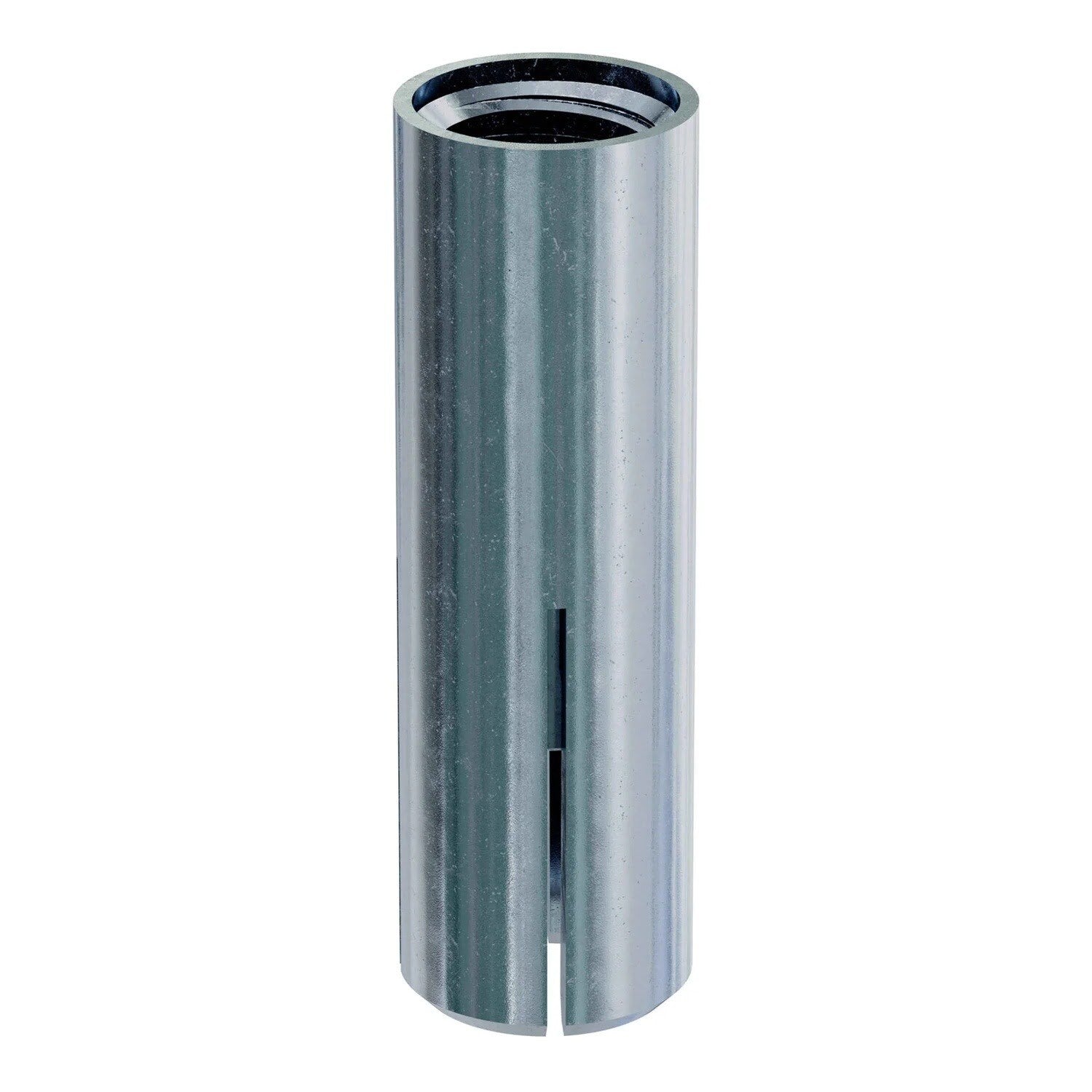

Simpson Strong-Tie DIAB50C (1/2") Drop-In Internally Threaded Coil-Thread Anchor Zinc Plated (50 Pack)

Simpson DIAB50C Features

• Positive-set marking system indicates when anchor is properly set
• Lipped drop-in version available for flush installation
• Hand- and power-setting tools available for fast, easy and economical installation
• Fixed-depth stop bit helps you drill to the correct depth every time
• Available in coil-thread version for 1/2" and 3/4" coil-thread rod

Simpson DIAB50C Applications

• Mechanical applications requiring secure anchoring
• Electrical installations needing reliable anchor points
• Plumbing setups requiring durable and corrosion-resistant anchors

Simpson DIAB50C Installation Overview

1. Drill a hole in the base material using the appropriate diameter carbide drill bit or fixed-depth bit as specified.
2. Insert the anchor into the hole and tap with a hammer until flush against the surface.
3. Using the designated Drop-In setting tool, drive the expander plug towards the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor.
4. Insert bolt or threaded rod ensuring minimum thread engagement equal to the nominal diameter of the threaded insert.
